Step-by-Step Smoke Detector Installation Guide with Wiring Diagram

Begin by identifying the power source–most residential systems require a 120V AC circuit with a dedicated breaker. If integrating with a security panel, verify compatibility; standard hardwired units often use a 4-wire configuration: hot (black), neutral (white), interconnect (red or yellow), and ground (green). Use 14-gauge or thicker copper wiring for connections to prevent voltage drop over long runs.

Mount the control module near the ceiling, at least 10 feet from HVAC vents to avoid false triggers. Follow NFPA 72 guidelines for spacing–typically one unit per 2,000 square feet of open area, with additional detectors outside sleeping zones. Avoid placing them closer than 3 feet from corners where airflow is stagnant.

For interconnected systems, strip ½ inch of insulation from each wire and twist the bare ends firmly. Secure connections with UL-listed wire nuts, then wrap them with electrical tape for moisture resistance. If interfacing with a monitored system, confirm the required resistance values–most panels expect 2,000–10,000 ohms on the loop circuit.

Test each connection with a multimeter before energizing: voltage between hot and neutral should read 115–125V AC, while the interconnect line should carry 9V DC when the alarm is idle. Program delays or alarm thresholds at the panel if the unit supports adjustable sensitivity–default settings often misfire near kitchens or bathrooms.

Document the layout with a schematic labeling wires by function (e.g., “Kitchen Loop 1 Hot”). Store spare parts–including replacement backup batteries (9V lithium)–and schedule biannual testing under real conditions to verify detection range and alarm volume.

Connecting Fire Alarm Circuitry: A Step-by-Step Electrical Layout

Begin by identifying the power source for your alarm system. Most residential units require a dedicated 120V AC circuit, though hardwired models often include a backup battery. Check the manufacturer’s specifications–some commercial-grade devices may demand 24V DC. Mark the circuit breaker clearly to prevent accidental disconnection during maintenance. Always verify the voltage with a multimeter before proceeding.

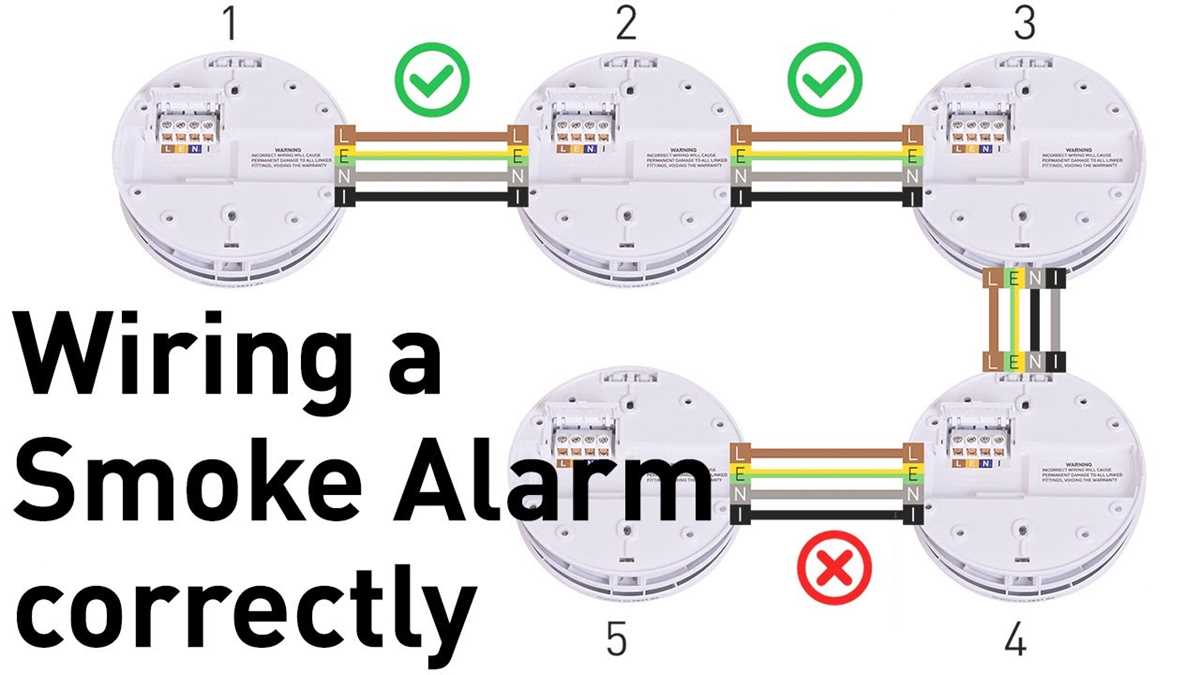

Locate the junction box where the device will be installed. If integrating with an existing alarm network, use a four-conductor cable: black (hot), white (neutral), red (interconnect), and bare copper (ground). For standalone units, two wires (hot and neutral) suffice. Strip ½ inch of insulation from each wire end, ensuring no strands are damaged–frayed copper increases resistance and may trigger false alarms.

Attach the wires to the corresponding terminals on the alarm base. The hot (black) wire connects to the “L” terminal, neutral (white) to “N,” and the ground (bare) to the chassis screw. For interconnected systems, the red wire links to the “I” terminal. Tighten screws securely–loose connections cause voltage drops, reducing sensitivity. Avoid overtightening, which can strip the terminal threads.

Compatibility Chart for Common Alarm Models

Manufacturer	Model Series	Voltage Requirement	Interconnect Wire (if applicable)
Kidde	Worry-Free (i9010)	120V AC	Red (4th conductor)
First Alert	BRK 9120LBL	120V AC	Orange (interconnect)
Honeywell	Ademco 5808W3	24V DC	None (standalone)
Siemens	FS100	120V AC	Yellow (interconnect)

Test the circuit before mounting the alarm. Restore power at the breaker and use a non-contact voltage tester to confirm current at the terminals. Press the test button on the unit–it should emit a loud, continuous tone. If silent, recheck connections or replace the fuse. For interconnected systems, ensure all linked devices activate simultaneously during testing.

Secure the alarm base to the ceiling or wall using the provided mounting bracket. Align it with the drilled holes, ensuring no gaps exist between the surface and the unit–dust or insects entering the chamber can trigger false alerts. Snap the alarm into place, then tuck excess wiring into the junction box. Seal the box with a cover plate to meet fire safety codes.

Document the installation. Label the circuit breaker panel with the alarm’s location (e.g., “Master Bedroom Fire Sensor”) and note the date of installation. For interconnected systems, sketch a simple schematic showing wire routes between units. Store this record with your home’s electrical documentation–it simplifies troubleshooting and future upgrades.

Troubleshooting Checklist

If the unit fails to activate:

• Verify the circuit breaker isn’t tripped.
• Check for 120V AC at the “L” terminal using a multimeter.
• Inspect wire nuts or crimp connectors for corrosion or loose fits.
• Ensure the backup battery isn’t depleted (replace if older than 6 months).
• Confirm the interconnect wire (red/orange) is intact and properly terminated.

Choosing the Optimal Alarm Circuit Setup

For standalone units in residential settings, a 120V AC power source with battery backup eliminates dependency on grid stability while ensuring uninterrupted operation during outages. Models like the Kidde i4618 or First Alert SA320CN integrate this configuration seamlessly, requiring only a dedicated circuit breaker without additional relay hardware.

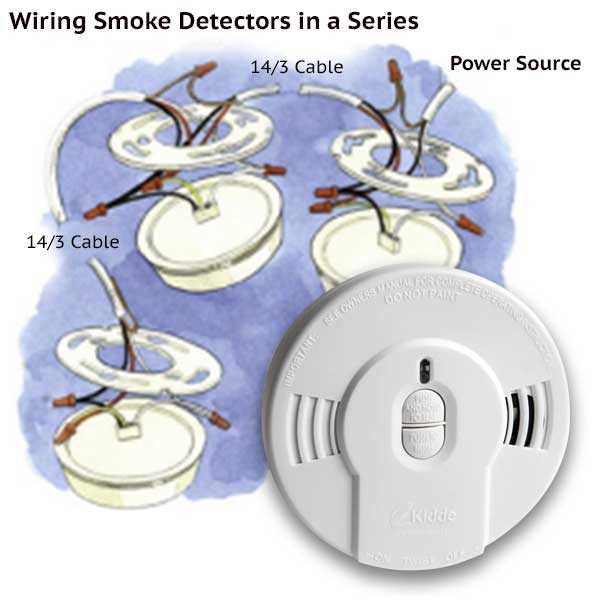

Interconnected alarms demand a closed-loop series using 14-gauge solid copper conductors, terminated with twist-on wire connectors for secure splices. NFPA 72 mandates a maximum of 18 devices per loop, with voltage drop calculations critical for runs exceeding 500 feet–use a calculator accounting for conductor resistance (e.g., 12.9 ohms per 1,000 feet for 14 AWG).

Multi-Story Configurations

Stacked structures necessitate vertical daisy-chaining via riser-rated cable (CL2P or CMR) between floors, avoiding horizontal branch circuits that violate NEC Article 760. Install junction boxes at each floor transition, ensuring strain relief for cables penetrating fire-rated assemblies. Systems like the System Sensor B200SRP include integrated isolator modules to segment faults without disabling the entire network.

Hardwired ionization units excel in detecting fast-flaming fires (e.g., paper, grease) but may false-trigger near kitchens. Photoelectric variants, such as the BRK 9120LBL, reduce nuisance alarms for smoldering sources (e.g., electrical shorts) and pair well with heat sensors in areas prone to steam or dust. Hybrid models combine both technologies but require calibration to avoid conflicting signals.

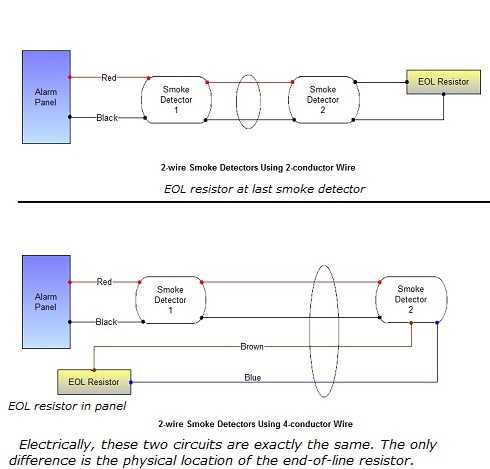

For commercial applications, addressable loops using two-wire communication (EOL resistors at 4.7k ohms) support remote diagnostics via control panels like the Notifier ONYX Series. Avoid mixing incompatible protocols–check compatibility matrices for SLC (Signaling Line Circuit) voltage ranges (typically 16–24V DC). Ground fault detection must be enabled to isolate shorts that could disrupt loop integrity.

In retrofit projects, power-line carrier (PLC) systems like the Leviton Omni LT leverage existing AC wiring to transmit signals without new cables. Ensure line impedance remains below 10 ohms by replacing aging conductors or adding choke coils at noise sources. Test signal strength with an oscilloscope, targeting a minimum 2V peak-to-peak amplitude at the farthest node.

For high-risk environments (warehouses, data centers), aspirating systems (e.g., Xtralis VESDA) sample air through piping networks, detecting particles at concentrations as low as 0.005% obs/m. Piping layouts must follow ISO 21927-2 guidelines: maximum 200-meter runs per detection zone, with air velocity maintained between 1–3 m/s. Install sampling points at 0.5m intervals for optimal coverage.

Environmental Considerations

Outdoor-rated units (e.g., Honeywell SiXSMOKE) require weatherproof enclosures (NEMA 3R) and thermal shock testing to -30°C. Coastal installations demand corrosion-resistant terminals (tin-plated copper) and sacrificial anodes to prevent galvanic reactions. Avoid mounting near HVAC vents or direct sunlight, as temperature swings exceeding 5°C per hour degrade sensor accuracy.

Step-by-Step Guide to Energizing a Fire Alarm Sensor

Verify the circuit breaker’s voltage matches the unit’s specifications–typically 120V AC for residential models. Use a multimeter to confirm live wires before handling. Label the hot (black), neutral (white), and ground (green or bare copper) conductors to prevent errors during installation. If replacing an existing unit, disconnect power at the breaker first; never rely on the device’s switch alone.

Secure the electrical box firmly–mounting must support at least 5 lbs (2.3 kg) to meet UL standards. Strip 3/8 inch (9.5 mm) of insulation from each conductor using wire strippers calibrated for 14- or 12-gauge wire. Twist the exposed ends clockwise before attaching to the terminal screws to ensure full contact; loose connections cause false alarms or failures.

Attach the neutral wire to the silver screw, the hot wire to the brass screw, and the ground to the green screw–follow the manufacturer’s color-coding if it deviates from standard. Tighten terminal screws to 12–15 inch-pounds (1.36–1.70 Nm) torque; overtightening can strip threads. Secure excess wire inside the box without crimping or pinching to avoid shorts.

Test the circuit by restoring power and pressing the device’s test button. Listen for a loud, continuous alert (minimum 85 dB at 10 feet/3 meters). If the unit chirps intermittently, check for reversed polarity or weak battery backup (if applicable). For interconnected models, ensure all units sound simultaneously during testing.

Enclose the terminal cover before mounting the decorative plate. Snap the plate into place without forcing; misalignment can expose terminals to dust or tampering. Record the installation date–units require battery replacement every 6 months and full testing annually, regardless of power source.
