Complete Guide to Balboa Circuit Board Wiring Schematics and Diagrams

Begin by locating the power input section on the technical layout–typically marked near the top-right corner. Verify voltage specifications before proceeding; most spa control units operate at 120V or 240V AC, with dual-voltage models requiring proper jumper configuration. Misalignment here risks frying the entire assembly within minutes.

Trace the heater relay connections next. These will intersect with temperature sensors (often labeled TH1 or TH2) and the high-limit switch. Ensure the relay coil receives a clean 24V signal from the transformer and that the contacts close fully–partial engagement leads to erratic heating cycles or premature failure. Use a multimeter to confirm resistance values: coil ~50-100 ohms, contacts .

Examine the pump and blower output terminals. Look for staggered phase labeling (e.g., P1, P2, P3) or color-coded wires–commonly red (hot), black (neutral), green (ground). Reversing polarity will spin pumps backward, damaging impellers and seals. Cross-reference the legend with the actual motor plate data; a split-phase 1HP pump demands capacitor values between 20-40µF.

Decode the microcontroller pin assignments. Pins designated for keypad input will cluster near a common ground reference; shorting any of these to the power rail corrupts firmware. Mark each trace with a non-metallic probe–scratching surfaces voids moisture resistance. If soldering repairs, preheat the area to 150°C to prevent cold joints.

Isolate the safety circuit loops. The pressure switch must trip at 2-3 PSI; the high-limit cutoff should engage at 120°F. Bypass tests are discouraged–temporary jumper wires risk overheating. Instead, install a manual reset button for testing, ensuring the circuit latches open once triggered.

Understanding Electrical Connections in Spa Control Systems

Start by identifying the power input terminals marked as L1, L2, and ground on the module–these correspond to the main AC supply lines. Verify the voltage rating (typically 230V or 115V) against your local grid specifications to prevent overloads. Incorrect matching risks component burnout or intermittent failures during operation.

Examine the heater relay traces–these are often labeled with symbols like “HEATER” or “HTR” and connect to the temperature sensor inputs. Use a multimeter to confirm continuity between the relay coil terminals and the control IC pins. A reading outside 20-50 ohms suggests a faulty relay requiring replacement.

Sensor and Pump Interface Guidelines

Locate the high-limit sensor terminals, usually near the top-right of the layout. These safety switches must maintain direct, low-resistance paths to the processor; any interference disrupts error-code generation (e.g., “HL” or “FLO”). Test with a 1K ohm resistor across the sensor leads to simulate triggered conditions during bench diagnostics.

Pump motor connections demand precise phase alignment–swap leads L1 and L2 if rotation direction is incorrect. For two-speed configurations, note the speed-selector relay positions: low-speed engages first, while high-speed bypasses the auxiliary winding. Incorrect jumper settings here cause overheating even at nominal loads.

Troubleshooting LED and Audio Feedback Loops

Trace the LED indicator circuit paths to their respective driver IC pins, typically labeled as “LED1” through “LED4.” Each path includes a 470-ohm current-limiting resistor; deviations alter brightness or prevent illumination entirely. Audio alerts (buzzers) share ground but require separate transistor switching–check for +5V at the base pin when triggered.

Grounding integrity is non-negotiable. Confirm all thermal sensor shields, pump housing, and control unit chassis share a common, low-impedance return path. High-resistance grounds introduce phantom faults like erratic temperature readings or false overheat signals. Use a dedicated 10AWG copper wire for grounding; smaller gauges degrade under load.

For firmware-controlled variants, note the serial communication pins (TX/RX) if interfacing with external diagnostics. These require pull-up resistors (10K ohms) to maintain signal integrity. Never apply voltage above 3.3V to these lines, as exceeding thresholds corrupts the EEPROM, voiding calibration settings and forcing a factory reset.

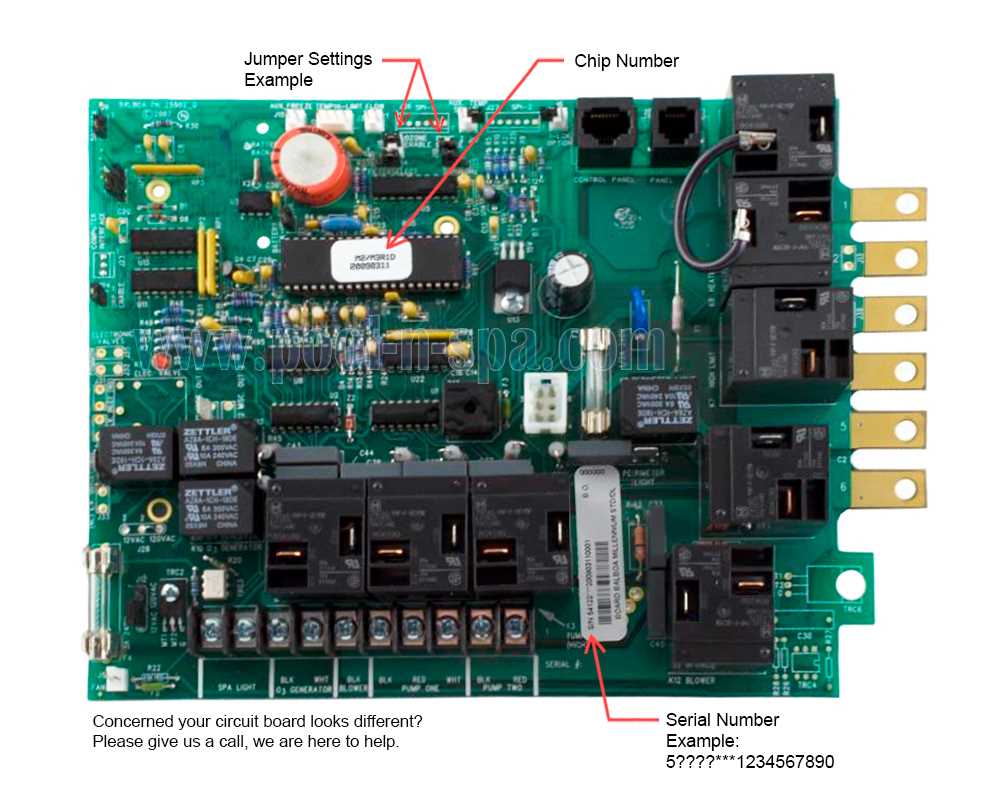

Key Components to Identify in a Balboa Control Layout

Locate the power input terminals–marked as AC-L, AC-N, and ground–near the edge of the assembly. Verify these match the system’s voltage (120V/240V) to prevent component failure. The transformer outputs, typically labeled 24V or 16V, sit adjacent to capacitors rated between 220µF and 470µF; misaligned values risk overheating. Check the relay contacts for burn marks or corrosion–common failure points–which control pump and heater activation sequences.

• Microcontroller pins (U1 or PIC16F) handle timing and signal routing; trace connections to buttons and LEDs.
• Heater element terminals (HTR) link directly to high-current traces; ensure solder joints are intact.
• Temperature sensors (TH1, TH2) connect via thin traces–resistance readings should fall within 10-100kΩ at 25°C.
• Fuse ratings (3A-5A) must align with the label; replacements should match exact amperage to avoid fire hazards.
• Communication lines (TX/RX) between the main unit and remote modules require shielded cables to block interference.

Inspect capacitance values on smoothing components–deviations over ±10% indicate degradation, leading to erratic behavior. Thermal cutoffs near heating elements activate at 140°F±5°F; bypassing these voids safety certifications. The keypad interface uses membrane switches with conductive pads–clean contacts with isopropyl alcohol (90%+) only, as abrasives damage coatings.

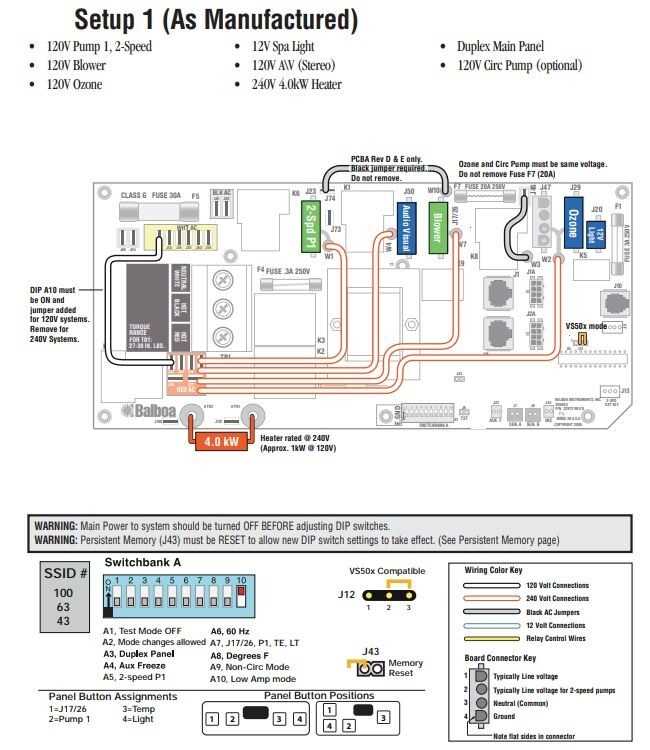

How to Interpret a Spa Control System Layout

Locate the power input symbols first–typically marked with `L` (live), `N` (neutral), and `G` (ground) near the top or left side of the illustration. Verify the voltage rating (often 120V/240V) next to these icons, as mismatches can damage components. Trace the lines from the power source to the main relay; check for fuses or thermal cutoffs along this path, usually drawn as rectangles with labels like “F1” or “TC1”.

Identify the microcontroller cluster, recognizable by a central square or rectangle labeled “MCU” or “U1”. Note the pin numbers around its perimeter–these correspond to sensor inputs, outputs, and communication buses. Cross-reference these pins with the legend: `PWM` for pulse-width modulation outputs, `ADC` for analog-to-digital converter inputs, and `I2C`/`SPI` for serial data lines. Absence of continuity here often points to firmware corruption.

Follow the heater element connections, starting from the MCU output pin labeled `HEAT` or `HTR`. The signal should pass through a solid-state relay (SSR) or mechanical switch before reaching the heating coil, depicted as a coiled line or resistor symbol. Check for thermal sensors placed inline–these appear as thermistors or diodes labeled `TH`–and confirm they’re linked to dedicated ADC inputs. Overheating errors frequently stem from broken traces here.

Examine pump and blower controls by finding labeled circles or arrows (e.g., `P1`, `P2`, `BLO`). Each should connect to a transistor or MOSFET, indicated by a T-shaped symbol. Confirm the control signal originates from the MCU and includes flyback diodes (zigzag lines) for inductive loads. Weak jets or unresponsive blowers often trace back to failed transistors or corroded solder joints on these pathways.

Inspect the keypad interface by locating the flat cable symbol, often a ribbon-like line linking the MCU to a series of dots or squares (`K1`, `K2`, etc.). Each dot represents a membrane switch; ensure the matrix aligns with the button layout in the user manual. Ghost inputs or dead buttons typically result from damaged traces under these contacts.

Finalize by validating ground references–look for downward-pointing triangles or `GND` labels. All components should share a common ground plane; splits here can cause erratic behavior. Use a multimeter in continuity mode to test connections between the MCU’s ground pin and external chassis points, ensuring resistance reads below 0.5 ohms. Noise-induced errors often disappear once grounding issues are resolved.

Frequent Installation Errors with Spa Control Units and Solutions

Incorrectly mating the heater element leads to overheating or failure. Verify the red and black wires align with the labeled terminals on the control module–polarity errors often trigger error codes E2 or E3. Use a multimeter to check resistance (25–40 ohms) before securing connections. Loose crimps cause intermittent faults; tighten terminals with a torque of 0.5Nm to prevent oxidation.

Misrouting low-voltage sensor loops creates false temperature readings. Route the blue (thermistor) wire away from pump motor cables–induction currents distort signals. Secure sensors 12–18 inches from heating elements using nylon ties, avoiding sharp bends. If error code HL persists, replace the 10kΩ NTC thermistor after confirming continuity at 25°C (10kΩ ±5%).

Swapping high-limit and pressure switch pins voids safety shutdowns. Label connectors before unplugging: the high-limit (red/white) must connect to the upper terminal, while the pressure switch (green) requires the lower slot. Test switches by blowing through ports–audible clicks verify operation. Ignored faults risk element burnout; reset the GFCI breaker only after addressing the root cause.
