Complete Wiring Guide for Installing a Car Subwoofer System
Start with a 4-gauge oxygen-free copper cable for power delivery to prevent voltage drops–critical for bass-heavy systems requiring over 1,000 watts RMS. Route the primary feed directly from the battery’s positive terminal, using an in-line fuse holder no farther than 18 inches from the terminal; a 150-amp ANL fuse suits most high-output amplifiers. Ground the amplifier’s chassis to the vehicle’s frame or a dedicated bolt welded to the chassis–scratch off paint or undercoating at the contact point to ensure a low-resistance path, ideally less than 0.1 ohms.

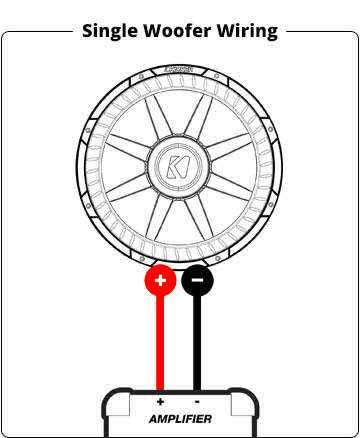

For dual-voice-coil drivers, use a parallel connection (combined impedance) when the amplifier supports 2-ohm loads, delivering maximum power. A series connection (added impedance) works for amplifiers stable at 4 ohms or higher. Check the speaker’s specifications: 2+2 ohm coils in parallel drop to 1 ohm total; 4+4 ohm coils in series sum to 8 ohms. Miscalculating impedance risks overheating or damaging the amplifier.
Terminate RCA signal cables with gold-plated connectors and shielded twisted-pair wiring to minimize interference. Route them away from ignition wires, alternator leads, and power cables–maintain at least 12 inches of separation. If noise persists, install a ground loop isolator between the head unit and amplifier. Use heat-shrink tubing on all exposed connections to prevent short circuits and corrosion.
Adjust amplifier gain settings with a multimeter: set head unit volume to 75% and raise gain until voltage at the speaker terminals matches the amplifier’s rated output (e.g., 28 volts for 100 watts into 4 ohms). Test bass response at 50 Hz; if the enclosure distorts below 30 Hz, add damping material or adjust enclosure volume. Secure the enclosure with heavy-duty mounting brackets–loose installations will degrade sound quality and risk structural damage.
Verify all connections with a polarity test: disconnect the amplifier’s remote turn-on lead, then briefly touch the positive speaker terminal to the battery’s positive terminal. A click from the driver confirms correct phase; no sound indicates reversed wires. If phase issues persist, swap the RCA cables at the amplifier’s inputs or invert the speaker leads. Avoid daisy-chaining power cables; every additional device (equalizers, crossovers) should draw power through a distribution block with dedicated fuses.
Connecting Powerful Bass Systems: A Practical Schematic Guide
Begin by matching the amplifier’s impedance rating to the low-frequency driver’s specifications. Most monoblock units demand either 2-ohm or 4-ohm loads; verify the manufacturer’s data sheet before securing any connections. Use 4-gauge oxygen-free copper cables for the main power feed–anything thinner risks voltage drop under heavy bass pulses, leading to clipped signals and potential overheating.
Ground the amplifier directly to the vehicle’s chassis using a dedicated bolt, ensuring the contact area is sanded down to bare metal for optimal conductivity. Avoid daisy-chaining grounds or attaching to painted surfaces, as this introduces resistance and interference. For systems exceeding 500 watts RMS, upgrade to a high-output alternator or add a secondary battery in parallel, housed in a sealed battery box near the trunk to minimize cable length and voltage loss.
| Component | Recommended Cable Gauge | Connector Type |
|---|---|---|
| Power feed to amplifier | 4 AWG | ANL fuse holder |
| Speaker outputs | 12 AWG braided | Gold-plated spade |
| Remote turn-on | 18 AWG | Insulated quick-disconnect |
| RCA signal | Shielded twisted pair | Gold RCA plugs |
Install an inline fuse within 18 inches of the battery’s positive terminal–choose a fuse rating 20% higher than the amplifier’s maximum continuous current draw to prevent nuisance tripping during peak bass transients. For dual-woofer setups, bridge the amplifier channels only if explicitly permitted in the manual; otherwise, wire each driver in parallel with separate channels to preserve sound clarity and prevent amplifier damage.
Route signal cables at least 12 inches away from power cables to eliminate electromagnetic interference, securing them with adhesive cable clips every 8 inches. If the system includes a line-level converter, calibrate its output voltage to match the amplifier’s sensitivity knobs–typically between 0.2V and 5V–using a multimeter to avoid preamp overdrive. For sealed enclosures, a port ratio of 10-15% enclosure volume ensures tight, accurate bass; vented designs demand precise tuning based on the Thiele-Small parameters to prevent driver damage at resonance.
Test each connection with a multimeter before powering on the system–measure DC voltage across the amplifier’s power terminals to confirm 13.8V-14.4V with the engine running. Any deviation suggests alternator issues or insufficient wiring gauge. Use a non-resonant material like dampening pads on enclosure walls to reduce unwanted vibrations, and seal all cable entry points with silicone to prevent moisture ingress, especially if the installation is exposed to the elements.
Selecting the Optimal Cable Thickness for Your Audio Bass Setup
For a 500-watt RMS amplifier driving a single low-frequency driver, use 8 AWG copper cables to prevent voltage drop exceeding 0.5V under full load. Measured at 20°C, 8 AWG maintains resistance below 0.63 ohms per 3 meters–critical for preserving amplifier damping factor above 50. Lighter gauges like 10 AWG risk clipping during transient peaks, especially in sedan-mounted systems with lengthy runs (over 5 meters), where power loss can reach 12%.
Multiply RMS power by 1.5 to account for peak current demands when matching cable size. A 300W system requires 10 AWG, while dual 4-ohm voice coils wired in parallel (equivalent 2-ohm load) need 6 AWG for stable performance. Aluminum cables require one size thicker (7 AWG instead of 8 AWG) due to higher resistivity (2.8 μΩ·cm vs copper’s 1.68 μΩ·cm). Verify thickness with calipers–nominal ratings often understate actual diameter by 3-5%.
Oxygen-free copper (OFC) with 99.95% purity reduces signal distortion in long installations, though standard annealed copper suffices for runs under 3 meters. Avoid CCA (copper-clad aluminum) for high-current applications–its 40% higher resistance at 10 AWG causes audible compression in bass-heavy passages.
Step-by-Step Guide to Connecting Power Cable from Battery to Audio Booster
Select a high-gauge cable (4 AWG or thicker) to minimize resistance and prevent voltage drops. Measure the direct path from the vehicle’s power source to the amplifier, adding 1.5 meters for slack. Use rubber grommets when threading the cable through firewall openings to avoid abrasion. Secure the cable with adhesive-backed clamps every 30 cm along metal surfaces to prevent rattling or accidental disconnections.
Attach the fuse holder within 45 cm of the battery’s positive terminal, using a fuse rating matching the amplifier’s recommended value (typically 60–150A). Strip 1 cm of insulation from the cable end, crimp a ring terminal, and secure it to the battery post with a wrench–ensure no bare wire contacts the chassis. Route the cable away from moving parts, sharp edges, and heat sources like exhaust manifolds. Test conductivity with a multimeter before finalizing connections.
Ground the booster properly by scraping paint off a bare metal chassis point within 45 cm of the amplifier. Sand the surface to remove oxidation, then bolt the ground cable (same gauge as power) directly to the chassis using a stainless steel screw. Avoid shared grounds with factory electronics. Verify all connections are tight before reconnecting the battery; a loose ground can cause intermittent failures or damage components.
How to Properly Ground Your Audio Booster in a Vehicle
Locate the amplifier’s grounding point within 45 cm (18 inches) of the device. Use a 4-gauge or thicker copper wire to connect the negative terminal directly to the chassis. Remove paint, rust, or coatings from the grounding spot using a wire brush or sandpaper–bare metal ensures minimal resistance. Secure the connection with a stainless steel bolt and star washer to prevent loosening from vibrations.
Test the ground with a multimeter:
- Set the meter to DC voltage (20V range).
- Place the black probe on the battery’s negative terminal.
- Touch the red probe to the amplifier’s grounding point.
- Voltage should read below 0.2V; higher readings indicate a poor connection.
Avoid grounding to factory bolts (e.g., seatbelt anchors) or thin metal panels. Dedicated grounding blocks near the battery or trunk floor are optimal. For multiple amplifiers, use a single robust grounding point rather than chaining connections–this prevents noise and ground loops. Apply dielectric grease to the connection after tightening to inhibit corrosion.

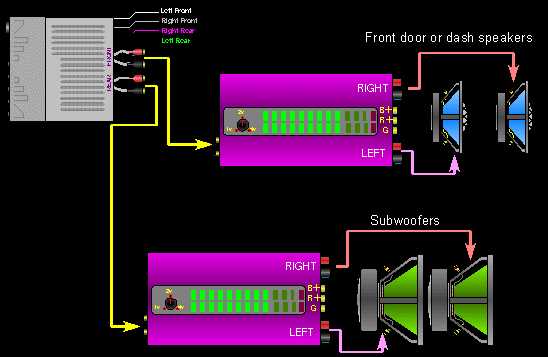

Connecting RCA Cables and Signal Leads for Superior Sound Performance
Use shielded coaxial cables with oxygen-free copper (OFC) conductors to minimize interference and preserve signal integrity. Match cable gauge to amplifier input impedance–16 AWG suffices for runs under 15 feet, while 14 AWG handles lengths up to 25 feet without appreciable loss. Terminate connections with gold-plated RCA plugs to prevent oxidation and ensure consistent conductivity.
Avoid routing signal lines parallel to power cables for more than 6 inches; maintain at least 18 inches of separation if crossing is unavoidable. Secure cables away from ignition systems, alternators, and ECUs–these components emit high-frequency noise that degrades low-frequency reproduction. Use split-loom tubing or heat-shrink wrap to bundle leads, reducing vibration-induced microphonics.
Pre-amplifier outputs should connect directly to amplifier inputs, bypassing passive crossovers whenever possible. If using a line-level converter, select models with adjustable gain to match voltage levels–mismatched settings introduce clipping or weak output. Test for signal strength with a multimeter: ideal preamp output ranges between 2-4V, while sub-fitted amplifiers typically require 1-2V for optimal operation.
Ground signal cables at a single central point to prevent ground loops. Avoid daisy-chaining grounds or attaching to painted metal surfaces–bare, clean chassis contact ensures stable reference voltage. If hum persists, isolate the head unit’s ground from the amplifier’s using a ground loop isolator rated for at least 20A.
Twist balanced signal pairs (if applicable) at a rate of 2-3 twists per inch to cancel electromagnetic interference. For unbalanced connections, keep lead lengths identical on both channels to prevent phase cancellation. Solder joints should be heat-sweated, not crimped, to prevent cold solder oxidation over time.
Foil shielding wrapped at least 90% around the cable’s circumference offers superior noise rejection compared to braided shielding. Ensure foil layers overlap by 10mm and connect only at the amplifier end–never ground both ends of the shield. For systems with multiple amplifiers, use star grounding: each amplifier’s signal ground ties back to the head unit’s central ground point.
Periodically inspect RCA plugs for tarnish, re-tightening connections if corrosion appears. Replace cables exhibiting stiffness or cracked insulation–these signs indicate degraded dielectric properties. Store unused leads on non-conductive reels away from moisture and direct sunlight to extend lifespan.
