Understanding Flasher Relay Wiring Diagrams for Automotive Signals
Start with verifying the component pinout before tracing connections. Most turn-signal pulse units follow a standard 3-pin arrangement: power input, grounded switch leg, and output to bulbs. Check the manufacturer’s data sheet–common variants exist for heavy-duty trucks, vintage cars, and modern LED clusters. Ignoring pin assignments guarantees intermittent failure or system overload. Mark each wire color code on your sketch with permanent ink to prevent misidentification during reassembly.
Use a multimeter set to diode test mode to confirm internal transistor function. Probing between the input and output pins should show a low resistance path when the device activates. If readings exceed 200 ohms, the pulse generator has degraded and requires replacement. Avoid substituting generic models unless the current rating matches the original within 10%–overload protection thresholds differ between 12V and 24V systems.
Inspect the load capacity before adding any aftermarket lights. Calculate total bulb wattage: sum each filament’s draw, then divide by system voltage to determine amperage. Most turn-signal modules support 4-6 amps; exceeding this trips the internal cutoff. For LED upgrades, wire a load resistor in parallel to ensure consistent flash frequency–LEDs draw negligible current, often confusing the control circuit into erratic behavior.
Route leads away from high-heat zones–engine manifolds, exhaust headers, or direct sunlight degrades insulation within weeks. Use heat-shrink tubing on splices, not electrical tape. Secure harnesses with zip ties every 6 inches to prevent vibration-induced chafing. Label both ends of each segment with numbered tags corresponding to your reference diagram.
Test the completed circuit with a 5-ohm load resistor before connecting actual bulbs. Apply 12V power and monitor flash rate–proper function should yield 60-80 cycles per minute. Deviations indicate faulty connections or incorrect component pairing. For systems with integrated hazard warning, confirm the dual-mode operation by toggling the switch during testing. Inconsistent dual-mode flashes reveal a mismatched control module or defective bi-metallic strip.
Understanding Electrical Signal Switching Units in Vehicle Lighting Systems
Begin by identifying the connector pins on the control module–typically a three-pin setup marked 49, 49a, and 31. Pin 49 connects to the ignition-switched power source, 49a routes to the turn signal lamps, and 31 grounds the circuit. Verify voltage at pin 49 with a multimeter set to DC; expect 12V when the ignition is active and the signal stalk disengaged. Deviations suggest a faulty fuse or corroded wiring harness near the steering column.
The thermal or electronic mechanism inside the unit regulates pulse intervals–standard rates range between 60–120 cycles per minute. Adjustments require bypassing factory settings by installing a variable resistor (1–10 kΩ) between pins 49 and 49a. Lower resistance increases blink speed; higher resistance slows it. Avoid exceeding 200 mA current draw to prevent overheating the internal bimetallic strip or transistor array.
Common failure symptoms include:
- Rapid blinking: burnt-out bulb or insufficient load
- No blinking: open circuit in the power feed or ground path
- Irregular flashing: corroded contacts or loose terminal screws
Use a load simulator (e.g., a 6Ω/50W resistor) to test relay functionality without actual lamp connections. Connect it between 49a and 31; a healthy unit will produce consistent pulses. For electronic variants, listen for an audible click–absence indicates a dead transistor or damaged PCB trace near the output stage.
Modification Considerations for Aftermarket Components
LED replacements require load equalizers due to lower current draw. Install a 21W resistor in parallel with each LED bulb to maintain factory pulse timing. Failure to do so causes hyper-flashing or dashboard warning indicators. Self-canceling turn signals in newer vehicles may need a CAN bus emulator–programmable modules like the Hella 008811161 simulate OEM resistance values for seamless integration.
Direct wire replacements for older mechanical units necessitate matching the voltage rating (typically 12V) and current capacity (10–20A). Mismatched specs result in premature failure. For heavy-duty applications (e.g., towing), upgrade to a sealed solid-state module with a heat sink–these handle voltage spikes up to 14.5V common in alternator charging systems.
- Disconnect the battery negative terminal before servicing.
- Label all connectors to avoid miswiring.
- Apply dielectric grease to terminals to prevent oxidation.
- Test all connections with a continuity tester before reassembly.
- Recheck turn signal operation in both directions after repair.
How to Determine Signal Switch Connector Layout and Pin Assignments
Locate the manufacturer’s stamp or etched markings on the housing first. Most units feature a three-letter code near the mounting tab–decode it using the chart below. If markings are absent, measure resistance between pairs of contacts while cycling the device; a fluctuating reading confirms the trigger path.
| Marking | Function | Voltage Range |
|---|---|---|
| B | Power feed | 12–14.5 VDC |
| L | Load output | Varies with bulb wattage |
| E/X | Ground/return | 0 Ω to chassis |
| P | Pulse control | 3–8 V pulse |

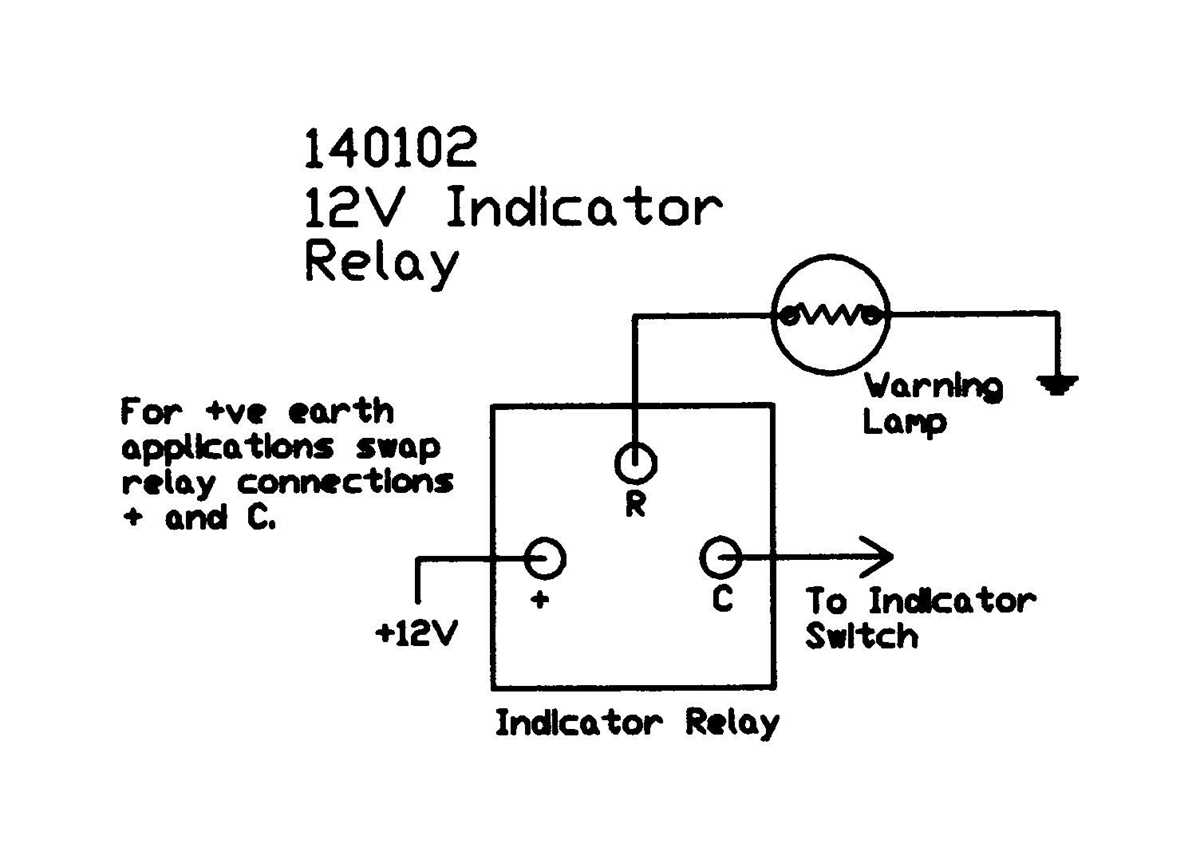

For two-prong modules, the larger spade is always the supply leg; the smaller connects to the lamp circuit. Three-prong models add a third tab–this is the supervision line. Test with a 12 V bulb between the designated tabs while toggling the hazard stalk; flickering verifies correct mapping.
On CAN-integrated variants, probe the data pin with an oscilloscope–modulation patterns of 50–150 Hz distinguish it from the steady power rail. Thermal imprints or discoloration around a pin often reveal overloaded terminals, signaling a mismatched bulb rating.
Snap a macro photo of the connector before repair; cross-reference dimple position against factory service manuals. Aftermarket units sometimes swap pinouts, so always bench-test with a fused jumper wire instead of risking the vehicle harness.
If the module lacks visual identifiers, trace the circuit path from the fuse box: the incoming wire is typically 14–18 AWG with yellow or red insulation, while the output to lamps is 16–20 AWG with brown, black, or striped sleeves.
Step-by-Step Guide to Integrating a Signal Controller in Automotive Electrical Systems
Locate the existing turn signal switch under the dashboard or behind the steering column cover. Remove the panel screws using a T20 Torx bit–most vehicles use this size, though verify with a service manual if screws appear non-standard. Disconnect the negative battery terminal to prevent short circuits during installation.
Identify the three primary connections on the signal controller: power input, ground, and output to the lamps. Trace the factory harness wires from the switch–power typically comes from a fused 12V line (often brown or red), ground is black, and lamp feeds vary by model (commonly yellow or light blue). Use a multimeter in continuity mode to confirm functions before cutting any wires.
Strip 8mm of insulation from the factory wires using precision strippers, avoiding nicks to copper strands. Crimp insulated male spade connectors onto the exposed ends–size 0.25″ works for most automotive applications. Alternatively, solder the connections with 60/40 rosin-core solder for vibration resistance, covering joints with heat-shrink tubing.
Mount the signal controller in a dry, accessible location using adhesive-backed Velcro or a small metal bracket. Avoid areas prone to moisture or excessive heat, such as near the exhaust manifold or radiator. Secure wires with nylon zip ties every 15cm to prevent chafing against sharp edges or moving components.
Connect the controller’s power input to the turn signal switch’s fused feed wire, ensuring the fuse rating matches the original circuit (usually 10A). Attach the ground terminal to a bare metal chassis point using a ring terminal and a 10mm bolt–clean the surface to bare metal with a wire brush to ensure conductivity.
Route the output wire from the controller to the lamp feed line, splicing it inline with the factory harness. For vehicles with separate left/right circuits, repeat the process for both sides. Test each connection with a 12V test light before reassembling panels–activating the turn signal should produce clean, rhythmic pulses without flickering or sticking.
Reconnect the battery and verify operation with the ignition on. Listen for an audible click from the controller (approximately 60-120 pulses per minute) and observe the dashboard indicators. If lamps flash erratically, recheck ground connections and wire insulation integrity–intermittent shorts often mimic controller failure.
Reassemble interior panels once testing confirms reliable operation. Secure all fasteners evenly to prevent rattles, and apply dielectric grease to electrical contacts to inhibit corrosion. Store spare fuses and a wire repair kit in the glove compartment for quick roadside repairs.
Typical Signal Switch Circuit Errors and Fixes
Reversing input and output terminals causes immediate failure. Most electronic turn indicator controllers use a dedicated power feed (usually fused at 10A) entering at the upper lug marked 49, while the lower lug marked 49a supplies the flasher lamps. Swapping these wires overloads the internal transistor array, burning it within seconds. Verify terminal labels with a multimeter set to continuity mode before connecting–match the print on the casing regardless of wire colors, as manufacturers often deviate from standard schemes.
Omitting a ground stabilization loop invites erratic blinking. The control unit’s baseplate must connect to chassis metal with a minimum 8-gauge braided strap; thin factory ground wires can introduce 200 mV ripple under load, delaying lamp activation. Bridge a 0.1 µF ceramic capacitor between the ground lug and chassis near the mounting bolt–this shunts high-frequency noise generated by modern LED bulbs, preventing false triggers during acceleration.
Over-tightening terminal screws crushes stranded wire, reducing cross-section by 40% and increasing resistance. Torque should not exceed 1.2 Nm; use a crimp connector with a funnel entry, then solder for extra security. When retrofitting aftermarket LED clusters, insert a 6-ohm, 10-watt resistor in series with each lamp wire–many control units expect halogen load currents (typically 2.1 A per bulb) and ignore LEDs drawing only 0.2 A.
Ignoring harness polarity protection destroys sensitive circuitry. Some European vehicles route power through a diode before reaching the switch, allowing reverse polarity during jump-starting. Fit a 1N5404 diode across the input lugs (cathode to power feed) to clamp -300 mV transients that saturate the gate driver inside the control module, causing constant-on mode without blinking.
Incorrectly matching bulb wattage overloads the bimetallic strip. A standard 21-watt halogen bulb demands a 5W/21W controller, while a 5W LED cluster needs a 3W/21W unit. Check the product number embossed on the canister–usually stamped near the mounting tab–and cross-reference with the vehicle’s parts manual. If the wrong unit is installed, filament pre-heating lasts only 0.6 seconds instead of 1.2 seconds, leading to abnormally fast flashing (180 pulses per minute instead of 90), violating most regional vehicle codes.
