Step-by-Step 3 Way Switch Wiring Diagram Explained for Home Electrical
Start by identifying the power source and traveller terminals. Locate the live feed entering the first junction box–this will typically be a black or red cable connected to a brass screw. Mark it immediately with electrical tape to avoid confusion. The neutral (white) wire should run uninterrupted from the source to the fixture, while the ground (bare or green) connects to all metal components and the device’s grounding screw.

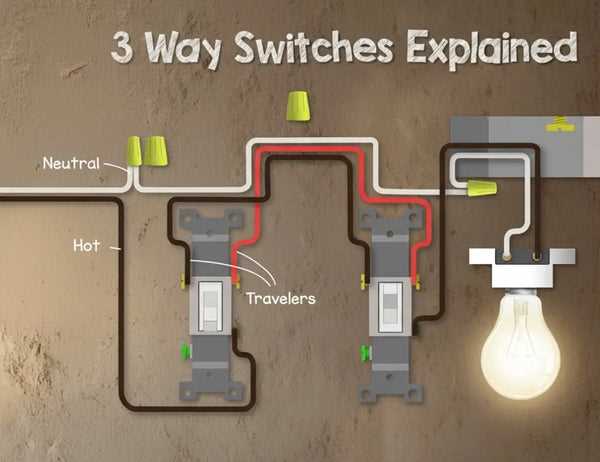

Attach the traveller wires–usually red and black–between the two control points. These carry the circuit’s state and must be connected to the dark-coloured screws (commonly black or bronze) on both devices. Cross-verify by ensuring no traveller wire shares a terminal with the live or neutral feed. Misplacement here creates a dead short or inoperative setup.
For the second control point, link the remaining traveller to the corresponding terminal. The common screw (often copper or lighter-coloured) on this device must connect to the fixture’s hot lead–either directly or via another junction. Use a multimeter to confirm voltage absence before handling wires; incorrect connections risk damaging components or causing hazardous conditions.
Label every wire during disassembly if working on an existing installation. Photograph the original setup for reference–reversing travellers and commons is a frequent error leading to non-functional controls. Test each position after securing all connections; the light should toggle predictably between both switches in any sequence.
Opt for 14-3 or 12-3 NM-B cable when extending lines between control points. The extra conductor (typically red) carries the second traveller signal. Ensure all splices are secured with wire nuts rated for the circuit’s amperage; loose connections generate heat and degrade performance over time.
Verify the fixture’s load rating against the circuit’s capacity. Most residential setups use 15-amp circuits, but heavy-duty lighting may require 20-amp protection. Replace undersized breakers immediately if overload signs (tripping, buzzing) appear. Always shut off power at the breaker panel–testing outlets with a non-contact voltage detector prevents accidental shocks.
Understanding Multi-Location Circuit Connections
Start by identifying the power source and marking the traveler terminals on both control points. Label the common terminal on the first unit with black electrical tape–this connects directly to the hot wire or load. The remaining two screws (brass-colored) are travelers; link them across devices using 14-3 or 12-3 NM cable, ensuring polarity matches at both ends. Miswiring travelers causes flickering or dead zones.
Critical Safety Steps Before Installation
- Turn off the breaker and verify absence of voltage with a non-contact tester.
- Cap all unused wires with wire nuts to prevent shorts.
- Use a continuity tester to confirm traveler pairs are correctly paired before energizing.
- Secure ground wires to green screws–never omit grounding in metal junction boxes.
For alternate power-to-load configurations, connect the feed to the first common terminal, then run travelers to the second unit’s corresponding terminals. The second common terminal ties to the fixture. Confusion often arises when swapping traveler and common connections–double-check with a multimeter before finalizing. In boxes with multiple circuits, separate neutrals from different breakers to avoid overloads.
Essential Equipment for Multi-Location Circuit Setup
Begin with a non-contact voltage detector rated for residential use; models like Klein Tools NCVT-3 or Fluke 1AC II offer visible and audible alerts when near live conductors. Test leads should include a multimeter with a minimum CAT III 600V safety rating to verify phase connections, ensuring no residual current persists after breaker isolation. Insulated screwdrivers–Phillips #2 and flat-head 3/16″–must have shanks wrapped in heat-shrunk vinyl to prevent grounding accidents during terminal tightening.
Cable strippers with built-in clipping notches (14-12 AWG) eliminate wire frays, while needle-nose pliers help maneuver stranded copper conductors into tight junction boxes. Side-cutting pliers rated for 1000V insulation reinforce clean terminal preparation, removing only sheathing segments required for secure caps. Twist-on wire connectors (UL-listed, 22-10 AWG) come in red for three-conductor bundles, yellow for two; avoid generic unmarked caps found in bulk kits as they may fail under sustained load cycles.
A fish tape set (flexible steel, 1/8” width) assists routing conductors through conduit or framing gaps; lubricated versions reduce drag by 30% compared to dry tapes. Junction box depth must comply with NEC Article 314.16–minimum 3-inch deep for 3-gang setups–with removable gaskets if moisture is present. Knockout seals (type NM, trade size ½”) secure entry points without sharp edges where sheathing can chafe during conductor pulling. Verify local amendments requiring AFCI protection for lighting branches, even in retrofit scenarios.
Toggle mechanisms must meet UL 20 specifications: heavy-duty brass terminals prevent overheating, while back-wired push-in slots accept only solid core; discard devices with aluminum contact pads prone to oxidation. Wall plates should match toggle finish (satin nickel or bronze) and include oversized screws (1-¼” length) to penetrate drywall anchors securely. Circuit breaker identification labels, printed on polyester rather than paper, withstand heat cycles better when coiled inside breaker panels.
Flashlight headlamps with adjustable focus beams illuminate horizontal junction boxes behind drywall; LED models with magnifying lenses reduce eye strain during inspection of terminal tightness at 18 lb-in torque settings. Cable staples (½-inch crown, 18-gauge galvanized steel) must be spaced every 4-½ feet per NEC 334.30 when running NM cable along framing, with nails lateral-loaded to avoid crushing insulation. Non-conductive outlet spacers (¼-inch thick phenolic) create consistent alignment when mounting mechanisms across uneven surfaces.
Protective gear includes arc-rated gloves (leather with rubber inserts) meeting ASTM D120 standards, and ANSI Z87.1-rated safety glasses with side shields–particularly when trimming excess conductor inside deep boxes. Ground continuity testers with 3-prong adapters verify equipment grounds before energizing, isolating phantom stray currents that can damage transistorized dimmers later. For three-conductor circuits, maintain ground path continuity along every segment, including transit points, to prevent neutral shift under intermittent loads.
Step-by-Step Connections for a Dual-Control Electrical Arrangement
Begin by identifying the power source cable at the first junction box. Strip ½ inch of insulation from the black (live), white (neutral), and ground wires. Connect the live conductor to the common terminal–typically marked darker or labeled “COM”–on the primary control device. Secure the connection with a wire nut, ensuring no bare wire remains exposed.
Attach the neutral conductor to a pigtail and link it directly to the circuit’s neutral bus or the corresponding terminal on the second controller, if present. Ground wires must be joined together with an additional pigtail leading to the green grounding screw on each device. Verify all connections are tight, as loose contacts cause overheating or malfunction.
Route the traveler cables–usually red and black–between both control points. Connect the two travelers at the first location to the brass-colored terminals, matching their positions across both devices. Ensure polarity consistency: the same traveler pair (red-to-red, black-to-black) must align at the second junction box to maintain proper operation.
At the second box, repeat the live connection process. Link the main power feed’s black conductor to the common terminal of this unit. The travelers from the first box should attach to the remaining terminals here, maintaining the same pairing sequence. Splice neutrals and grounds as done previously, using identical wire nuts for uniformity.
Test the setup before closing the boxes. Turn on the circuit breaker and toggle both controllers. The fixture should respond to changes at either location. If inconsistencies occur, recheck traveler continuity–crossed wires disrupt functionality. Use a voltage tester to confirm correct voltage at each terminal before finalizing.
Enclose all connections securely, ensuring no wires are pinched when fastening the device plates. Label the circuit at the breaker panel for future reference. Periodically inspect the installation, as vibration or temperature changes can loosen connections over time.
Identifying Common and Traveler Conductors in Multi-Location Control Setups
Locate the common terminal first–it’s typically darker (black or copper) and marked by a screw terminal isolated from the other two. In most toggle-style mechanisms, the common sits alone on one side, while the travelers share the opposite side or a separate terminal block. If labels are absent, use a multimeter in continuity mode: the common wire will show zero resistance when probed against either traveler at the same control point.
| Wire Type | Color Coding (US/Canada) | Terminal Position |
|---|---|---|
| Common | Black/Red (line) or bare (grounded) | Single isolated screw |
| Traveler 1 | Brass/Yellow | Paired brass screws |
| Traveler 2 | Brass/Yellow | Paired brass screws |
For toggle controls with push-in connectors, pry off the faceplate to expose wire entries. The common wire enters through a dedicated slot separate from the two tandem slots for travelers. In dimmer-style units, the common connects to the single terminal often labeled “COM” or “LINE,” while travelers attach to terminals marked “1” and “2” or paired brass screws. Always verify with a voltage tester before touching: the common wire carries live current when the circuit is active.
