Step-by-Step 36 Volt Club Car Wiring Diagram Guide for Golf Carts
Begin with the battery pack’s main positive terminal, connecting it directly to the controller’s B+ input using 6 AWG copper cable. Ensure the connection is secured with a 150A fuse or circuit breaker within 7 inches of the battery to prevent overload. The negative terminal should link to the chassis ground–verify continuity with a multimeter, aiming for resistance under 0.1 ohms.
Route the throttle signal wire to the controller’s designated input, typically labeled “TH” or “SIG.” Confirm the voltage range: 0.5V at idle and 4.5V at full acceleration. Avoid routing this wire near high-current paths (e.g., motor leads) to minimize interference, using twisted-pair wiring if necessary. Test throttle response with the wheels elevated–any hesitation indicates a faulty potentiometer or loose connection.
For the solenoid, attach the small control wires to the ignition switch or keyed circuit. The heavy-duty contacts must handle 200A continuous; use 4 AWG cable for the main circuit. Wire the motor’s field and armature terminals in series for standard configurations–parallel setups require shunt regulators. Label each connection with heat-shrink tubing for identification during troubleshooting.
Add a 12V accessory circuit by tapping one battery (6V) with a voltage reducer or DC-DC converter. Install a 10A fuse for this branch. For regenerative braking, connect the regen wire to the controller’s corresponding input–adjust braking force via the controller’s dip switches, starting at 30% to avoid abrupt stops.
Validate all connections with a load test: run the system at 50% power for 10 minutes, monitoring temperatures. Motor leads should not exceed 140°F (60°C); controller housing must stay under 160°F (71°C). Isolate any component exceeding these thresholds–recheck insulation resistance (minimum 1 MΩ) before proceeding.
Electrical Schematic for a 36V Golf Utility Vehicle: Hands-On Instructions
Begin by identifying the main power source–three 12V batteries connected in series–to confirm a total output of 36V. Disconnect the negative terminal of the first battery before proceeding to prevent accidental shorts. Label each battery terminal with masking tape (A1/A2 for first battery, B1/B2 for second, C1/C2 for third) to avoid confusion during reassembly, as incorrect connections will damage the system or reduce performance.
Component Layout and Critical Connections
Locate the solenoid near the controller; it acts as the primary switch for the high-current circuit. The large red wire from the solenoid’s “B+” post must link directly to the positive terminal of the third battery (C2). The smaller “S” post (start terminal) connects to the key switch via a 10-gauge wire, while the “M” post (motor terminal) carries power to the speed controller. Use a multimeter to verify solenoid resistance–typically 0.2–0.5 ohms–before installation; higher readings indicate internal corrosion or wear.
Attach the controller’s positive input (often marked “B+”) to the solenoid’s “M” post using 6-gauge cable, minimum. The negative return from the controller should trace back to the negative terminal of the first battery (A1) via an unbroken path, avoiding splices. Ensure all ground points–battery frame, controller housing, and accessory mounts–connect to a single dedicated bolt on the chassis, tightened to 12 Nm torque, to prevent voltage drops under load.
For DC motors with separately excited fields (common in pre-2010 models), the field coils require independent wiring. Connect the field terminal (usually labeled “F” on the armature) to a 36V-rated field relay, then route through a 20-amp fuse to the battery’s positive rail. Omit this step for series-wound motors–proceed directly to throttle calibration instead. After securing all connections, apply dielectric grease to terminals to inhibit corrosion, particularly in humid climates or under saline exposure.
Test the circuit in stages: first, measure voltage across the battery bank (should read 37–39V open-circuit); next, activate the key switch and check for 36V at the solenoid’s “M” post; finally, engage the accelerator pedal and verify controller output voltage (expect 0–36V linear ramp). If voltage spikes or drops occur, inspect the throttle potentiometer–clean contacts with 600-grit sandpaper or replace if resistance exceeds 5.5 kΩ at full extension.

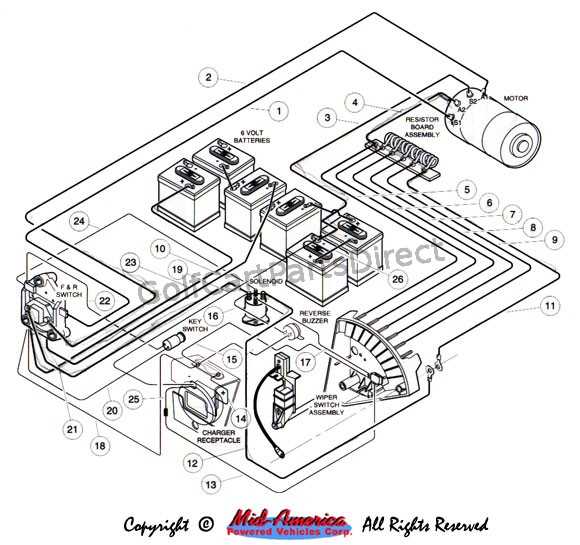

Critical Elements and Interlinking in a 36-Electric Golf Vehicle Electrical Framework
Begin by verifying the traction battery assembly’s integrity–six 6-volt deep-cycle units connected in series yield the required 36 volts. Ensure terminal corrosion is absent; oxidized contacts degrade performance by increasing resistance. Apply dielectric grease post-cleaning to prevent future oxidation. Cross-check cable gauges–4 AWG is standard for primary circuits, thinner strands risk overheating under load.
The solenoid acts as the system’s main relay, bridging the battery pack to the motor when the ignition key engages. Test solenoid continuity with a multimeter–clicking without circuit completion signals coil failure. Replace immediately; a faulty solenoid drains batteries even when idle. Mount it near the controller to minimize voltage drop over extended cable runs, adhering to a maximum 12-inch distance for optimal efficiency.
Controller and Motor Integration
Locate the motor controller beneath the vehicle’s seat or rear tray–its heat sink must remain unobstructed for proper cooling. Match controller ratings to the motor’s specifications: 400–600 amp units suit typical 3–5 horsepower motors. Secure all connectors with locking terminals; loose connections create intermittent power loss. Verify throttle signal voltage–0.5 to 4.5 volts across the potentiometer ensures smooth acceleration response.
Fuse protection is non-negotiable. Install a 400-amp class T fuse within 7 inches of the battery pack’s positive terminal. This safeguards the entire circuit against catastrophic short circuits. For accessory circuits (lights, horn), use 20-amp ATO fuses; lower ratings risk nuisance blowing under transient loads. Position fuse blocks centrally to simplify troubleshooting.
Charging and Safety Mechanisms
Connect the onboard charger directly to the battery pack using 6 AWG cables–undersized wiring overheats and prolongs charging cycles. Confirm charger output matches system voltage: 36 volts at 15–25 amps is standard. Equip the charging port with a 2-pole circuit breaker as a manual disconnect; never rely solely on charger switches for safety isolation. Include a diode near the positive terminal to prevent reverse polarity damage during maintenance.
Grounding errors cause erratic behavior. Attach the negative battery terminal to the vehicle’s frame using an 8 AWG cable–never splice into motor housing grounds. Bond all metallic components (controller enclosure, motor casing) to the frame with 10 AWG straps. Inspect ground paths annually; corroded or loose connections introduce stray voltages, compromising accelerator response and accessory reliability.

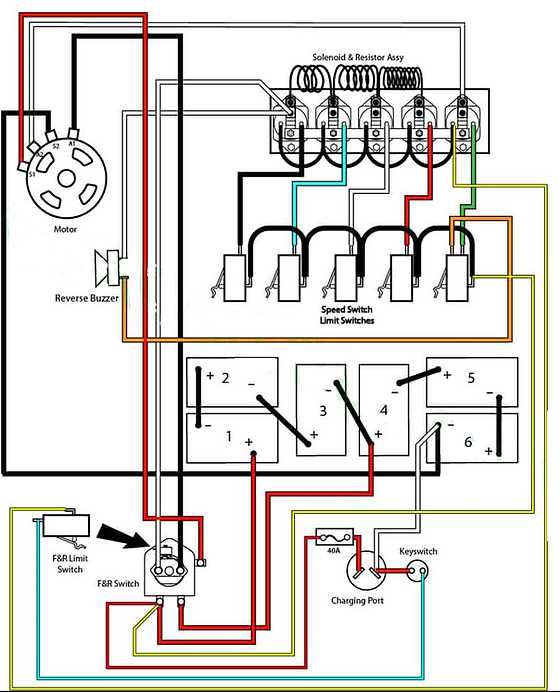

Sequential Connection Guide for 36V Electric Vehicle Battery Arrays
Disconnect all power sources before handling any terminals to prevent accidental shorts. Identify the positive and negative posts on each six-cell lead-acid unit–marked by “+” (red) and “-” (black)–and verify voltage output with a multimeter; each should read approximately 6.3V when fully charged.
Position the three batteries in series: align the first unit’s negative terminal with the second’s positive, then repeat with the second’s negative to the third’s positive. Secure connections using 4 AWG tinned copper cables, ensuring no loose strands remain exposed to prevent stray current leakage.
Critical Connection Parameters
| Parameter | Specification | Tool Requirement |
|---|---|---|
| Cable Gauge | 4 AWG minimum | Wire stripper (12mm cut) |
| Terminal Torque | 12-15 Nm | Torque wrench (5/16″ socket) |
| Insulation Resistance | >500 MΩ | Megohmmeter (500V setting) |
| Voltage Drop Test | <0.1V per joint | Voltmeter (DC range) |
Apply dielectric grease to terminal posts before fastening clamps to inhibit corrosion. Tighten clamps incrementally, alternating between bolts to distribute pressure evenly. A loose connection generates heat, degrading both battery lifespan and system efficiency.
Route cables away from moving parts and sharp edges. Use nylon conduit where cables pass through chassis openings. Secure cables at 30cm intervals with UV-resistant zip ties–avoid metal fasteners, which can chafe insulation over time.
After completing the series link, verify total system voltage: 3 × 6.3V = 18.9V (individual units) → 18.9V × 2 = 37.8V (full array). The slight overvoltage accommodates minor resistive losses during operation. Monitor the first charge cycle for uniform temperature distribution across all connections.
Attach the main positive lead to the motor controller’s input (typically a 50A solenoid) and the final negative to the system ground, using an 8 AWG cable for lower resistance. Test throttle response in a controlled environment before operational use; erratic readings indicate reversed polarity or incomplete connections.
Fault Isolation Checklist
If propulsion fails:
- Inspect each joint for oxidation–clean with a wire brush if present.
- Measure voltage at each battery node; a drop >0.5V signals a poor connection.
- Check solenoid engagement; a faint click suggests insufficient current.
- Examine fuses (30A typical) for continuity–replace if filament is broken.
Recharge the array using a smart charger set to 36V/15A capacity. Avoid trickle charging, which can sulfate plates. After charging, disconnect the positive terminal first to minimize arcing risks. Store the vehicle in a cool, dry location; temperature fluctuations accelerate electrolyte evaporation.
