Step-by-Step Guide to Creating a Safe Electrical Plan for Your Outbuilding

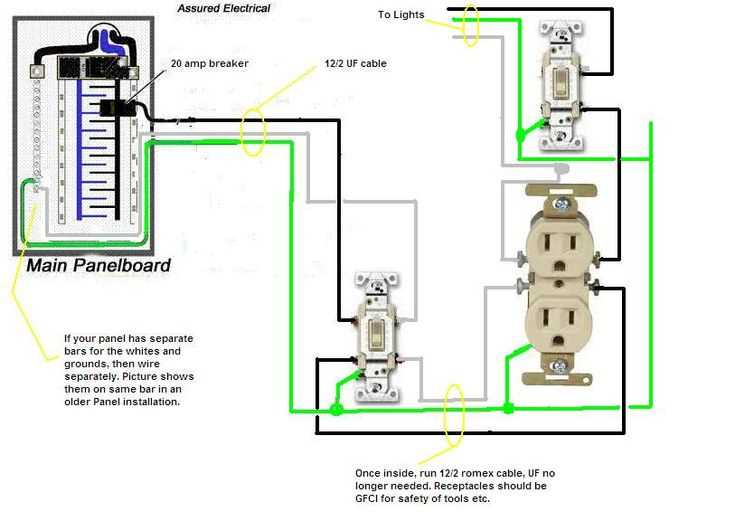

Begin by mapping a direct path from the main service panel to the auxiliary structure. Use a dedicated 20-amp circuit breaker with 12-gauge copper conductors for standard outlets and lighting. For heavier loads, such as power tools, upgrade to a 30-amp breaker with 10-gauge wire. Bury the cable at least 18 inches deep in rigid conduit for protection–schedule 40 PVC is sufficient for most residential applications. Label every connection at both the source and destination panels to simplify troubleshooting.
Install a subpanel in the outbuilding if more than six circuits are needed. Select a location near the entry point of the feeder cable, ensuring a minimum 36-inch clearance for maintenance. Mount the subpanel on a non-combustible surface and connect the grounding bus to an 8-foot ground rod driven into undisturbed soil. Space neutral and ground buses separately in the subpanel to comply with NEC requirements for detached structures.
Layout branch circuits on a scalable grid. Place general-purpose receptacles no more than 12 feet apart along walls and equip each with tamper-resistant outlets. Run 14-gauge THHN conductors through ½-inch EMT conduit for lighting runs, securing fixtures every 4 feet to prevent sagging. For exterior outlets exposed to weather, use weatherproof boxes and in-use covers, sealing all entries with silicone caulk. Test every circuit with a multimeter before energizing, verifying voltage drop does not exceed 3%.
Include a motion-activated floodlight at each corner of the structure, wired to a separate 15-amp circuit. Choose LED fixtures rated for wet locations and position them at a 15-degree downward angle to minimize glare. Add a single pull-chain light in any unconditioned spaces to provide illumination without permanent wiring. Group all switches near the primary entrance, using three-way configurations if multiple access points exist.

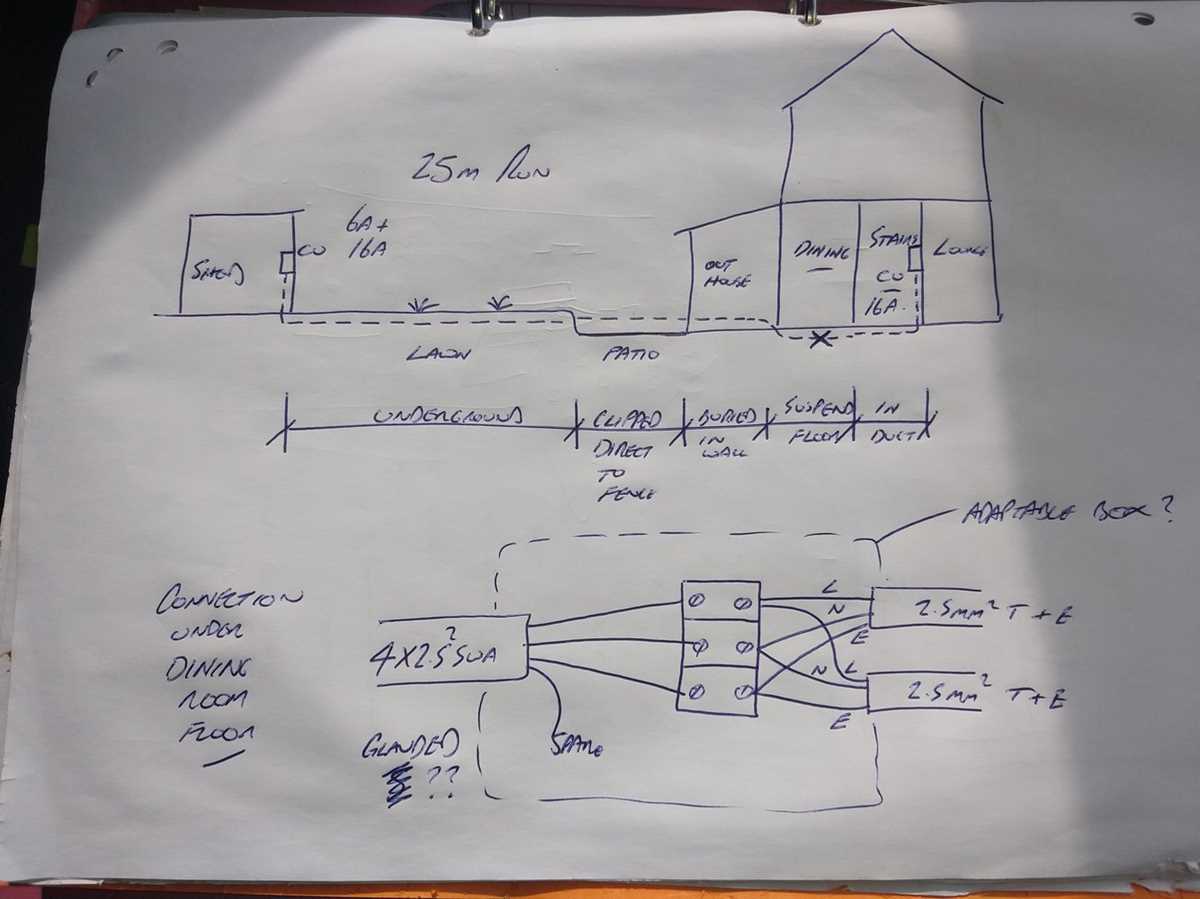

Document the entire setup with hand-drawn sketches that include conduit runs, cable lengths, and breaker assignments. Store this reference inside a waterproof sleeve taped to the subpanel door. Update the diagram whenever modifications are made to avoid future confusion. Include emergency shut-off instructions visible from outside the building for first responders.
Electrical Layout Guide for Outbuilding Construction
Begin by installing a dedicated 20-amp circuit from the main service panel to the auxiliary structure, using 12-gauge THHN copper conductors run through ¾-inch Schedule 40 conduit buried 18 inches underground. Include a grounding rod at the outbuilding with a minimum 8-foot length driven fully into soil if local codes permit–otherwise consult NEC Section 250.53 for approved alternatives. Mount a subpanel with a 100-amp main breaker no further than 6 feet from where the feeder enters, ensuring a 4-wire connection (two hot, one neutral, one ground) separated per NEC 408.4.
Distribute circuits with these load calculations: general lighting on 15-amp breakers (14-gauge wire), outlets on 20-amp breakers (12-gauge wire), and heavy loads like welders or compressors on separate 30-amp breakers (10-gauge wire). Use GFCI protection for all 120-volt receptacles within 6 feet of workbenches or sinks, and AFCI protection for lighting circuits serving storage areas with flammable materials. Label each breaker clearly with its purpose and amperage at the subpanel.
| Load Type | Wire Gauge | Breaker Size | Protection Required |
|---|---|---|---|
| Overhead LED lighting | 14 AWG | 15A | AFCI |
| Workbench outlets | 12 AWG | 20A | GFCI |
| Table saw | 10 AWG | 30A | Dedicated, no combo |
Run all conductors in rigid metal conduit for exposed runs along walls or ceilings, using liquidtight flexible conduit only for short connections to motors or movable equipment. Secure conduit straps every 4 feet and within 12 inches of junction boxes or panels. Install weatherproof covers on all outdoor-rated boxes and enclosures, applying dielectric grease to terminals exposed to moisture. Test continuity with a multimeter before energizing, verifying less than 1 ohm between neutral and ground at the subpanel.
Selecting Optimal Conductors for External Outbuilding Electrical Layouts
Begin with UF-B (Underground Feeder) cable for buried connections. Rated for direct earth installation without conduit, it withstands moisture, soil acids, and temperature shifts down to -20°C. Minimum gauge: 12 AWG for 20-amp circuits, 10 AWG for 30 amps. Depth requirements: 24 inches under turf, 18 inches beneath concrete slabs. For rocky or root-heavy terrain, switch to Type USE-2–it matches UF-B specs but tolerates mechanical stress better. Avoid PVC-jacketed NM-B here; it degrades underground within 2–3 years.
Prioritize THHN/THWN-2 conductors when routing through rigid metal conduit (RMC) or intermediate metal conduit (IMC). These copper wires handle 90°C dry and 75°C wet locations, making them ideal for exposed runs along eaves or interior walls. Use galvanized RMC for outdoor runs–its 0.120-inch walls resist corrosion and physical impact. Schedule 40 PVC conduit suffices for underground sections if buried 18+ inches, but switch to RMC for above-grade segments exposed to UV or potential vandalism.
- Aluminum conductors: 2-3 AWG sizes larger than copper (e.g., 6 AWG aluminum ≈ 10 AWG copper) for equivalent ampacity. Coat connections with no-ox-id compound to prevent oxidation. Budget +20% for larger conduit fill ratios.
- Photovoltaic (PV) output circuits: Use USE-2/RHH/RHW-2 rated for 90°C dry, 75°C wet, and sunlight resistance. Minimum 90°C insulation withstands 1kV DC without breakdown.
- Low-voltage (≤50V) paths: THW in flexible liquid-tight conduit (LFNC) for LED lighting or doorbell systems. Exceed NEC fill limits by 10% to simplify pulls.
Service entrance cables demand Type SEU or SER. SEU suits 100-amp overhead drops (2-conductor for single-phase), SER handles 125-200-amp (3 or 4 conductors). Anchor SER drops with steel strain relief clamps every 24 inches–aluminum sheath stretches under its own weight over 30-foot spans. For subpanels, match feeder conductor size to breaker rating per NEC Table 310.16: 6 AWG copper for 60-amp, 2 AWG for 100-amp.
Cold climates require thermoplastic high-heat-resistant nylon (THHN) in all above-ground conduits. Below -25°C, switch to XHHW-2–its cross-linked polyethylene resists embrittlement. For underground hydronic heating or snow-melt systems, pull 3/0 AWG XHHW-2 in Schedule 80 conduit; verify 90°C ampacity against worst-case load (dual-rated lugs (compression-type, never crimp) and torque to manufacturer specs with a calibrated driver.
Step-by-Step Guide to Extending Electrical Supply to an Outdoor Structure
Begin by verifying local building codes to confirm underground cable depth requirements–typically 18 to 24 inches for direct burial circuits. Use UF-B cable rated for outdoor use, sized according to the load (e.g., 12 AWG for 20A circuits, 10 AWG for 30A). Avoid PVC conduit unless required for mechanical protection; it adds cost and labor without benefit in most cases.
Locate the main service panel in your home and identify an available breaker slot. Install a double-pole breaker matching the cable’s amperage (e.g., 20A for 12 AWG). If the panel lacks space, consider a subpanel upgrade or consult an electrician to assess compatibility with tandem breakers, ensuring they comply with the panel’s UL listing.
Plan the route from the house to the outbuilding, minimizing bends and obstructions. Dig a trench along the path using a narrow trenching shovel or mechanical trencher, maintaining consistent depth. Place a 2-inch layer of sand at the trench bottom to cushion the cable, then lay warning tape 6 inches above it to alert future excavators.
At both ends of the trench, install watertight junction boxes (e.g., PVC or metal NEMA 3R enclosures) to protect connections. Run the UF-B cable through conduit where it emerges from the ground (minimum 18 inches of conduit at entry/exit points). Seal conduit openings with duct seal or silicone to prevent moisture ingress.
Inside the main panel, strip the UF-B cable ends and terminate them to the breaker using copper lugs or direct clamp connections. Ensure neutral and ground wires are separated–ground to the panel’s ground bus, neutral to the neutral bus–unless the system uses a bootleg ground, which is unsafe and violates code.
- Test continuity with a multimeter after installation but before energizing:
- Verify no shorts between hot/neutral, hot/ground, or neutral/ground.
- Check impedance for unexpected resistance (should be <1 ohm for most runs).
For the outbuilding’s subpanel, select a unit with a main lug design (no breaker) if fed from a dedicated circuit. Install a ground rod at least 8 feet deep, bonded to the subpanel’s ground bus with 6 AWG copper wire. Label all breakers and disconnects clearly–e.g., “SHOP LIGHTS (20A)”–to simplify future maintenance.
Subpanel Installation in an External Outbuilding: Key Power Distribution Specs
Calculate total load demand before selecting subpanel capacity. For most detached workspaces, a 60-100 amp service panel handles typical tools plus lighting without voltage drop issues. Measure cable run length from main service entrance to determine minimum conductor gauge: 6 AWG copper for 60 amps over 50 feet, dropping to 4 AWG for 100 amp service or distances exceeding 100 feet. Underground feeder cable requires burial depth of 24 inches when using direct burial rated conductors; increase to 30 inches if running PVC conduit.
Install a dedicated ground rod at the subpanel location. Drive an 8-foot copper-clad rod at least 6 feet from the building foundation, connecting it to the subpanel ground bus with 6 AWG bare copper conductor. Bond neutral and ground buses only at the main service disconnect – never at the subpanel. Use a four-conductor cable carrying two hots, neutral, and ground to maintain isolated grounding throughout the system.
Include arc-fault circuit interrupters for all 120V branch circuits. Dedicate one 20-amp circuit for lighting, another for general receptacle use, plus a 30-amp outlet for larger equipment like table saws. Heavy machinery may require separate 240V circuits with double-pole breakers – calculate individual loads at 125% of continuous-duty ratings for proper breaker sizing.
Label every circuit on the subpanel directory. Mark feeder cables clearly at both main panel and subpanel ends with origin and destination points. Test voltage at each receptacle after installation to verify proper polarity and grounding before energizing connected equipment. Keep a 3-foot clearance in front of the subpanel free from storage or obstructions for NEC compliance.
Use weatherproof conduit bodies at cable transitions above grade. Select compression fittings for liquidtight flexible conduits when connecting fixed equipment with vibration issues. Apply corrosion-resistant antioxidant compound to all aluminum conductor terminations. Install insulated bushings at all conduit openings entering enclosures to prevent wire abrasion.
Schedule an electrical inspection before backfilling trenches. Document feeder cable routing with photographs for future reference. Store spare breakers matching subpanel manufacturer for quick repairs. Maintain access to the subpanel area for periodic thermal imaging scans to detect potential hot spots before they become hazardous conditions.
