Complete Boat Switch Panel Wiring Guide for Marine Electrical Systems

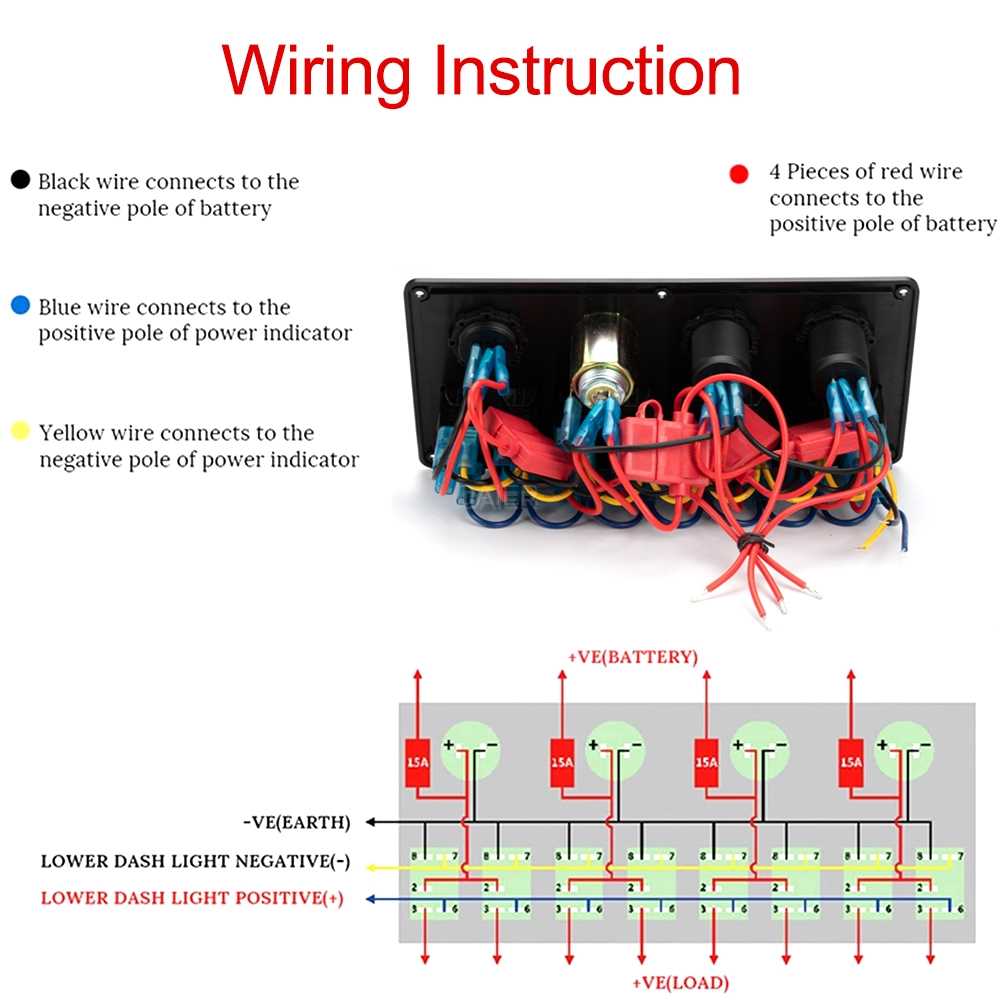

Start by mapping each circuit with precision: assign a dedicated breaker or fuse for every input, including lighting, pumps, and electronics. Use marine-grade tinned copper cables–10 AWG for high-load circuits (winches, thrusters), 14–16 AWG for low-current devices (LED navigation lights, sensors). Ground all components to a common bus bar, bonded to the vessel’s hull if metallic, or to an isolated ground plate in fiberglass builds.

Avoid daisy-chaining switches–run each circuit directly to its source. Install a master kill switch rated for your system’s total amperage (typically 50A–100A) between the battery and distribution block. For multivoltage setups (12V/24V), use an automatic charge relay or isolated converter to prevent cross-loading. Label every wire at both ends with heat-shrink sleeves, noting voltage, purpose, and termination point.

Use waterproof IP67-rated connectors (AMP, Deutsch) for all external connections. For dash-mounted units, mount relays and breakers in a dry, ventilated enclosure–avoid corrosive environments near bilges or raw-water intakes. Test each circuit with a multimeter before final connection: verify voltage under load (target 12.6V–14.4V at battery terminals) and zero continuity between ground and neutral.

For DC-powered instruments, segregate sensitive electronics (GPS, VHF) from inductive loads (motors, compressors) to prevent voltage spikes. Add a 1µF capacitor across terminals of pumps and solenoids to suppress transients. If integrating lithium batteries, include a battery management system (BMS) and fuse each bank individually (e.g., ANL fuse for house bank, MIDI fuse for engine cranking).

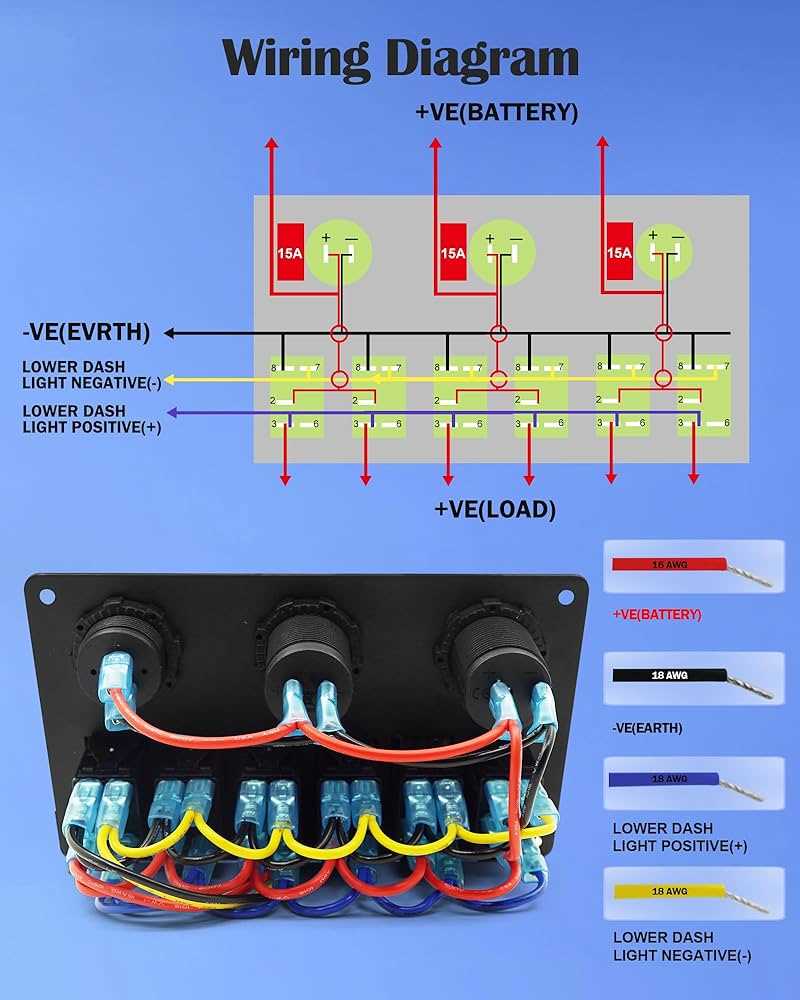

Electrical Schematic Guide for Marine Control Boards

Begin by selecting tinned copper cable with a minimum gauge of 10 AWG for high-current circuits–bilge pumps, anchor winches, and thrusters demand this thickness to prevent voltage drop over distances exceeding 3 meters. Use 14 AWG for lighting and 16 AWG for instrumentation, ensuring each circuit includes a dedicated fuse rated at 125% of the expected load. Terminate all connections with marine-grade butt splices or ring terminals crimped with a hydraulic tool and sealed with adhesive-lined heat shrink tubing to guard against corrosion from salt spray.

Critical Circuit Layout Principles

• Place bus bars at the center of the distribution block, minimizing cable runs–proximity reduces resistance and heat buildup.
• Separate power and signal lines by at least 5 cm to prevent electromagnetic interference, using shielded twisted pair for NMEA 2000 networks.
• Label every terminal with laser-etched polyester tags, referencing both the circuit function and corresponding fuse rating (e.g., “NAV LIGHTS – 5A”).
• Install a common negative bus bar star-grounded to the hull; avoid daisy-chaining grounds to eliminate stray current corrosion.
• Test each circuit with a 250V insulation meter before energizing, verifying a minimum of 10 MΩ between conductors and ground.

Use terminal blocks with captive screws to secure connections under vibration–loose fasteners degrade conductivity within weeks. For momentary switches controlling relays (e.g., horn or windlass), wire the common terminal directly to the load side of the fuse to isolate potential short circuits. Color-code conductors strictly per ABYC E-11 standards: yellow for DC positive, brown for DC negative, and orange for switched positive feeds.

Selecting Optimal Parts for Marine Control Interfaces

Prioritize waterproof IP67-rated toggles and breakers to prevent corrosion in humid environments. Marine-grade terminals made from tinned copper resist oxidation two to three times longer than standard copper, reducing voltage drops by up to 15%. For circuit protection, use blade-type fuses rated 10-20% above anticipated current loads–common 5A to 50A ranges cover most auxiliary systems. Rocker actuators should feature backlighting for low-visibility conditions, with LED indicators consuming less than 0.1W per unit.

Performance vs. Durability Trade-offs

Balancing cost and longevity, opt for modular busbars over direct wire-to-switch connections; they handle 30-40% higher amperage without overheating. Toggle styles like momentary-on or latching depend on function–momentary suits pumps, while latching fits navigation lights. Verify switch ratings match DC voltages (typically 12V or 24V); alternatives like sealed push-buttons may fail under repeated saltwater exposure, unlike high-cycle rated rockers tested to 50,000 actuations.

Create a Marine Electrical Schematic from Scratch

Begin with a scaled layout sketch on graph paper. Mark each control element location–toggle levers, push-buttons, rotary selectors–and assign precise dimensions. Use 1:1 scaling to ensure components fit the actual enclosure. Label every position with permanent ink; faint pencil marks smudge under workshop lights.

Material Selection & Tool Setup

• Wire: Tinned copper, 16 AWG for circuits under 10 A, 12 AWG for pumps and thrusters. Avoid aluminum–corrosion accelerates below deck.
• Breakers/Fuses: Install a resettable breaker at the power source for each branch path. Match amperage to device specs + 20% headroom.
• Terminals: Ring-style crimp connectors only. Barrel splices fail under vibration.
• Tools: Crimper with ratcheting jaws, heat gun (for adhesive-lined shrink tubes), calibrated multimeter, stubby screwdriver for tight spaces.

Draw bus bars first–two horizontal lines at the top and bottom of the schematic. The upper bar carries the main feed (12 V or 24 V positive); the lower line is the ground return. Segment branches vertically: navigation lights on the left column, bilge systems middle-right, accessories far right. Indicate polarity with red (+) and black (-) on every branch.

1. Trace each circuit path with a colored pencil: navigation (blue), bilge (green), accessories (yellow). Cross-reference with manufacturer specs for voltage drop tolerance–never exceed 3% for critical paths.
2. Add inline fuses within 7 cm of the bus bar tap. Label each fuse holder with circuit name and max amperage.
3. Use spade connectors where circuits meet switches. Mark switch terminals common (+IN) / NO (+OUT) / NC (ground) on the schematic.
4. Test continuity after each tape-up. Set multimeter to 200 Ω range–zero reading confirms closed path, infinite means open fault.

Final Validation Checklist

• Verify wire gauge matches current draw: 16 AWG (
• Confirm all sources tie back to a single battery bank negative terminal–avoid ground loops.
• Label each terminal block entry with heat-shrink tubing annotations (white text on black background).
• Solder stranded ends only after heat-shrink is positioned–prevents stray strands bridging contacts.

Critical Errors to Sidestep in Marine Electrical Control Installations

Oversizing or undersizing conductors creates immediate fire hazards and long-term reliability issues. A 10 AWG cable rated for 30A continuous loads fails under 50A surges typical in bilge pumps, while 6 AWG wastes space and adds unnecessary weight. Follow ABYC E-11 standards: match cable gauge to fuse rating within 10% tolerance–14 AWG for 15A circuits, 12 AWG for 20A, 10 AWG for 30A. Measure actual run length, adding 15% voltage drop allowance for distances exceeding 10 feet. Copper core purity matters: 99.9% oxygen-free (OFHC) resists corrosion in humid environments 3x longer than standard annealed copper.

Grounding Pitfalls That Compromise Safety

Error	Failure Mode	Corrected Approach
Shared ground bus for multiple circuits	Voltage spikes on sensitive instruments	Dedicated ground return for navigation lights
Combining AC/DC grounds	Electrolytic corrosion in through-hulls	Isolated ground plates for each system
Skipping bonding connections	Stray current corrosion on sacrificial anodes	Tinned copper mesh bonded to engine block

Neglecting fuse placement at every positive terminal leaves entire branches unprotected. A short between a bilge pump and battery bypasses the main fuse, turning 18 AWG control wiring into a 400°F fuse itself. Install ATO/ATC fuses within 7 inches of the battery post for primary circuits, and add secondary fuses before any distribution blocks. Use waterproof fuse holders with IP67 ratings near wet locations–standard blade fuses corrode internally within 6 months in saltwater spray. Label every fuse with circuit name and amp rating; handwritten labels fade in 8 months under UV exposure–use laser-engraved stainless steel tags instead.

Mastering Wire Identification and Layout in Marine Control Interfaces

Use heat-shrink tubing printed with legible, waterproof labels for every conductor. Select tubing with UV resistance rated at least 600V and a shrink ratio of 2:1 for tight adhesion around irregular gauge sizes. Pre-print labels with a thermal transfer printer using marine-grade vinyl (e.g., 3M Scotchcal 8900) to prevent smudging or fading under prolonged exposure to saltwater spray. Include both the circuit function and a unique alphanumeric identifier on each label–e.g., “NAV_LGHT_A1” or “BILGE_PMP_B2″–to eliminate ambiguity during troubleshooting.

Group conductors by circuit type and destination before routing. Bundle power feeds, auxiliary circuits, and ground leads separately using spiral wrap or conduit, maintaining a minimum 1-inch air gap between dissimilar voltage levels (12V vs. 24V) to reduce electromagnetic interference. Secure bundles with nylon zip ties spaced every 8 inches, leaving ¼-inch slack at tie points to prevent chafing. Route ground leads directly to a common busbar mounted within 6 inches of the control interface, avoiding daisy-chaining to minimize voltage drop.

Color-code conductors using ABYC E-11 standards: red for positive, black/yellow for negative, and customized hues for specialized circuits (e.g., orange for ignition-switched feeds, brown for fuel pump leads). Cross-reference colors with a laminated reference sheet taped inside the enclosure door, listing each identifier alongside its function, gauge, and fuse rating. For multi-function installations, add a secondary identifier near termination points–e.g., a colored dot on terminal lugs using marine epoxy paint.

Terminate conductors with crimp terminals sized to match the lug barrel and stud diameter. Use tinned copper lugs (e.g., Ancor) and apply dielectric grease to connections before fastening with stainless steel hardware. Torque terminal screws to manufacturer specifications–typically 18–24 in-lbs for #8 studs–to prevent loosening from vibration. Label terminal blocks with engraved phenolic tags or laser-etched stainless plates, ensuring the text remains readable after exposure to moisture and sunlight.

Install a transparent acrylic cover over the interface to protect labels from physical damage while allowing visual verification. Drill ¼-inch drainage holes at the lowest point of the cover to prevent water accumulation, and apply a bead of silicone sealant around the perimeter to maintain ingress protection (IP67 or higher). For backlit interfaces, use frosted labels to enhance readability without creating glare under direct sunlight.

Create a digital backup of conductor layouts using CAD software (e.g., Fusion 360 or DipTrace) with layered schematics for each circuit. Include termination points, conduit runs, and color codes in the documentation. Store the file on a waterproof USB drive housed in a sealed compartment within the vessel’s technical locker, alongside printed copies protected in a zip-lock bag with desiccant packets. Update the records immediately after any modifications to avoid discrepancies.

Test label adhesion and readability after 48 hours of salt spray exposure (ASTM B117) or equivalent field conditions. Replace any tubing or tags showing signs of delamination, discoloration, or illegibility. For high-vibration areas (e.g., near engines or thrusters), reinforce labels with a secondary clear adhesive strip over the heat-shrink to prevent detachment. Prioritize legibility over brevity–avoid abbreviations that may confuse crew during emergencies.

Integrate a quick-reference decal on the interface façade, summarizing the most critical circuits with standardized symbols (e.g., ISO 2575 for marine indicators). Position it adjacent to the corresponding toggle or breaker to reduce response time during fault isolation. For vessels operating in low-light conditions, use phosphor-coated labels or electroluminescent film behind translucent panels to maintain visibility without requiring external illumination.
