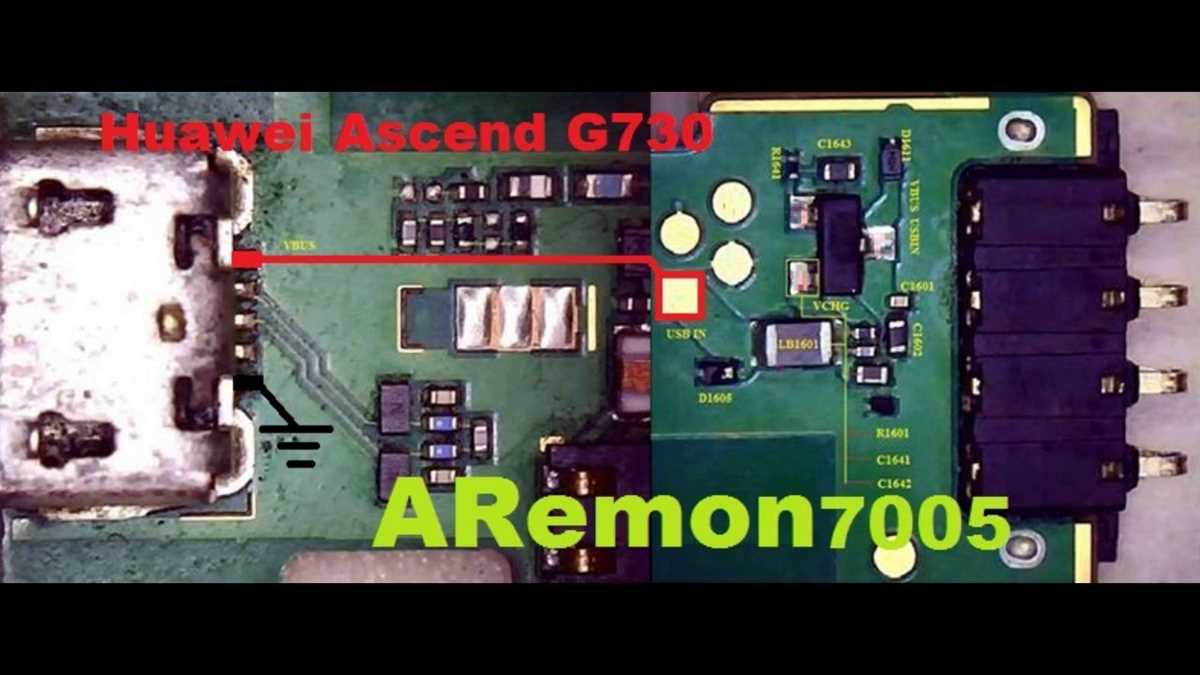

Huawei G730 U30 Motherboard Schematic Circuit Diagram Full Download Guide

To resolve hardware faults in a mid-range 2013 MTK6582 device, begin by cross-referencing component placement on the board-level circuit map. Locate the U501 PMIC near the top-left corner–its pinout connects directly to the battery terminal via R512 (0.1 Ω resistor). Trace the VBAT line through C514 and D501 (schottky diode) before it feeds into the charging IC. Verify continuity with a multimeter; a drop below 3.6V here often indicates corroded vias under the metal shield near the SIM slot.

For display interfacing, examine the 24-pin FPC connector (J1001) on the rear PCB layer. The MIPI lanes (D0-D3, CLK) run beneath the copper pour shielding–scratch-test pads TP1001-TP1004 with oscilloscope probes to confirm signal integrity. Noise on CLK typically stems from damaged L1001-L1002 (0Ω links) or degraded EMI filters alongside the connector. Replace these passives with 10pF ceramic caps if probing reveals >200mV ripple.

Power sequencing failures often link to the MT6320 PMIC bonding wires. Probe PWRKEY (pad R301, 10K pull-up)–if pulsing erratically, check RTC crystal Y501 (32.768kHz) for micro-fractures under magnification. The core domain (VCOR) should stabilize at 1.2V within 5ms of PWRKEY assertion; delay suggests C501 (1µF) leakage or cracked U501 die. Bypass C503 (10µF) with a temporary 22µF tantalum to isolate ESR-related dropouts.

Flash memory repair requires the eMMC ballout schematic for pin remapping. Desolder U401 (H9TP32A8JDMCP-ID) and verify connectivity to DQ0-DQ7 via R401-R408 (33Ω series resistors). CLK (pad B4) and CMD (pad A5) must show to ground; higher values confirm via oxidation in the BGA escape region. Reball using 63/37 SnPb solder–avoid lead-free paste to prevent cold joints on signal pads.

Practical Guide to the G730-U30 Board Layout

Locate the power management IC (PMIC) at position U301, marked as MT6322A, adjacent to the battery connector. Use a multimeter in continuity mode to verify connections to C301–C305 (10µF caps) before attempting rework–these filter noise on VBAT lines. If replacing the PMIC, pre-tin the solder pads with 0.3mm lead-free solder to prevent bridging under the 0.5mm pitch BGA.

Key Test Points and Voltages

Label	Expected Voltage	Component Reference	Failure Symptom
VCC_MAIN	3.8V (±0.2V)	L202, C202-C205	Device boots then shuts off
VDD_CORE	1.1V (±0.05V)	L203, C220-C222	No display, backlight stays off
VIO_1.8V	1.8V (±0.1V)	L204, C230-C233	Touchscreen unresponsive

For RF troubleshooting, probe TP401 (GSM_PA_VCC) with an oscilloscope while triggering a call–normal output should peak at 3.4V during TX bursts. If values deviate, check Q401 (RF3560) and its driver, U402 (SKY77351), replacing only with matching date-code components to maintain impedance. Always cross-reference resistor values on R401–R405 with the BOM: variations above 5% cause TX desense.

Finding Authoritative PCB Reference Materials for the G730-U30 Variant

Start with the manufacturer’s official documentation portal at consumer.huawei.com/en/support/. Filter by device model and select “Service Manuals” under technical resources. Look for files labeled “Board Files” or “Hardware Reference”–these often include circuit layouts with component placement, test points, and signal flow paths. Verify the version matches the U30 revision by cross-referencing the PCB silk-screen markings with the silkscreen layer in the PDF.

Electronics repair forums like Elektroda and GSM-Forum host user-uploaded schematics. Search using the board’s FCC ID (found under the battery or back cover) instead of the model name. Premium memberships may be required to access high-resolution attachments. Always validate these against known-good signals: check continuity on capacitor pins, measure regulator output voltages, and probe clock lines with an oscilloscope to confirm accuracy.

Direct Manufacturer Alternatives

Regional support centers sometimes provide unrestricted access to internal documentation. Contact the local service hub listed on the brand’s global website–some locations routinely share schematics with independent technicians under NDA. Request the “Service Bulletin” for the specific hardware variant; these often detail revisions to power delivery, flash memory pinouts, or antenna matching networks omitted in public releases.

Third-party chipset vendors occasionally include partial schematics in datasheets. Identify the primary SoC, power management IC, and display driver via part numbers etched on the PCB. Visit the chip manufacturer’s website–companies like MediaTek, Qualcomm, or Syntiant publish reference designs that align closely with OEM implementations. Compare these against traced signal lines using a multimeter in diode mode to isolate discrepancies.

Schematic repositories like Scribd or engineering file-sharing platforms might archive reverse-engineered blueprints. Prioritize files with embedded layers showing ground pours, power rails, and decoupling capacitors. Use a Gerber viewer to inspect copper fills and stitching vias–poorly documented boards often omit these details, leading to incorrect impedance calculations during repairs.

Identifying Key Components on the MTK6582 Reference Board Layout

Locate the power management IC (PMIC) near the battery connector–marked MT6323 or similar–its pins handle voltage regulation for the CPU, RAM, and peripherals. Check adjacent capacitors and inductors; their values should match the BOM (bill of materials) to ensure stable power delivery during boot sequences.

The MediaTek MT6582 SoC sits beneath the copper heat spreader, usually soldered with ball grid array (BGA) pads. Probe the surrounding resistors and diodes with a multimeter–open circuits here often cause display or touch failures. Trace the DDR3 SDRAM (K4B2G1646E or equivalent) signal lines to the SoC; length-matched traces prevent memory initialization errors.

Examine the baseband processor connections, particularly the RF front-end filters and power amplifiers (SKY77356 or similar). Weak or corroded joints here result in poor signal reception or dropped calls. Test the antenna switch module (ASM) by measuring continuity to the main antenna pad–interruptions cause fluctuating network bars.

The camera connector (usually a 24-pin FPC) ties directly to the ISP (image signal processor) via a flex cable. Misalignment or damaged pins produce “no camera” errors; verify each pin’s voltage with a scope during boot to isolate faults. Adjacent flash memory (eMMC) stores bootloader and firmware–corrupted blocks trigger bootloops or “secure boot” violations.

Check the USB port’s data lines (D+ and D-) for shorts or opens; failure here blocks charging or firmware flashes. The microSD slot often shares traces with the eMMC–clean oxidization off contact points to avoid read/write failures. Nearby, the audio codec (MT6620N) drives the speaker and mic; faulty resistors here cause distorted sound or microphone dropouts.

Inspect the Wi-Fi/Bluetooth module (MT6627 or similar) for cold solder joints–intermittent connections lead to disconnections. Trace the I2C or SPI bus lines to the touchscreen controller (GT9xx series); corrupted signals result in unresponsive or erratic touch inputs. Verify the proximity sensor’s pull-up resistors–malfunctioning circuits prevent auto-brightness adjustments.

Focus on the LCD connector (30-pin FPC) for tension damage or misaligned pins–this causes white screens or flickering. The backlight driver (LM3630A or equivalent) regulates brightness; faulty MOSFETs here produce dim displays. Nearby, the vibration motor’s transistor (S8550) often fails–test with a multimeter in diode mode to confirm proper switching.

For battery charging circuits, probe the BQ24156 or similar IC; shorted inductors here drain the battery rapidly or prevent charging. The fuel gauge (BQ275xx) tracks capacity–corrupted firmware causes incorrect battery percentage readings. Lastly, inspect the SIM card holder’s spring contacts for corrosion–poor conductivity leads to SIM card detection errors.

Tracing Power Paths in Board Layouts for Fault Diagnosis

Begin by identifying the battery connector on the PCB reference map–pins labeled VBAT, VBUS, or B+ mark primary input points. Measure voltage here first: a drop below 3.6V suggests upstream issues (bad connector, flex cable corrosion). Use a multimeter in continuity mode to verify ground paths; any intermittent beep indicates fractured traces needing rework.

Follow the power rails sequentially:

• Locate buck converters (typically labeled U501, U602) near heat sinks.
• Check input capacitors (C511, 10μF) for shorts–replace if ESR exceeds 5Ω.
• Output nodes (VREG_1V8, VDD_3V0) should maintain stable readings; ripple above 20mVpp indicates failed regulation.

Resistance-check each coil (L301, 0.8μH) for open circuits–normal DC resistance sits under 0.3Ω.

Critical Test Points for Quick Validation

Probe these junctions before deeper inspection:

1. PMIC output pins (marked PWR_ON, SYS_EN). Should toggle cleanly from 0V to full rail voltage.
2. Power distribution IC (PDIC) input (VIN_5V0) and adjacent diode (D401). A forward voltage above 0.7V signals failure.
3. Charging circuit sense resistors (R801, 10mΩ). Voltage drop should mirror current draw (1A = 10mV).

Isolate the faulty stage: desolder the coil feeding suspect rails if noise persists.

Trace abnormal current paths using thermal imaging–hotspots around linear regulators (U402) point to excessive load. Scrape solder mask over buried vias near power planes; corrosion often hides under green lacquer. For boost converters, verify enable signals (EN pin toggles via I2C bus)–absence requires MCU firmware reflash.

Replace fuse links (F101, 1.5A) only after confirming downstream short circuits are cleared–continuity-test USB port shield and flex connectors preemptively. Keep note files listing each rail’s expected voltage; deviations exceeding ±5% mandate IC or transistor (Q201, N-channel MOSFET) replacement.
