Step-by-Step Ceiling Fan with Light and Remote Wiring Guide

Start by identifying the three primary wires from your overhead rotating appliance: black (power), blue (lamp load), and white (neutral). The remote receiver module must slot between these outputs and the household supply. Match wire colors precisely–black to black, blue to blue, white to white–using twist connectors before securing with electrical tape. Verify the module’s input leads align with the house feed: line (hot) to black, neutral to white, and ground to bare copper if present.

Mount the receiver adjacent to the motor assembly, ensuring no contact with moving blades. Cut a shallow notch in the housing cover if space is tight. Link the receiver’s output wires to the appliance terminals: route motor lead to the device’s labeled motor connection, light lead to lamp connection, and common neutral to both neutral feeds. Secure every joint with a crimp connector and cover with shrink tubing for moisture resistance.

Test functionality before final installation. Apply power and cycle through speeds using the handheld control–verify that both airflow regulator and bulb activator respond independently. If flicker occurs, swap the dimmer-capable bulb for a standard incandescent or recommended LED variant. Confirm the reverse switch operates smoothly; if sluggish, lubricate the toggle contacts with dielectric grease.

For multi-appliance setups, assign unique radio frequencies to each remote by holding the bind button on the module for five seconds until the LED flashes rapidly. Pair each remote consecutively, labeling them to prevent cross-signals. Always reroute excess wire into the mounting bracket to avoid pinching; a 3/8-inch loop prevents stress on connectors during operation.

Connecting a Smart Air Circulator and Illuminator Using a Wireless Controller

Begin by identifying the power feed from your home’s electrical panel to the junction box in the room where the unit will be installed. A 12-gauge, triple-insulated copper cable is standard for most residential setups, ensuring compatibility with both the motor’s load and the LED module. Label each conductor at both ends before stripping insulation–black for line voltage, white for neutral, green or bare copper for safety ground, and an additional red or blue wire if your kit includes a dual-circuit configuration for independent operation of airflow and lighting.

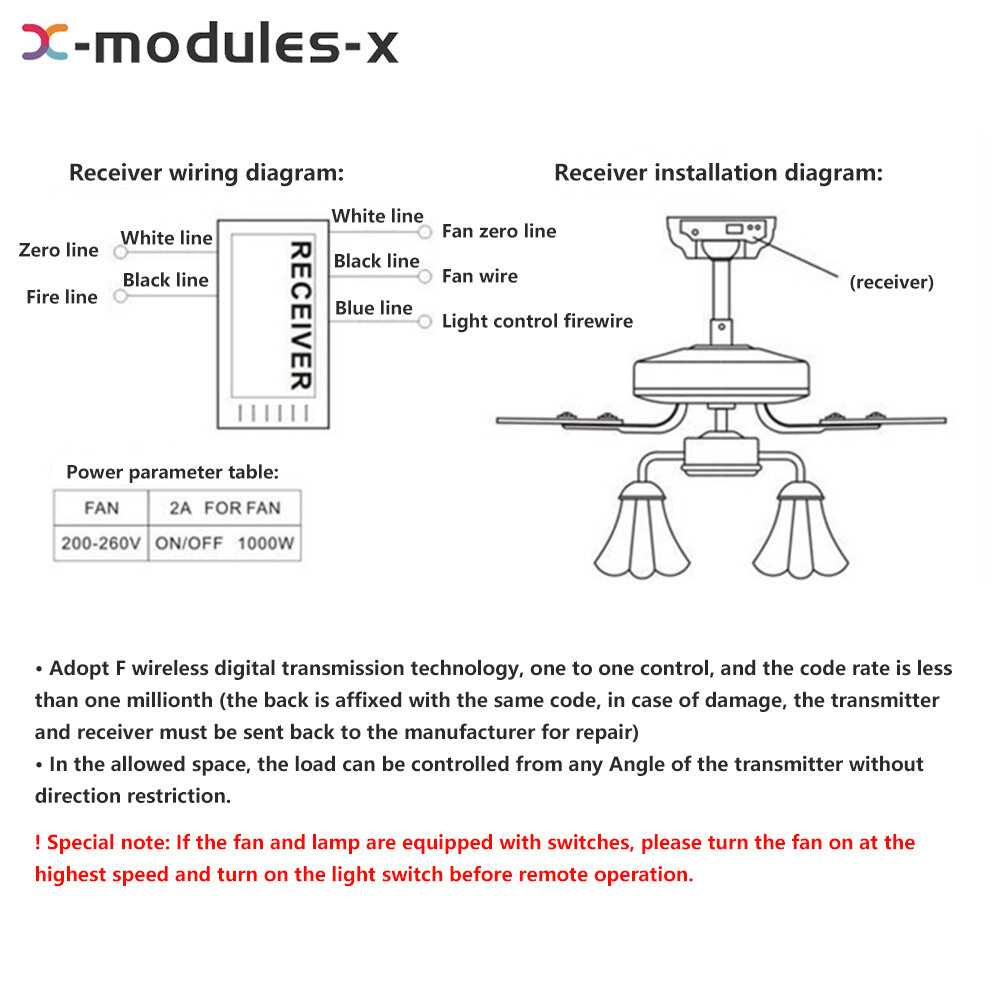

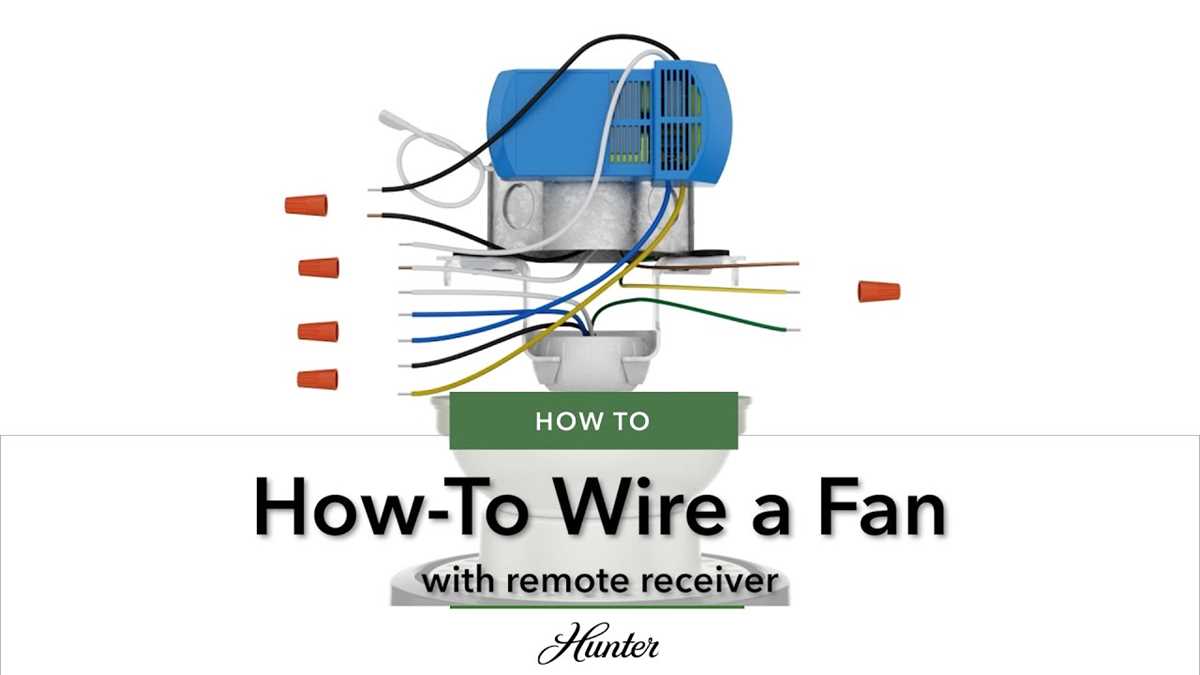

Attach the receiver module supplied with your handheld transmitter to the mounting bracket inside the housing. Position it clear of rotating blades and heatsinks to prevent interference. Using twist-on connectors or lever nuts, link the line, neutral, and ground wires from the ceiling feed to the corresponding terminals marked on the receiver–typically L (load), N (neutral), and G (ground). Verify polarity with a non-contact voltage tester; miswiring risks damaging the solid-state circuitry.

Integrating the Dual-Function Switching Mechanism

If your setup separates airflow and illumination control, connect the second hot conductor (usually red or blue) to the receiver’s light terminal. Many modern transmitters use a single-channel relay; others split signals into distinct buttons. Confirm compatibility by checking if the receiver has labeled outputs for motor and bulb–common configurations include a 3-speed relay for airflow and a dimmer-compatible circuit for lighting. Secure connections with heat-shrink tubing or silicone-filled wire nuts to prevent moisture ingress, especially in enclosed housings without ventilation.

Grounding the assembly is non-negotiable. Bond the green or bare copper lead from the ceiling cable to both the motor frame and the metallic bracket. Use a pigtail if necessary, ensuring a direct path to the electrical panel’s ground bus. Skipping this step exposes users to stray currents and voids the unit’s ETL or UL certification. Once secured, fit the canopy over the junction points, leaving minimal slack to avoid pinching conductors during final assembly.

Pair the wireless controller by following the manufacturer’s sequence–often holding the power button on both transmitter and receiver until an LED flashes or beeps confirm synchronization. Test all functions before finishing installation: rotate blades manually to check clearance, cycle through low-medium-high speeds, and toggle illumination on/off. If flickering or delayed response occurs, inspect signal interference from nearby electronics or loose antenna placement on the receiver.

Final Safety and Performance Checks

Seal exposed conductors with approved electrical tape or conduit if the junction box isn’t weatherproof, particularly in garages or outdoor-covered patios. Avoid using twist ties or standard duct tape–these degrade under heat. For dimmable LED arrays, ensure the receiver’s circuitry supports low-voltage PWM; mismatches cause buzzing or premature failure. If uncertain, replace factory capacitors with high-temperature variants rated for 105°C to extend lifespan under continuous load.

Document your connections with a quick sketch or photograph before closing the housing. Label the transmitter buttons for future reference, especially if household members use the device. Regularly inspect the assembly every six months for dust accumulation on blades or corroded contacts in humid environments–clean with a soft brush or compressed air, never liquid cleaners. For troubleshooting, refer to the receiver’s model number printed on the PCB, not just the product manual, as firmware updates often modify behavior without packaging changes.

Key Parts of a Smart Ventilation System with Integrated Illumination

Start by verifying the receiver module’s compatibility with your specific model–most units support 110–240V AC but require exact voltage matching for the motor and lighting circuit. Locate the receiver (typically a small white or black box) inside the mounting bracket or canopy; it houses relays for individual control of rotation speeds (3–4 settings) and illumination (on/off + dimming, if supported). Check for labeled connections such as “L” (live), “N” (neutral), “1”, “2”, “3” (motor speeds), and “LIGHT” (or similar); improper pairing here risks damaging the circuitry.

Critical Elements to Examine

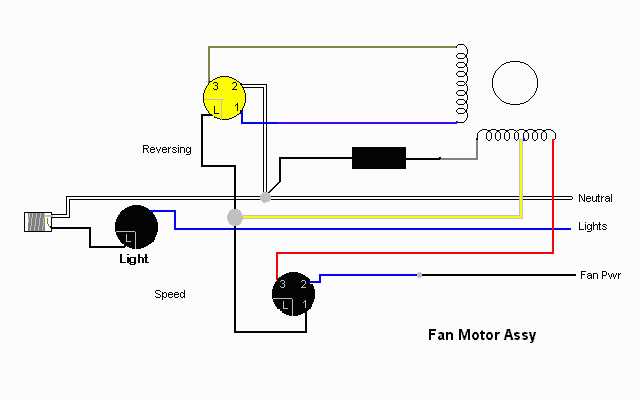

• Motor Assembly: Brushless DC motors (BLDC) dominate modern setups due to efficiency–50–70W consumption versus 90–120W for traditional induction types. Look for pre-soldered wires in blue, black, red, or yellow; these correspond to speed settings, while white or gray wires often manage reverse rotation (if applicable). Capacitors (round, ~2–5μF) may be embedded nearby–to bypass them risks erratic operation.
• Remote Transmitter: Frequency ranges span 300–433MHz (common) or 2.4GHz (dual-band models). Replaceable CR2032 batteries last 6–12 months; weak signal strength (tested via multimeter at 2.8–3.3V) causes intermittent response. Sync procedures vary: some require pressing “light” + “fan” buttons simultaneously for 5 seconds, while others auto-pair on power-up.
• Light Fixture: LED modules (40–100 lumens/W) replace incandescent boards; incompatible dimmable variants flicker or overheat. Verify the “DATA” wire (often purple) links to the LED driver–cutting it may disable remote dimming while leaving manual switches functional.

Inspect the mounting bracket’s grounding wire (green/yellow, 14–16 AWG)–omit this and voltage surges can fry the receiver within seconds. For models with wall controls, ensure the remote’s “master” setting supersedes hardwired switches; some systems default to wall priority unless toggled via the transmitter’s hidden “mode” button. Always power down the circuit breaker before touching any terminals–even low-voltage components carry residual current capable of minor shocks.

Step-by-Step Connection Guide: Installing a Tri-Speed Rotary Regulator and Illumination Unit

Turn off the circuit breaker supplying power to the junction box before handling any conductors. Verify absence of voltage with a non-contact tester–hold it near each wire terminal and the fixture base to confirm.

Identify the four primary conductors exiting the top mount bracket: black (high-speed), blue (medium-speed), red (low-speed), white (neutral), and bare or green (ground). Label them temporarily with masking tape if colors are ambiguous.

Attach the neutral bundle first: twist together the white wires from the motor, remote receiver, and house supply using pliers, then secure with a UL-listed nut. Tug gently to ensure no slippage–this junction must remain intact under vibration.

Connect the speed control strands in descending current draw order: black to black (primary coil), blue to blue (auxiliary coil), red to red (tertiary winding). Crimp each pair separately with insulated connectors; avoid combining all three into a single join–overloading risks overheating.

Route the ground wire (bare/green) to the metal hanger bracket. Fasten it with a grounding screw or into a dedicated slot if the box lacks a threaded hole–ensure a solid mechanical bond, not just wrapped around a tab.

Tuck all joins neatly into the electrical enclosure, leaving no exposed strands. Fold speed control wires toward the canopy with 3-4 cm slack for motor oscillation; compress excess insulation so remote receiver fits flush without strain.

Mount the remote module inside the canopy per manufacturer’s gap specifications–most require a 2 mm air space for heat dissipation. Snap the cover ring into place, ensuring gasket seals completely against drafts that could misalign the infrared signal.

Restore power at the breaker and cycle through speeds using the handheld transmitter. Note any lag between commands; excessive delay indicates loose connections–recheck joins under voltage with an insulated probe if necessary.
