Step-by-Step Ceiling Fan Remote Wiring Diagram Guide for Home Installation

Installing a controllable breeze regulator via wireless controls requires precise cable connections to avoid malfunctions or hazards. Begin by identifying the live (hot) wire (typically black or red), neutral (white), and ground (green or bare copper) from your power source. The remote receiver module must integrate between these lines and the unit’s motor terminals. Use a voltage tester to confirm power is off before handling any conductors.

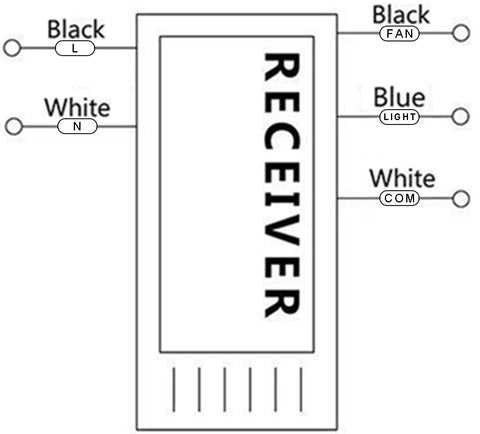

Most modern airflow systems include a receiver box mounted within the mounting bracket. Connect the input wires from the ceiling junction to the receiver’s matching terminals–line (hot) to the black/red input, neutral to white, and ground to green. The output wires from the receiver then attach to the motor: black/blue for speed control, white for neutral continuity, and bare/green for grounding. Double-check polarity; reversed connections may damage the unit.

For models with built-in illumination, an additional blue or brown wire handles light power separately. If integrating a dimmable LED kit, ensure compatibility with the receiver’s circuitry–some require a dedicated capacitor bypass for smooth operation. Secure all connections with wire nuts and wrap them in electrical tape to prevent loosening from vibration. Test functionality through the handheld transmitter before finalizing the housing cover.

Always consult the manufacturer’s schematic; deviations in wire color codes exist across brands. If power surges persist, add a surge protector inline between the receiver and power source. For splices, use UL-rated connectors and avoid splicing outside junction boxes to meet safety regulations.

Electrical Schematic for Smart Air Circulator Integration

Begin by connecting the transmitter module’s power input to the house circuit’s live (L) and neutral (N) lines at the junction box–match wire colors precisely: red for switched hot, black for constant hot, white for neutral, and green/bare for grounding. If the receiver lacks a dedicated earth terminal, bond it to the circulator’s metal housing with a 16-gauge copper jumper to prevent RF interference-induced hum. Verify voltage compatibility: most transmitters accept 110–240VAC, but low-voltage models (typically 12VDC) require an inline transformer rated for 1.5A minimum to avoid thermal shutdowns during prolonged operation.

Component-Specific Hookup Sequence

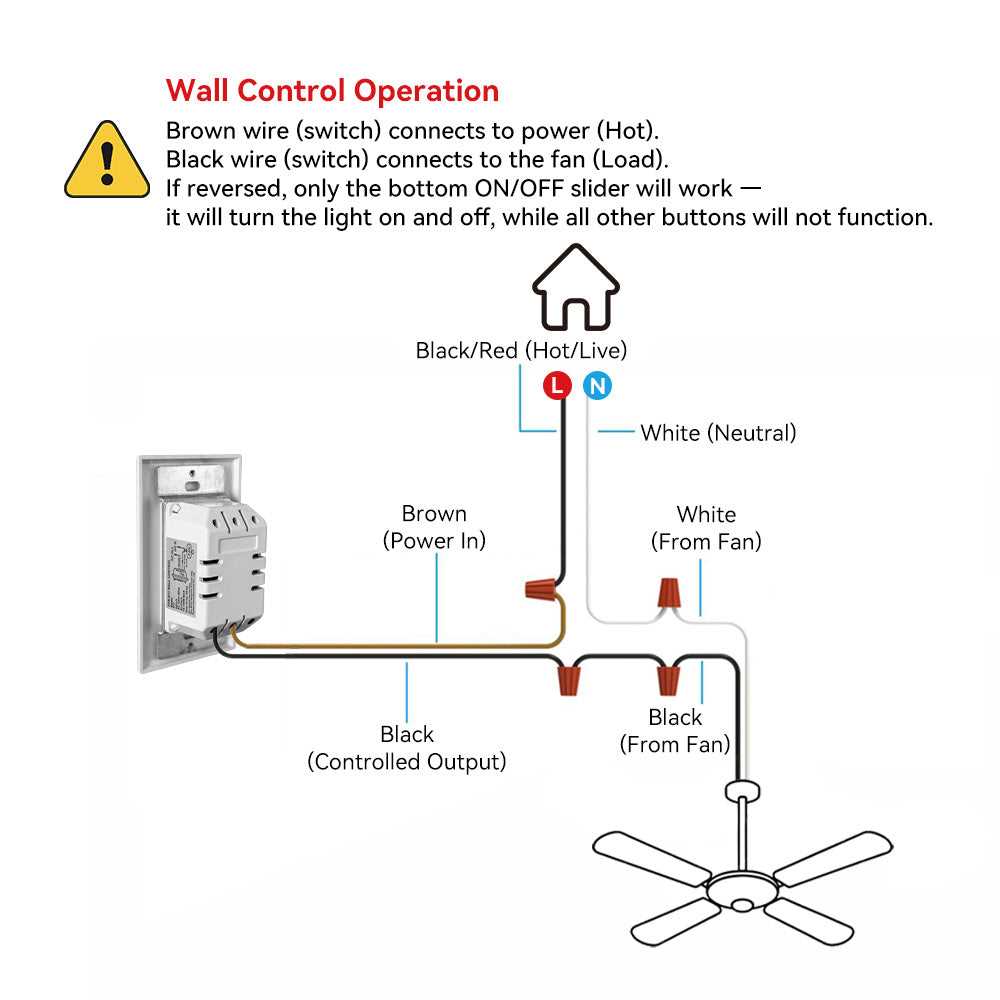

• Receiver unit: Secure the L and N inputs to the corresponding wires from the wall switch–use twist-on connectors (orange or red size) and wrap each joint clockwise three full turns before capping to prevent loosening under vibration. If the switch lacks a neutral (common in older installations), reroute from the nearest outlet or install a pigtail from the main panel’s neutral bus bar.
• Motor assembly: Attach the receiver’s output terminals to the circulator’s capacitor (usually 3–5µF) and speed coil–follow polarity if marked: stripe indicates positive on DC models. For AC systems, polarity is irrelevant but maintain consistent phase alignment across multi-speed taps to eliminate phase cancellation.
• Light kit (optional): If integrating a dual-load module, run separate 18-gauge conductors from the receiver’s auxiliary channel to the LED driver or bulb socket–use quick-connect terminals on the board to avoid soldering heat damage. LED loads under 10W may flicker; install a 0.1µF snubber capacitor across the driver’s input if observed.

After securing all connections, perform a dry-fit test before finalizing housing mounts: activate the handheld controller at maximum range (minimum 30 feet) and confirm all functions–directional toggle, speed increments, light dimming–respond without lag or erratic behavior. If interference occurs (common with Wi-Fi routers or dimmer switches), relocate the receiver at least 12 inches from other power-carrying conductors or install a ferrite core clamp on the input wire to suppress EMI. Document the final configuration with a smartphone photo for future troubleshooting–label each wire run with heat-shrink tubing marked by function (e.g., “Rx-Light-Out”) to simplify subsequent maintenance.

Understanding Color-Coded Conductors in Smart Air Circulation Systems

Begin by locating the neutral conductor, typically marked in white or light gray. This lead carries the return current and must connect directly to the corresponding neutral terminal in the junction box. Verify continuity with a multimeter–absence of voltage confirms its function. Avoid assuming its role based solely on color; some manufacturers deviate from standard conventions, especially in older installations or imported units.

Black or red conductors usually indicate the main power feed or switched hot lines. The black line often supplies continuous power to the motor, while a red wire may trigger auxiliary features like integrated lighting. Test each under load: a voltage reading of 110-120V AC on black suggests it’s live, whereas a red wire might show zero volts until the remote activates a secondary circuit. Cross-reference with the control module’s manual–some designs split functionality between these two leads.

Specialized Leads and Common Variations

Blue or striped wires frequently control reversible motor rotation or dedicated light kits. Connect blue to the light’s hot terminal if present; improper pairing causes flickering or non-operation. In dual-motor systems, yellow or green-yellow striped wires manage separate fan and light circuits–label them immediately to prevent confusion during reassembly. Strip only 1/2 inch of insulation to avoid short circuits when securing connections.

Ground wires–bare copper or green–demand strict attention. They must bond to the mounting bracket and box via a dedicated terminal screw. Never omit this step; improper grounding risks electrical shock or interference with radio-frequency signals from the remote. For metal boxes, ensure the ground lead makes contact with the box itself; in plastic enclosures, route it to a nearby grounded junction if available.

Installation Guide: Linking a Rotary Air Circulator to a Wireless Control Unit

Switch off the circuit breaker powering the fixture’s location before handling any electrical components. Use a voltage tester to confirm the absence of current at the junction box. Failure to verify this step risks severe shock.

Remove the existing mounting bracket or canopy from the overhead fixture. Locate the three main leads inside the box: live (black), neutral (white), and ground (green or bare copper). If the box lacks a dedicated ground, connect the circulator’s grounding wire directly to a metal screw on the box itself.

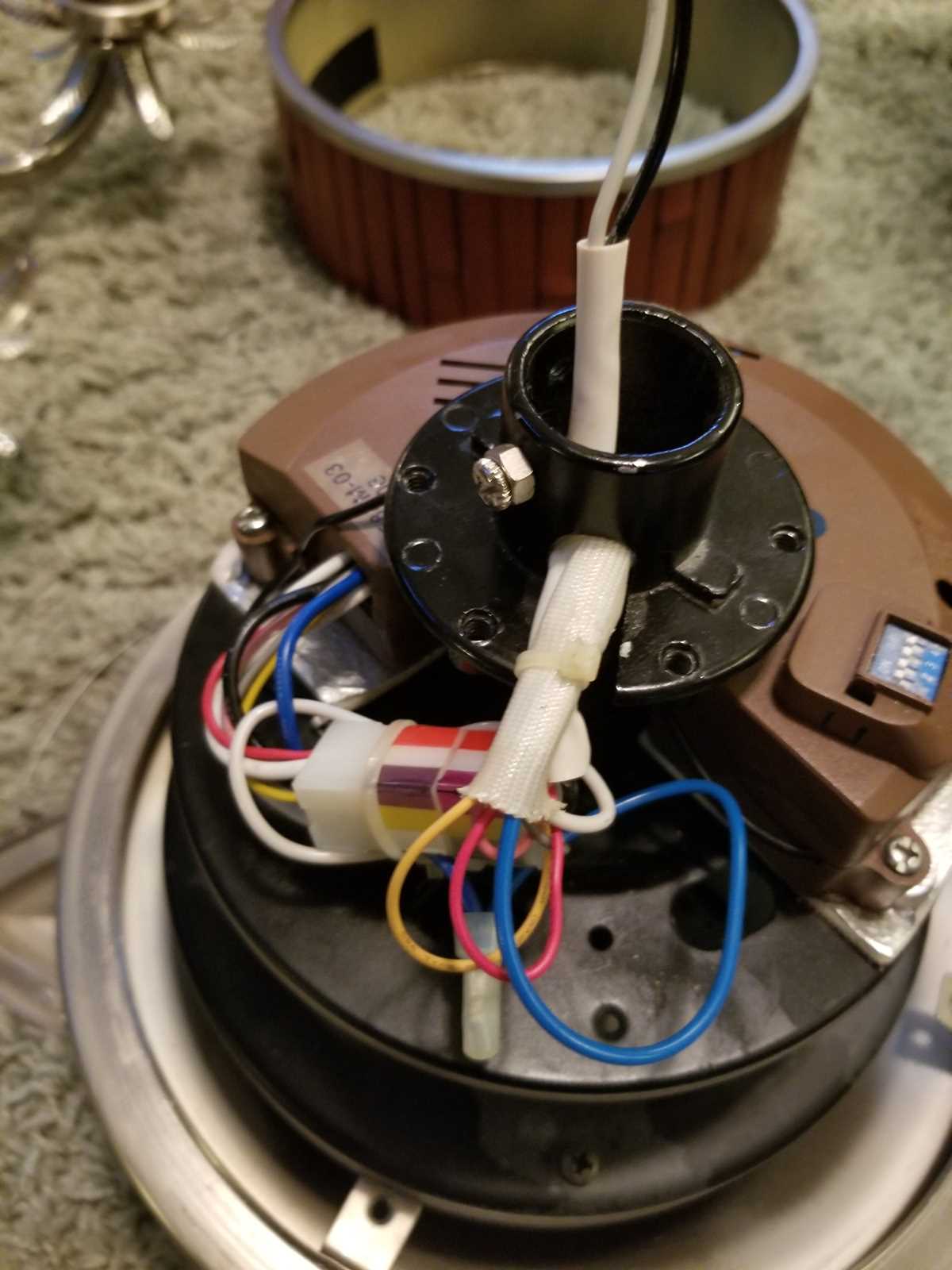

Identify the wireless receiver–typically a compact module pre-attached to the circulator’s motor housing. Extract it carefully if not already positioned. Match the receiver’s labeled terminals to the corresponding wires from the supply: hot (L), neutral (N), and ground. Some models include a fourth lead for a light kit; cap this with a wire nut if unused.

Connecting the Receiver to Power Supply

Strip ½ inch of insulation from each wire end. Twist the live lead from the ceiling box together with the receiver’s labeled hot input (often marked “AC In” or “Power”). Secure with a properly sized wire connector. Repeat for neutral and ground leads. Tug lightly on each connection to ensure firm engagement.

Feed excess cabling into the junction box to prevent interference with the mounting bracket. Reattach the canopy or bracket, ensuring no wires are pinched. If the circulator includes a downrod, align it with the mounting plate before tightening screws–cross-threading here can misalign blades later.

Finalizing Component Attachment

Reinstall blades by screwing them into the motor housing one at a time–alternate diagonally to maintain balance. If a lighting element is present, snap the glass shade or LED module into place last. Avoid over-tightening; glass components should sit flush without stress cracks.

Restore power at the circuit breaker. Test the wireless controller for basic functions: speed adjustment, direction toggle, and light activation (if applicable). If the unit fails to respond, revisit connections–particularly the neutral link, which is a common point of failure. For remote pairing issues, consult the manufacturer’s specific reset protocol, typically involving a 10-second button hold near the receiver.

Critical Installation Errors with Smart Air Circulators

Leaving the mounting bracket unsecured during assembly guarantees vibration noise within weeks. Factory torque specifications–typically 12-15 Nm–must be verified with a calibrated wrench; hand-tight fastening leads to loosening under rotational forces up to 350 RPM. Pre-drill pilot holes if attaching to plasterboard joists; failure risks bracket detachment and motor collapse.

Misaligned Receiver Placement

Locating the wireless control unit inside metallic junctions disrupts signal propagation. Maintain a minimum 15 cm clearance from ferrous housing components; signal attenuation occurs when distances drop below 10 cm. Ensure antenna orientation aligns parallel to the remote transmitter’s axis; perpendicular angles reduce range by 40%.

Component	Distance Constraint	Signal Loss %
Metal chassis	<5 cm	85%
Gypsum drywall	≤20 cm	5%
Concrete slab	≥30 cm	12%

Ignoring dual switch circuits causes permanent bypass of manual controls. Connect live feeds exclusively to the receiver input; jumper wires inserted directly into breaker outputs fry microprocessor modules rated for 120V max. Confirm toggle switches operate independently by toggling breaker circuits while verifying LED indicators on digital assemblies.

Reversing capacitor polarity on oscillating motors triggers instantaneous starter failure. Observe directional markings (typically striped leads) on electrolytic capacitors; inverted connections rupture internal dielectrics within seconds. Replace defective components only with identical microfarad ratings–substitutes deviating ±5% cause erratic speed fluctuations or burnout.
