Complete Guide to Connecting Heating and Cooling Thermostat Wiring
Begin by identifying the low-voltage terminals on your control unit–typically marked R (power), W (heat call), Y (cool request), and G (fan activation). Disconnect power at the circuit breaker before handling any connections to prevent short circuits or damage to sensitive components. Use 18-gauge solid copper wire for all runs; stranded variants may corrode over time, leading to intermittent failures.
Match the R terminal to the transformer’s 24V output–this serves as the common power feed for all operational modes. For single-stage heating, link the W terminal directly to the furnace’s control board; avoid splicing unless necessary, as extra junctions increase resistance. Cooling systems require the Y terminal to connect to the air conditioner’s contactor coil–ensure polarity is observed if the unit uses a two-wire starter relay. The G terminal engages the blower motor independently; verify compatibility with variable-speed fans if your system supports multi-stage operation.
Label every wire at both ends before securing them under terminal screws–loose connections generate heat and degrade performance. Test continuity with a multimeter after installation; a reading between 0.5 to 2 Ohms indicates proper contact. Smart controllers often include an O/B terminal for heat pump reversal valves–consult the manufacturer’s pinout to avoid switching the wrong stage. If integrating a humidistat, wire it in series with the R and W circuits to prevent simultaneous operation of conflicting modes.
Ground all devices to the chassis or dedicated grounding bus. Even minor voltage leaks can disrupt communication in Wi-Fi-enabled models. Program delay timers before restoring power–default settings often activate compressors with aggressive cycles, risking premature wear. Monitor temperature differentials during the first 24 hours; a delta exceeding 3°F between setpoint and sensed value suggests miswiring or sensor drift.
Connecting Climate Control Systems: A Precise Schematic Guide

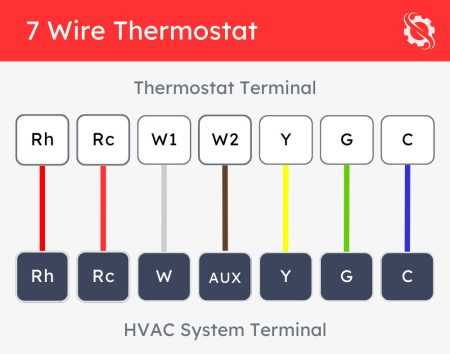

Identify the power source terminals first–typically labeled R (red, 24VAC) and C (common). For dual-stage systems, match Rh (heating relay) and Rc (cooling relay) to their respective transformers if split. Use 18-gauge copper wire for all low-voltage connections to prevent voltage drop, especially over distances exceeding 30 feet. Label each wire at both ends before insertion to avoid misalignment, a leading cause of system failure.
Attach the W terminal to the furnace’s control board for heat activation, ensuring compatibility with single-stage (W), dual-stage (W1/W2), or variable-speed (W+ auxiliary) configurations. For cooling, link Y to the air handler or condenser–Y1 for standard compressors, Y2 for secondary stages. G connects to the fan relay; verify fan speed settings if using multi-speed motors (typically G1/G2). Integrate an O/B terminal only if the system includes a heat pump, switching between heating/cooling modes via reversing valve polarity.
Test continuity with a multimeter before energizing the circuit. Set the device to “off” mode during initial checks to isolate faults. For smart controls, pair the C-wire (common) to enable Wi-Fi; omit this only if using battery-powered models, though reliability suffers without constant power. Adapters like the Venstar Add-a-Wire simplify retrofits for legacy systems lacking a C-terminal.
Understanding Basic Thermostat Wire Color Codes and Terminals
Always verify power is disconnected at the circuit breaker before handling any control circuit connections. Most residential HVAC systems follow a standardized color scheme, but exceptions exist–always cross-reference with your equipment’s manual.
Red (R or Rh/Rc) carries the 24V power supply from the transformer. In dual-transformer setups, Rh feeds heating while Rc supplies cooling. If only a single R terminal exists, both systems share the same power source.
White (W) connects to the primary heating stage, typically a gas valve, oil burner, or heat pump relay. On multi-stage furnaces, W2 activates auxiliary heating–common in high-efficiency systems requiring prolonged heat cycles.
Yellow (Y) signals the compressor contactor in air conditioning or heat pump cooling mode. For two-stage cooling, Y2 engages secondary capacity, often delayed by 30–60 seconds after Y to prevent short cycling.
Green (G) controls the indoor blower fan. Energizing this terminal runs the fan continuously, independent of heating or cooling demand. Some smart controls override this function for variable-speed fans.
Blue (C) provides a 24V common return path, completing the circuit for power-hungry digital models. Without it, Wi-Fi-enabled or programmable units may malfunction. If missing, verify transformer capacity–excessive load can burn out low-amp transformers.
Look for labels like O (orange) or B (dark blue) on heat pump configurations. O reverses refrigeration flow for defrost cycles, while B (sometimes brown) manages backup heat strips in emergency conditions. Swapping these voids defrost functions or damages reversing valves.
How to Install a Basic Climate Control Unit for Single-Zone HVAC Systems
Locate the low-voltage terminal block on your furnace or air handler. Identify the labeled connectors: R (power), C (common), W (furnace relay), Y (AC compressor), and G (fan). Verify the transformer outputs 24VAC between R and C using a multimeter before proceeding. Match each wire from the climate sensor to its corresponding terminal–no exceptions. Secure connections with a screwdriver, ensuring strands are fully inserted and screws tightened to 1-1.2Nm torque.
- For gas furnaces: Connect the
Wwire directly; no intermediate relays unless the system exceeds 40,000 BTU. - For electric heat: Route the
Wwire through the sequencer if the unit has staging; bypass if single-stage. - For heat pumps: Add an
O/Bwire if reversing valve activation is required (typicallyOfor cooling,Bfor heating).
Test each function separately. Activate the furnace mode first; confirm the inducer motor starts within 1 second of call, followed by ignition within 3-5 seconds. Switch to AC mode; ensure the compressor engages within 20 seconds, and the condenser fan spools up immediately after. Check fan operation in both auto and on modes–delay should not exceed 15 seconds. If delays exceed these thresholds, inspect for loose connections, incorrect wire gauge (minimum 18AWG for runs under 50 feet), or transformer sizing (minimum 40VA for single-stage systems). Label all wires with heat-shrink tubing to prevent future misconfiguration.
Connecting a Dual-Fuel Heat Pump Controller with Auxiliary Backup
Identify the labeled terminals on both the indoor regulator and outdoor compressor before making connections. Standard dual-fuel units require distinct wiring for stage 1 cooling, stage 1 reverse-cycle heating, auxiliary electric backup, and fan operation. Match each wire to its corresponding terminal–most manufacturers use the following color-coding: Y for stage 1 compressor (cooling/heat pump), W2 for auxiliary backup, G for fan, R for 24V power, C for common, O/B for reversing valve (heat mode), and E for emergency heat activation.
| Terminal | Function | Common Wire Color | Critical Notes |
|---|---|---|---|
| Y | First-stage cooling/heat pump | Yellow | Energizes outdoor compressor; jumper to Y1 if multistage |
| W2 | Auxiliary electric backup | Brown/Black | Must not share circuit with W1; verify amperage rating |
| O/B | Reversing valve (heat mode) | Orange | Polarity varies by manufacturer; confirm HVAC specs |
| E | Emergency heat override | Dark Blue | Directly engages W2; bypasses heat pump loop |
Power down the main HVAC circuit breaker before handling any wires. Use a multimeter to confirm zero voltage across R and C terminals–this ensures safety during installation. Select 18-gauge solid copper wire for runs under 50 feet; upgrade to 16-gauge for longer distances to prevent voltage drop. Strip exactly 3/8 inch of insulation from each wire end, twist strands tightly, and secure with terminal screws–loose connections cause intermittent failures or equipment damage.
Connect the emergency heat (E) terminal only if the system includes a dedicated electric backup coil. This terminal bypasses the heat pump entirely, activating auxiliary elements directly. Most modern dual-fuel regulators allow manual or automatic emergency heat engagement–check the user interface for a dedicated switch or temperature threshold setting (typically below 35°F outdoors). Never jumper E to W2; this overloads the backup elements and risks tripping the circuit.

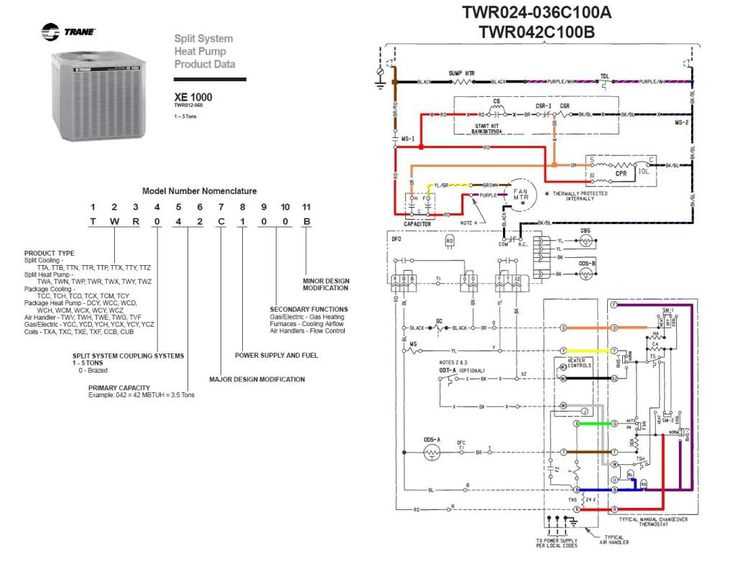

Verify the reversing valve (O/B) setting matches the outdoor unit’s specifications. Heat pumps manufactured by Trane, Rheem, or Lennox often default to O polarity for heating, while Carrier and Goodman units default to B. Incorrect polarity forces the system into cooling mode during heating cycles, causing inefficient operation and potential compressor damage. Consult the outdoor unit’s data plate or installation manual for the exact configuration.
Test the installed connections in sequence: set the regulator to cooling mode, then heating, then engage emergency heat manually. Monitor the outdoor unit’s operation–compressor should cycle in cooling and heating modes; backup elements must power on only when emergency heat activates. Use a clamp meter to confirm current draw aligns with manufacturer ratings (typically 15-20A for backup elements). If current exceeds specs, recheck wire gauge and terminal tightness.
Program temperature differentials carefully. Most dual-fuel systems switch to auxiliary backup when outdoor temperatures drop below 40°F, but exact thresholds vary by model. Set the emergency heat threshold 5°F lower than the auxiliary backup threshold to prevent unnecessary activation. Document all terminal connections and settings in the system’s manual–future troubleshooting relies on precise records.
