Step-by-Step Nest Thermostat 3rd Gen Wiring Guide with Color Codes

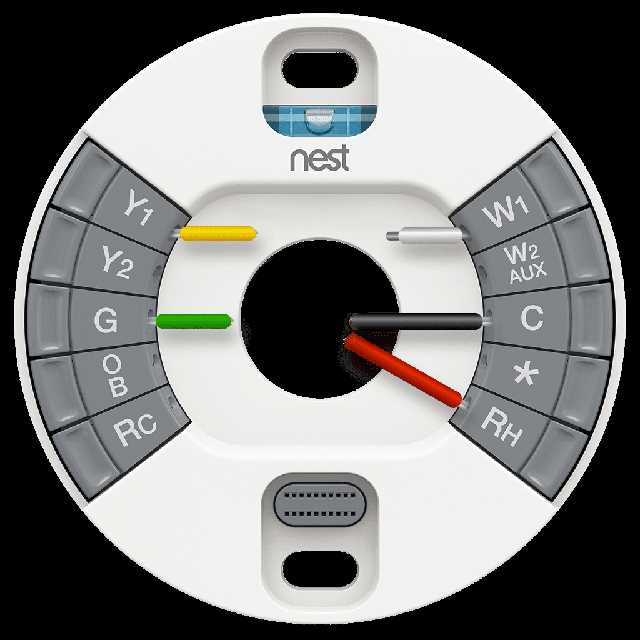

Start by disconnecting power at the circuit breaker to avoid electrical hazards. Locate the base plate of the device and remove it from the wall to expose the terminal block. Identify the existing wires–these typically include Rc (cooling power), Rh (heating power), W (heat call), Y (cooling call), G (fan), O/B (heat pump), and C (common). If your system lacks a C terminal, install a 24V transformer or use an adapter to provide continuous power for optimal performance.

Match each wire to the corresponding terminal on the new controller. Use the labeled stickers provided in the installation kit to avoid confusion. For dual-transformer systems (separate heating and cooling), connect Rc and Rh to their respective terminals–some models require a jumper wire between these if sharing a single power source. Heat pumps demand extra attention: link O/B to activate reversing valve functionality, ensuring correct configuration based on manufacturer guidelines (O for cooling mode, B for heating mode).

Verify all connections with a multimeter before restoring power. Test each mode–heat, cool, and fan–by adjusting settings via the device’s touchscreen. If the display fails to power on, recheck the C terminal or transformer compatibility. For low-voltage issues, inspect wire gauge–minimum 18 AWG is recommended. Systems with humidifiers or dehumidifiers may require additional relays; consult the device’s compatibility checker online before proceeding.

Secure the base plate and attach the faceplate. Calibrate the room temperature sensor by running a self-test through the settings menu. If the device disconnects frequently, assess Wi-Fi signal strength–position routers closer or install a range extender. For advanced configurations, integrate third-party sensors to monitor multiple zones, but ensure they’re compatible with the latest firmware version.

Connecting Your Smart Climate Control: A Step-by-Step Schematic

Start by identifying the labeled terminals on your HVAC system. Most setups include Rc, Rh, W1, Y1, G, and C–these correspond to power, heating, cooling, fan, and common connections. Disconnect power at the circuit breaker before handling any exposed contacts to prevent short circuits or electrical shock.

Match the wires from your HVAC to the base plate’s ports using the color-coded labels provided in the installation guide. For systems with separate heating and cooling transformers, bridge Rc and Rh with the included jumper. If your setup lacks a C wire, power adapter kits (sold separately) are necessary to ensure stable operation and prevent battery drain.

Handling Non-Standard Configurations

Older two-wire systems (often labeled R and W) require a power extender kit. Insert the kit’s transformer wires into the C and Rc/Rh ports on both the control unit and HVAC system. Verify voltage with a multimeter: expect 24V AC between R and C. Deviations indicate a faulty transformer or loose connection.

For heat pumps, note the O/B terminal–it determines whether the system uses orange (O) or blue (B) wires for valve reversal. Incorrect configuration here causes the unit to run in emergency heat mode, drastically reducing efficiency. Cross-reference your existing control’s settings to avoid mismatches.

After securing all wires, snap the device onto its base and restore power. The display will guide you through setup; if it fails to detect a C wire, recheck connections or consult the troubleshooting menu (hold the ring for 10 seconds to access). Test all modes (heat, cool, fan) before finalizing installation–prolonged delays in response suggest improper wiring or HVAC malfunctions.

Determining Suitable HVAC Configurations Prior to Smart Climate Control Setup

Check the labeling on your existing control panel–look for clear markers like “R,” “C,” “W,” “Y,” or “G” on the terminal block. Conventional forced-air furnaces, heat pumps, and central air handlers with these terminals are typically compatible with advanced programmable devices. If your system uses a millivolt setup, such as wall heaters or older gas valves, the device won’t function without additional relays or power supply modifications.

Verify whether your cooling cycle includes a dual-stage compressor or if the heating side uses auxiliary components like electric resistance strips. Single-stage configurations align effortlessly, while multi-stage systems require precise mapping of terminals “Y2” and “W2.” Electric baseboard heaters, radiant floor panels, or hydronic boilers demand a separate 24V transformer unless clearly outlined in the system documentation.

Examine the voltage rating–standard low-voltage HVAC equipment operates at 24V AC, while line-voltage systems (120V or 240V) found in older installations need voltage adapters or isolation kits. High-efficiency heat pumps with emergency heat strips often include dedicated “E” or “Aux” terminals; confirm these match input capabilities before proceeding to avoid damaging sensitive circuitry.

Inspect the condition of existing wiring–frayed, brittle, or undersized gauge cables (below 18 AWG) may cause inconsistent performance or overheating. Multizone setups with multiple transformers or variable-speed blowers introduce additional complexity; isolate each control loop and document transformer load limits to prevent overloads during operation.

Consult the manufacturer’s technical bulletin for specific exclusions–systems integrating dehumidifiers, whole-home ventilators, or proprietary communication protocols (e.g., Carrier Infinity, Trane Communicating) often require specialized interfaces. If the control unit lacks a “C” terminal, power can sometimes be sourced from nearby junction boxes, provided the circuit exceeds 0.2 amps to sustain consistent operation.

How to Properly Tag and Detach Current Climate Control Connections

Power down the HVAC unit at the circuit breaker before touching any connectors. A multimeter set to voltage mode confirms zero current–probes on R and C terminals should read below 0.1V. Without this check, even low residual power risks shorting delicate components.

Remove the faceplate to expose terminals. Use painter’s tape (1/4-inch wide) to mark each lead with its terminal designation–R, Rh, Rc, W, Y, G, O/B, C, or auxiliary labels like W2 or E. Press the tape firmly against the copper strand to prevent slippage. If existing labels peel, rewrite them in permanent ink with a fine-point marker, noting exact capitalization.

• For systems with separate heating and cooling transformers, Rh and Rc must stay isolated. Label both clearly.
• Heat pump systems require O/B tags; single-stage equipment skips these.
• Common wire (C) often lacks a label–identify it by tracing to a thin blue or black strand from the air handler.

Grip each connector with needle-nose pliers 1/8-inch from the terminal screw. Twist gently counterclockwise until the spade loosens, then pull straight out to avoid bending. Place detached connectors on a magnetic tray or labeled envelope to prevent misplacement. If corrosion is visible, clean contact surfaces with 400-grit emery cloth before reattachment.

Verify the detached setup by cross-referencing labels against system documentation or photographs taken before detachment. If discrepancies exist, recheck terminal markings–mismatches between heat pump and gas furnace configurations cause immediate control failure.

Connecting Smart Climate Control Terminals to HVAC Cables

Begin by identifying the labeled connection points on your device–marked Rc, Rh, Y1, W1, G, O/B, C–and compare them to your heating and cooling equipment cables.

• Power supply: Link the transformer wires (R) to Rc if your system uses a single power source or split Rh (heating) and Rc (cooling) for dual-transformer setups.
• Cooling activation: Attach the compressor wire (Y) to Y1; for multi-stage cooling, add Y2 if available.
• Heating command: Connect the furnace relay cable (W) to W1, reserving W2 for auxiliary heat when present.
• Fan control: Route the blower motor wire (G) to its designated terminal to enable independent fan operation.
• Heat pump toggle: Match the reversing valve signal (O or B) to O/B, ensuring correct voltage polarity (typically O for 24VAC, B for ground).
• Common ground: Secure the neutral wire (C)–often blue–to the common terminal to complete the circuit for continuous device operation.

Verify compatibility by checking HVAC equipment labels–gas furnaces typically lack a C wire, while heat pumps usually include one. If absent, use an adapter kit or repurpose an unused cable (e.g., G for C if fan-only mode isn’t critical).

Troubleshooting Misaligned Connections

If the display fails to power on:

1. Recheck Rc/Rh and C terminals for loose screws or incorrect pairing.
2. Test voltage between R and C with a multimeter–24VAC confirms a functional transformer.
3. For dual-fuel systems, ensure O/B aligns with the heat pump’s manual (e.g., O for cooling-first, B for heating-first).
4. Inspect cable insulation for damage; exposed strands risk short circuits.

Mismatched wires trigger error codes: E73 (no power) or E297 (open circuit). Resolve by tracing each cable from the climate unit to its terminal, using a cable identifier if labels are unclear. For systems with humidifiers or dehumidifiers, add dedicated terminals if the device supports auxiliary inputs.

Common Installation Errors and Prevention Techniques

Always verify the voltage rating on the control panel before connecting any cables. Many HVAC systems operate at 24VAC, but some auxiliary components may use 120V or higher. A multimeter reading below 20VAC indicates insufficient power, often due to a tripped breaker or faulty transformer. Replace the transformer if readings remain inconsistent after resetting breakers.

Incorrectly pairing Rc and Rh terminals causes erratic heating or cooling cycles. If the equipment lacks separate R wires, bridge Rc and Rh with a jumper wire–never connect them directly to different power sources. Failure to do so can damage the PCB, requiring a full system replacement. Use a wire nut for temporary bridging during testing.

Mixing up C (common) and G (fan) wires triggers constant blower activation. The C wire provides continuous power for smart features, while the G wire controls fan operation only. Swapping them forces the blower to run non-stop, increasing wear. Label wires before disconnecting old controls to prevent confusion.

Loose connections lead to intermittent failures. Strip wires to 3/8 inch and twist clockwise before inserting into terminals. Tug lightly to confirm secure attachment–vibrations from the HVAC unit can dislodge poorly connected wires. Use a torque screwdriver for terminal screws to avoid over-tightening.

Ignoring furnace door interlocks routes improper voltage back to the control board. Many furnaces cut power when the door is open, but bypassing safety switches can fry low-voltage circuits. Check manufacturer documentation for secondary safety switches before overriding them.

Error	Symptom	Solution
Reversed Y and W wires	Heat pump runs cooling mode only	Swap wires at the air handler
Missing O/B jumper	Heat pump fails to switch modes	Add jumper or verify HVAC setup
Unshielded C wire	Wi-Fi drops, software freezes	Route away from noisy lines

Skipping compatibility checks with zoned systems results in incorrect temperature readings. Zone controllers often require specialized wiring configurations–consult the zone panel’s manual before connecting. Some systems need resistors between Rh and W terminals to stabilize signals. Measure resistance with a multimeter–values below 50 ohms may indicate a dead short.
