Step-by-Step Guide to Creating a Switch Wiring Diagram

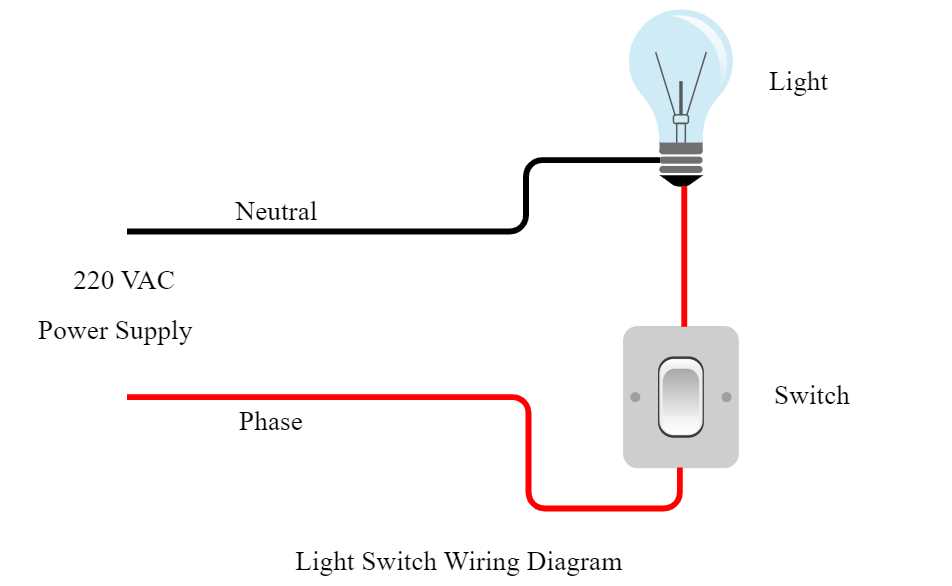

Begin by identifying the precise type of control mechanism required for your setup. For single-pole installations, use a two-wire connection–one for live input and another for the controlled output. Split the power source at the device location, ensuring the neutral conductor bypasses the mechanism entirely to prevent unintended breaks in the circuit. This method suits standard residential lighting or appliances drawing under 15A.

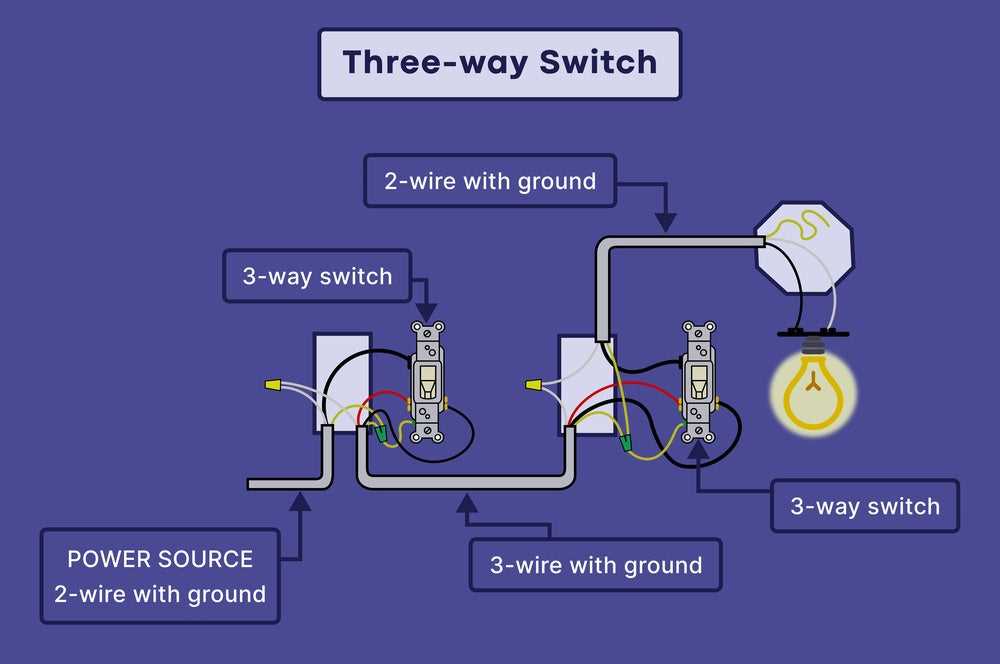

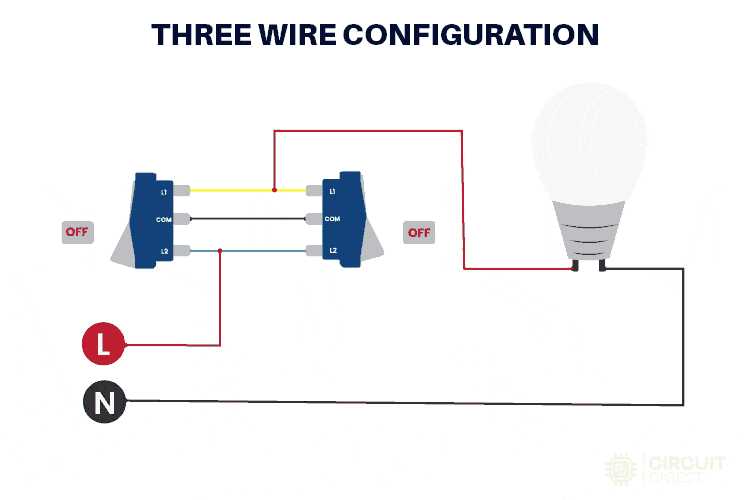

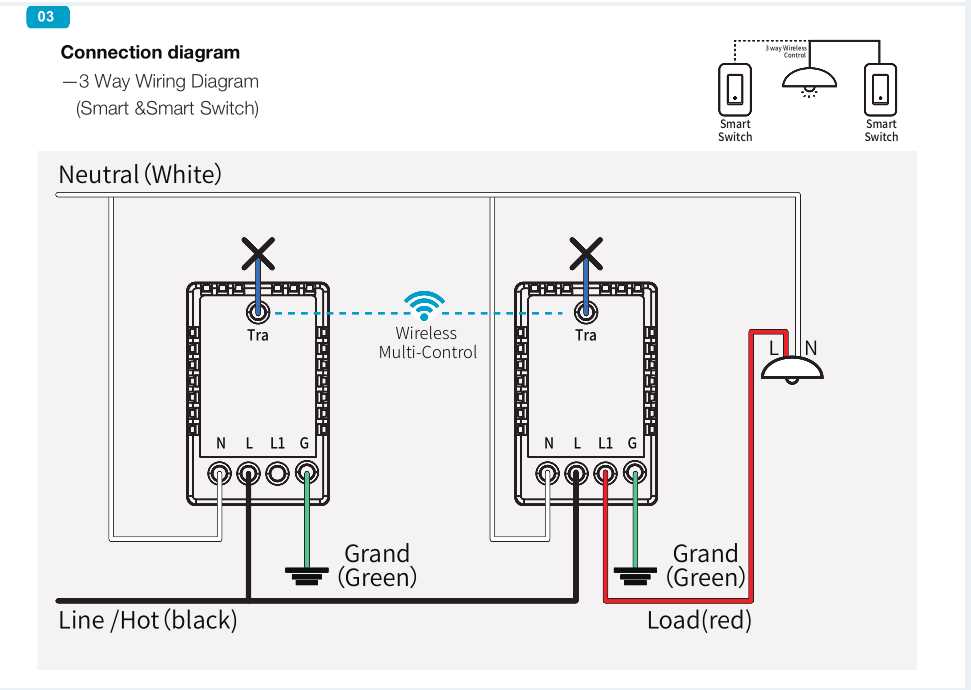

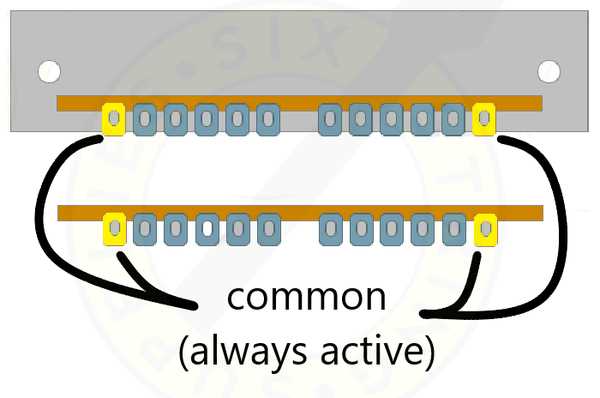

For three-way setups, deploy traveler conductors between the primary and secondary control points. Label each wire with heat-shrink tubing or colored markers to avoid confusion during installation. The common terminal on one device connects to the live feed; the same terminal on the paired device ties to the load. Verify polarity with a multimeter before energizing–reverse connections will render the setup inoperative.

Industrial-grade toggle devices demand four-wire configuration if integrating auxiliary features like indicator lamps or pilot lights. Assign separate conductors for power input, load output, and signal circuits. Secure connections with crimped ring terminals and torque to 1.2 Nm to prevent loosening under vibration. For high-amperage applications (20A+), use stranded copper wire sized per NEC Table 310.16 and terminate with lugs rated for the expected current.

Document every termination point on grid paper before finalizing the build. Sketch conductor paths, noting wire gauges, terminal assignments, and splice locations. This reference prevents errors during troubleshooting and future modifications. Test continuity between all points with a voltmeter set to resistance mode–open circuits indicate loose connections or broken conductors.

Use conduit or armored cable for exposed runs to meet IP65 ingress protection standards. Secure all cables at intervals of 1.5 meters with UV-resistant clamps if routing outdoors. For underground installations, bury direct-bury-rated cable at a depth of 600mm (24 inches) and mark paths with warning tape to prevent accidental damage during excavation.

How to Connect a Toggle Mechanism Correctly

Start by identifying the power source terminal–this is typically marked with “L” or a brass screw on single-pole setups. Connect the live wire from your circuit here, ensuring it’s secured tightly to prevent loose connections, which can cause arcing or overheating. For standard installations, use 14-gauge copper wire for 15-amp circuits and 12-gauge for 20-amp systems.

Attach the outgoing conductor to the terminal labeled “LOAD” or “COMMON,” depending on whether you’re installing a single-pole or three-way mechanism. In three-way configurations, the second toggle requires an additional traveler wire connecting both devices–use distinct colors (red and black) to avoid confusion between travelers and neutrals. Always cap unused wires with wire nuts to prevent short circuits.

Common Mistakes to Avoid

Never reverse the line and load conductors, as this can damage the mechanism or create a fire hazard. Verify the power is off at the breaker before proceeding–use a non-contact voltage tester to double-check. Some older homes have aluminum wiring; if so, apply an antioxidant compound to connections and use approved AL/CU-rated terminals to prevent oxidation.

For dimmer or smart controls, follow the manufacturer’s schematic precisely. These devices often require a neutral connection, so ensure your junction box provides access. If the neutral is absent, opt for a wireless or battery-powered alternative instead of modifying the circuit unsafely. Always ground the toggle by connecting the green or bare wire to the grounding terminal or box screw.

When installing in metal boxes, bond the ground wire to the box itself if it lacks a dedicated grounding screw. For heavy-duty applications (e.g., workshops), use commercial-grade mechanisms rated for 20+ amps and pair them with appropriately sized conductors. If the existing insulation is brittle or damaged, replace the entire run of wire rather than splicing repairs.

Label each conductor at both ends before disconnecting an old mechanism. This prevents trial-and-error reconnection, which can lead to incorrect configurations, especially in multi-toggle setups. For outdoor or damp locations, use weatherproof covers and gaskets, and ensure the toggle is rated for wet conditions (look for “UL Listed Wet Location” markings).

Essential Gear and Supplies for Installing a Control Mechanism

Begin with a voltage tester rated for household currents–preferably a non-contact model with a detection range of 50-1000V AC to confirm circuits are dead before touching conductors. Pair it with insulated screwdrivers (3.2mm and 5.5mm flathead) designed for electrical work, identifiable by their orange or yellow handles meeting IEC 60900 standards–standard tools risk shorts or accidental grounding. Include wire strippers with notches for 12-14 AWG solid copper, the most common residential conductor gauge, ensuring clean cuts without nicking strands, which weakens connections over time.

A multimeter set to continuity mode verifies proper joins between terminals and conductors, reducing fire risks from loose crimps. Use twist-on connectors (gray for copper, tan for aluminum) sized for 2-4 #12 wires; crimp sleeves provide superior longevity in high-vibration areas. For modern setups, lever-nut connectors with transparent housings simplify troubleshooting by allowing visual confirmation of secure engagement. Keep a roll of electrical tape (UL-listed, PVC-based) to insulate bare splices, though avoid relying on it alone–layer with heat-shrink tubing (3:1 shrink ratio) for permanent moisture resistance near wet locations.

Install a single-pole breaker in the panel if extending circuits–15A for lighting loads, 20A for outlets powering multiple fixtures. Choose a faceplate matching the switch type (rockers for decora-style, toggle for traditional), ensuring it’s impact-resistant polycarbonate to prevent cracking during drills. For smart controls, opt for surge protectors rated 277V to shield microprocessors from transient spikes common in older wiring.

Step-by-Step Guide to Sketching Electrical Control Schematics

Use a standardized grid paper or digital drafting tool with a spacing of 5mm to maintain consistent component alignment. Begin by marking terminal points for the power source, load, and control device, ensuring straight vertical or horizontal lines for clarity.

Select symbols from the IEC 60617 or ANSI Y32 standard–avoid mixing schemes. For instance, represent a single-pole toggle using a break contact (IEC: ┤├) or a gap with a slanted line (ANSI), depending on regional requirements. Label each symbol immediately with a unique identifier, such as “S1” for the first control device.

Component Type	IEC Symbol	ANSI Symbol	Recommended Label
Normally Open Contact	┤├	⏜──	NO-1
Normally Closed Contact	┤┼├	⏝──	NC-1
Lamp/Load	(⬭)	(⊗)	L1

Connect lines with 90-degree angles, avoiding diagonal runs unless absolutely necessary. If a path crosses another, use a small semicircle on one line to indicate no electrical connection. For multi-conductor setups, bundle parallel lines with a slash mark and denote the count (e.g., “/3” for three wires).

Assign color codes to conductors if applicable–red for live, black for neutral, green/yellow for earth–but ensure compatibility with local regulations. For example, in North America, white may denote neutral, while blue is common in Europe. Indicate wire gauges next to each segment (e.g., “2.5 mm²” or “14 AWG”).

For three-way or four-way configurations, draw each control device separately, then link them via “traveler” conductors. Number these lines consecutively (T1, T2) and trace their path logically to prevent errors. If using a relay, place its coil on one page and contacts on another, referencing them with a dashed box and page number.

Include a legend in the bottom right corner listing all symbols, labels, and wire specifications. Add notes for special conditions, such as “24V DC control circuit” or “Moisture-resistant enclosure required.” Verify all connections by simulating current flow with a highlighter–ensure no dead ends or unintended loops exist.

Digitize the sketch using CAD software like KiCad or AutoCAD Electrical if repeating the design. Export in DXF or PDF formats for scalability. For hand-drawn versions, trace over the pencil draft with a black fine-tip pen, then erase construction lines to finalize.

Store the completed schematic with a revision history date at the top (“Rev. A – 2024-05-30”). Attach it to the project file with supplementary data: part numbers, supplier details, and installation instructions specific to the enclosure type or environmental ratings (IP54, NEMA 4X).

Critical Errors When Installing Electrical Controls

Reversing the hot and neutral conductors during connection leads to immediate hazards. The live wire must always terminate at the brass-colored screw, while the neutral attaches to the silver screw–swapping them creates a dangerous live circuit even when turned off. Verify polarity with a multimeter before securing terminals, as many novices overlook this step, assuming visual identification suffices.

• Leaving bare ground wires exposed near terminal screws increases short-circuit risk
• Over-tightening screws damages copper strands, weakening conductivity
• Ignoring manufacturer torque specifications (typically 12-18 inch-pounds) causes loose connections
• Using backstab connections instead of screw terminals reduces reliability

Failing to properly bundle excess conductors inside the electrical box causes overheating. Excessive wire length should be trimmed to 6-8 inches beyond the device, with pigtails used for connections–crowding leads to insulation melting. Ensure no stray strands contact adjacent terminals, as even minute current leaks can arc over time.

Incompatible amp ratings between controls and circuit protection create fire hazards. A standard 15-amp toggle must not be installed on a 20-amp circuit breaker without proper downgrading. Likewise, smart controls with built-in electronics often require dedicated neutral lines–omitting this results in malfunctioning features or premature failure.

1. Skipping continuity tests after installation (verify all positions pass current)
2. Using aluminum wire without anti-oxidant compound on copper terminals
3. Mounting controls upside-down (ON/OFF labels reversed)
4. Neglecting to secure faceplates tightly can expose live parts
