How to Read and Create a Thermostat Wiring Diagram Step by Step
Begin by identifying the power source–typically a 24V AC transformer–and route the common (C) wire directly to the control unit. This grounding connection stabilizes voltage, preventing false readings in low-power conditions. High-voltage systems (120V/240V) demand separate relay integration; bypassing this risks damaging sensitive components like solid-state sensors or smart modules.
For multi-stage heating/cooling setups, map each stage to its corresponding terminal (R, W, Y, G) using color-coded conductors: red for power, white for heat, yellow for cooling, green for fan activation. Cross-referencing with the manufacturer’s terminal layout avoids mismatched connections–generic schematics often omit equipment-specific deviations, such as dual-fuel systems requiring an auxiliary ‘O’ or ‘B’ wire for heat pump reversing valves.
Label all connections before securing them. Loose or incorrectly paired contacts cause erratic cycling, particularly in systems with variable-speed fans. If integrating Wi-Fi-enabled units, verify compatibility with the existing heat anticipator settings; even minor resistance discrepancies (0.1Ω) disrupt communication protocols. For zoned configurations, add isolation relays between individual room controllers to prevent feedback loops.
Test continuity across all paths using a multimeter. Resistance should read near zero between paired terminals; values above 1Ω indicate faulty wiring or corrosion. Shield thermostat cabling from interference sources (e.g., fluorescent ballasts, motor drives) using twisted-pair or foil-wrapped cables, especially in commercial setups with long runs exceeding 50 feet.
Document each step immediately. Sketch a terminal reference guide noting wire gauge, connector types (e.g., spade, screw, push-in), and any jumpers required for system bridging (e.g., linking ‘R’ to ‘Rc’ in single-transformer systems). Overlooking this leads to troubleshooting delays when retrofitting or expanding capacity.
How to Connect Climate Control Systems: A Practical Schematic
Begin by identifying the power source–most heating and cooling units use a 24V AC circuit, but verify the voltage on the transformer label. Label each conductor before disconnecting any existing setup to prevent confusion during reassembly. Use a multimeter to confirm the R (red) terminal carries live voltage, while the C (common) wire completes the circuit.
Match terminal designations precisely: R connects to the power supply, W activates heating, Y triggers cooling, and G controls the fan. If integrating a heat pump, include the O/B terminal for reversing valve operation. Check compatibility with dual-fuel systems–some demand separate W2 and E terminals for auxiliary heat.

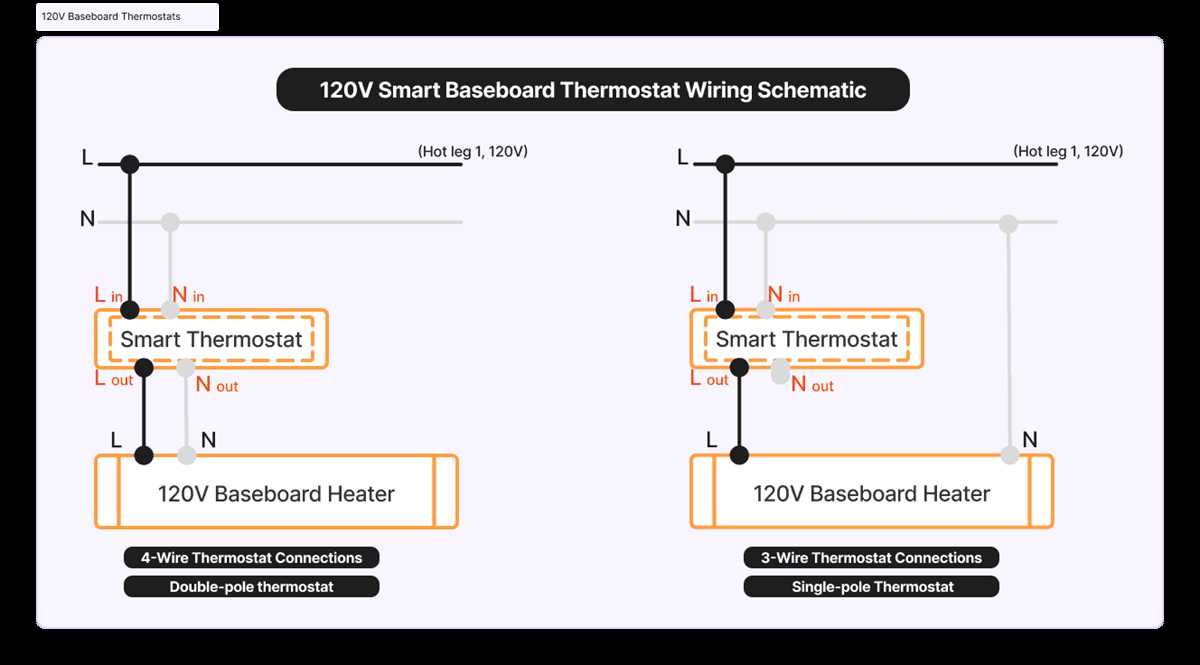

For smart controls, ensure the neutral wire (blue or black) is accessible if the device requires constant power. Low-voltage configurations (below 30V) don’t mandate conduit protection, but secure all conductors with wire nuts and electrical tape. High-voltage connections (120V/240V) must follow local codes–use UL-listed connectors and junction boxes.
Common Terminal Assignments
- R (or Rh/Rc): Supplies 24V from transformer
- C: Neutral return for battery-backed units
- W: Activates furnace or boiler
- Y: Engages air conditioner or heat pump compressor
- G: Initiates fan operation independently
- O/B: Switches heat pump valve mode
Skip jumper wires between Rh and Rc terminals unless specified by the manufacturer–some older furnaces lack separate heating/cooling transformers. For zoned systems, allocate separate R terminals per zone to avoid feedback. Always disconnect the main breaker before handling high-voltage sections to prevent short circuits.
Test each connection with a voltmeter before finalizing–measure between R and C to confirm 24V, then between R and W/Y/G to verify relay activation. If replacing an analog unit with a digital interface, verify the new model supports the existing wiring harness; some require dedicated C-wire for Wi-Fi functionality.
Troubleshooting Errors
- No power? Check transformer, breaker, and fuse.
- Heating/cooling fails? Verify terminal assignments and relay continuity.
- Fan runs constantly? Inspect G terminal connections and thermostat settings.
- Short cycling? Confirm transformer amperage matches system demands.
Document the final layout with photographs or a hand-drawn sketch. Include wire colors, terminal IDs, and any custom configurations like staging delays or emergency heat settings. For multi-stage systems, prioritize sequential firing–stage 1 (Y1) should engage before stage 2 (Y2) to optimize efficiency.
Linking a Basic Low-Voltage Climate Control Unit to Heating and Cooling Systems
Ensure power is disconnected at the furnace or air handler before attaching any conductors. Verify the voltage rating of the control panel–most residential setups operate at 24V AC, but commercial units may vary. Use a multimeter to confirm the transformer output matches the thermostat’s requirements.
Identify the common (C) terminal on the system’s control board; this serves as the reference point for completing the circuit. If absent, connect a dedicated 24V common wire from the transformer to the thermostat’s C terminal. Skip this step only if the existing cable includes an unused conductor, which can be repurposed.
Label each wire at both ends before disconnecting old terminals to avoid confusion. Standard color codes include red (R) for power, white (W) for heat, yellow (Y) for cooling, green (G) for fan, and blue or black (C) for common. Deviations exist–always cross-reference with the equipment’s schematic.
Terminal Connections for Single-Stage Systems
Attach the red conductor to the R or Rh terminal–this supplies power continuously. For heat-only setups, the white wire connects to W. In cooling-only configurations, the yellow wire links to Y. Systems combining both functions split power: Rh for heating, Rc for cooling (jumper these if the thermostat lacks separate terminals).
Fan control requires the green conductor to the G terminal. Test operation by setting the thermostat to “Fan On”–the blower should activate immediately. If cycling occurs only during heating or cooling, recheck the G connection. For heat pumps, add an orange wire to the O/B terminal to control reversing valve direction.
After securing all conductors, restore power and observe the display. If blank, re-examine the R and C connections–no voltage indicates a wiring or transformer fault. Touch each terminal with the multimeter probe to verify 24V between R and C. Correct polarity issues by swapping conductors if the thermostat fails to power on.
Calibrate temperature differentials post-installation. Set the unit to 5°F below room temperature; the cooling stage should engage within 30 seconds. Raise the setting 10°F above ambient–heating should trigger similarly. Non-responsive stages suggest miswired Y or W terminals, or a defective control board relay.
Connecting Heat Pump Controls with Supplemental Heating: A Precise Guide
Begin by identifying the six primary terminals on your climate control board: R (power), C (common), Y (compressor), O/B (reversing valve), G (fan), and W2/AUX (backup heat). Use 18-gauge solid copper wire for connections–16-gauge if distances exceed 50 feet. Label each wire at both ends before making contact to prevent cross-connections. For heat pumps using an O-terminal (Rheem, Bryant), connect to O; for B-terminal systems (Trane, American Standard), use B. Verify the reversing valve’s default state in your unit’s documentation–cooling (O) or heating (B)–to avoid incorrect cycling.
Connect the auxiliary heating element by attaching the W2/AUX wire to the corresponding terminal on both the control board and the backup heat strip relay. Ensure the relay’s 24V coil is compatible with your system’s amperage–typically 20–40VA for residential setups. Use a multimeter to confirm the relay activates when the outdoor temperature drops below the balance point (usually 35°F/1.7°C) by measuring voltage at the W2/AUX terminal. If voltage is absent, check the outdoor thermostat or defrost control board for faults. For dual-fuel systems (heat pump + furnace), wire the auxiliary heat to the furnace’s W1 terminal instead, ensuring the heat pump’s defrost cycle doesn’t trigger the furnace.
Finalize by securing all connections with crimp connectors or wire nuts rated for 90°C–never twist and tape. Test the setup by forcing auxiliary heat mode via the control’s installer menu or by lowering the thermostat’s setpoint below the current indoor temperature. Observe the airflow; a 3°F rise in supply air within 2 minutes confirms proper activation. If the fan fails to engage during auxiliary heat, verify the G terminal’s connection and the control’s fan delay settings, which should default to “fan on with heat” for heat pumps. Record the outdoor and indoor temperatures at which auxiliary heat engages for future reference.

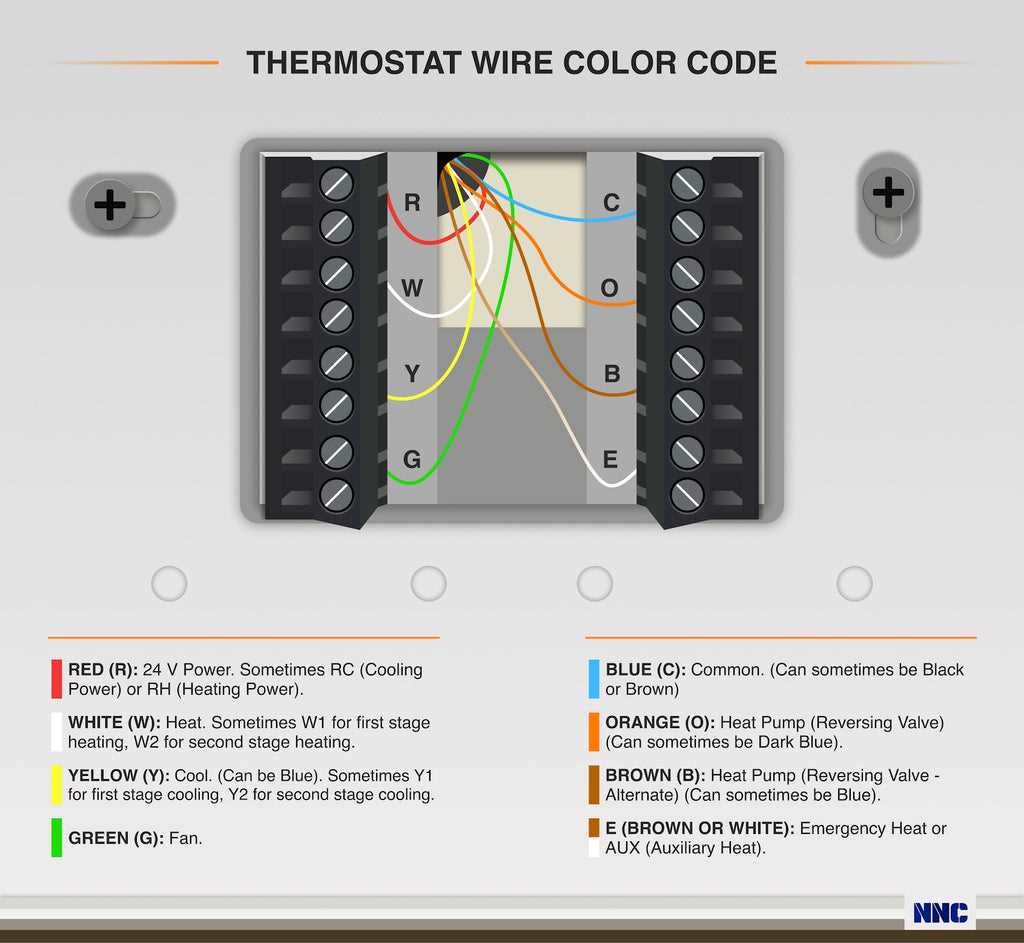

Identifying and Labeling Climate Control Circuit Conductors by Color Standards
Begin by isolating the power source–shut off the circuit breaker or remove fuse access to the HVAC unit before handling conductors. Use a non-contact voltage tester to confirm de-energization; probe each lead for 3+ seconds to rule out residual current. Document every lead’s position with high-resolution photographs from multiple angles, ensuring terminal blocks and jumper configurations remain visible. Label conductors temporarily with adhesive tags (e.g., “RH-RED” or “C-BLUE”) before finalizing permanent markers–this prevents transcription errors during reconnection.
| Function | Standard Color (North America) | Alternate/Regional Variations | Critical Notes |
|---|---|---|---|
| Power – Heating (24V) | Red (R, RH) | Pink (UK/EU), Brown (AU/NZ) | May split into Rc (cooling) and Rh (heating); jumper if using single transformer |
| Power – Cooling (24V) | Red (Rc, if separate) | Orange (UK, vault systems), Purple/Lilac | Often bridged with Rh unless dual-transformer setup |
| Common | Blue (C) | Black (older US systems), Gray (EU) | Required for smart units; trace to transformer secondary |
| Heat Call | White (W, W1) | Yellow (AU heat pumps), Green | Verify with ohm-meter: continuity between W and Rh when heat is demanded |
| Cool Call | Yellow (Y, Y1) | Brown (UK), Light Blue (EU) | Check compressor relay closure; may require Y2 for multi-stage cooling |
| Fan | Green (G) | Black (AU), Purple | Directly controls blower; test continuity with fan switched on |
| Emergency Heat | Brown (E, aux heat) | Orange (O/B), Red (UK) | Common in heat pumps; verify against reversing valve (O/B) operation |
Check for non-standard conductors–some heat pumps use “O” (orange) for reversing valve and “B” (dark blue) for secondary heat, requiring a 4-conductor cable instead of standard 5. For analog units, match labels to the terminal strip exactly (e.g., “W/W1” for single-stage heating). If conductors lack color clarity, strip ¼ inch of insulation and use a multimeter to test voltage: C-to-Rh should read 24V AC, while open circuits (e.g., Y or W) should show 0V until the respective mode is activated via the control panel.
