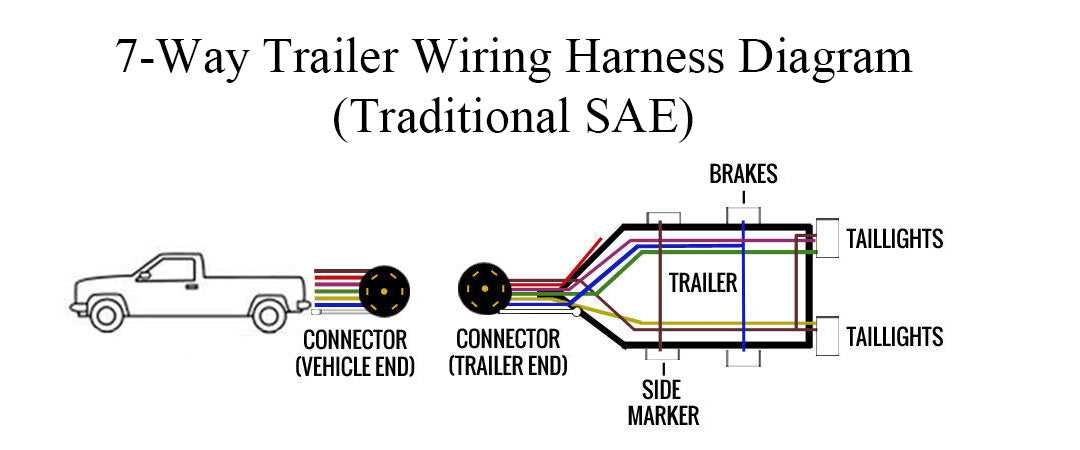

Complete 7 Pin Wiring Diagram for Truck and Tractor Trailers Guide

Start with the color-coded cables: brown for tail and clearance lights, yellow for left turn/brake, green for right turn/brake, white for ground, blue for auxiliary circuits like electric brakes, and red or black for the main power feed. Verify each terminal’s polarity before securing connections–incorrect pairing risks blowing fuses or damaging module controllers. Use a multimeter to confirm voltage: 12V on the power line, uninterrupted ground continuity, and proper switching for turn signals under 10Ω resistance.

Heavy-haul setups demand 14-gauge wire or thicker for currents exceeding 20A, especially if including brake controllers or lift axles. Smaller trailers can manage 16-gauge, but larger rigs require heat-resistant insulation like TXL or GPT to prevent melting near exhaust manifolds. Crimp connectors should be sealed with adhesive-lined shrink tubing–standard vinyl won’t resist road vibration or moisture ingress. For pin configurations, heavy-duty sockets often include a purple wire (5th position) for reverse lights or hydraulic power, though not all trucks support this without a relay.

Test sequences matter: activate hazards first to check both turn circuits simultaneously, then verify brake lights illuminate with stops. If lights flicker at idle, inspect the alternator’s voltage regulator–stable 13.8–14.4V output is non-negotiable. Ground connections must be bolted directly to the frame; paint acts as an insulator, so scrape down to bare metal. For trailers with ABS, ensure the dedicated pin (usually blue) is routed to the modulator without splicing–aftermarket brake controllers often require this circuit to remain isolated.

Prevent corrosion with dielectric grease on plug faces and a layer of anti-seize on threaded terminals. Store spare connectors in a dry environment; oxidation forms within weeks if exposed to humidity. When troubleshooting, probe the socket side–not the plug–to avoid bending pins. Replace cracked housings immediately; even minor cracks let in debris that shorts contacts. For fleet operations, standardize wire colors across all units to reduce diagnostic errors during rotations.

Connecting Heavy-Duty Vehicle Electrical Systems: A 7-Way Guide

Match wire colors precisely to avoid reversing polarity–a common cause of blown fuses in commercial hauls. The standard configuration assigns brown to running lights, green to right turn/brake, yellow to left turn/brake, white to ground, blue to auxiliary functions (like lift gates), red to power, and black to the main battery circuit. Verify each connection with a multimeter set to 12V DC before securing terminals; even slight corrosion can create resistance leading to intermittent failures.

Key Troubleshooting Steps

• Check for voltage drop across each circuit–over 0.5V indicates corrosion or loose crimps. Use dielectric grease on connectors to prevent oxidation.
• Inspect the ground connection first when diagnosing flickering lights; a weak ground often mimics electrical faults in other circuits.
• Replace aged cables showing cracks or brittleness–shorts in 10-gauge wiring (common in brake circuits) can generate enough heat to melt insulation.

For trailers with hydraulic lifts, route the blue auxiliary wire through a separate 30-amp relay to prevent voltage spikes from damaging sensitive components. Splice heavy-duty heat-shrink tubing over all joins, not electrical tape–vibrational fatigue in road applications causes adhesive tape to unravel within months. Consider adding a surge protector between the towing vehicle’s battery and trailer circuits if frequent power surges occur.

Adapters for Non-Standard Hookups:

1. European 13-pin connectors require re-mapping: pin 1 (red) becomes constant power, pin 2 (white) remains ground, while pins 3–7 mirror the SAE J560 standard.
2. For lighter trailers, an in-line fuse holder (10A) must be installed on the red power wire to prevent overheating 16-gauge wiring commonly used in utility setups.
3. Always isolate battery circuits when testing–accidental shorts can weld tools to terminal posts or trigger airbag deployment in vehicles equipped with safety systems.

Determining the Role of Each Terminal in a 7-Way Connector

Start by examining the connector’s physical layout–most standard configurations place the primary functions in predictable positions. The central post typically handles the vehicle’s ground connection, ensuring stable electrical return for all circuits. Verify this first, as incorrect grounding can disable other signals.

Locate the terminal supplying continuous power–the largest or thickest wire usually connects here. This circuit delivers 12V directly from the battery for auxiliary devices like interior lights or charging ports. Avoid mistaking it for the ignition-controlled feed, which only energizes when the engine runs.

Identify the left and right turn indicators by tracing their corresponding wires to the vehicle’s lighting assembly. These signals are activated by their respective switches and mirror the tractor’s own lights. Test with the hazards engaged to confirm both blink in unison.

The brake signal terminal carries a separate circuit solely for the electric brakes. This post triggers when the pedal is pressed, sending voltage to the trailer’s braking mechanism. Measure current flow while depressing the pedal; absence indicates a faulty wire or relay.

Check for the reverse light terminal–often marked with a unique plastic cover. This post energizes only when the gear selector shifts backward, activating rear lamps on the attached unit. Swap bulbs if no response occurs despite proper voltage.

Inspect the auxiliary power post, sometimes labeled “hot lead” or “backup power.” This terminal can serve multiple roles: powering refrigeration units, hydraulic pumps, or additional lighting. Use a multimeter to detect unexpected drops under load.

Cross-reference each terminal’s color-coding with the manufacturer’s documentation. While industry standards exist, variations occur–orange may denote brakes in one system and power in another. Label wires immediately after confirmation to avoid future errors during repairs.

How to Properly Connect a 7-Way Vehicle Plug: A Detailed Procedure

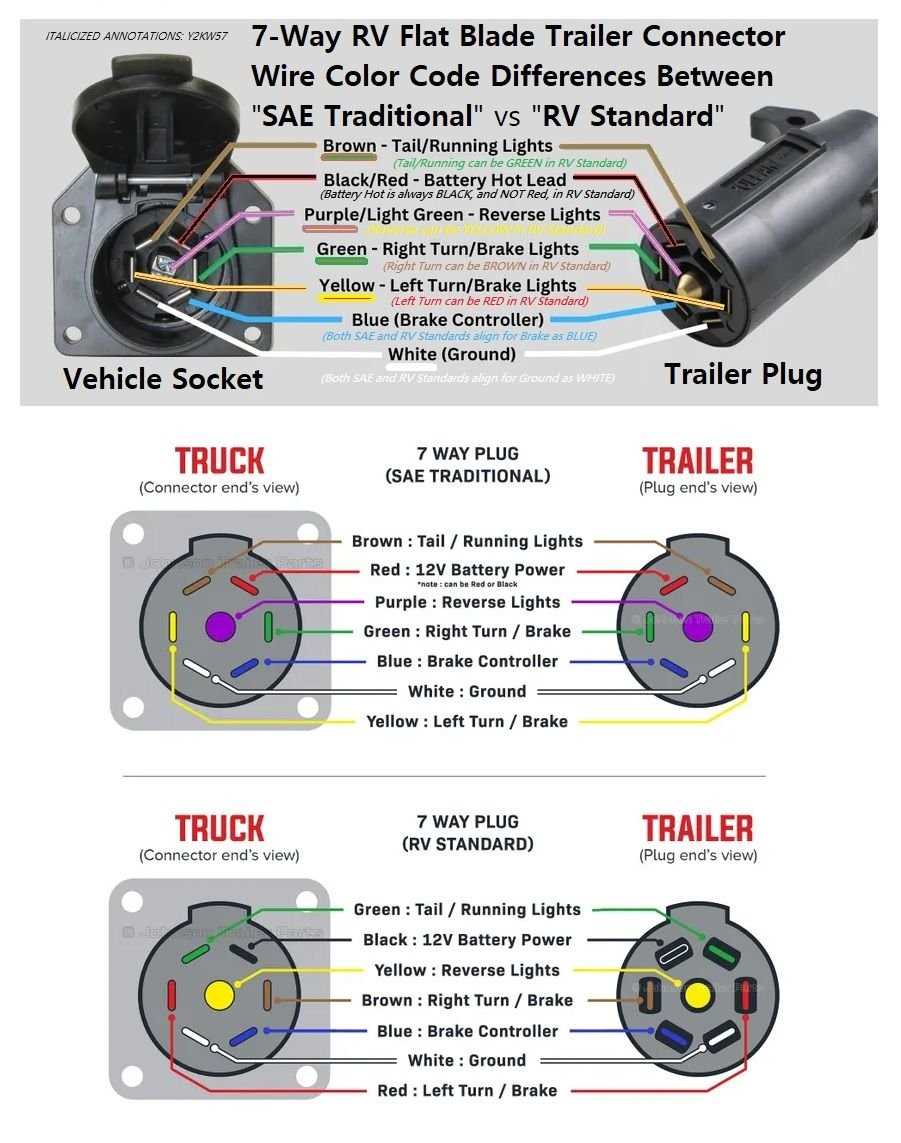

Begin by identifying each terminal on the plug’s socket: ground (white), tail/running lights (brown), left turn/brake (yellow), right turn/brake (green), electric brakes (blue), auxiliary power (black), and reverse lights (purple). Strip 1/4 inch of insulation from each wire, twist strands tightly, and crimp a ring terminal for secure attachment. Connect the white lead to the chassis or frame using a self-tapping screw; ensure no paint or rust remains at the contact point to prevent corrosion. Match remaining wires to corresponding socket contacts–use a multimeter set to continuity mode to verify connections, probing each pin while activating the vehicle’s lighting or brake system.

Secure all connections with dielectric grease to repel moisture, wrap exposed wiring in split loom tubing, and fasten the assembly away from moving parts. Test every function before finalizing: activate turn signals, engage brake lights, and check auxiliary circuits under load. A faulty ground often mimics wiring failures–retighten if flickering or dim outputs occur. For ABS-equipped trailers, verify the blue circuit delivers 12V during braking via a brake controller; misconfiguration risks premature wear or improper activation.

Common Errors in 7-Plug Heavy-Duty Electrical Hookups and Solutions

Reverse polarity connections destroy voltage-sensitive components like LED lights and brake controllers. Verify pin assignments with a multimeter before securing connectors. Standard configurations assign ground to the white cable (center pin), but aftermarket harnesses often deviate. Label each wire at both ends during initial setup to prevent misalignment.

Corrosion-Related Failures

• Clean contact surfaces with fine-grit sandpaper before joining plugs.
• Apply dielectric grease to brass terminals to block moisture ingress.
• Replace cracked rubber boots immediately–they cost under $5 but prevent $200 controller replacements.

Incorrect fuse ratings cause intermittent power loss. Microwave-style 20-amp fuses melt under sustained trailer loads. Install slow-blow 30-amp fuses matching the charging circuit’s capacity. Test draw with a clamp meter: a 7-blade setup should not exceed 25 amps at cruising RPM.

Loose crimps create resistive heating. Use solder sleeves for joints over 5 amps–crimp connectors alone loosen under vibration. Bare copper corrodes within weeks; tin all stripped ends before securing. Torque terminal screws to 2-3 inch-pounds, avoiding overtightening that cracks plastic housings.

1. Avoid daisy-chaining cheap extension harnesses–voltage drop exceeds 0.5V over 15 feet, dimming marker lamps.
2. Route cables away from sharp steel edges and exhaust pipes using nylon clamps every 12 inches.
3. After installation, cycle all functions three times to seat connections before road testing.

Equipment and Supplies Required for Fitting a 7-Way Connector Assembly

Select a voltage tester with both contact and non-contact modes to verify circuit integrity before energizing the system. Models like the Fluke 1AC II or Klein Tools NCVT-3 detect live wires, grounding faults, and polarity inversions at ranges up to 500V. Avoid cheaper alternatives prone to false positives around inductive loads common in heavy-duty towing setups.

A crimping tool rated for 10–22 AWG wire must be used–pliers-type crimpers create unreliable connections subject to corrosion and vibration failure. The Paladin Tools 1325 or Knipex 97 42 220 offer hexagonal crimps that cold-flow conductor strands into terminals, achieving pull-out forces exceeding 60 lbs. Match crimp dies precisely to the terminal manufacturer’s specifications; generic dies produce substandard joints prone to fretting wear.

Heat-shrink tubing with adhesive lining provides superior moisture sealing compared to vinyl or spiral wrap. Choose polyolefin variants like TE Connectivity DR-25 rated to -65°C/+125°C and UL-recognized for automotive environments. Minimum 3:1 shrink ratio ensures complete encapsulation around splice joints; larger diameters accommodate bundled feeds without constriction that impedes flex under road stress.

Component	Specification	Quantity
Ring terminals	16–14 AWG, tin-plated copper	8–12
Butt connectors	12–10 AWG, dual-wall insulated	6–8
Grounding braid	6 AWG, tinned copper	1 ft
Dielectric grease	Silicone-based, NLGI #2	1 oz

An oscilloscope adapter with differential probes (e.g., Pico Technology TA041) isolates intermittent faults in pulse-width modulated brake circuits. Set trigger thresholds to 50 mV/div and observe waveform symmetry; distorted patterns indicate corroded pins or insufficient relay hysteresis. Ensure probe bandwidth exceeds 1 MHz to capture transients during solenoid actuation.

Wire strippers must accurately remove insulation without nicking conductor strands. The Ideal 45-121 or Greenlee 1918-B preserve full cross-sectional area, crucial for circuits carrying 30A brake loads. Adjustable stops prevent over-stripping–verify with a micrometer that no more than 1 mm of bare wire extends beyond the terminal barrel.

Use a torque screwdriver for terminal block fasteners: 8–12 in-lbs for 6–32 screws and 15–20 in-lbs for 10–32 studs. Under-tightening risks vibration-induced fretting corrosion; overtightening strips threads on zinc-plated steel housings. Calibrated models like Wiha 72791 prevent cross-threading when securing auxiliary circuits under dash modules.
