Complete Guide to Trailer Socket Wiring Diagrams 7pin 13pin
Install a 7-pin or 13-pin connector following ISO 11446 standards to ensure cross-compatibility across European and North American vehicles. Pin assignments differ: ground occupies position 3 (7-pin) or 2/3 (13-pin), while left/right turn signals use pins 2 and 5 (7-pin) or 1/5 and 4/6 (13-pin). Verify voltage with a multimeter–most systems run 12V DC, though some commercial trailers require 24V.
Use 2.5 mm² cross-section copper wire for brake lights and 1.5 mm² for tail/signal circuits to prevent voltage drop over distances exceeding 5 meters. Secure connections with crimp terminals and heat-shrink tubing rated for automotive temperatures (-40°C to 125°C). Avoid solder-only joints–vibration can fracture them over time.
Test continuity by activating each function (hazard lights, brakes, reverse) while observing the trailer’s corresponding lights. A 21W bulb draws ~1.75A at 12V; exceed this load by 20% to account for voltage sag during simultaneous operations (e.g., brake + turn signal). For 13-pin systems, allocate pin 9 for reverse light and pin 10 for charging (if equipped), maintaining at least 10A capacity.
Label wires at both ends with heat-resistant sleeves to simplify future diagnostics. If retrofitting an older vehicle, bypass the factory fuse box–route power directly to the battery via a 15A fuse for lighting circuits and 30A for charging lines. Always ground to the vehicle’s chassis using a star washer to prevent corrosion-induced resistance.
Electrical Connector Layout for Towing Vehicles
Begin by identifying the pin configuration of the plug used in your region. The 7-pin Type N (ISO 1724) layout is standard across Europe, while North America predominantly uses the 4-pin flat connector or the 7-pin Type S round version. Verify compatibility with your vehicle’s existing harness before proceeding.
Connect the primary circuits in this sequence:

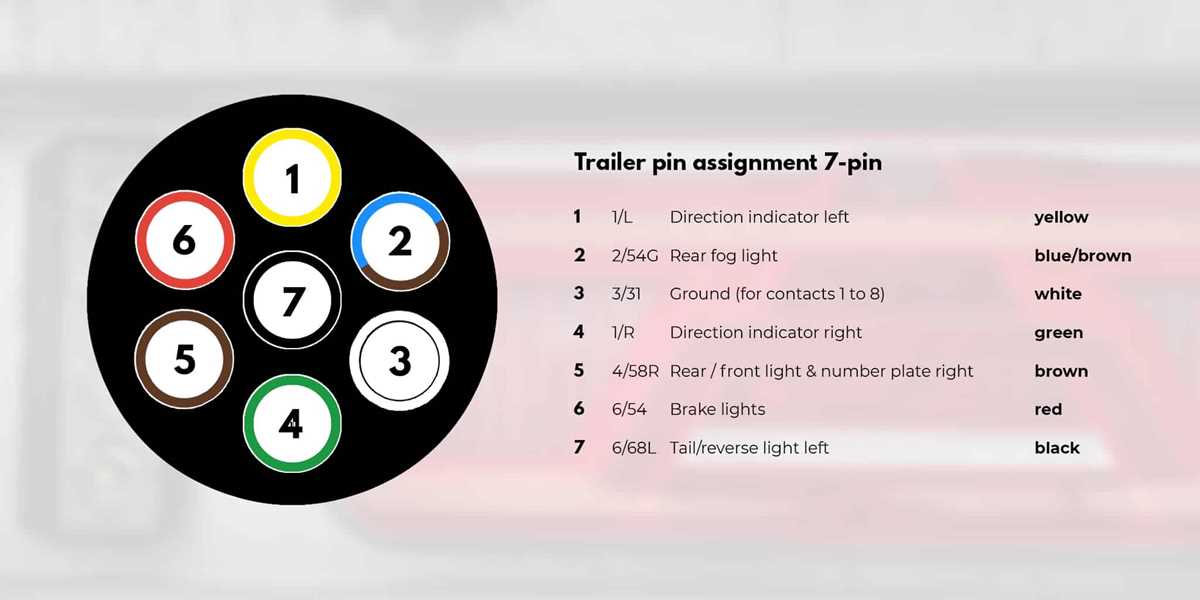

- Pin 1 (Yellow, L): Left turn signal/brake light – route to the corresponding bulb on the towed unit.
- Pin 2 (Blue, 54G): Reverse lights – ensure activation only when the gear selector is in reverse.
- Pin 3 (White, 31): Ground – attach directly to the chassis with a minimum 4 AWG cable to prevent voltage drop.
- Pin 4 (Green, R): Right turn signal/brake light – cross-check with Pin 1 to confirm synchronous flashing.
- Pin 5 (Brown, 58R): Tail lights – fuse separately with a 10A breaker.
- Pin 6 (Red, 54): Brake lights – test by applying brake pedal pressure.
- Pin 7 (Black, 58L): License plate illumination – use a low-current LED bulb rated ≤5W.
For heavy-duty applications exceeding 750W, upgrade to a 13-pin connector. The additional circuits handle charging (Pin 9), auxiliary power (Pin 10), and a dedicated ground return (Pin 11). Always match wire gauge to load: 1.5 mm² for ≤15A, 2.5 mm² for ≤20A, and 4.0 mm² for ≥25A. Avoid daisy-chaining grounds; each circuit should terminate independently.
Testing and Troubleshooting
Use a multimeter in continuity mode to verify each connection before final assembly. A reading ≤0.5Ω confirms proper grounding. Check for voltage at each pin with the vehicle running–expect 12V-14V DC on active circuits. If turn signals flash erratically, inspect the relay or flasher unit; a rapid double-flash often indicates a short to ground. Isolate faulty circuits by disconnecting the towed unit and testing individually.
Waterproof all junctions using heat-shrink tubing and dielectric grease. Secure cables every 30 cm with UV-resistant zip ties to prevent chafing. For trailers with electric brakes, Pin 5 (Type N) or Pin 7 (Type S) carries the brake controller signal–ensure the controller is programmed to the correct voltage (typically 12V or 24V). Never exceed the manufacturer’s rated amperage; a 20A circuit breaker is mandatory for brake circuits.
For older vehicles lacking a dedicated connector, retrofit a relay module to prevent overloading the existing wiring. The module should include a 30A main fuse and separate fuses for each auxiliary circuit. Document your configuration with a label inside the vehicle’s fuse box for future reference.
7-Way Connector Pinout: Industry Color Coding and Terminal Assignments

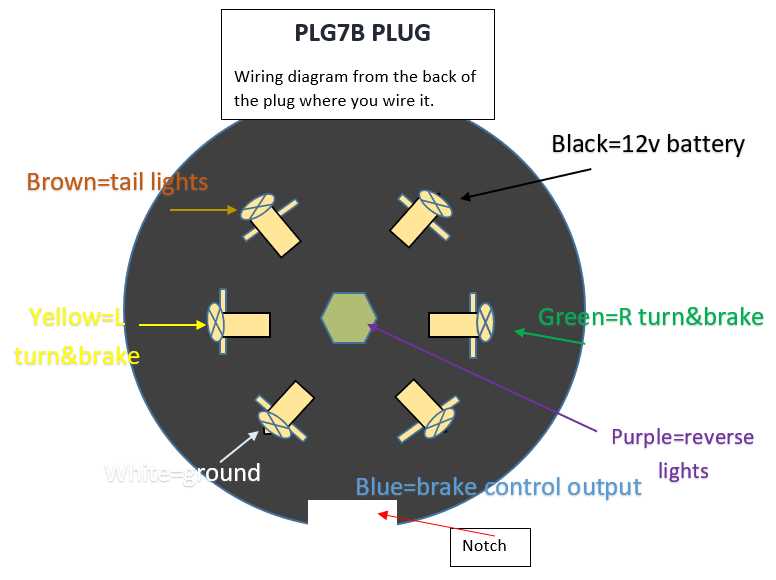

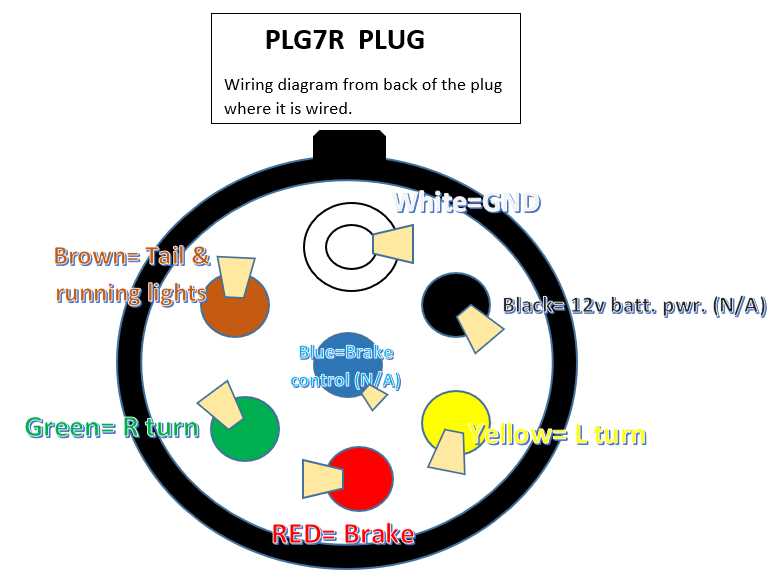

Install the 7-way round connector using the following standardized color scheme to prevent cross-circuit faults: Brown connects to the running lights on pin 3 (11 o’clock position), yellow handles left turn/brake on pin 5, green manages right turn/brake on pin 7, white grounds all circuits at pin 1 (6 o’clock), blue carries auxiliary power (12V) on pin 2, black supplies the electric brake controller on pin 4, and gray or purple (varies by manufacturer) activates reverse lights on pin 6. Double-check each lead with a multimeter before securing–the blue lead should register continuous 12V during ignition, while brake-related leads spike only when activated.
Common Deviations and Troubleshooting Tips
European and heavy-duty rigs often swap gray and purple positions–reverse lamps may use purple on pin 6, while cargo trailers repurpose gray for liftgate controls. If voltage drops below 11.8V on any circuit, inspect the white ground connection first; corrosion here causes intermittent failures across the entire harness. For longevity, crimp each terminal with a heat-shrunk butt connector and apply dielectric grease before assembly; moisture ingress is the primary cause of premature terminal failure.
Never assume factory pre-wired connectors match this layout–always verify with a continuity tester. Aftermarket adapters frequently mislabel terminals, particularly between brake and auxiliary power circuits. When splicing, use 12-gauge wire for brake and ground leads, 14-gauge for lighting, and 16-gauge for auxiliary functions to handle current loads (brakes draw up to 30A, running lights 5A). Secure all connections with nylon-locking nuts to prevent vibration-induced disconnections.
Step-by-Step Guide to Hooking Up a 12V Vehicle Plug
Begin by verifying the voltage at the tow vehicle’s connector with a multimeter–standard 12V systems should read between 12.6 and 14.2 volts under load. Disconnect the negative terminal of the battery before handling any cables to prevent short circuits. Strip 6mm of insulation from each wire using a dedicated stripping tool, ensuring no frayed strands remain, as they can create intermittent failures. Match each conductor to its corresponding pin on the coupling harness using the ISO 7638 or SAE J560 standard depending on regional regulations; failure to follow the correct pinout risks damaging the ABS or lighting circuits on newer trailers.

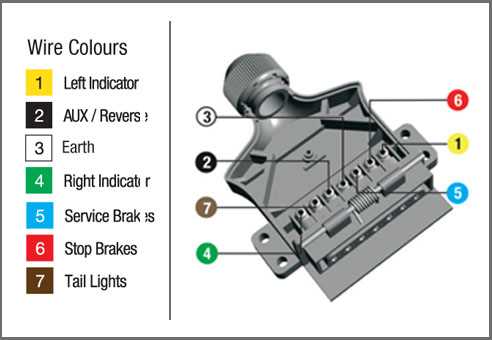

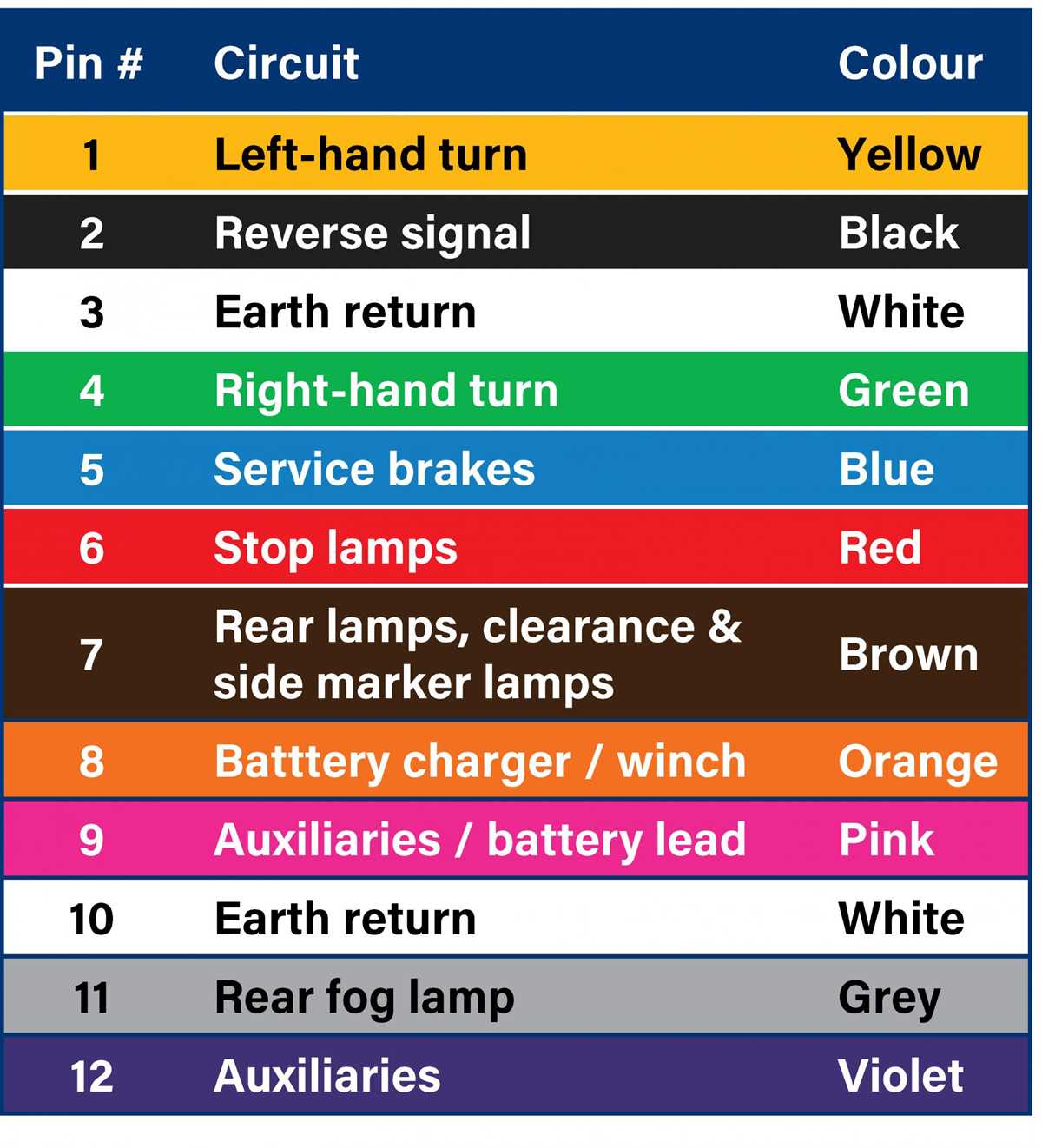

| Pin Number | Function | Wire Colour (Common) | Test Voltage (Idle) |
|---|---|---|---|
| 1 | Left Turn & Brake | Yellow | 12.0–12.4V |
| 2 | Reverse Light | Green | 0V (until engaged) |
| 3 | Ground | White | 0V |
| 4 | Right Turn & Brake | Green/Yellow | 12.0–12.4V |
| 5 | Tail & Marker Lights | Brown | 11.8–12.2V |
| 6 | Permanent Power (Aux) | Red | 12.6–14.2V |
| 7 | Electric Brake (12V) | Blue | 0V (until activated) |
Crimp each connection with a ratcheting crimper and heat-shrink tubing–avoid solder alone as it can crack under vibration. Route the cables through a grommet to prevent chafing against sharp edges of the vehicle frame. Secure loose wires every 15cm with nylon zip ties or spiral wrap; excessive slack increases the risk of tangling and pinching. Reconnect the battery’s negative terminal, then test each circuit with a trailer simulator or by activating the tow vehicle’s lights and brakes sequentially. If voltage drops below 11.5V at any pin, inspect the ground connection first–poor grounding is the leading cause of intermittent failures in 12V setups.
Common Issues and Troubleshooting Faulty Towing Connector Problems
Check for oxidized contact points first–corrosion on terminals often causes intermittent failures, especially in 7-pin connectors where pins 4 (charging) and 7 (ground) are most vulnerable. Use a multimeter set to continuity mode to verify each circuit; probe between the pin and vehicle chassis to detect open paths (readings above 0.5 ohms indicate resistance issues). Replace any damaged harness segments rather than splicing–cheap crimp connectors degrade under vibration, leading to voltage drops that trigger ABS faults in modern rigs. For European 13-pin setups, test the reverse-light circuit (pin 11) separately; this auxiliary line fails silently when exposed to moisture ingress, disabling rear sensors without warning.
Flickering lights usually trace back to insufficient ground return–relocate the ground strap away from exhaust components and bolt it directly to unpainted metal using a star washer for good contact. If LED attachments malfunction, verify voltage via a load test; PWM controllers in newer tow vehicles may require a bypass module for stable current delivery. Always disconnect the battery before probing live circuits–shorting pin 9 (reverse) to chassis can fry expensive control modules.
Essential Gear and Supplies for Self-Fitted Vehicle Connector Setup
Start with a 7-pin or 13-pin plug kit–match the pin count to your vehicle’s existing harness. Kits typically include color-coded leads, a pre-molded housing, and a protective dust cap. Opt for tinned copper conductors (minimum 1.5 mm² for lighting circuits, 2.5 mm² for auxiliary power) to prevent corrosion from road salt and moisture. Verify the kit includes heat-shrink tubing; adhesive-lined variants seal connections far better than electrical tape.
Secure a wire stripper with 10–22 AWG notches–generic pliers crush strands, causing intermittent failures. Use a crimping tool with indent teeth for insulated and non-insulated terminals; ratcheting designs ensure uniform pressure. A multimeter (auto-ranging, ≥600V AC/DC) is critical: test each circuit for 12–14V before finalizing joins. Add a non-contact voltage tester for rapid checks without damaging insulation.
Precision Extras That Prevent Headaches
Include a terminal removal tool (forked design, 4–6mm width) to extract incorrectly seated pins. A small bottle of dielectric grease applied to each connection thwarts water ingress and oxidation; apply sparingly to avoid interfering with conductivity. For vehicles with thin-wall conduit, a 6mm flexible drill bit lets you route cables without stripping interior panels. Carry a set of miniature screwdrivers–many housings use Torx T10 or T15 fasteners.
Self-vulcanizing silicone tape (wraps without adhesive residue) is ideal for bundling loose conductors; wrap each joint three times with 50% overlap. A magnetic parts tray keeps screws and tiny terminals from disappearing into the workspace. Keep a wire brush nearby to remove surface oxidation from grounding points–bare metal-to-metal contact ensures consistent current flow.
Lightweight nylon zip ties (10cm length, 2.5mm width) secure harnesses every 15cm; reusable variants allow adjustments. For off-road vehicles, add a grommet kit–silicone grommets prevent chafing where cables exit body panels. A 3M VHB tape (4941 series) bonds temporary mounting brackets without drilling. Store spare fuses (5A, 10A, 15A) matching your vehicle’s fuse box ratings to replace any blown circuits immediately.
