Understanding Atomic Force Microscope Schematic Diagrams and Key Components

Begin by identifying the core components in a typical setup: the cantilever with its sharp probe, laser deflection mechanism, photodetector array, and piezo scanner stage. The precision of the laser’s alignment–typically a 650–780 nm diode source–directly impacts signal-to-noise ratios; deviations beyond ±0.5 μm degrade resolution. Position the photodetector at a fixed distance of 5–10 cm from the cantilever to ensure optimal collection of reflected light, minimizing interference from ambient sources.

Prioritize modular design when sketching the feedback loop architecture. The proportional-integral-derivative (PID) controller should be isolated from high-voltage amplifiers to prevent cross-talk, with shielding for frequencies above 1 kHz. Use separate ground planes for analog (low-noise) and digital (fast-switching) circuits to eliminate coupling artifacts. The piezo scanner’s capacitive load–often 1–10 nF–requires drivers with slew rates exceeding 50 V/μs to maintain nanometer-scale responsiveness.

Label critical dimensions: cantilever resonance frequencies (50–300 kHz for tapping mode, 1–10 kHz for contact mode), probe tip radius (5–20 nm for standard Si or Si₃N₄), and scanner travel ranges (1–100 μm XY/Z). Include thermal drift compensation paths–sample stage temperature stabilization (±0.01°C) reduces drift to below 0.1 nm/min. For liquid environments, integrate a fluid cell with O-ring seals and a separate feedback loop to account for viscosity-induced phase shifts.

Verify signal paths before finalizing: the laser’s beam should intersect the cantilever’s backside at 120–150° for maximum deflection sensitivity. The photodetector’s quadrant division must align precisely with the cantilever’s rotation axis; misalignment by >2° introduces crosstalk between vertical and lateral force channels. For dynamic modes, synchronize excitation signals with the piezo driver’s frequency to avoid aliasing artifacts in phase-contrast imaging.

Use color-coded traces for power (red, 50–200 V), signal (green, ±10 V), and ground (black) to simplify troubleshooting. Highlight dielectric isolation zones where AC and DC lines converge to prevent arcing at high voltages. For ultra-high-vacuum (UHV) systems, integrate bakeable connectors and differential pumping stages to avoid contamination of the probe or sample surface.

Visual Representation of Atomic Force Microscopy

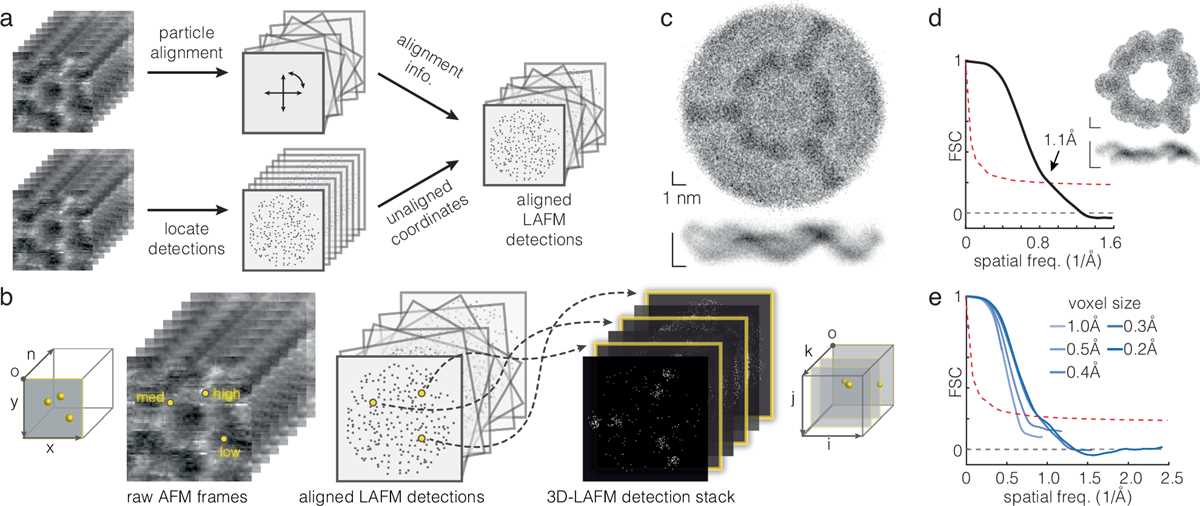

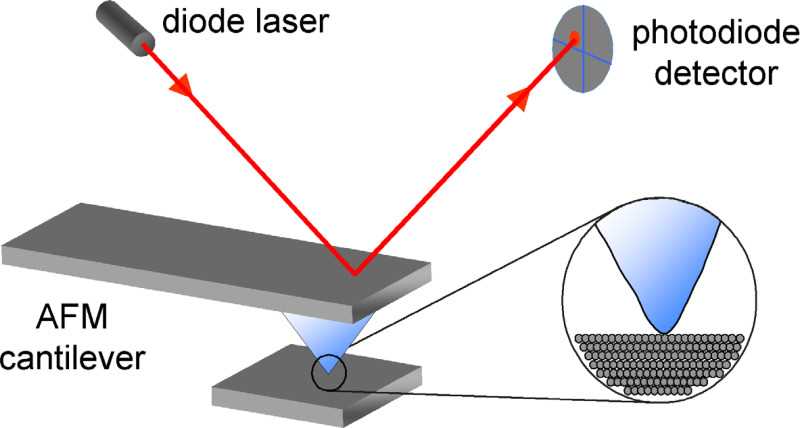

Begin by illustrating the probe-sample interaction at the core of the system: position the cantilever with its nanoscale tip above the specimen surface at a 10–20° angle to optimize force sensitivity. Use a laser diode emitting a 650–785 nm beam to reflect off the cantilever’s gold-coated backside into a segmented photodetector. The detector must divide into four quadrants–two vertical, two horizontal–to capture both normal and lateral deflections with sub-nanometer precision. Ensure the vertical segments detect cantilever bending from atomic forces, while horizontal segments register torsional movement for friction studies. Label all components with operational ranges: cantilever spring constants (0.01–100 N/m), resonance frequencies (10–500 kHz), and tip radii (2–50 nm).

For positioning control, integrate three piezoelectric actuators–X, Y, and Z–each with distinct travel ranges: 10–150 μm for lateral scanning (X/Y) and 1–10 μm for vertical feedback (Z). Depict the feedback loop connecting the photodetector to the Z-piezo, where a proportional-integral-derivative controller adjusts the tip-sample distance in real-time. Specify voltage ranges: ±10 V for coarse approaches, ±200 mV for fine adjustments. Below the sample stage, include a vibration isolation platform (e.g., passive springs or active damping) to counteract frequencies above 1 Hz. Add arrows to show the signal flow: laser → cantilever → detector → feedback electronics → piezo.

• Laser alignment: Mount the diode ~5 cm from the cantilever at a 45° incidence angle to minimize stray reflections.
• Detector positioning: Place the quadrant photodiode ~2 cm from the cantilever, ensuring the reflected beam spans both vertical segments without oversaturating any quadrant (+/- 5 μW/cm²).
• Sample environment: For ambient conditions, enclose the setup in an acoustic hood; for ultra-high vacuum, add a turbo pump (base pressure < 1×10⁻⁷ mbar).
• Coarse approach: Use a stepper motor (step size: 20–100 nm) or stick-slip actuator for initial tip-sample engagement before switching to fine Z-piezo control.

Indicate operational modes with color-coded pathways: blue for contact mode (constant force, 0.1–1 nN), green for tapping mode (amplitude modulation, 10–100 nm oscillation), and red for non-contact mode (frequency shift detection, Δf < 100 Hz). Mark critical components with their functional specifications:

1. Cantilever: Material (Si/Si₃N₄), coating (Au/Al), Q-factor (≥100 in air).
2. Piezo drivers: Bandwidth (≥10 kHz), noise level (<1 mV rms).
3. Feedback circuit: Time constant (1–10 ms), gain settings (0.1–100).
4. Data acquisition: Sampling rate (≥1 kHz), analog-to-digital converter resolution (16-bit).

Conclude with troubleshooting annotations: If image artifacts appear, first verify laser stability (±0.5 μW drift), then check Z-piezo hysteresis (≤1% nonlinearity). For height inaccuracies, recalibrate the photodiode’s vertical/horizontal segment ratios using a test grating (pitch: 1 μm, step height: 100 nm). Include a reference scale bar: lateral resolution (≤0.5 nm), vertical resolution (≤0.1 nm). For liquid-cell imaging, add a fluid reservoir with O-ring seal (leak rate < 0.1 mL/h) and label the meniscus-adjusted laser path correction.

Critical Elements in a Scanning Probe Microscope Blueprint and Their Roles

Start with a piezoelectric scanner–it must provide sub-nanometer precision in XYZ axes. Choose lead zirconate titanate (PZT) actuators for stability, ensuring scan ranges from 10×10 nm to 150×150 µm without hysteresis. Calibrate using a silicon grating standard; deviations exceeding 5% require recalibration or replacement. Avoid cheap alternatives–polymer-based actuators introduce thermal drift and nonlinearities that distort topography.

The cantilever acts as the sensory bridge; silicon nitride (Si₃N₄) variants excel for biological samples due to low spring constants (0.01–0.1 N/m), while silicon tips offer sharper resolutions (radius <10 nm) for rigid surfaces. Probe choice dictates spatial resolution: blunter tips average features, masking fine details. Store cantilevers in nitrogen-purged containers; oxidation degrades reflective coatings within months, skewing deflection signals.

Signal detection relies on a laser-photodiode pair. Position the laser spot at the cantilever’s free end–misalignment by >10 µm introduces parasitic deflection errors. Use a quadrant photodiode for differential detection to cancel ambient noise; single-segment diodes double noise levels. Check laser wavelength compatibility–blue (405 nm) lasers penetrate deeper into samples than red (650 nm), revealing subsurface artifacts in polymers but scattering in transparent media.

Feedback electronics close the loop: a proportional-integral-derivative (PID) controller regulates tip-sample interaction. Set the integral gain first to eliminate steady-state errors; excessive gain induces oscillations (>1 kHz). Limit bandwidth to 10 kHz to reject high-frequency noise without filtering meaningful topography. Disable Z-axis overshoot prevention–common in budget systems–as it smooths steep features, creating false terraces on crystalline samples.

Grounding and shielding are non-negotiable. Use a star-grounding topology for all analog lines; shared grounds between scanner and detection circuits inject 50/60 Hz hum. Faraday cages around the sample stage and detection path reduce capacitive coupling from nearby electronics (e.g., computers). For liquid imaging, add a vibration isolation table with >90% attenuation at 10 Hz–air tables outperform passive dampeners for low-frequency stability.

Step-by-Step Signal Flow in High-Resolution Probe Microscopy Detection

Begin by calibrating the piezoelectric scanner’s response to minimize hysteresis–use a pre-defined voltage waveform (e.g., 0.1–10 Hz sine wave) applied via the Z-axis actuator while monitoring closed-loop feedback. The cantilever’s deflection generates a laser reflection off its backside, directed toward a quadrant photodiode (QPD). Position the QPD precisely so the incident beam splits into four equal quadrants at the detector’s null point, ensuring linearity in subsequent measurements. Apply a low-pass filter (cutoff: 10 kHz) to the QPD output to eliminate high-frequency noise from mechanical vibrations, then amplify the difference signal (A+B)-(C+D) with a transimpedance amplifier (gain: 10^6 V/A) to convert photodiode current to a voltage proportional to cantilever displacement.

Route this voltage into a lock-in amplifier, referencing the cantilever’s drive frequency (typically 50–300 kHz) to isolate the oscillation amplitude. The lock-in output–now a DC signal–feeds into a proportional-integral-derivative (PID) controller, where the setpoint (e.g., 1 nm deflection) is compared against the measured value. Adjust PID coefficients (P: 0.1–1.0, I: 0.01–0.1, D: 0.001–0.01) based on sample stiffness; softer materials require lower integral gain to prevent overshoot. The PID output modulates the Z-piezo’s drive voltage via a high-voltage amplifier (0–150 V), maintaining constant force between tip and surface while generating topographic data.
