Complete 0-10V LED Dimmer Wiring Guide with Schematic Layout

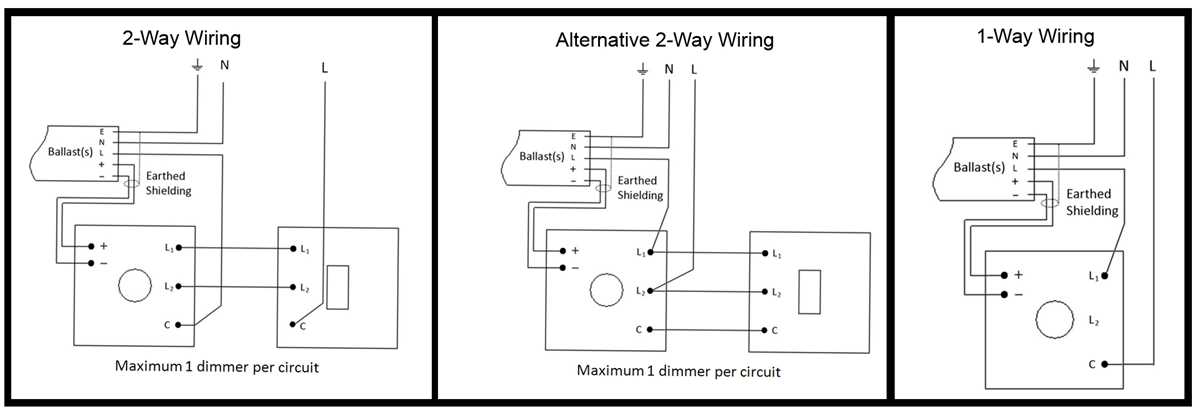

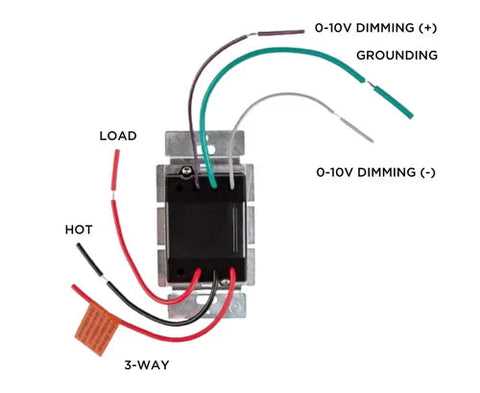

Use a low-voltage control signal (10V maximum) for smooth intensity adjustment of fixtures. Connect the positive (+) wire from the control source to the corresponding positive input on the driver–usually marked with a purple conductor. The negative (-) wire, typically grey, completes the circuit by linking to the driver’s negative terminal. Verify polarity before powering on; reversing these connections prevents modulation and risks damaging sensitive components.
Select drivers with isolated control inputs to avoid interference from mains voltage. Check compatibility tables: most modern variable-output power supplies support 1–10V analogue control, but older models may require a dedicated interface module. Shielded twisted pair cables reduce signal noise over distances exceeding 15 metres. Ground the shield at one end only–typically the driver side–to prevent ground loops.
Test the setup with a multimeter: probe between control wires should read ~0V at minimum intensity and approach 10V at full brightness. Adjustable bench supplies simulate control signals for troubleshooting. If luminance remains static, measure driver current; some require a minimum load (often 10% of rated output) to initiate modulation. Verify control wires aren’t shorted to mains conductors–this voids manufacturer warranties and creates fire hazards.
Label all connections using heat-shrink tubing or printed tags. Avoid running low-voltage control cables alongside power lines; maintain a 30cm separation for 230V systems. Secure connections with lever nuts or crimp ferrules–twisting alone degrades over time. For multi-channel setups, daisy-chain control wires only if the total cable length stays under manufacturer-specified limits, typically 300 metres for 1.5mm² conductors.
How to Connect Adjustable Brightness Control for Light Fixtures
Start by identifying the positive and negative wires from your power supply: typically, a black wire for live current and a white for neutral. For adjustable voltage control, the violet wire carries the control signal, while the grey wire serves as its return path–both must be connected to the corresponding terminals on the driver. Ensure the power source matches the fixture’s voltage rating (e.g., 12V or 24V DC) to prevent damage to the components. Use a multimeter to verify connections before powering on.
Most modern drivers require a separate low-voltage input ranging from 0 to 10 volts DC to regulate output intensity. Connect the violet lead to the “+” terminal on the driver and the grey lead to the “–” terminal. If the driver lacks labeled terminals, consult the manufacturer’s datasheet–incorrect polarity may cause flickering or failure. For installations with multiple fixtures, wire the control leads in parallel to ensure uniform brightness adjustment across all units.
Common Pitfalls and Solutions
Loose connections are the primary cause of inconsistent performance. Secure all wire nuts with electrical tape or use solder for permanent setups. Avoid exceeding the driver’s maximum wattage rating; for example, a 60W driver should not power more than three 20W fixtures. If the lights fail to respond, check for shorts in the control circuit–testing continuity between violet and grey wires should show resistance under 1kΩ. Replace damaged wires immediately to prevent signal degradation.
For systems integrating sensors or smart controllers, ensure compatibility with the driver’s protocol. Some advanced units require a reference voltage (e.g., 24V) from the controller to the violet wire, while others use a simple potentiometer. Always isolate the control circuit from high-voltage lines to avoid interference–use shielded cables for runs longer than 10 meters. If troubleshooting fails, isolate the fixture from the driver and test each component independently with a benchtop power supply.
Selecting the Optimal Low-Voltage Control for Modern Illumination
Match the voltage control range of your fixtures to prevent flickering or incomplete dimming. Most low-voltage regulators operate between 1-10VDC, but some premium models accept signals as low as 0.1V for finer adjustment. Verify the manufacturer’s minimum cutoff–cheaper units often struggle below 2V, leaving a noticeable gap in brightness levels.
Prioritize switches with active signal processing if your setup includes long cable runs. Standard passive regulators can pick up interference over distances exceeding 50 meters, causing erratic behavior. Brands like Lutron and Leviton integrate signal amplification directly into their controllers, ensuring stable output regardless of wiring length.
Check compatibility with constant-voltage versus constant-current drivers. Some luminaries require a sinking (negative-signal) interface, while others need sourcing (positive-signal) units. Mismatches force workarounds like external resistors, adding complexity and potential failure points. Philips and Osram usually specify the correct interface type in product datasheets–cross-reference before purchase.
Look for integrated protection against accidental polarity reversal. A reversed input typically voids warranties and risks permanent damage. Models with built-in safeguards, such as Mean Well’s LDD series, save diagnostic time and prevent costly replacements. If the chosen switch lacks this feature, include a polarity-testing step during installation.
Key specifications to compare:
- Signal tolerance (±0.5V common, tighter ranges improve precision)
- Load capacity (check current rating against driver requirements)
- Response latency (critical for dynamic scenes; under 20ms is ideal)
- Hardware mounting (DIN-rail, wall-plate, or panel cutout compatibility)
Opt for units with explicit surge ratings if operating near inductive loads. Transformers and large motors can spike control lines unexpectedly, leading to premature failure. Schneider Electric and ABB publish surge resistance specs in kV–aim for at least 2kV protection.
Favor designs with easily accessible calibration points. Minor factory misalignments can skew linearity, making dimming curves unpredictable. Tridonic’s CLO units expose trimpots for on-site adjustments, whereas fully sealed models demand precision manufacturing and offer no recourse for field correction.
Assess physical durability relative to environment. NEMA-rated enclosures resist dust and moisture, essential for outdoor applications or retrofitting older installations with corroded conduits. Also consider terminal types–screw-down connections offer reliability but slow installation compared to push-in alternatives popular in newer modular systems.
Step-by-Step Connection Guide for Analog Voltage-Controlled Lighting Systems

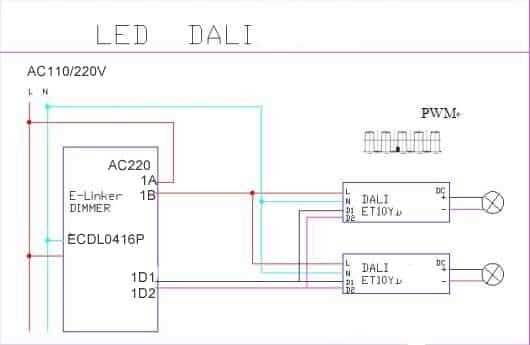

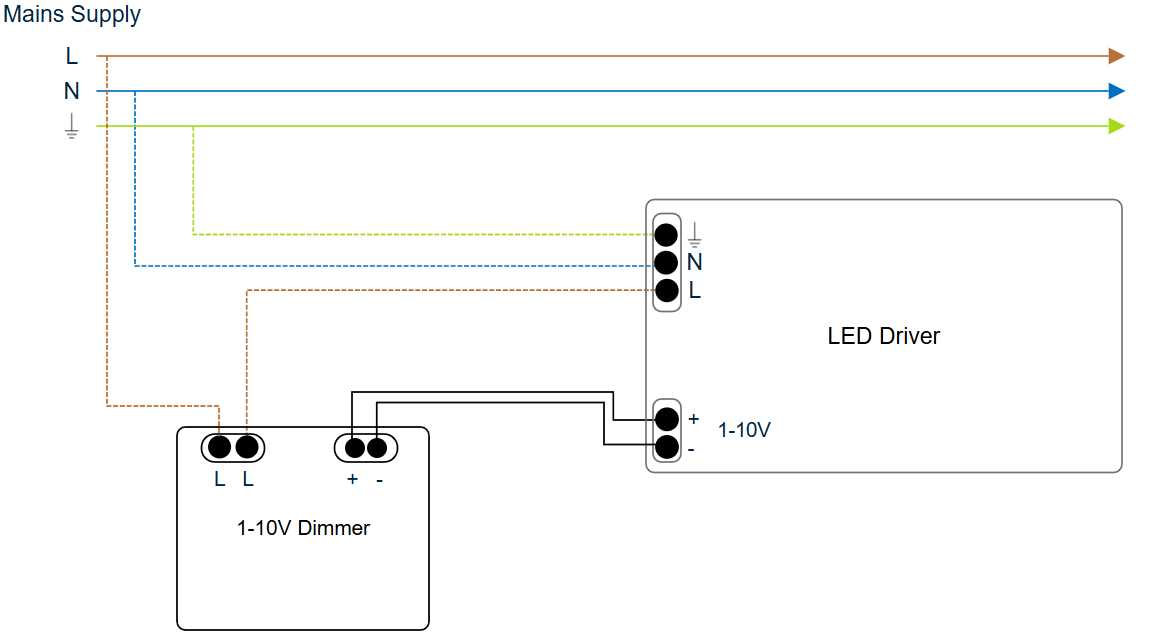

Begin by verifying the driver’s compatibility with the control signal range. Most modern voltage-regulated power supplies accept a DC input of 1-10V, but check the data sheet for exact specifications–some may require a minimum input of 0.5V or tolerate up to 12V. If the driver lacks a dedicated control port, locate the designated analog input terminals, typically marked “+VI” and “-VI” or “DIM+” and “DIM-“. Ensure the power source is disconnected before proceeding to avoid short circuits or damage to components.
Wire the voltage source to the driver’s control interface using shielded twisted pair cables, especially for runs exceeding 3 meters. The positive lead connects to the “+VI” terminal, while the negative lead attaches to the “-VI” terminal. For manual control, a simple potentiometer (e.g., 10kΩ linear taper) can regulate the signal–connect its outer terminals to a stable DC reference (e.g., 12V) and the wiper to the “+VI” input. For automation, integrate a programmable logic controller (PLC) or a voltage output module, ensuring the module’s maximum current does not exceed 2mA to prevent signal degradation.
| Component | Recommended Gauge (AWG) | Max Cable Length (m) | Notes |
|---|---|---|---|
| Control Signal Cable | 22-24 | 10 | Shielded, twisted pair for noise immunity |
| Power Supply Wiring | 18-20 | 3 | For 24V DC systems (adjust for other voltages) |
| Ground Connection | 16 | N/A | Direct to earth or chassis ground |
Test the setup incrementally. Apply 1V to confirm the fixture responds–output should be minimal, around 10% of full brightness. Gradually increase the signal to 10V; the luminaire should reach near-maximum intensity. If inconsistency occurs, inspect for loose connections, signal interference (e.g., proximity to high-frequency devices), or incorrect calibration of the voltage source. Some drivers may require a load resistor (e.g., 10kΩ) across the control terminals to stabilize readings in low-current applications.
Troubleshooting Common Issues
Flickering often stems from poor grounding or voltage ripple. Ensure the control cables run separately from high-power lines (e.g., mains wiring) and use a grounded metal conduit for sensitive installations. If the luminaire fails to dim below 20%, check for a “minimum load” requirement in the driver specifications–some models need a 10% baseline signal for proper operation. For installations with multiple drivers, use a single voltage reference to maintain synchronization; isolate each control pair with a relay or optocoupler if independent adjustment is needed.
Finalize the setup by securing all connections with terminal blocks or soldered joints, then insulate with heat-shrink tubing. Label each wire at both ends for future maintenance. If integrating with building management systems (BMS), confirm the BMS’s analog output voltage matches the driver’s expected range–some systems default to 0-5V, requiring a signal amplifier or resistor divider to scale the output to 0-10V. Document the configuration, including cable lengths, terminal assignments, and voltage readings at each step, to streamline diagnostics if adjustments are needed later.
