Complete Guide to Installing and Understanding 110 Volt Home Electrical Wiring
Begin by mapping branch circuits on a floor plan using standard symbols for outlets, switches, and junction boxes. Mark 15-amp circuits for lighting and general receptacles with #14 AWG copper conductors, while 20-amp circuits for kitchen and laundry areas require #12 AWG. Label each circuit breaker clearly, ensuring dedicated 20-amp lines for appliances like refrigerators or washing machines.
Run neutral (white) and ground (bare/green) wires alongside hot (black/red) conductors in non-metallic sheathed cable (NM-B). Keep wire runs under 100 feet to prevent voltage drop–consider upsizing to #10 AWG for longer distances. Install ground-fault circuit interrupters (GFCIs) within 6 feet of sinks and outdoor outlets; arc-fault circuit interrupters (AFCIs) are mandatory for bedroom circuits.
Route cables through joist cavities and stud bores with 1/2-inch steel plates protecting wires passing through studs closer than 1-1/4 inches to the edge. Staple cables every 4.5 feet and within 12 inches of junction boxes. Use metallic or PVC conduit in exposed or damp locations, ensuring all connections are twist-on wire nuts or push-in terminals rated for the conductor size.
Test continuity and polarity with a multimeter before energizing. Verify hot-to-neutral reads 120V±5% and hot-to-ground matches–any deviation signals miswiring. Document the final layout with a schematic showing breaker sizes, wire gauges, and circuit loads for future reference or inspections.
Residential Single-Phase Electrical Circuit Layout Guide
Start by mapping each circuit on paper before touching any conductors. Label every outlet, switch, and fixture with its intended ampacity–15A for general lighting/fixed appliances, 20A for kitchen countertop receptacles. Use 12-gauge copper wire for 20A circuits, 14-gauge for 15A. Never mix wire gauges within the same run.
Install a dedicated branch for high-draw devices: refrigerators, microwaves, and washing machines. These require separate overcurrent protection (a 20A breaker minimum) to prevent nuisance tripping when multiple appliances run simultaneously. Position the breaker panel centrally–no more than 50 feet from the farthest outlet–to minimize voltage drop.
- Outlet spacing: Max 12 feet between receptacles on any wall longer than 2 feet.
- Switches: Mount 48″ from finished floor; 3-way configurations need a 3-conductor cable + ground.
- Grounding: Bond all metal boxes and conduits to the equipment grounding conductor (EGC) using green-insulated or bare copper wire.
Key Safety Protocols
Use arc-fault circuit interrupters (AFCIs) for all living areas–bedrooms, hallways, family rooms–to comply with NEC 210.12. Ground-fault circuit interrupters (GFCIs) mandatory within 6 feet of sinks, garages, basements, and exterior outlets. Test GFCIs monthly by pressing the “TEST” button; replace if the “RESET” doesn’t engage.
For overhead lighting in unfinished spaces (attics, garages), employ solid conductors in rigid metal conduit. Flexible cords are prohibited except for temporary setups. When running cables through studs, drill holes at least 1.25″ from the stud’s edge and use steel plates to protect against drywall screws. Maintain a 1-inch gap between insulation and heat-producing fixtures.
- Turn off the main breaker before modifying any circuits.
- Verify zero voltage with a non-contact tester at every outlet/switch.
- Cap all unused conductors with wire nuts; label them for future reference.
- Secure cables every 4.5 feet and within 12 inches of boxes using staples or straps.
Troubleshooting Common Issues
If a breaker trips repeatedly, isolate the circuit by disconnecting loads one by one. Overloaded circuits often result from daisy-chaining too many devices–redistribute appliances to underutilized branches. Flickering lights usually signal a loose termination; tighten all wire nuts and terminal screws. Low voltage at outlets may indicate a partial open neutral–measure between hot, neutral, and ground at the panel with a multimeter.
For new installations, calculate total load using the standard method: 3 watts per square foot for general lighting + 1,500 watts per 20A small-appliance branch (kitchens, laundry). Add fixed appliances (HVAC, water heater) at nameplate ratings. Compare totals against the panel’s 100A or 200A service rating–upgrade if demand exceeds 80%.
Core Elements of a Residential 120V Electrical Network
Begin by installing a main service panel rated for at least 100 amps–this is the minimum capacity for modern single-family dwellings supporting multiple circuits. Ensure the panel includes a main breaker (typically 150–200 amps) to disconnect all power during emergencies. Locate it within 10 feet of the meter to comply with NEC Section 230.70, avoiding basements prone to flooding or attics without climate control. Label each breaker clearly with indelible ink, specifying the circuit’s purpose (e.g., “Kitchen Outlets,” “Master Bath GFCI”).
Use 12 AWG copper conductors for 20-amp branch circuits powering outlets in kitchens, bathrooms, and workshops–these areas demand higher current for appliances like microwaves or power tools. For lighting circuits, 14 AWG copper wiring suffices for 15-amp circuits, but never mix wire gauges on the same breaker. Install arc-fault circuit interrupters (AFCIs) on all bedroom and living room circuits to prevent fires from faulty wiring or damaged cords, as mandated by NEC 210.12. Combine AFCIs with ground-fault circuit interrupters (GFCIs) near water sources (within 6 feet of sinks, tubs, or outdoors) to cut power within 1/40th of a second if leakage exceeds 5 mA.
Run NM-B (non-metallic sheathed) cable through walls and ceilings, securing it every 4.5 feet with staples per NEC 334.30. Where cables pass through studs, use protective nail plates if the gap is less than 1.25 inches from the edge to prevent punctures. For outdoor or exposed runs, switch to UF-B (underground feeder) cable, which resists moisture and sunlight degradation. Avoid sharp bends; maintain a minimum 5x cable diameter radius to prevent conductor damage. Terminate all connections in electrical boxes sized per NEC 314.16–single-gang boxes for switches, 4-inch square boxes for junction points with multiple conductors.
Ground the entire system via a copper-clad grounding rod driven 8 feet into undisturbed soil, bonded to the panel with #6 AWG bare copper wire. Never rely solely on the neutral bus for grounding; install a separate grounding electrode conductor (GEC) to avoid hazardous voltage buildup. For subpanels, pull a dedicated grounding conductor back to the main panel–#10 AWG minimum–and isolate it from the neutral bus. Test ground resistance annually with a megohmmeter; aim for to ensure safety. If soil resistivity is high (e.g., rocky terrain), use two rods spaced 6 feet apart or chemical ground enhancement compounds.

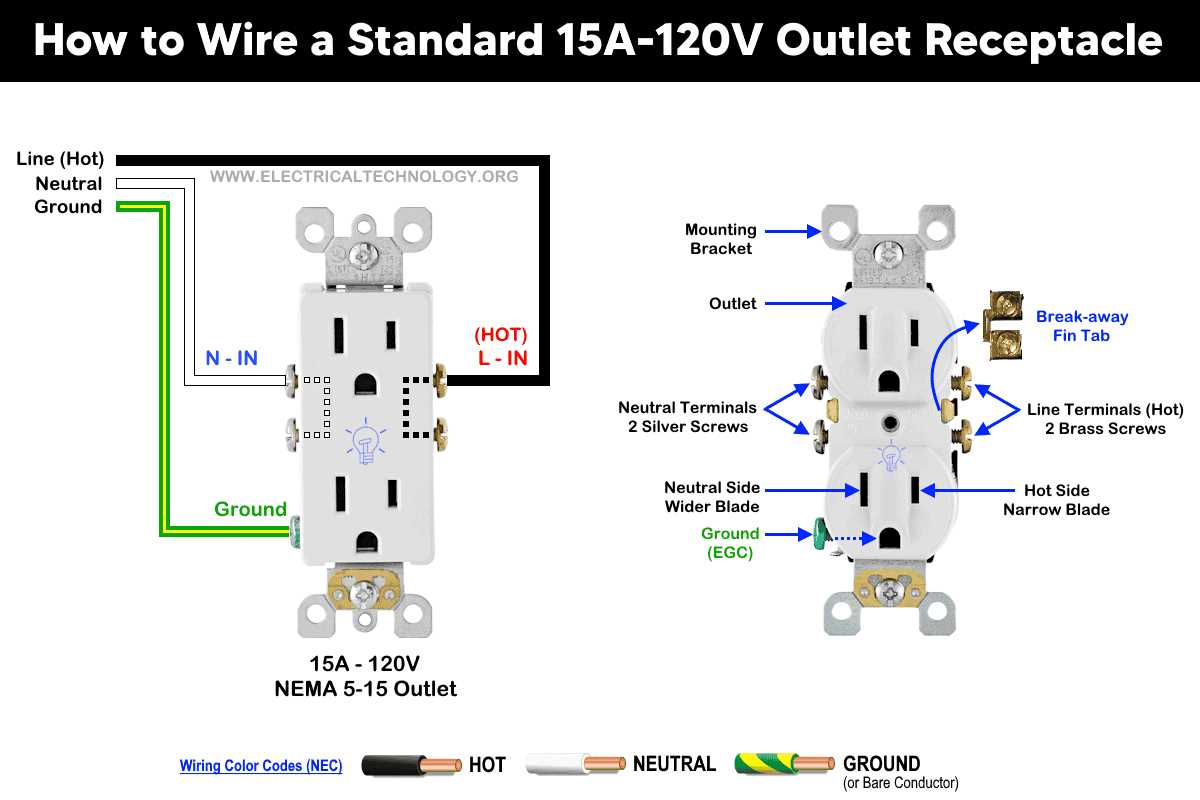

Select outlets based on load requirements: 20-amp, 125V receptacles (NEMA 5-20) for high-draw devices, 15-amp tamper-resistant outlets for general use per NEC 406.12. Place outlets no more than 12 feet apart along walls, with no point on a wall further than 6 feet from a receptacle to eliminate the need for extension cords. For refrigerators and dedicated appliances, use isolated-ground outlets (orange triangle symbol) to reduce electromagnetic interference. Replace all ungrounded, two-prong outlets in pre-1960s homes with GFCI-protected versions if rewiring isn’t feasible–label them “No Equipment Ground.”
Size conductors and breakers based on continuous load calculations, never assuming default values. For example, a central air conditioner drawing 25 amps requires a 30-amp breaker with 10 AWG copper wire, while a 5.5 kW electric range needs 50-amp protection via 6 AWG wire. Consult NEC Table 310.16 for ampacity adjustments–derate conductors by 60% when bundled in groups of 4+ or run through insulated spacers. Use twist-on wire connectors (red for 3–4 #12 wires, blue for 2–3 #14) or push-in terminals only in dry locations; solder or crimp connections are mandatory for outdoor or high-vibration areas. Verify torque settings on all terminal screws with a calibrated torque screwdriver–NEC 110.14(D) mandates manufacturer-specified values to prevent loosening.
Step-by-Step Guide to Sketching a Residential 120V Electrical Blueprint
Begin by labeling the power source at the top of your schematic–typically a service panel or breaker box–with clear identification of its amperage rating (e.g., 15A, 20A). Use standardized symbols: a straight vertical line for the hot wire (black or red), a dashed line for neutral (white), and a dotted line for ground (green or bare copper). Ensure all components downstream (outlets, switches, fixtures) connect to these lines without overlaps or ambiguous junctions.
Critical Components and Symbols Table
| Component | Symbol | Key Specifications |
|---|---|---|
| Single-pole switch | ─┬─ | Breaks hot wire only; 120V max load |
| Duplex receptacle | ─┤├─ | NEMA 5-15R; 15A, 125V |
| Light fixture | ─○─ | Mark wattage (e.g., 60W, 13W LED) |
| Ground fault circuit interrupter (GFCI) | ─┤├─ w/ “TEST/RESET” | Required for bathrooms, kitchens; 6mA trip |
Trace each circuit path methodically: draw a horizontal line from the panel to the first device, then vertically to the next. For parallel circuits, split the line into branches–never exceed 80% of the wire’s ampacity (e.g., 14 AWG for 15A circuits). Annotate wire gauge (14/2, 12/2 NM-B) and conduit type (if applicable) near each segment. Color-code lines in software or with highlighters to distinguish hot, neutral, and ground.
Verify the diagram by checking: (1) every hot wire terminates at a device or switch; (2) neutral and ground wires converge at the panel’s bus bars; (3) no splices occur outside approved junction boxes. Use a multimeter to confirm continuity before finalizing–test between hot and neutral (should read 120V), hot and ground (120V), and neutral and ground (0V). Label each circuit on the blueprint (e.g., “Circuit 1: Kitchen Outlets”) and include a legend for symbols if the schematic spans multiple pages.
