Understanding the Key Components and Wiring of an Induction Motor

Begin by identifying the primary winding configurations–star (Y) or delta (Δ)–as this dictates current paths and voltage distribution across phases. A star connection reduces line voltage by √3 compared to phase voltage, while delta wiring allows identical phase and line voltages. Verify these arrangements with a multimeter: measure between any two terminals in star mode to confirm ~67% of the line voltage, while delta should show full line voltage consistently.

Examine the auxiliary components–capacitors, centrifugal switches, and thermal overload protectors–before analyzing the core schematic. For single-phase setups, a starting capacitor (typically 50–400 µF) must be in series with the auxiliary winding; failure here prevents torque generation at startup. Dual-voltage designs (e.g., 230V/460V) require clear labeling of jumpers or terminal blocks–miswiring risks overheating or tripped breakers within seconds.

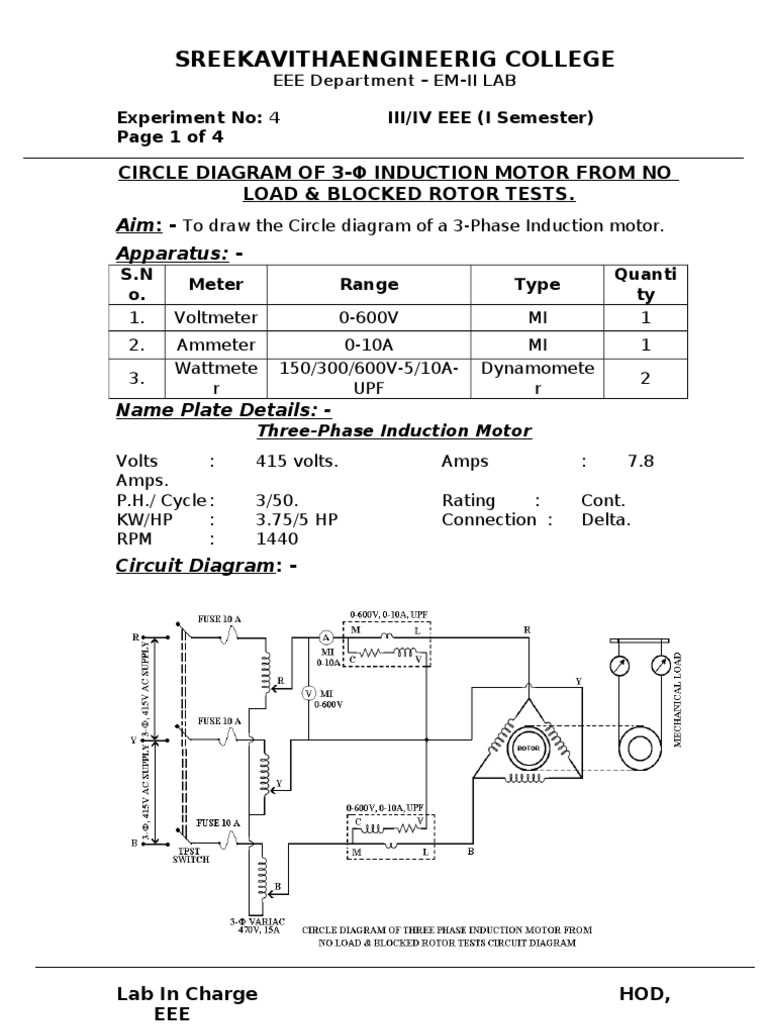

Trace current flow during startup: In a split-phase machine, the main and auxiliary windings draw out-of-phase currents, creating a rotating field. Measure the phase difference with an oscilloscope–expect ~30°–90° separation. For three-phase variants, confirm balanced currents (≤5% deviation) across L1, L2, L3; imbalance indicates winding short or open fault. Use a clamp meter rated for 10× the rated current to avoid saturation errors during locked-rotor tests.

Inspect the rotor bars and end rings for integrity. Broken or cracked bars introduce harmonic distortions detectable via spectrum analysis showing sidebands at ±2× slip frequency around the fundamental. Salient pole designs require particular attention to air gap uniformity; uneven gaps (tolerance >10%) cause cogging or uneven acceleration. Replace bearings if vibration exceeds 2.5 mm/s RMS at rated speed.

Document all findings with annotated photos of terminal markings and test point placements. Label neutral (N), ground (PE), and phase terminals distinctly–colors like brown (L1), black (L2), grey (L3) follow IEC 60034-8 but may vary. Store schematics in vector format (e.g., SVG) for future modifications; raster images lose scaling accuracy when zoomed for small components like relays or varistors.

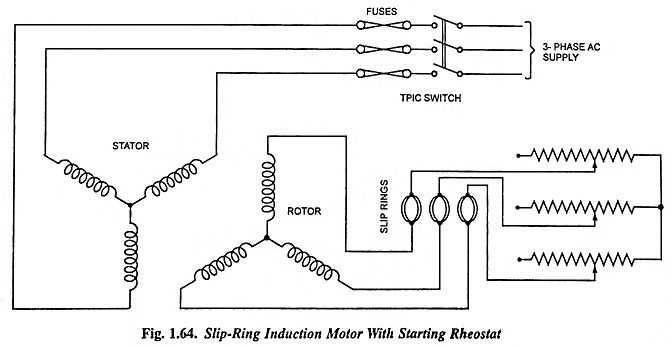

Key Schematics for Asynchronous Machine Wiring

Always start by identifying the stator winding configuration–most industrial setups use either star (Y) or delta (Δ) connections, each with distinct voltage requirements. For a 400V three-phase supply, a star arrangement splits line voltage by √3 (230V per phase), while delta applies full 400V across each winding. Verify these values against the nameplate data before proceeding to avoid insulation stress or inadequate torque.

Include a three-phase isolation contactor rated at 125% of the machine’s full-load current as the primary disconnect. For a 15 kW unit at 400V, this translates to roughly 32A; select a 40A contactor with AC-3 utilization category. Pair it with a thermal overload relay calibrated to the exact current–adjustable models like the ABB TA25DU offer precise trip class settings (Class 10 for general-purpose applications).

Component	Specification (Example: 15 kW, 400V)	Verification Method
Contactor	AC-3, 40A, 400V	Check coil voltage (230V AC) and contact resistance
Overload Relay	32A adjustable, Class 10	Test trip time at 1.2x and 6x rated current
Circuit Protector	gG/gL 63A fuse or 50A MCB	Ensure breaking capacity ≥ 10 kA

Install a bidirectional power monitor between the contactor and stator terminals to log voltage imbalance–NEMA MG 1 permits only ±1% unbalance for continuous duty. Excessive imbalance (>3%) accelerates bearing wear and copper losses. Use a transducer with 4-20mA output for PLC integration if remote monitoring is required.

For reversing setups, wire two contactors in an interlocking configuration with mechanical and electrical interlocks. The secondary contactor’s auxiliary contacts must break the primary’s coil circuit to prevent simultaneous engagement. Test the interlock by manually overriding one contactor–the other should immediately drop out.

Ground the stator core and housing via a 10 mm² protective conductor (PE), bonded to the machine’s mounting plate. For variable-frequency drives, add a 500V, 1 µF phase-to-ground capacitor across each winding to suppress common-mode noise. Omit capacitors if the machine operates solely on mains power to avoid resonance risks.

Label every terminal and conductor with heat-shrink sleeves or laser-etched tags–identify phases as L1/L2/L3, motor leads as U1/V1/W1 (star) or U1/U2/V1/V2/W1/W2 (delta), and control circuits as A1/A2. Store a laminated schematic adjacent to the unit for troubleshooting. Include a QR code linking to the exact datasheet for rapid access.

When using soft starters, position the device upstream of the contactor, not downstream. Set the initial voltage ramp to 30% of rated voltage for pumps/fans and 60% for loaded conveyors to limit inrush current. After startup, bypass the soft starter via a second contactor to reduce thermal stress on its SCRs.

For hazardous locations, replace standard enclosures with Ex e (increased safety) or Ex d (flameproof) rated units. Seal all conduit entries with IP66-grade glands and use armored cable (e.g., XLPE/PVC/SWA) minimum 4 mm² for control circuits. Verify intrinsic safety barriers if zener diodes are present–test with a calibrated loop calibrator before commissioning.

Critical Elements of an Asynchronous Machine Wiring Scheme

Ensure the stator windings are arranged in a three-phase configuration to generate a rotating magnetic field. Use 120-degree electrical phase displacement between each winding set for optimal torque production. Common configurations include delta (Δ) for lower voltage, high-current applications and wye (Y) for higher voltage, lower-current scenarios. For 400V systems, wye connections reduce line current by √3 compared to delta, cutting copper losses in long cables.

Select oversized capacitors for auxiliary single-phase variants to compensate for reactive power. A rule of thumb: 70-100 µF per kW of machine rating at 230V. Avoid electrolytic capacitors–they fail under continuous AC stress. Polypropylene film capacitors last 5-10x longer and handle inrush currents better. Mount capacitors as close as possible to the windings to minimize voltage drops in high-frequency harmonics.

• Thermal overload relays must trip at 115-125% of full-load current to prevent winding insulation breakdown. Class F insulation tolerates 155°C; exceeding this by even 10°C halves lifespan.
• Use circuit breakers with magnetic trip thresholds 8-12x the rated current for reliable short-circuit protection. Thermal-magnetic breakers combine bimetallic strip delay for overloads with instantaneous magnetic trip for faults.
• Grounding conductors should be sized to handle the maximum fault current without fusing. For 4-core cables, PE conductor cross-section must equal phase conductors above 16mm².

Variable frequency drives (VFDs) require EMI filters to suppress switching harmonics. Install line reactors (3-5% impedance) upstream of the drive to protect both the converter and surrounding equipment from voltage spikes. DC link chokes reduce ripple current, extending capacitor life by 30-40%. For regenerative drives, an active front end eliminates the need for braking resistors in dynamic load scenarios. Always verify VFD carrier frequency: higher frequencies reduce audible noise but increase switching losses–balance between 2-16 kHz based on power rating.

Step-by-Step Wiring Process for a Three-Phase Drive Unit

1. Verify power source compatibility before connection. Ensure the supply lines deliver the correct voltage (e.g., 230V/400V for delta/star configurations) and match the nameplate ratings. Use a multimeter to confirm phase sequence; incorrect order will reverse rotation. Label each wire (L1, L2, L3 for input, U1, V1, W1 for output) to prevent miswiring. Install a suitable protective device–MCBs or fuses with a current rating 125% of the full-load amperage–to guard against overloads.

Terminal Connection Sequence

For direct-on-line starters, link the incoming phases to the upper terminals of the contactor (L1→T1, L2→T2, L3→T3). Connect the lower contactor terminals to the device’s windings in star (U2, V2, W2 bridged) or delta (U1→W2, V1→U2, W1→V2) as required. Ground the frame via a dedicated PE terminal if available, or to the nearest earthing point. For reversible setups, add a second contactor; wire L1 to one contactor’s T1 and the other contactor’s T3, then cross L2/L3 accordingly.

Test continuity between phases and neutral (if star) with an ohmmeter; readings should match within 5% for balanced windings. Energize the system briefly (≤2 sec) to observe rotation direction–swap any two input leads if opposite to requirement. Secure all connections with crimp terminals and heat-shrink tubing to prevent vibration-induced loosening. Record the final configuration (e.g., “Delta, L1→5 o’clock”) for future reference.

Frequent Wiring Errors in Asynchronous Machines and Prevention Techniques

Reverse phase sequence during installation causes the rotor to spin in the opposite direction, damaging coupled loads or disrupting processes. Always verify phase order with a phase rotation meter before energizing. Swap any two supply leads if rotation is incorrect–never assume the factory wiring matches the required direction.

Loose terminal connections lead to overheating, increased resistance, and eventual failure. Torque all fasteners to manufacturer specifications–typically 12–15 Nm for M8 bolts on standard 15–30 kW units. Use a calibrated torque wrench and re-check after initial operation, as thermal cycling can loosen connections.

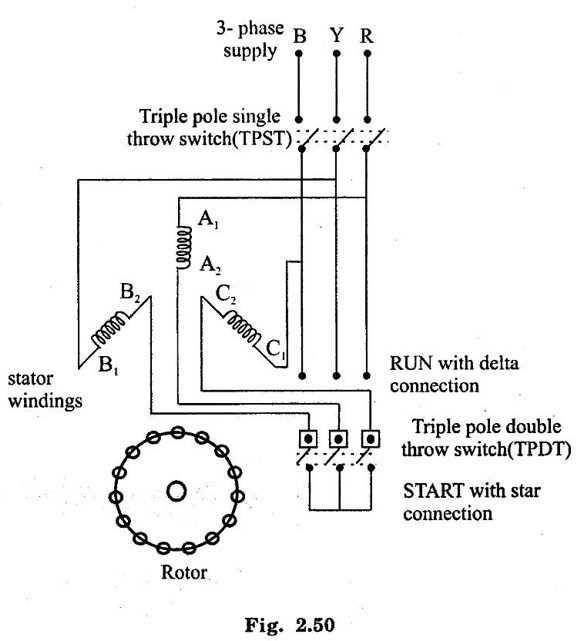

• Star-delta starters: Miswiring the delta bridge causes full voltage to appear across open contacts at startup, destroying contactors. Follow the wiring sequence strictly–line terminals to first contactor, delta bridge between first and second, star point to third contactor. Label wires before disconnecting for maintenance.
• Soft starters: Bypassing internal bypass contactors when repairing leads to continuous loading of electronically controlled devices, tripping thermal protection. Always disconnect power and discharge capacitors before servicing inside the enclosure.

Grounding and Shielding Oversights

Improper grounding creates stray currents that induce bearing currents, eroding races within months. Use insulated bearings or shaft grounding rings for units above 100 kW. Ground the machine frame at a single point–avoid multiple ground paths that create loops. Bond all metallic conduit and enclosures using at least 10 mm² copper conductors.

Incorrect cable sizing raises voltage drop, reducing torque by up to 15% below nameplate ratings. Calculate minimum conductor cross-section using:

I = P / (√3 × V × PF × η)

where I = current (A), P = power (W), V = line voltage (V), PF = power factor (0.8 typical), η = efficiency (0.9 typical). For 400 V systems, allow ≤3% voltage drop over cable runs.

1. Thermal overload relays: Setting current above nameplate FLA trips too late, allowing winding insulation to degrade. Set to 100–105% of rated current for continuous duty, 115% for intermittent. Verify via actual clamp-meter readings instead of trusting motor nameplate alone.
2. Capacitor banks: Connecting capacitors directly to machine terminals raises transient voltages during switching, puncturing insulation. Install capacitors on the supply side of protective devices, never downstream of the machine’s terminals.

Neglecting ambient temperature corrections distorts thermal models. For every 5 °C above 40 °C, reduce relay current setting by 3–5%. Use digital relays with ambient compensation for outdoor or tropical installations.
