Step-by-Step Guide to Wiring a 110v Well Pump Pressure Switch
Connect the line voltage directly to the terminal block marked L1 and L2, ensuring polarity matches the corresponding screw colors: black wire to brass screw, white to silver. Most 30/50 PSI controllers require a minimum 14 AWG copper conductor with THWN-2 insulation–verify the nameplate for exceptions. A dedicated 15-amp breaker with ground fault protection must feed the circuit; avoid shared neutrals on backfed systems.
Locate the common, normally open, and normally closed contacts on the pressure-activated relay–these are typically labeled C, NO, and NC. Splice the motor lead to NO; use an inline fuse rated at 125% of the motor’s full-load current between C and the supply. If the relay lacks a dry contact, install a double-pole double-throw switch upstream to break both legs during maintenance to prevent backspin damage.
Ground the motor frame to the controller chassis with a #8 solid bare copper conductor bonded to the well casing clamp–omit this step only if the casing is plastic and explicitly rated non-conductive by ASTM F480. Cycle the system manually: verify the control cuts in at 30 ±2 PSI and cuts out at 50 ±3 PSI; tolerance deviations above ±5% signal diaphragm fatigue or switch miscalibration. Replace the relay if calibration adjustments exceed the manufacturer’s torque specifications (usually 3–5 in-lbs).
Single-Phase Submersible Electrical Control Hookup Guide
Begin by disconnecting the power supply at the circuit breaker before handling any exposed terminals. Verify the absence of voltage using a non-contact tester to prevent accidental shock or equipment damage.
Locate the L1 and L2 terminals on the control device–these correspond to the incoming live and neutral lines. Connect the black (hot) wire from the supply cable to L1, securing it with a screwdriver to ensure a tight, vibration-resistant joint. Repeat the process for the white (neutral) wire to L2, avoiding frayed strands that could cause arcing.
- Red wire (if present) typically links to a motor start capacitor or auxiliary relay–consult the manufacturer’s Datenblatt for exact terminal designation.
- Green or bare ground wire must attach to the control box’s grounding screw or designated GND terminal, never to a live or switched post.
- Avoid daisy-chaining ground wires; each should terminate directly to the enclosure’s grounding point.
The adjustable cut-in and cut-out points are factory-set at 30/50 PSI. Modify these only after confirming the tank’s bladder integrity and pressure rating. Use a gauge to monitor real-time readings while tuning the set screws–clockwise raises the threshold, counterclockwise lowers it.
For installations with a dedicated start capacitor, the relay contacts will include an additional “S” terminal. Wire the capacitor’s purple lead here, ensuring polarity matches the relay’s internal schematic to prevent backfeeding. Mismatched polarity risks permanent relay coil burnout.
Test the setup by cycling the system manually:
- Restore power at the breaker.
- Observe the control’s audible click as pressure drops below cut-in.
- Check that motor engagement occurs within 2-3 seconds of activation.
- Confirm automatic shutoff at the cut-out threshold.
- Repeat the cycle 3-4 times to verify consistent performance.
If erratic cycling persists, inspect the diaphragm for leaks or sediment buildup. Clean or replace the unit if debris interferes with the switch mechanism. Never lubricate the contacts–silicone-based sprays attract dust and compromise conductivity.
Finalize the installation by sealing cable entries with weatherproof gland nuts to prevent moisture ingress. Label all conductors at both ends to simplify future troubleshooting. Revisit torque specifications annually; loose connections generate heat and reduce efficiency.

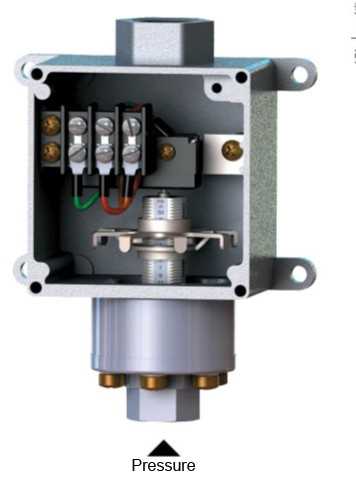

Key Parts of a Single-Phase Pressure Control Unit
Start by locating the contact mechanism–a set of movable and fixed metal plates that open or close the circuit based on tank levels. These plates should be cleaned every six months with fine emery cloth to prevent oxidation, which can cause inconsistent cycling. Ensure the plates have a minimum gap of 0.15 inches when open; any narrower risks arcing at 60 Hz operation. If corrosion is visible, replace the contacts instead of sanding–surface pitting weakens conductivity and shortens lifespan.
Check the diaphragm assembly next. This thin, flexible membrane separates water from the electrical side and responds to force variations in the storage vessel. A torn or stiff diaphragm causes erratic cutoff points–test it by pressing the lever manually; it should snap back without hesitation. Most diaphragms fail after 3–5 years due to sediment buildup; flushing the system quarterly with a vinegar solution dissolves mineral deposits that accelerate wear. If replacement is needed, match the exact diameter–small deviations alter sensitivity.
Finally, inspect the lever and spring setup. The spring tension dictates the operating range: loose springs trigger low-voltage trips, while over-tightening risks motor burnout. Adjust tension by turning the adjustment nut one full rotation clockwise to raise the cutoff by ~2 psi. Mark the initial position before tweaking–backtracking helps troubleshoot new issues. Keep a multimeter handy to verify continuity across the contacts during adjustments; readings should drop to zero ohms when closed and jump to OL when open.

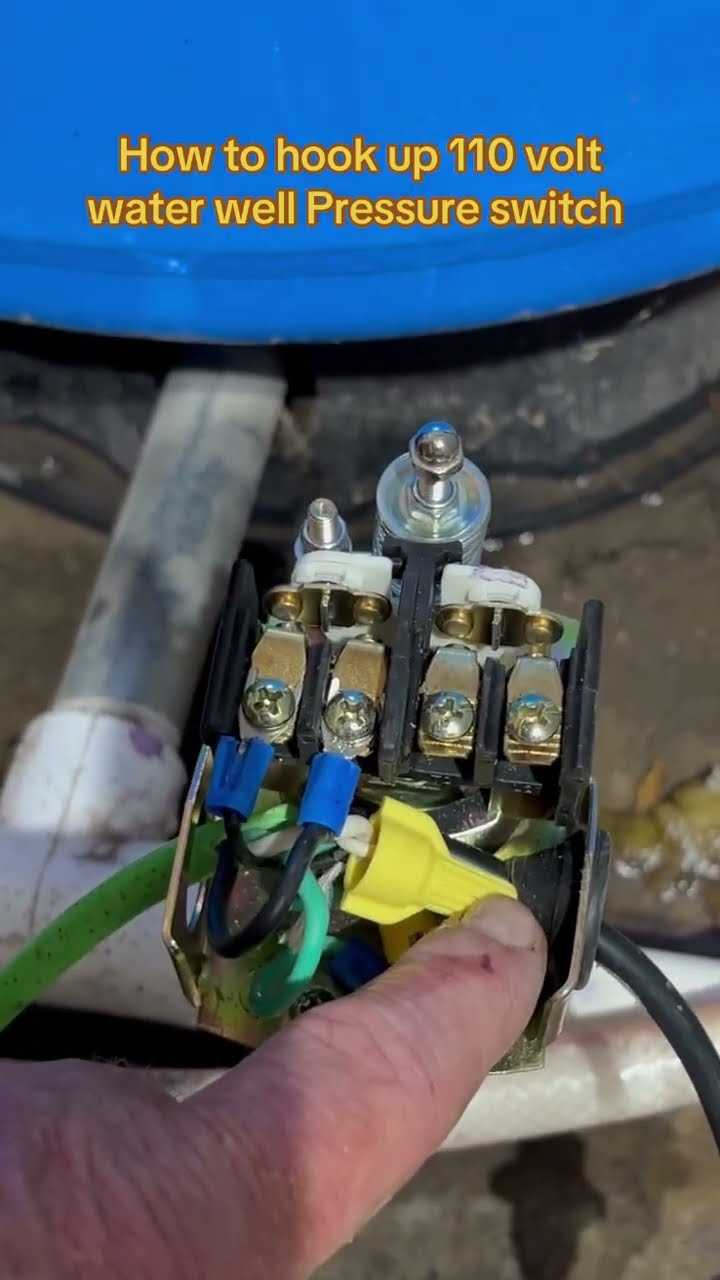

Step-by-Step Connection Guide for a Single-Phase 120V Control Device
Before touching any wires, verify the power source is disconnected at the circuit breaker. Use a non-contact voltage tester to confirm no current remains in the lines. The black (hot) conductor must always be handled with insulated tools to prevent accidental shorts.
Locate the two terminals on the control unit labeled “Line” and “Load.” The “Line” side connects directly to the incoming power supply, while the “Load” side feeds the motor. If the device has a grounding screw (typically green), attach the bare copper or green wire here to ensure safety against stray currents.
Strip ⅜ inch of insulation from each wire end. Twist the exposed strands tightly to avoid fraying. For the black wire, insert it into the “Line” terminal and tighten the screw to 12 inch-pounds–excess torque can damage the terminal, while insufficient torque risks loose connections.
Connect the white (neutral) wire to the “Line” terminal if the setup follows a two-wire configuration. In some systems, a separate neutral terminal exists–consult the manufacturer’s specifications for exact placement. Avoid splicing the neutral unless absolutely necessary, as this increases resistance and heat buildup.
Motor Side Connections
Attach the motor’s black lead to the “Load” terminal on the control device. If the motor has a separate start capacitor, route the capacitor’s wires per its label–typically between the “Load” terminal and an auxiliary post marked “Start” or “Run.” Mistakes here prevent the motor from activating properly.
Recheck all connections for stray wire strands, insulation touching terminals, or loose screws. Tuck excess wire into the junction box, ensuring no exposed metal contacts the box’s edges. Secure the box cover tightly before restoring power to prevent accidental contact or moisture ingress.
Power on the circuit breaker and observe the system’s behavior. The control device should engage the motor within 3-5 seconds if pressure settings are correct. If the motor cycles erratically, re-examine the wiring sequence–especially the neutral and ground pathways, which are common failure points.
Label the junction box with installation details: date, wire gauge, and control device model. This prevents confusion during future troubleshooting and ensures compliance with electrical codes requiring clear documentation of all modifications.
Critical Errors to Sidestep During Low-Voltage Water System Control Installation
Skipping insulation checks on terminal connections ranks as the most overlooked blunder. Exposed copper strands near contact points create arching risks that degrade components within weeks. Always verify crimp quality and apply heat-shrink tubing over bare wires before securing them under switch screws. Standard 12-gauge THHN wire demands at least 6mm of insulated coverage beyond the terminal block.
Incorrectly matching breaker amperage to the motor’s nameplate specifications guarantees premature failure. A 1.5HP submerged unit pulling 15A at startup needs a dedicated 20A breaker–not the 15A breaker often mistakenly installed. Overloaded circuits trip repeatedly, while undersized breakers fail to protect windings from overheating during draw surges. Cross-reference the motor’s service factor with the breaker’s trip curve before finalizing.
Grounding the control box to a nearby metal pipe instead of a dedicated earth rod invites dangerous stray currents. Galvanized pipes corrode internally, increasing resistance and weakening fault protection. Bury an 8-foot copper rod at least 6 feet from the housing, using 6AWG solid wire to connect it to the switch enclosure’s grounding lug. Test continuity with a 1kΩ resistor before energizing.
Over-tightening switch screws strips threads or cracks the phenolic base, compromising calibration stability. Apply 12 in-lbs of torque–no more. Use a calibrated torque screwdriver for consistent pressure. Loose connections vibrate loose under motor pulsations, while overtightened terminals distort spring-loaded contacts, leading to erratic pressure readings.
Mismatched Wire Gauges and Voltage Drop
Running 14AWG wire for a circuit exceeding 30 feet causes unacceptable voltage drop under load. For a 1HP motor drawing 13A, use 10AWG copper wire if the run surpasses 25 feet. Calculate drop with the formula: Vdrop = (2 × L × R × I)/1000, where L is length in feet, R is wire resistance per 1000 feet, and I is current. A 5% drop translates to 6V lost on a 120V system–a threshold most submerged pumps tolerate poorly.
Ignoring the cut-in/cut-out differential during setup leads to short cycling. Factory-default settings (20/40 PSI) suit shallow installations, but deeper applications require adjustment to 30/50 PSI to match drawdown rates. Use a precision screwdriver to turn the differential screw clockwise to increase spread–each full turn raises the cut-out by ~2 PSI. Monitor the gauge during activation to confirm stability before sealing the enclosure.
Neglecting surge suppression exposes delicate mercury relays to voltage spikes. Install a metal oxide varistor (MOV) rated for 150V across the incoming power leads. Position it as close to the control box as possible, using 14AWG leads to connect directly to the main lugs. Verify clamping voltage with a spark-gap tester–MOVs degrade after repeated surges and require replacement every 24 months in high-lightning areas.
Failing to label wires during disassembly complicates troubleshooting later. Photograph the original wiring and use colored tags: red for line-in, black for load-out, green for ground. Store images on a waterproof USB drive taped inside the enclosure. Reversed polarity from misconnected wires destroys the motor’s start capacitor within minutes, so verify phase alignment with a non-contact voltage tester before powering up.
