Complete Guide to Pioneer AVH120BT Wiring Connections and Setup
Start by matching the harness color codes directly to your vehicle’s factory adapter. The 12-pin main power connector (typically labeled A) requires precise alignment: constant power (yellow) goes to battery-positive, ignition-switched (red) to ACC or ignition lead, and ground (black) to chassis. Avoid splicing into the cigarette lighter–most vehicles route this circuit through a low-amp fuse, risking voltage drop or damage under load.
Signal cables demand separation from power lines to prevent interference. The right front speaker positive (white/black stripe) and left front speaker positive (grey/black stripe) must connect to the corresponding vehicle outputs–crossing these will invert the audio phase, causing cancellation in midrange frequencies. Verify polarity with a 9V battery test before finalizing connections.
Bluetooth and USB integration requires stable voltage. Locate the purple/white (USB power 5V) and purple/orange (ground) wires–these must connect to a dedicated +5V source, not an accessory wire. For late-model vehicles with CAN bus networks, enable vehicle communication via the blue/white (ant. ctrl) and pink (illumination) leads–skipping this step may disable steering wheel controls or trigger error codes.
Aftermarket amplifiers need a clean remote trigger. Use the blue (remote turn-on) wire–tapping into the factory AmpCon or relay ensures safe current draw (max 300mA). Avoid connecting it to headlight circuits; the pulsating load from dimming chimes will disrupt amplifier operation. For vehicles with built-in navigation, link the green/white (reverse signal) to the backup light circuit–this activates rearview camera functionality without manual override.
Connecting Your Multimedia System: A Hands-On Reference
Start by matching the head unit’s color-coded leads to the vehicle harness adapter. Yellow (B+) connects to the 12V constant power source, while red (ACC) ties to accessory power–typically the ignition-switched circuit. Avoid splicing these directly into the battery; instead, tap into the fuse box using a 15-amp fuse for each line to prevent overload.
Ground the black wire (GND) to bare metal chassis within 18 inches of the unit. Sand away paint or corrosion at the connection point, then secure with a star washer and M6 bolt. Loose grounds cause intermittent power loss or audio hum.
For speaker connections, use the following pairs:
- Front left (+): White
- Front left (-): White/black
- Front right (+): Gray
- Front right (-): Gray/black
- Rear left (+): Green
- Rear left (-): Green/black
- Rear right (+): Purple
- Rear right (-): Purple/black
Verify impedance with a multimeter–each pair should read 4-8 ohms. Twisted pairs reduce noise; route them away from power cables to avoid interference.
For steering wheel control retention (if equipped), connect the SWC lead (typically blue/white) to the aftermarket interface module. Follow the module’s pinout guide–some require resistor-based voltage matching. Test each button post-installation; incorrect wiring may cause erratic behavior or system reset.
Bluetooth and auxiliary power demands require a stable 5V source. Locate the pink (ILL) wire for illumination dimming; tie it to the vehicle’s dimmer circuit or a 12V accessory line with a 100-ohm resistor in series to prevent screen flicker. For USB charges, use the orange (B+ backup) wire only if retaining factory memory functions; otherwise, cap it.
Before finalizing connections, probe each wire with a test light:
- Activate ignition–red wire should illuminate.
- Crank engine–red must stay lit while yellow remains constant.
- Turn on headlights–pink wire should dim the display.
Failure in these tests indicates incorrect fusing or grounding issues.
Secure all connections with heat-shrink tubing, not electrical tape. Bundle cables away from moving parts–especially near pedals or the steering column–to prevent chafing. Label both ends of each harness segment using a label maker for future diagnostics.
Identifying Correct Cables for Power and Earth Links
Locate the yellow cable in your installation kit–that’s your constant 12V lead. It must connect directly to the battery’s positive terminal; splice it with a 10A fuse no farther than 45 cm from the terminal to prevent short circuits.
Check for a red cable; this delivers switched power, activating only when the ignition is turned. Attach it to a fuse tap tied to the ACC circuit under the dash or behind the fuse box, ensuring the amperage matches the head unit’s peak draw of 10A.
Earth connections demand attention. Bare the chassis metal at a rust-free spot near the mounting bracket, then secure the black cable with a star washer and M6 bolt. Resistance should read below 0.5 ohms; if higher, sand the contact surface and recheck.
Misidentifying cables risks permanent damage. Use a digital multimeter on DC voltage mode: probe the yellow lead while the ignition is off–it should show battery voltage (~12.6V). The red cable should drop to zero when the key is off and rise to battery voltage when in ACC.
Testing for Secure Links
After securing, momentarily connect the ground cable before attaching permanent fixtures. If the unit powers on without audio pops or screen flickers, proceed. If not, disconnect immediately–check both power feeds and chassis contact.
Never combine yellow and red wires; doing so drains the battery overnight. If dual feeding is unavoidable, insert a diode-rated 3A between them to block reverse current.

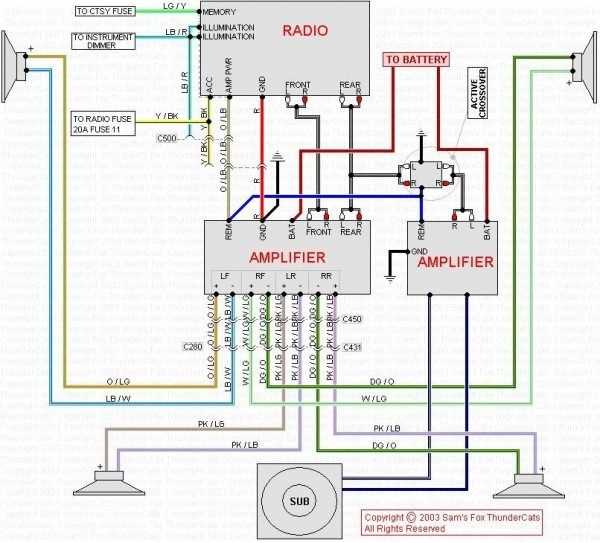

Step-by-Step Guide to Connecting Speaker and Amplifier Circuits
Begin by verifying the impedance ratings of your speakers and amplifier. Mismatched impedance causes distortion or hardware damage. Most aftermarket speakers operate at 4 ohms, while OEM systems often use 2 or 8 ohms. Check the amplifier’s manual for its minimum stable impedance to prevent overheating.
Use oxygen-free copper (OFC) cables for all connections–stranded 16-gauge for door speakers and 12-gauge for subwoofers. Strip ½ inch of insulation from each wire end, twist the strands tightly, and apply solder for corrosion resistance. Secure connections with heat-shrink tubing or dielectric grease to prevent oxidation.
| Component | Wire Gauge | Connection Method |
|---|---|---|
| Door speakers | 16 AWG | Solder + heat-shrink |
| Subwoofer | 12 AWG | Tinned spade terminals |
| High-power amp | 8 AWG | Crimp + shrink tubing |
Route power cables directly from the battery’s positive terminal, using an inline fuse rated 5-10 amps above the amplifier’s draw. Ground the amplifier to a bare metal chassis point within 18 inches, sanding away paint for a clean connection. Avoid daisy-chaining grounds, which introduces noise.
Test each connection with a multimeter before powering the system. Set the meter to DC voltage (20V range) and probe the speaker terminals–front left should read ~0.05V, while rear right may show slight variation due to phase alignment. If readings exceed 0.1V, recheck grounding and RCA shielding. Finalize by securing loose wires with nylon ties to prevent rattling or interference.
Integrating Head Unit with Steering Wheel Inputs
Locate the vehicle’s steering wheel control module harness–typically a 6- to 12-pin connector behind the dash panel near the driver’s side. Match each labeled wire to the head unit’s interface adapter (e.g., Metra ASWC-1 or Pac SWI-RU) using a multimeter in continuity mode to verify connections before crimping.
Most adapters require a dedicated 12V power feed from the vehicle’s fuse box. Install an inline fuse (3–5A) on the 12V+ wire within 6 inches of the source to prevent short circuits. Ground the adapter’s chassis connection by soldering to a bare metal surface scrubbed clean of paint or corrosion.
Wire color standards vary by manufacturer, but common schemes include:
- Red/white: Volume up/seek forward
- Blue/white: Volume down/seek backward
- Green/white: Mode/source toggle
- Yellow/black: Voice command (if supported)
Cross-reference these with your adapter’s documentation; some European models swap green and blue functions.
Adapter Configuration
After wiring, program the adapter using its included instructions. For Metra ASWC-1, hold the “Next” button while powering on to enter learning mode. Press each steering wheel button when prompted–responses may take 1–2 seconds due to signal processing delays. If misconfigured, reset by disconnecting the battery for 30 seconds.
Avoid splicing into factory harnesses with Scotch locks; instead, use solder and heat-shrink tubing for permanent, corrosion-resistant joins. For vehicles with resistive-button systems (common in pre-2010 models), ensure the adapter’s input impedance matches the factory specs (typically 1–10 kΩ)–mismatches cause erratic behavior.
Test all functions before reassembling trim panels. Prioritize verifying the “Mode” button first, as it’s critical for accessing radio/CD/Bluetooth toggle states. If buttons trigger incorrect actions, reflash the adapter’s firmware via USB using the manufacturer’s software tool–the ASWC-1 updater is available on Metra’s support site under firmware revisions.
Troubleshooting Interference
Flickering controls or ghost inputs often stem from insufficient ground connections. Relocate the ground point farther from the ignition coil, alternator, or infotainment system power wires. Verify the adapter’s data wire (often purple or orange) isn’t routed alongside speaker wires–reroute if necessary to prevent cross-talk.
