How to Wire a 12V 30A Relay Step-by-Step Connection Guide

Use a SPST (single pole single throw) or SPDT (single pole double throw) control module rated for 360W continuous load at minimum. Secure the coil terminals to a low-current trigger source (e.g., ignition, toggle lever, or microcontroller pin) with 0.75 mm² (18 AWG) or thicker wire to avoid voltage drop. For the load side, run 5.26 mm² (10 AWG) cables from the battery to the contactor’s common and normally open terminals–this prevents overheating under full current draw.

Install a fast-acting fuse (40A) within 15 cm of the power source. Avoid fuse holders with blade connectors; use ANL or MIDI style for reliable thermal dissipation. Ground the metal case of the control module directly to the chassis with 8 mm² (8 AWG) wire–do not rely on paint or powder coat for conductivity. Test coil resistance before energizing; typical values range between 70–120 ohms. Values outside this range indicate a faulty unit.

Label every conductor with heat-shrink tubing or self-laminating wire markers. Recommended colors: red for positive supply, black for battery negative, yellow for trigger circuits, blue for switched outputs. Route all high-current paths away from signal wires to minimize electromagnetic interference. For marine or off-road applications, apply dielectric grease to terminals to prevent corrosion.

Verify contact continuity with a multimeter in continuity mode before applying power. A healthy switching device emits a sharp audible click when triggered; absence of sound suggests internal binding or coil failure. Monitor terminal temperature during operation–any reading above 60°C under steady load indicates insufficient wire gauge or loose connections.

Connecting a High-Current Switching Module: Step-by-Step Guide

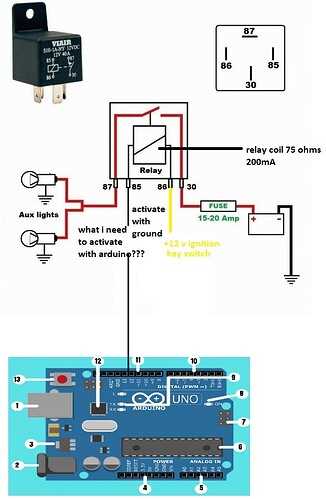

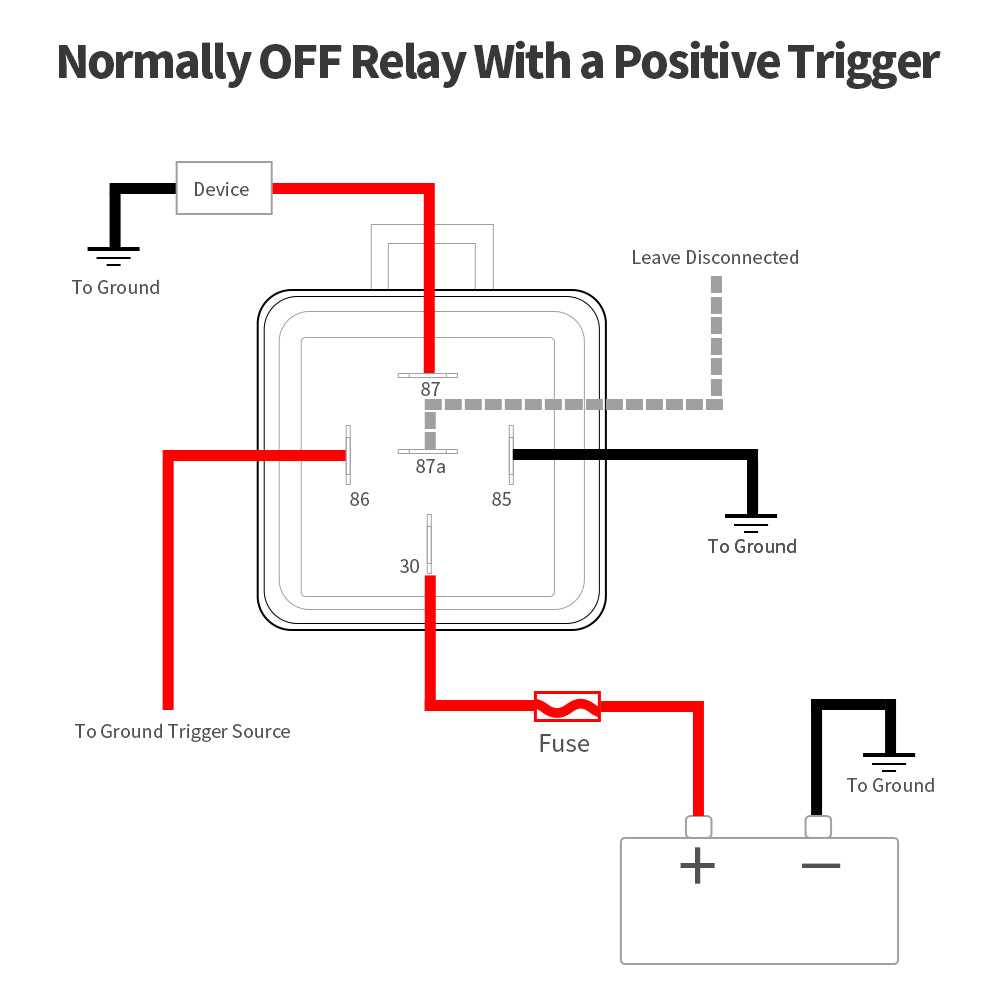

Start by matching the color-coded terminals to their functions. Most 360-watt contactor units follow this convention:

• 85 – Trigger input (from control switch)
• 86 – Trigger return (ground or switched positive)
• 30 – Common power feed (battery direct)
• 87 – Load output (to device)
• 87a – Optional normally-closed path (rarely used; isolate with shrink tube if not needed)

Cut two 10-gauge red wires–one 18 inches for the main supply lead, another 12 inches as the output link. Strip 3/8″ at each end, then crimp ring terminals sized for #8 studs. Heat-shrink the joint immediately to prevent shorting.

Secure the ground connection directly to the chassis or battery negative post–never through a fuse block. Use a 12-gauge black jumper with a #10 ring terminal, ensuring zero resistance (test with a multimeter; reading should show 0.2 ohms or less).

Control Circuit Optimization

Run the activation signal through a 10-amp mini fuse holder. Clip the inline fuse holder to the positive wire feeding terminal 85. If triggering with a momentary push-button, add a 1N4007 diode across terminals 85 and 86 (cathode to 86) to suppress voltage spikes that can damage the switch.

For temperature-sensitive loads (e.g., LED light bars), insert a 150°C thermal cutout between terminal 87 and the device. Crimp inline with butt connectors, then encase the assembly in fiberglass sleeving rated for 250 volts.

Test the setup with a load bank before connecting sensitive electronics. Activate the trigger three times, monitoring voltage drop at the load terminals–accept no more than 0.4 volts sag under full draw. If readings exceed this, upgrade the ground path to 8-gauge wire.

Fault Isolation Checklist

1. Disconnect the battery.
2. Inspect all crimps under a magnifier–no shiny strands should protrude.
3. Verify the contactor clicks within 0.3 seconds of trigger activation (slow response indicates coil resistance above 150 ohms).
4. Measure coil continuity–open circuit means internal coil failure.
5. Check terminal 30 for battery voltage–absence confirms fusible link failure.

Choosing the Right Switching Device for Your 12-Unit 30-Current Path

Opt for a heavy-duty electromagnetic switch rated at least 20% above your circuit’s peak load–40 A SPST or SPDT models ensure reliable operation under fluctuating conditions. Automotive-grade units with insulated blades reduce corrosion risk, while industrial variants often include suppression diodes to protect sensitive electronics. Verify the coil resistance: 80–120 Ω delivers rapid response without excessive power draw. Avoid cheap knockoffs lacking UL/CSA markings; verified brands like Omron G8P or TE Connectivity ensure consistent performance and safety margins.

Consider environmental factors when selecting housing. IP67-rated units resist dust and temporary immersion, critical for off-road or marine applications, while open-frame types work for dry, low-vibration installations. High-temperature silicone insulators prevent melting under sustained loads, especially in engine bays where ambient heat exceeds 85°C. For high-cycle usage (over 1,000 operations), look for silver-nickel contacts–they prevent pitting better than copper alternatives. Add a flyback diode (1N4007) if controlling inductive loads like motors to absorb voltage spikes.

Match the control signal to your power source. A 12-unit coil draws roughly 150 mA, compatible with most microcontrollers or manual switches. For PWM-controlled applications, choose a solid-state counterpart rated for the frequency range–mosfet-based designs handle rapid switching without contact bounce. Always use crimp connectors or solder with 60/40 rosin-core flux, not quick-disconnect terminals, which may loosen under vibration. Test pull-in/drop-out voltages with a multimeter: 8–10 units for pull-in and under 3 for drop-out prevent erratic engagement.

Step-by-Step Connection Guide for Standard Switching Modules

Begin by identifying the four terminal points on your 12VDC trigger module: power input, trigger signal, load output, and ground. The power input terminal connects directly to the battery’s positive post, ensuring a secure crimp or solder joint with at least 14-gauge wire for 30A capacity circuits. Use a fused inline conductor for safety, selecting a fuse rating 1.2 times the expected current draw–35A in this case–to prevent overheating. Label each connection point temporarily with masking tape to avoid misalignment during installation, particularly in confined spaces like vehicle fuse boxes.

Attach the trigger signal terminal to the control source–typically a dashboard switch, sensor, or ECU output–using a thinner 18-gauge conductor if the triggering current remains under 2A. Verify the control source provides a stable 12V pulse when activated; unstable voltage can cause erratic operation or premature module failure. For inductive loads (e.g., motors, solenoids), add a flyback diode across the load’s input and output terminals to absorb voltage spikes, orienting the diode’s cathode toward the positive side of the circuit. Table 1 outlines typical pin assignments for common switching modules:

Terminal	Function	Wire Gauge	Recommended Fuse
30	Power Input	14 AWG	35A
85	Ground	16 AWG	N/A
86	Trigger Signal	18 AWG	5A
87	Load Output	14 AWG	30A

Ground the module’s negative terminal directly to the chassis or battery negative post, ensuring a corrosion-resistant connection–use star washers or dielectric grease on metallic surfaces prone to oxidation. For marine or high-vibration environments, secure conductors with adhesive-lined heat shrink tubing to prevent chafing. When routing conductors, maintain a minimum 50mm clearance from high-temperature components like exhaust manifolds, and avoid sharp edges that could pierce insulation. Test continuity with a multimeter before energizing the module, confirming zero resistance between the load output and power input when the trigger signal is active.

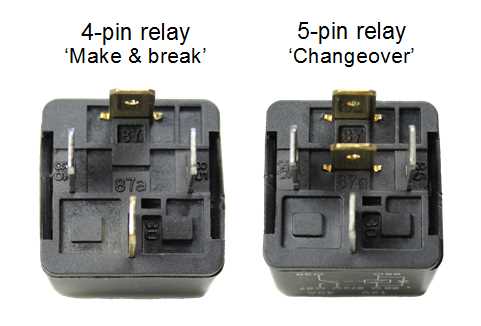

For dual-throw modules (e.g., changeover contacts), note that the normally closed (NC) terminal (usually 87a) disconnects from the load output (87) when triggered, while normally open (NO) terminals behave inversely. This configuration suits fail-safe applications, such as backup lighting systems where the NC terminal powers primary lamps, and triggering the module switches power to auxiliary units. Always verify the module’s datasheet for specific contact ratings–some 30A-rated units handle 25A resistive loads but only 12A inductive loads–and derate by 20% for continuous operation beyond 30 minutes.

Finalize the setup by securing loose conductors with zip ties or conduit, leaving slack at connection points to accommodate thermal expansion. Energize the circuit in stages: first, the control source to confirm trigger signal integrity; second, the power input to verify module responsiveness; third, the load to test full functionality. Monitor temperature at the load and module terminals during initial operation–acceptable rise is 20°C above ambient; overheating (40°C+) indicates undersized conductors, poor connections, or load mismatches. Document your configuration with photos or schematics for future troubleshooting, noting wire colors, terminal labels, and any deviations from standard practices.

Secure Power Routing for High-Current Circuits

Match the switching device’s current rating precisely to the connected hardware–devices drawing up to 240 watts at 8 volts require a 30-unit breaker or fuse on the input side; undersized protection risks overheating cables rated for 2.5 mm² cross-section or above. Install an inline fuseholder within 15 cm of the battery terminal, using a blade-type sacrificial link with ceramic body to prevent arcing during overload.

• Route all positive conductors through the switching coil’s contacts; keep negative returns direct to the chassis ground bar to minimise voltage drop under full load.
• Separate signal trigger leads from power cables by at least 5 cm or use twisted pair screened with aluminium foil shield grounded at a single point to suppress noise.
• Verify coil resistance between 40 and 120 ohms before energising; values outside this range indicate partial short or open winding.

When coupling multiple loads, distribute them across contact sets rated for continuous duty–combine resistive heaters on one pair, inductive motors on another, ensuring no single path exceeds 22.5 units at any given instant. Use tinned copper lugs crimped with a hydraulic tool and heat-shrink tubing rated for 125 °C to seal terminations from moisture ingress.

1. Test the assembled circuit with a variable dummy load, starting at 2 units, incrementing by 5 units every 60 seconds up to 30 units, monitoring cable temperature with an infrared thermometer–readings above 60 °C signal insufficient conductor gauge or loose connection.
2. Mount the switching unit vertically with the contacts facing downward in high-vibration environments to prevent debris accumulation on the contact surfaces.
3. Log triggering events, load current and ambient temperature every 50 cycles; sudden changes exceeding 10 % from baseline warrant immediate inspection.
