Step-by-Step Induction Heater Circuit Design with Components Schematic

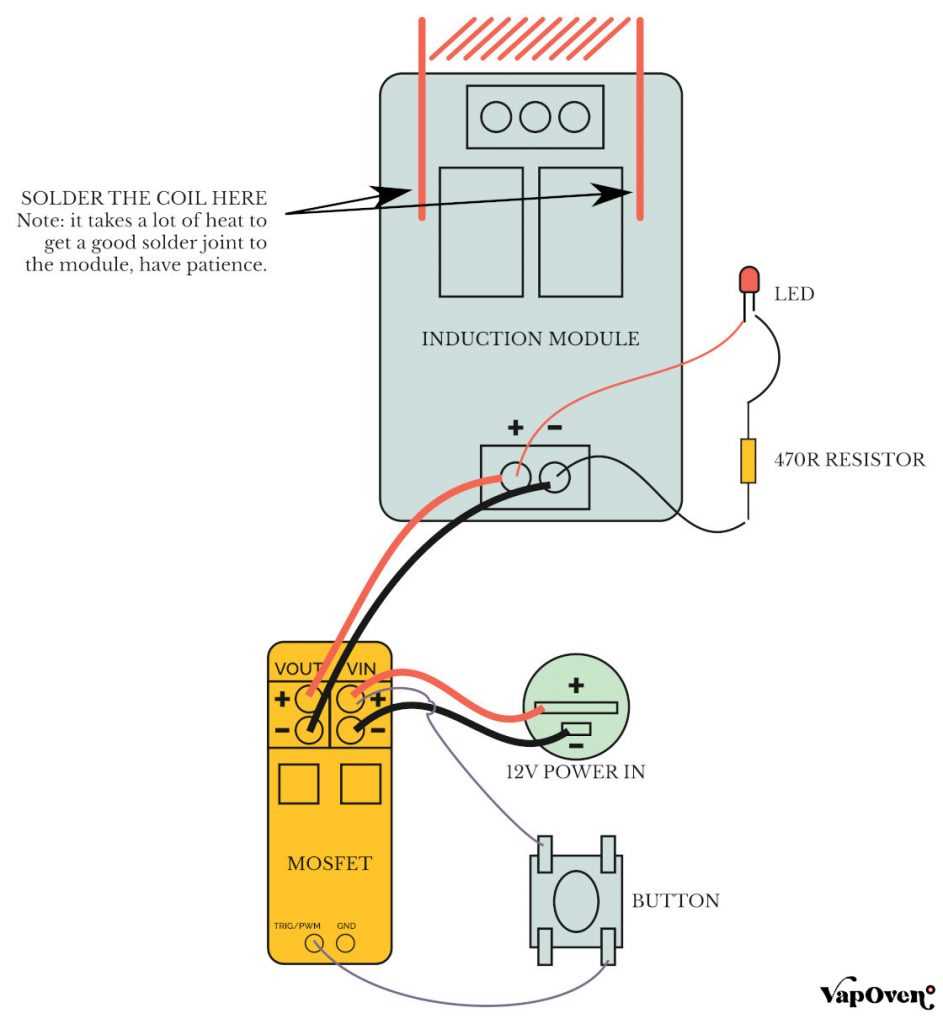

Start with a full-bridge MOSFET configuration using IRFP260N or similar high-current switches rated for 200V and 50A. Pair each transistor with ultrafast diodes like UF5408 to handle reverse recovery currents during switching transitions. Gate drivers should be isolated–opt for ISO5500 or Si8271–to prevent ground loops and ensure clean 12V-15V logic-level triggering. Keep gate resistor values between 10Ω and 22Ω to balance rise times and ringing suppression.

For resonant tank design, select a copper coil with 5-8 turns of 3mm wire, spaced 2-3mm apart. Wind it on a ceramic or quartz form for thermal stability. Match the coil with a bank of polypropylene capacitors (e.g., WIMA FKP1) in parallel to achieve a target oscillation frequency of 20-100kHz. Use the formula f = 1/(2π√(LC)) to calculate values, where L is inductance (typically 10-50µH) and C is capacitance (50-500nF). Over-dimension capacitors by 20% to account for ESR losses.

Power the system from a 48V DC supply with a minimum 10A current rating. Implement a current-mode control loop using a Hall-effect sensor (ACS712) and a PID regulator on a microcontroller like STM32F103. Sample coil current at 100kHz to detect load changes and adjust PWM duty cycle dynamically. Add snubber circuits (10Ω + 0.1µF in series) across MOSFETs to dampen spikes exceeding 300V.

Grounding is critical–use a star topology with separate returns for power, control, and sensing. Route high-current traces on 2oz copper PCB with 3mm width per amp. Thermally couple MOSFETs to a heatsink with TO-247 insulation kits, ensuring thermal resistance below 1°C/W. Test load response with a carbon steel workpiece; expect a 10s heat-up time from ambient to 500°C with 80% efficiency.

For protection, fuse the DC link at 15A and add a crowbar circuit (SCR + Zener) to clamp overvoltage at 70V. Use a soft-start sequence ramping PWM duty from 0% to 50% over 200ms to avoid inrush currents. Monitor coil temperature with a thermocouple interfaced via MAX6675–shut down if exceeding 120°C to prevent insulation breakdown.

Key Components for High-Frequency Power Conversion Layouts

Begin with a resonant tank consisting of a work coil and matched capacitor bank–use polypropylene film capacitors rated for 1.2x your target operating voltage to prevent dielectric breakdown. For a 3 kW system at 100 kHz, pair a 0.68 μF capacitor with a 5-turn, 6 mm copper tube coil; this combination yields optimal current distribution and minimizes skin effect losses.

Source power from a half-bridge inverter using SiC MOSFETs (e.g., C3M0065090D) with

Install a current-mode controller (e.g., UC3846) configured for average current regulation; this eliminates the need for proportional-integral tuning under varying load conditions. Feed the controller a scaled-down signal from a Hall-effect sensor (ACS712) placed in series with the DC bus, ensuring a bandwidth of at least 1.5x your switching frequency to capture transients.

Grounding must follow a star topology–connect all high-current returns (inverter, coil, capacitor bank) to a single copper bus bar bolted to the chassis. Isolate signal grounds from power grounds using ferrite beads (e.g., BLM21PG300) to suppress RF interference. Route high-frequency traces on a 4-layer PCB with dedicated power and ground planes; keep critical paths under 25 mm and fill unused space with stitching vias to reduce inductance.

Test procedure: apply a 50 Ω dummy load and measure resonant frequency via an oscilloscope (10x probe) at the tank terminals. Adjust capacitor value if the peak occurs outside ±5% of target frequency. For final tuning, replace the dummy load with your target material and monitor real-time temperature rise using a thermocouple (type K) embedded 2 mm below the surface; stable operation at

Core Elements for a Fundamental High-Frequency Power Assembly

Select a power semiconductor with rapid switching capabilities–IGBTs rated for 600V–1200V and 20–100A handle transient currents efficiently. Pair with ultrafast diodes (trr

Resonant Tank Configuration

Use a series-resonant topology with ceramic or polypropylene capacitors (100nF–1µF, 630V+ DC rating) to achieve Q-factors above 10 at 20–100kHz. Copper Litz wire (0.05–0.1mm strand diameter, 100–400 strands) reduces skin effect losses; AWG 12–14 is optimal for 1–5kW systems. Coil turns (3–12) depend on target frequency–fewer turns for higher frequencies (>50kHz) to maintain inductance below 20µH.

Gate drivers must isolate 5kV+ and deliver peak currents >10A; UCC21520 or Si8271 minimize propagation delays (

Protection and Feedback Mechanisms

Implement current sensing via Hall-effect sensors (ACS712, 20A range) or shunt resistors (0.001Ω, 3W) with differential amplifiers (INA186, gain=100). Voltage feedback uses resistive dividers (10MΩ/1MΩ, 1% tolerance) paired with TL431 for precision regulation. Overcurrent thresholds should trigger fault signals within 2µs–use comparators (LM393) or MCU interrupts. Ferrite beads (1A–3A, 100MHz) on input lines suppress EMI; Y-capacitors (1nF, 2kV) between primary and ground reduce leakage currents.

Step-by-Step Assembly of a Resonant Power Converter

Select components rated for 1.5–2× the target operating frequency to minimize switching losses. For a 100 kHz setup, use MOSFETs with sub-50 ns rise/fall times (e.g., IXYS IXFN32N120P3) and polypropylene film capacitors in the 1–10 nF range with a tolerance of ±2% or tighter.

Arrange the layout in a star-ground configuration to suppress parasitic oscillations. Place the gate driver (e.g., IXDN609SI) within 2 cm of the MOSFET gate, using a 1 Ω series resistor and a 15 V Zener diode for protection. Route high-current traces on the top layer with a minimum width of 2.5 mm for every 1 A of peak current.

Configure the resonant tank with a split-capacitor topology for improved frequency stability. Use two 4.7 nF capacitors in series for a 9.4 nF effective capacitance, paired with an air-core inductor (6 turns of 2 mm diameter copper wire, 3 cm inner diameter) to achieve a 50–60 µH inductance. Measure inductance with an LCR meter at 100 kHz before assembly.

Component Matching and Tuning

Verify component tolerances at the target frequency–capacitors often exhibit ±5% variance at 100 kHz due to dielectric losses. Replace outliers to maintain a Q-factor above 15. Use a network analyzer to confirm the resonant frequency within 2% of the calculated value (e.g., 98–102 kHz for a 100 kHz design).

Parameter	Target Value	Acceptable Range	Measurement Tool
Resonant Frequency	100 kHz	98–102 kHz	Oscilloscope + signal generator
Q-Factor	≥15	12–20	Network analyzer
Peak Current	5 A	4.8–5.2 A	Current probe (e.g., Tektronix TCP0030)

Connect the gate driver to a 0–15 V isolated power supply (e.g., Recom R-78E15-0.5) with a 1 µF ceramic bypass capacitor directly at the driver’s input pins. Avoid ground loops by using a single-point ground for the control signals and a separate path for high-current returns. Test gate signals with a 10× probe before attaching to the MOSFET to confirm clean 0–12 V transitions.

Add a snubber network across the MOSFET drain-source terminals: a 1 nF capacitor in series with a 10 Ω resistor, both rated for 250 V. This suppresses voltage spikes exceeding 80% of the MOSFET’s V_DS rating. For debugging, use a differential probe to monitor drain-source voltage waveforms–ringing should not exceed 20% of the DC bus voltage.

Final Validation

Load the resonant tank with a resistive dummy load (e.g., 10 Ω, 25 W) to verify efficiency. At full power, the converter should achieve ≥90% efficiency with ≤10% total harmonic distortion in the tank current. If losses exceed 15 W, check for excess ESR in capacitors (

Encapsulate high-voltage nodes with silicone conformal coating (e.g., Dow Corning 1-2577) to prevent arcing. Label all test points with their expected voltage ranges for future diagnostics. For long-term stability, operate the converter at 80% of its maximum power rating during initial burn-in (48 hours).

Calculating Coil Inductance and Capacitance for Resonant Frequency Tuning

For optimal energy transfer, start with Wheeler’s formula to approximate coil inductance: L = (N² × d²) / (18d + 40l), where N is turns count, d the coil diameter (inches), and l axial length. Practical values range from 10 µH for compact coils to 500 µH for large assemblies. Copper tubing resistance must be factored–skin effect reduces effective cross-section at higher rates; use R = ρ × (length / (π × (D – δ) × δ)), where δ is penetration depth at target rate (0.066 mm for copper at 100 kHz).

Key Variables Affecting Resonance

Target frequency dictates capacitor selection. For a 100 kHz resonance, a 0.1 µF capacitor paired with a 25 µH coil yields near-optimal coupling. Parallel capacitance tolerance should not exceed 5%–ceramic NP0 types endure thermal drift better than X7R. Series resistance losses peak when Q = ωL / R drops below 10; recalculate coil geometry if initial design yields values under 15. Toroidal cores reduce stray fields but limit peak current–ferrite N87 saturates at 0.4 T, while air-core coils handle 2-3x higher flux.

Temperature rise compounds losses. A 40°C increase doubles copper resistance; integrate forced air or liquid cooling if I²R exceeds 50 W. Stray capacitance between coil turns can shift resonance–maintain spacing of at least 1.5× wire diameter to avoid detuning. For multi-turn coils, distribute capacitors evenly along the winding to prevent voltage spikes exceeding 1.5 kV; use snubbers rated for 2 kV if transients appear.

Measure inductance with an LCR meter at 1 V and 1 kHz–discrepancies above 8% indicate manufacturing flaws. Adjust winding pitch to compensate: a 2 mm pitch yields 5% lower inductance than 1 mm. Parasitic effects emerge at rates above 500 kHz–segment large coils into series-connected sub-coils to mitigate distributed capacitance issues. PCB traces connecting components should be

Precision Tuning Techniques

Start tuning by trimming capacitance in 1% increments–target resonance bandwidth should not exceed 10 kHz for stable operation. If frequency drifts with load, install a feedback loop sensing phase angle between current and voltage; corrective trim capacitors (10-100 pF) adjust in

Verify calculations with finite element analysis (FEA)–simulate field distribution at 1 A excitation. Inhomogeneous fields concentrate flux density at inner turns; redistribute windings in an arch pattern for uniform heating. If FEA shows >30% flux leakage, increase coil diameter by 10% or add shielding (Mu-metal at 0.5 mm thickness). For aqueous loads, dielectric constants shift resonance–pre-match capacitors to 80% of calculated value to accommodate variability.

Final validation requires a spectrum analyzer. Monitor harmonics–2nd and 3rd order components should be
