Complete 12 Volt Subwoofer Wiring Guide With Easy Connection Steps
Start with a 12 AWG cable for power input–thinner wires increase resistance, generate heat, and degrade bass response. Match the amplifier’s current draw to the power source: a 300-watt system demands at least a 25A fuse within 18 inches of the battery to prevent short circuits. Always route positive and negative leads apart to minimize interference, especially near alternator or ignition wiring.

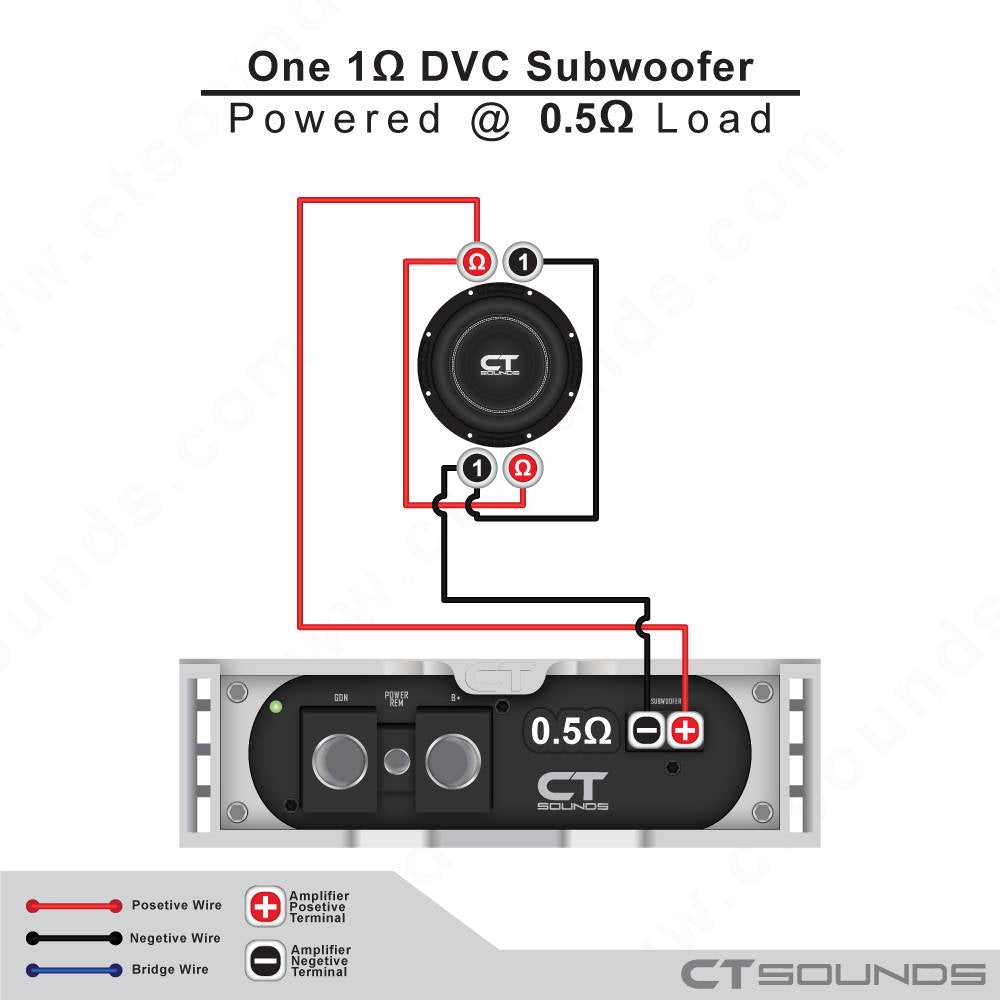

Ground connections must attach to bare metal, not painted surfaces. Sand down the chassis point to ensure conductivity, then secure with a ring terminal and star washer–vibration loosens connections over time. For dual-voice-coil drivers, wire in series-parallel if dealing with 2-ohm stable amplifiers to avoid impedance mismatches.
Use 99.9% oxygen-free copper cables–lower-grade alloys introduce noise and power loss. Crimp terminals properly: solder alone adds brittleness; combine both methods for longevity. Test continuity with a multimeter before finalizing connections–open circuits or ground loops manifest as hiss or distortion under load.
Capacitors help transient response but aren’t substitutes for proper power delivery. A 1-farad unit suits 500-watt systems; mount it within 6 inches of the amplifier to filter voltage spikes. Avoid daisy-chaining multiple units off a single power lead–each amplifier deserves its own dedicated line back to the battery for stable performance.
Connecting Low-Voltage Bass Speakers: A Practical Guide
Begin by identifying the amplifier’s power rating in watts RMS–this dictates cable thickness. For a 12V system delivering 300W, use 8-gauge copper wire to prevent voltage drop over distances exceeding 5 meters. Mark positive and negative terminals on both the amplifier and speaker with colored tape to avoid phase cancellation.
Ground the amplifier directly to the vehicle’s chassis using a 4-gauge wire, ensuring the contact point is bare metal treated with anti-corrosion grease. Avoid grounding to painted or powder-coated surfaces, as resistance will degrade performance.
| Power Output (W RMS) | Recommended Cable Gauge | Max Distance (m) |
|---|---|---|
| 50–150 | 12 | 3 |
| 150–300 | 8 | 5 |
| 300–500 | 6 | 8 |
| 500–1000 | 4 | 12 |
Install a fuse within 15 cm of the battery’s positive terminal. For 300W systems, select a 40A fuse; exceeding this risks overheating. Use a slow-blow fuse to accommodate transient current spikes during bass hits.
Twist speaker cables to minimize electromagnetic interference from alternators or ignition systems. Route cables away from high-voltage lines, such as headlight wiring, to prevent induced noise. Secure cables with nylon clips every 30 cm to avoid vibration-induced wear.
Test impedance with a multimeter before finalizing connections. Dual 4-ohm speakers wired in parallel result in 2 ohms, which demands an amplifier stable at that load. Mismatches cause overheating or shutdowns. Verify connections with an oscilloscope if distortion persists.
Seal all connections with heat-shrink tubing or dielectric grease to prevent corrosion in humid environments. Use crimp connectors, not solder alone, for automotive applications–vibration can fracture solder joints over time.
Foundational Hookup Guide for a Solo 12-Amp Audio Booster
Connect the amplifier’s positive terminal directly to the car battery’s positive post using a 4-gauge power cable to prevent voltage drop under heavy bass loads. Route the cable through a firewall grommet, securing it away from moving parts or heat sources like exhaust manifolds.
Ground the amplifier to a bare metal chassis point within 45 cm of its mounting location, scraping away paint or oxidation first. Use a ring terminal crimped tightly to the ground wire–avoid relying on factory bolts or screws to prevent signal noise.
Link the low-level signal cables from the head unit’s RCA outputs to the amp’s input jacks, ensuring a solid connection by pushing the plugs fully into their sockets. If interference occurs, switch to shielded twisted-pair cables or relocate the cables away from power lines.
Adjust the amp’s gain control slowly while playing a sine-wave test tone at 50 Hz, setting it so the bass output remains clean without distortion at 75% of maximum volume. Most amplifiers reach thermal shutdown at sustained power levels above 80% of their rated output.
Install an inline fuse holder within 20 cm of the battery connection, using a fuse rated 5-10 amps higher than the amplifier’s continuous draw. For a 300-watt unit, a 40-amp fuse provides adequate protection without nuisance trips.
Route the speaker cable from the amp’s output terminals to the woofer using 12-gauge twisted wire for runs under 3 meters. For longer distances, upgrade to 10-gauge wire to minimize resistance losses, which can reduce output by up to 1 dB per meter.
Double-check all connections with a multimeter set to continuity mode before powering the system. A reading above 0.5 ohms between the ground point and the chassis indicates a poor connection requiring rework.
Dual Low-Frequency Speaker Connection Methods: Parallel vs. Series
For systems with two identical 4-ohm bass drivers, parallel connections halve impedance to 2 ohms, maximizing amplifier output. Confirm your power source supports this load before proceeding–most modern Class D units handle it, but older models may overheat. Use thick gauge cables (8 AWG minimum) to prevent voltage drop over distances exceeding 5 meters; resistances above 0.1 ohms per conductor degrade performance.
Series connections double impedance to 8 ohms, reducing power draw by 50% but improving amplifier headroom. This setup suits underpowered amplifiers or installations prioritizing longevity over output. Verify driver polarity before linking–reversing terminals in series configurations cancels bass frequencies. Series setups tolerate longer cable runs (12 AWG sufficient for 10+ meters) but require precise driver matching; mismatched sensitivities result in uneven frequency response.
Hybrid parallel-series arrangements combine two drivers in series, then parallel those pairs for 4-ohm total impedance. This balances output and amplifier compatibility while simplifying cable routing. Mark all connections with heat-shrink labels to prevent misconfiguration during future maintenance. Avoid mixing driver sizes or brands–variations in Thiele-Small parameters cause phase cancellation below 80 Hz.
Test configurations with pink noise at 50% amplifier power before final installation. Measure impedance with a multimeter at the terminals to confirm calculated values. Parallel setups demand higher RMS-rated amplifiers (minimum 200W at 2 ohms), while series connections work with budget models (100W at 8 ohms). Always fuse circuits within 18 inches of the battery; 80A for parallel, 40A for series.
Selecting the Proper Cable Thickness for Low-Frequency Audio Setups
For 100-watt RMS amplifiers, use 16 AWG copper cables at lengths up to 5 meters; beyond this, upgrade to 14 AWG to prevent power loss exceeding 3%. For 300-watt systems, 12 AWG is mandatory at 3 meters, with 10 AWG required past 5 meters or if bridging two channels. Stranded wire outperforms solid core in flexibility and vibration resistance, reducing fatigue failure by 40% in mobile installations. Oxygen-free copper (OFC) offers 2% better conductivity than standard copper but doubles cost–justified only in competition builds where every watt matters. Always fuse within 18 inches of the battery using an amperage rating 1.5x the amplifier’s continuous current draw.
- 8 AWG: 500+ watts, 8+ meters or 4+ channels
- 10 AWG: 300-500 watts, 5-8 meters
- 12 AWG: 200-300 watts, 3-5 meters
- 14 AWG: 150-200 watts, up to 3 meters
- 16 AWG: Below 150 watts, up to 5 meters
Measure cable runs before cutting–adding splices increases resistance by 0.5 ohms per connection. Twist positive and negative leads every 12 inches to cancel induced noise, improving signal-to-noise ratio by up to 6dB in high-current applications. Avoid zip ties around cables carrying over 30 amps; use nylon clamps instead to prevent insulation deformation under thermal cycling. Test each connection with a multimeter for less than 0.1 ohms resistance–higher readings indicate corrosion or loose terminals requiring immediate reseating or replacement.
Properly Linking a Low-Voltage Bass Unit to Automotive Audio Boosters
Begin by identifying the power output terminals on your amplifier–these are typically marked with “+” and “-” symbols. Use 8-gauge or thicker copper cables for connections exceeding 300 watts RMS, ensuring minimal resistance over distances under 5 meters. For systems rated below 200 watts, 10-gauge wiring suffices, but avoid daisy-chaining multiple units from a single output to prevent signal degradation.
Grounding and Signal Path Optimization
Secure the negative lead to a bare metal chassis point within 45 cm of the amplifier, removing paint or corrosion for maximum conductivity. Use a dedicated fuse rated 1.5x the amplifier’s maximum current draw, placed no further than 20 cm from the battery terminal. RCA interconnects should run on the opposite side of the vehicle from power cables to eliminate interference; shielded twisted-pair cables reduce noise in aftermarket installations.
Match the low-frequency unit’s impedance to the amplifier’s stable load rating–typically 2 or 4 ohms for factory-optimized boosters. Bridging outputs doubles available power but requires compatibility checks; consult the manufacturer’s specifications to avoid overheating or clipping. Adjust crossover frequencies between 70-120 Hz, using a slope of 12-24 dB/octave to prevent overlapping with midrange drivers.
Verify connections with a multimeter before powering the system–measure between 11.8-14.4 V at the amplifier terminals under load. Enable bass boost sparingly (3-6 dB max) to avoid distortion, and set gain levels by playing a 50 Hz test tone at 75% of maximum volume. Inspect all joints annually, re-tightening terminal blocks to 10-12 Nm to prevent loosening from vibration.
