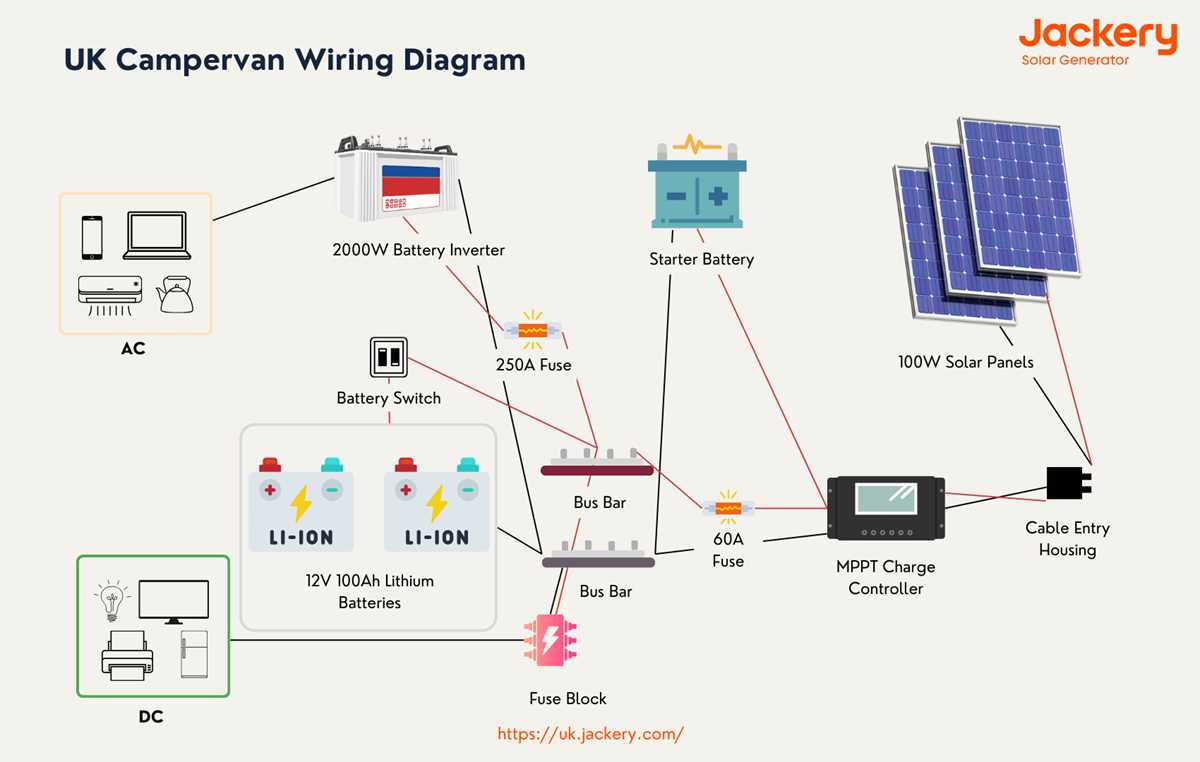

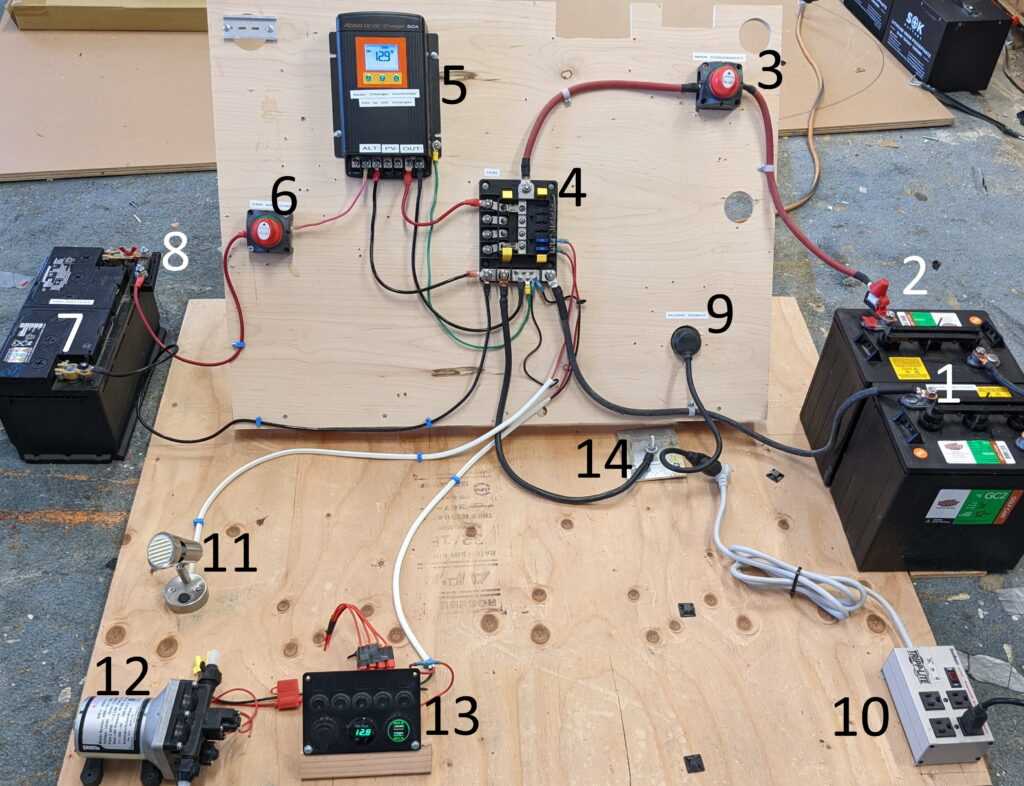

Step-by-Step Guide to Designing Your Campervan Electrical System
Begin with a fused main busbar rated for 100A–this is non-negotiable. Position it within 30cm of the battery terminals to minimize voltage drop. Use 35mm² cables for the primary circuit between the battery and busbar, securing connections with tinned copper lugs and heat-shrink tubing to prevent corrosion. A secondary 16mm² cable should feed a 50A isolator switch directly from the busbar, creating a manual cut-off point for emergencies. Avoid daisy-chaining ground points; instead, run a dedicated 25mm² ground cable back to the battery’s negative terminal.
Divide circuits into three categories: lighting (5A), auxiliary (10A), and high-draw (20A+). Use waterproof automotive relays for all high-draw appliances–refrigeration units, inverters, and heating elements–to prevent voltage sag. For lighting, install a dimmable 12V LED strip with a PWM controller, connected via 1.5mm² cable and protected by a 5A fuse. Route cables through split loom tubing and secure them every 20cm with nylon clamps, ensuring no loops larger than 10cm to reduce electromagnetic interference.
Label every wire at both ends with heat-resistant sleeves showing circuit function, gauge, and fuse rating. Test continuity with a multimeter before final connections; resistance should not exceed 0.1Ω per meter. Include a voltmeter across the busbar to monitor battery health–opt for a digital panel meter with a 0.5% accuracy rating. For inverters, specify a pure sine wave model no greater than 2000W if running on 100Ah lithium, paired with a 200A class T fuse. Avoid connecting inverters directly to the battery; use a dedicated 50mm² cable routed through a 250A mega fuse to the busbar.
Integrate a battery management system (BMS) if using lithium cells, ensuring it supports cell balancing and has a maximum current limit 1.5x above the inverter’s peak draw. For solar input, wire panels in parallel up to 200W, then series beyond that–use a 20A MPPT charge controller and 6mm² cable for runs under 5m. Separate the starter battery circuit entirely; use a 140A relay triggered by the ignition to prevent parasitic drain. Document every connection in a schematic saved as both PDF and printed laminate for roadside diagnostics.
Creating a Reliable Electrical Layout for Your Mobile Conversion
Start by mapping out a schematic with separate circuits for critical and non-critical loads. Use AWG 10 or thicker cables for high-draw appliances like fridges and inverters, while AWG 14–16 suffices for lighting and USB ports. Group components by voltage–house battery (12V) and starter battery (12V)–and isolate them with a battery isolator or split-charge relay to prevent drain. Label every wire at both ends with heat-shrink tubing for clarity during troubleshooting.
Integrate a fuse block or circuit breaker within 7–10 inches of the battery’s positive terminal, matching fuse ratings to cable ampacity: AWG 10 (30A), AWG 12 (20A), AWG 14 (15A). Distribute breakers along the length of cables for protection against short circuits. Essential components to include:
| Component | Type | Wire Gauge | Fuse Rating |
|---|---|---|---|
| Solar charge controller | MPPT/PWM | 8–10 | 20–30A |
| Inverter (700W+) | Pure sine | 4–6 | 50–100A |
| LED lighting | 12V strips | 16–18 | 5A |
| Water pump | 12V diaphragm | 14–16 | 10A |
Grounding and Safety Best Practices
Connect all negative terminals to a single grounding busbar linked directly to the chassis, avoiding long runs to reduce voltage drop. Use tinned copper lugs for corrosion resistance, especially in marine environments. Install a battery disconnect switch (e.g., Blue Sea 9001) to isolate the system during maintenance. Test circuit resistance after assembly with a multimeter–ideal voltage drop should not exceed 3% across any run (0.36V for 12V systems). Avoid daisy-chaining grounds; use star grounding instead for stability. Store spare 3M Dual Lock or zip ties to secure wiring away from moving parts and sharp edges.
Optimal Cable Sizes for Mobile Living Space Electrical Systems
Start with 10 AWG copper stranded wire for 12V circuits drawing up to 30A continuous. This gauge handles voltage drop below 3% over 5m runs when supplying fridges, lighting arrays, or water pumps–verified with real-world voltage measurements across numerous installations. Thinner cables risk overheating under sustained loads, especially in hot engine bays or insulated wall cavities.
For 230V AC circuits, match cable thickness to inverter capacity. A 2000W unit demands 12 AWG minimum, while 3000W+ units require 10 AWG to prevent fire hazards. Connectors matter: tinned copper lugs resist corrosion in humid coastal climates better than bare copper. Secure joints with heat-shrink tubing–which expands to 200% diameter–and double-crimp each termination for mechanical strength.
Critical Paths Justifying Thicker Conductors
- Slides-outs/awning motors: 8 AWG to counteract inrush currents up to 60A
- Battery-to-inverter runs: 4 AWG for 100A+ continuous draws (lithium setups)
- Alternator charging lines: 2/0 AWG when combining deep-cycle and starter banks
Voltage loss compounds with distance: 16 AWG wire loses 0.5V per meter at 10A, becoming unusable beyond 2m for sensitive electronics. Use this formula–(wire length in meters × current in amps × 0.017 × 2) ÷ max voltage drop %–to determine minimum thickness. Always round up to nearest standard size.
Solar feeders need special consideration. A 300W panel pushing 18A warrants 8 AWG despite short runs, as temperature spikes degrade resistance more rapidly than indoor circuits. Route these conductors in separate conduits away from hot water pipes–ambient temperature rise adds 0.4% resistance per degree Celsius above 20°C.
Common Costly Mistakes
- Ignoring fuse rating (must be ≤ 80% of wire’s ampacity)
- Mixing solid and stranded cores in the same run (stranded resists fatigue better)
- Reusing automotive-grade wire for house circuits (thinner insulation fails at 60°C vs marine-grade 105°C)
- Skipping crimp validation: pull-test every joint to 10 kg–failures occur at connectors first
Test every circuit with a thermal camera before finalizing installations. Hot spots (>60°C) indicate undersized cable, poor crimps, or contact resistance–rework immediately. Document actual measurements alongside schematics; conditions vary between identical setups due to battery chemistry, solar input fluctuations, and ambient humidity.
Step-by-Step Fuse and Breaker Placement Guide
Begin by sorting circuits into three categories: critical (lights, fridge), high-draw (water pump, inverter), and auxiliary (USB ports, auxiliary outlets). Place a mini blade fuse (5A–20A) within 15cm of the battery positive for each critical line–never exceed 70% of the wire’s ampacity rating. For high-draw circuits, install an ANL fuse (50A–150A) or a class-T fuse (150A–400A) directly on the battery terminal, ensuring the fuse rating is 125% of the circuit’s continuous load. Auxiliary circuits can share a single fuse block, but keep total amperage below 30A per block to avoid heat buildup.
Use slow-blow fuses for inductive loads (compressor fridges, motors) to handle startup surges–typically 2x the circuit’s steady-state draw. Mount breakers (thermal or magnetic) for circuits prone to short-circuits (e.g., winches, electric stoves) no farther than 30cm from the power source. For lithium batteries, pair each major circuit with a 40A–100A DC breaker as a failsafe; AGM systems can rely on fuses alone if wire gauge exceeds 2/0 AWG. Label every fuse and breaker with tape or a permanent marker: include circuit name, amperage, and voltage.
Space fuses and breakers at least 2cm apart to prevent heat transfer–use nylon or polyamide fuse holders rated for 125°C. For 12V systems, avoid glass fuses (too slow); stick to ceramic or blade types. When daisy-chaining multiple low-draw devices (e.g., LED strips, sensors), use a fusible link (rated for 150% of total load) before splitting the circuit. Test each circuit with a multimeter after installation: probe between the fuse holder and ground–voltage should match system voltage before removing the probe to check for drops.
For solar charge controllers, install a 20A–60A fuse between the panel and controller, and a second fuse of equal rating between the controller and battery. Inverter connections require a class-T fuse (size per inverter manual) or a DC breaker (e.g., Blue Sea 70A for 1000W inverters). Never fuse the battery negative–ground it directly to the chassis with 4/0 AWG wire. Keep all fuse blocks dry (IP67 rating) and accessible; store spares in a labeled ziplock inside the system’s main panel.

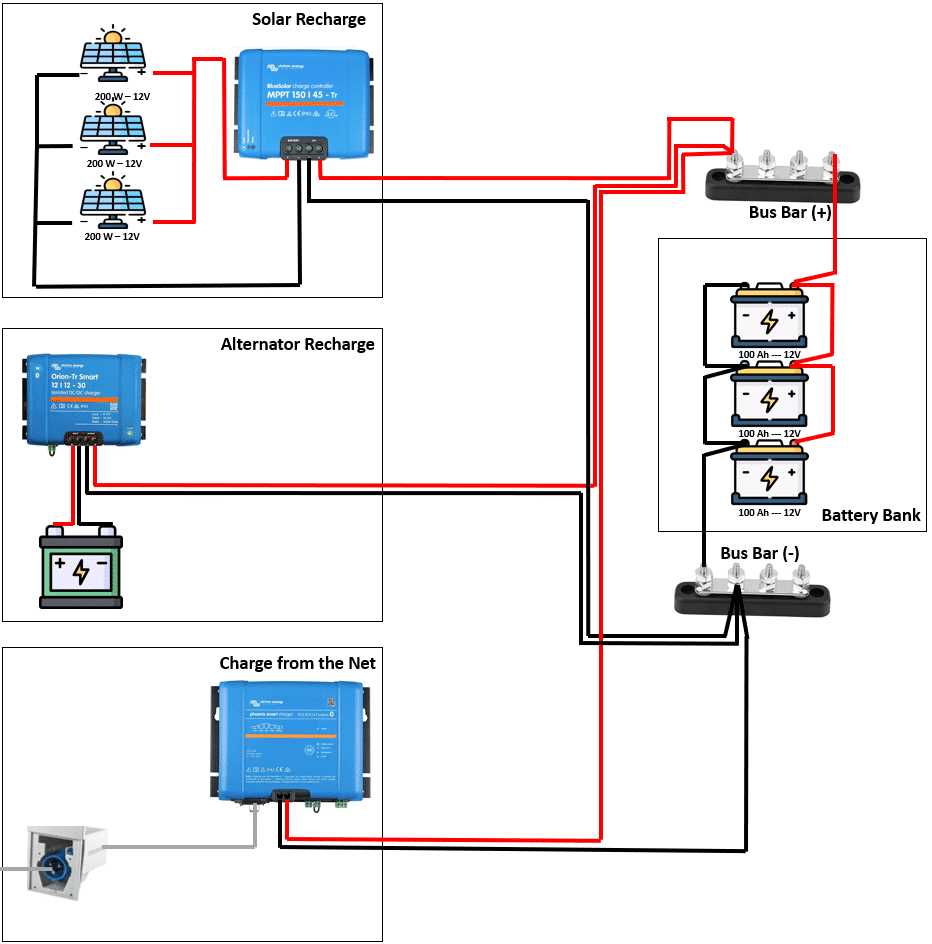

How to Wire a Dual Battery System for Reliable Power
Install a 100A to 200A battery isolator between the starter and auxiliary batteries to prevent parasitic drain while allowing charging when the engine runs. Choose a solid-state isolator with low voltage drop (under 0.3V) to maximize efficiency–cheaper mechanical relays waste power and fail faster. Connect the isolator directly to the alternator’s output terminal, not the battery, to avoid voltage sensing errors that disrupt charging.
Use 35mm² (2 AWG) copper cable for all high-current connections, minimizing resistance over long runs. For a 12V system, every 30cm of 6mm² cable adds 0.1V drop at 50A–double the gauge if wiring exceeds 2 meters. Secure crimp terminals with heat shrink and solder for corrosion resistance; stranded wire is mandatory for vibration-prone mobile applications. Include a 150A ANL fuse within 20cm of each battery positive terminal to protect against short circuits.
- Prioritize lithium iron phosphate (LiFePO₄) batteries for auxiliary power–they tolerate deeper discharges (80% DoD vs. 50% for AGM), weigh 60% less, and last 2,000+ cycles. Match the voltage to the starter battery; mixing 12V and 6V systems requires a DC-DC charger.
- Add a 30A DC-DC charger if running a split-charge system. Models like the Victron Orion-Tr Smart compensate for voltage drop over long cables and optimize charging profiles. Pair it with a 200W solar panel and an MPPT controller for off-grid reliability.
- Ground both batteries to the chassis at separate points, keeping paths under 50cm to reduce EMI interference with sensitive electronics. Use star washers under terminals to prevent loosening from vibration.
Monitor battery health with a shunt-based system displaying voltage, current, and amp-hours. Avoid cheap voltage-only monitors–they misread state of charge due to surface charge effects. Calibrate the system by fully charging and discharging batteries once after installation to improve accuracy. Label all connections with heat-shrink sleeves to simplify troubleshooting during maintenance.
