Complete Guide to Building a 12V Battery Charger Circuit Step by Step

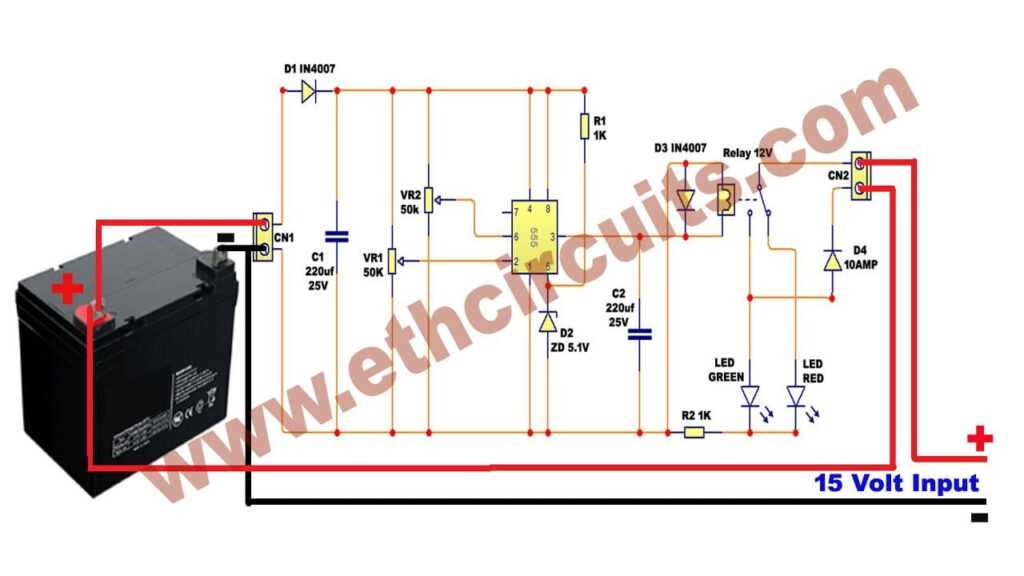

Start with a LM2576-ADJ switching regulator for 90%+ efficiency at 3A output. Connect the input to a 18V DC source via a 1000µF electrolytic capacitor to stabilize voltage fluctuations. The feedback pin requires a 240Ω resistor in series with a 5KΩ potentiometer to set the output precisely. Use a 1N5822 Schottky diode for minimal forward voltage drop.

The inductor should be 47µH rated for 5A–anything smaller risks saturation under load. Add a 220µF low-ESR capacitor at the output to filter ripple below 50mV. For reverse polarity protection, place a P-channel MOSFET (IRF9540N) on the input side with a 10KΩ pull-up resistor to the gate.

Test under full load (2.5A) for 30 minutes; regulator temperature should stabilize below 60°C. If exceeding, replace the TO-220 package with a heatsink or SMD variant (LM2576SX-ADJ). Avoid breadboarding–solder directly to perfboard or use 1oz copper traces for thermal relief.

For battery-powered applications, add a TL431 shunt regulator as a voltage reference. This eliminates drift in environments above 40°C. Keep trace lengths short–high-frequency switching (52kHz) radiates noise. Shield the inductor with a mu-metal foil wrap if nearby circuits are sensitive.

Overcurrent protection requires a 0.02Ω shunt resistor and a LM358 comparator. Trip threshold should be 120% of nominal amperage to prevent false triggers. Use a polyfuse (1210L075) as a backup–it resets automatically after cooling.

Building a Reliable Power Supply for Automotive Batteries: Step-by-Step Assembly

Select a transformer with a primary winding matching your mains voltage (e.g., 230V or 110V) and a secondary winding rated for 15V AC at 2A minimum. This ensures sufficient overhead for rectification and voltage regulation while preventing overheating under load. Avoid cheaper models with thin wire gauges or unverified core materials–opt for toroidal transformers if efficiency is critical, as they reduce magnetic interference.

Bridge rectifiers should handle at least 3A forward current and 50V reverse voltage to accommodate transients. Place a 4700µF electrolytic capacitor immediately after the rectifier to smooth ripples; its voltage rating must exceed the peak secondary voltage (e.g., 25V). For prolonged operation, add a 0.1µF polyester capacitor in parallel to suppress high-frequency noise.

Linear regulators like the LM7812 require a heat sink when delivering currents above 500mA. Mount the regulator on an aluminum plate with thermal paste, ensuring the sink’s surface area exceeds 25 cm² per watt dissipated. For adjustable output, replace the fixed regulator with an LM317 and set voltage via a 240Ω resistor and a 5kΩ potentiometer–calculate values using Vout = 1.25 × (1 + R2/R1).

Fuse selection depends on load characteristics: a 2A slow-blow fuse protects against sustained overloads, while a 5A fast-blow fuse guards against short circuits. Place the fuse in series with the transformer’s primary winding, never on the secondary side, to comply with safety standards. For polarity-sensitive loads, integrate a Schottky diode (e.g., 1N5822) in series with the output to prevent reverse current damage during connection errors.

Test the assembly with a dummy load (e.g., 10Ω 20W resistor) before connecting to a battery. Monitor output with a multimeter: stable readings within ±5% of the target voltage confirm proper regulation. Voltage drops under load indicate insufficient transformer current capacity or inadequate capacitance–address by upgrading components or adding auxiliary cooling. Avoid leaving the device unattended until heat sink temperatures stabilize below 60°C.

For lead-acid batteries, limit charging current to 10% of the battery’s Ah rating (e.g., 6A for a 60Ah unit). Use a current-limiting resistor or a dedicated charging IC like the UC3906 for smart termination when full charge is detected. Lithium-based cells require constant-current/constant-voltage profiles with overcharge protection–implement this via a microcontroller or specialized ICs such as the TP4056, which integrates charge control and undervoltage lockout.

Finalize the build with proper enclosure selection: ventilated metal housings prevent overheating, while plastic enclosures must comply with IP44 ingress protection to resist dust and splashes. Ground the enclosure and transformer core to mitigate electrical noise. Label input/output terminals clearly and include a warning about live circuits–mains voltage poses lethal hazards if mishandled.

Core Elements Required for a Direct-Current Power Supply Unit

Begin by sourcing a step-down transformer with an output rated at 15-18 volts AC. This component reduces mains voltage to a safer level while ensuring sufficient headroom for subsequent regulation. Verify the transformer’s current rating matches or exceeds the target amperage; a 2-amp unit suits most small-scale applications, while 5 amps or higher accommodates larger loads.

The rectification stage demands four silicon diodes arranged in a bridge configuration or a single integrated bridge rectifier block. A KBPC3510 supports up to 35 amps; smaller projects can rely on 1N4007 diodes. Ensure each diode’s reverse voltage rating surpasses the transformer’s peak output voltage–typically 50V or higher–to prevent breakdown under transient spikes.

Post-rectification, incorporate a filter capacitor–electrolytic types are standard–with a capacitance between 1000µF and 4700µF. The capacitor smooths pulsating DC into a steady voltage, reducing ripple to less than 5% RMS. For longevity, select a capacitor rated at least 25V to buffer against voltage surges when the load disconnects abruptly.

A linear voltage regulator such as the LM7812 delivers precise 12-volt output with minimal ripple. Mount it on an adequate heatsink–fin area should dissipate at least 15 watts per amp sustained. Alternatively, employ a switching regulator like the LM2596 for higher efficiency, especially if input voltage exceeds 18V or the current draw exceeds 1.5 amps.

Additional passive components refine performance: a 0.1µF ceramic capacitor across the regulator’s input and output pins stabilizes transient response, while a 10k-ohm resistor in series with an LED indicator provides visual confirmation of power status. For overcurrent protection, fuse the input line with a slow-blow fuse sized 20% above the maximum expected current–e.g., a 2.5-amp fuse for a 2-amp design.

Wire gauge selection follows the current load: 18 AWG tolerates 10 amps for short runs, while 14 AWG handles 15 amps indefinitely. Terminate connections with crimp connectors or solder for low-resistance joints; avoid loose strands to prevent arcing. Enclose the entire assembly in a ventilated case if continuous operation exceeds 5 watts dissipated power.

Checklist for Component Validation

• Measure transformer output under load–actual AC voltage should not drop more than 5% from open-circuit value.
• Confirm rectifier diodes operate within their forward current limit using a multimeter in diode-test mode.
• Verify capacitor ESR is below 0.5 ohms for reliable filtration.
• Test regulator output under full load–adjust heatsink if temperature exceeds 85°C.
• Inspect all junctions for cold solder joints or excessive flux residue.

Building a Low-Voltage Power Supply: Hands-On Construction

Select a step-down coil rated for 15-18V AC output at 2-3 amperes–this accounts for voltage drop across rectification and filtering. Verify the transformer’s secondary winding impedance matches your expected load: excessive current draw risks overheating or core saturation. Mount it securely to a perforated board using nylon standoffs to prevent short circuits from the chassis.

Connect a bridge rectifier (minimum 4A/50V) to the coil’s outputs, observing polarity–misalignment causes reverse bias failure. For smoother DC conversion, add two 2200µF electrolytic capacitors in parallel after the rectifier, ensuring their negative terminals align with the ground rail. Test intermediate voltages with a multimeter before proceeding; expect 20-24V unloaded DC.

Insert a linear regulator IC (7812 or LM317) into the board, spacing components to facilitate heat sinking. The 7812 requires minimal external parts–a 0.1µF input capacitor and 0.33µF output capacitor, both ceramic, to suppress high-frequency noise. For variable output, the LM317 needs a 240Ω resistor between OUT and ADJ pins plus a 5kΩ potentiometer for fine tuning.

Attach a TO-220 heatsink to the regulator using thermal paste and a locking screw; undersized cooling leads to thermal throttling. Verify ground paths are continuous–faulty grounding introduces ripple or incorrect voltage readings. Load test with a 12Ω/10W resistor; stable 13.8V output confirms proper regulation under nominal conditions.

Secure all joints with solder, trimming excess wire to avoid accidental shorts. Encase the assembly in a ventilated enclosure, positioning the transformer’s core away from sensitive components to minimize electromagnetic interference. Label input/output terminals clearly to prevent miswiring during installation.

Add a 5mm LED with a 1kΩ series resistor as a power indicator–this also serves as a simple diagnostic tool. For overcurrent protection, fuse the primary winding at 500mA; replace with a higher rating if driving heavier loads. Measure idle current draw–consistent readings below 10mA indicate no leakage paths.

Finalize with a 10-minute soak test under full load, monitoring temperature rise. Excessive heating (>60°C) suggests inadequate cooling or transformer mismatch. Document each step’s voltage checks for troubleshooting–deviations from expected values point to specific component failures, not systemic design flaws.
