Complete 1930 Ford Model A Electrical Wiring Schematic Guide

Begin by isolating the battery ground before disconnecting any terminal. Corrosion at the starter solenoid is the most frequent failure point in vintage vehicles of this era–clean connections with a wire brush and apply dielectric grease to prevent future oxide buildup. The fusible link near the ammeter often degrades; replace it with modern 14-gauge tinned copper wire rated for 20 amps as a direct substitute, maintaining original circuit protection without altering stock appearance.

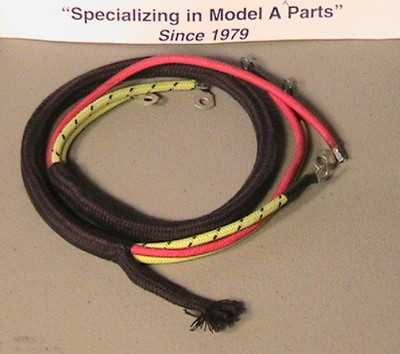

Trace the main harness from the generator to the voltage regulator, noting splices in cloth-wrapped insulation. Replace cracked segments with reproduction loom from suppliers specializing in pre-war components–they match OEM braided cotton coverings. The brass terminal connections at the distributor require periodic tightening; use a torque wrench set to 4 ft-lbs to avoid stripping threads. For ignition coils showing internal resistance beyond 3.5 ohms, replace with a sealed unit featuring epoxy-filled windings to eliminate moisture ingress.

Locate the headlight dimmer switch under the clutch pedal; its phenolic body commonly fractures. Rebuild it using a NOS replacement or upgrade to a modern microswitch housed in a 3D-printed adapter for a seamless retrofit. The taillight circuit typically shares a ground with the rear mounting bracket–sand the contact surface until bare metal is exposed, then attach a dedicated 10-gauge ground wire to the frame rail for consistent illumination. Verify all bulbs are 6V rated; modern 12V variants will instantly burn filaments.

For instruments, the ammeter needle’s erratic movement often stems from a loose shunt resistor. Secure it with solder and insulate with heat-shrink tubing. The fuel gauge sender should read between 10-70 ohms depending on float position–calibrate it by adjusting the rheostat screw in quarter-turn increments. When rewiring, label each terminal with masking tape and a permanent marker, cross-referencing with period-correct schematics to avoid reversed polarity that will destroy the voltage regulator.

Rebuilding a Classic Automobile’s Electrical System: Hands-On Approach

Start by stripping the chassis of all existing connections, labeling each wire with masking tape and a permanent marker–distinguish feed lines from ground paths. A 1928-era sedan retains six-volt positive ground polarity; reversing this polarity will destroy the original generator and voltage regulator. Use a multimeter set to resistance mode to test continuity across circuits before reinstalling any restored components.

Replace brittle cloth-wrapped cables with modern braided copper wiring of identical gauge (10 AWG for main feeds, 14 AWG for accessory circuits). Cut lengths precisely to match factory routing channels beneath the floorboards–excess slack causes abrasion against sharp metal edges. Crimp connectors with heat-shrink tubing to prevent moisture ingress where wires enter the dashboard and under-seat junction blocks.

Generator and Voltage Regulator Integration

Recondition the original three-brush generator by cleaning commutator surfaces with 600-grit sandpaper, then apply conductive grease to brush holders. The voltage regulator must be recalibrated to maintain 7.2–7.8 volts under load–use a test bench with a variable resistor replicating normal driving resistance curves. Failure to adjust properly results in either overcharging or insufficient power, damaging the ignition coil and headlights.

Route the main charging circuit forward from the generator terminal via a fused link (8 amp) mounted on the firewall, then split toward the ammeter and lighting system. Install a dedicated ground strap from the engine block to the chassis frame using 4 AWG cable terminated with a zinc-plated ring connector. Ignore this step and expect erratic ignition timing and dim running lights.

Wire the headlamps in parallel with independent grounds–early double-filament bulbs draw 32/21 candlepower each and require robust connections at the terminal block behind the radiator. Tail and instrument lights share a common 14 AWG return line to the ammeter; secure this wire inside a split loom conduit where it passes beneath the driver’s seat to prevent chafing.

Troubleshooting Critical Circuits

If the starter engages but the engine cranks slowly, bypass the solenoid with a direct jumper–if speed increases, replace the solenoid plunger spring or clean corroded contacts. For intermittent ignition failures, trace the primary coil wire from the distributor to the ignition switch, checking for oxidation at every terminal; sand surfaces to bare metal and coat with dielectric grease. Headlight dimming at idle indicates a voltage drop–test each segment of the charging circuit with a voltmeter, probing at the generator armature, regulator input, and battery positive post.

Finding Factory Electrical Hookups Under the Hood

Start by identifying the firewall bulkhead connector cluster–typically a dense grouping of six to twelve terminal studs threaded into a phenolic mounting plate. This junction links the main harness bundle (entering from the dashboard) to the engine compartment sub-circuits. Trace each stud back to its harness entry point; original builds used color-coded cloth insulation–black for ground returns, red for fused ignition feeds, white for headlamp circuits, and green for auxiliary systems like horns or generators. These colors rarely deviated; discrepancies usually signal aftermarket splices.

• Generator output terminal: Locate the armature post on the rear housing–often marked “A” or “ARM”–and confirm its lone red stripe lead connects directly to the voltage regulator “GEN” stud, bypassing any intermediary connectors.
• Starter solenoid trigger: Follow the small-gauge purple lead from the ignition switch solenoid terminal to its mating spade connector on the starter’s magnetic switch; this link should measure uninterrupted continuity when the key is turned to “start.”
• Distributor primary feed: The thin brown wire emerging from the coil’s “+” terminal must route straight to the ignition resistor (a ceramic block wired in series) before continuing to the ignition switch terminal marked “IGN”; any deviation suggests a bypass shunt.

Examine the fuse block–mounted either above the glove compartment or beneath the dash on early chassis–where incoming feeds split into branch circuits. Each blade-type fuse protects distinct loads: 10A for lighting, 15A for ignition, 20A for accessories. Validate each branch by back-probing the fuse socket’s input side while activating the corresponding system; dimmed or flickering responses point to corroded socket contacts or oxidized inline splices.

Use a non-contact voltage tester to verify live circuits without disturbing brittle insulation. Probe near suspected connection points–particularly the ammeter terminals and the main junction box–to detect residual voltage that confirms correct electrical flow. For disconnected systems, a continuity tester confirms intact pathways through the harness loom; measure between the battery negative post and each chassis ground lug while flexing the loom gently to expose intermittent breaks.

1. Inspect ground straps: Locate the braided copper grounding strap connecting the engine block to the frame rail; this path must exhibit zero resistance when measured with an ohmmeter–any measurable impedance indicates rusted mounting bolts or frayed strands.
2. Verify solenoid engagement: Trigger the starter by bridging its large-lug terminals (input and output) with an insulated screwdriver; a robust click accompanied by strong motor engagement confirms intact solenoid windings and clean terminal contacts.
3. Test dash indicator continuity: Momentarily connect the fuel gauge sender wire (green/yellow stripe) directly to chassis ground; the dash gauge should swing to “empty” promptly–failure suggests an open sender or bad instrument voltage regulator.

Document every termination point with high-resolution photographs before disturbing anything–pay special attention to the unique twist-and-tuck method used on loom-to-terminal connections, where bare conductor ends are wrapped clockwise around their studs then tightly folded under split washers. Recreate this exact orientation during reassembly to maintain factory-level clamp pressure and prevent terminal creep over time.

Replace any frayed wiring using the same gauge and insulation type–original specs prescribed 16-gauge for primary circuits (ignition, charging, starting) and 18-gauge for all others. Route replacement segments along the original loom paths, securing them with factory-style cloth-wrapped cable ties at identical intervals–typically every 6–8 inches–to prevent vibration-induced chafing against sharp metal edges.

Decoding Color Codes for Ignition and Lighting Circuits

Trace the main ignition feed on a vintage vehicle’s electrical schematic by locating the black wire with a red stripe–this is the standard primary power line from the battery to the ignition switch. Verify continuity with a multimeter at the switch’s *Battery* terminal before proceeding; resistance should read near zero ohms. If voltage drops below 6V under load, inspect the red-striped green wire (ground return) for corrosion at chassis connection points, particularly near the firewall or starter motor housing.

Lighting circuits use distinct color pairings to differentiate functions: yellow with black tracer handles low-beam headlights, while brown with white stripe controls taillights. For auxiliary lighting (e.g., dash or side markers), check solid purple–though rare, it may split into purple/white at bulb terminals. Replace any spliced connections with solder-sealed heat shrink tubing; twist-and-tape joints fail within 18 months under vibration. Use a 14-gauge wire gauge for lighting branches, downgrading to 16-gauge only for signal lamps with current under 3A.

Identify fuse assignments by color codes on the harness: blue wires typically serve the ignition coil circuit (breaker-point models), while green with yellow stripe routes to the generator’s field terminal. If converting to an electronic ignition module, reroute black/white (original points wire) to the module’s *IGN* input, but splice in a resistor (1.5Ω, 10W) to prevent voltage spikes. For brake lights, the white with black stripe wire must terminate at a double-contact bulb socket–single-contact sockets cause intermittent failures. Label all wires at both ends using heat-shrink labels or grease-pencil markings before final assembly.
