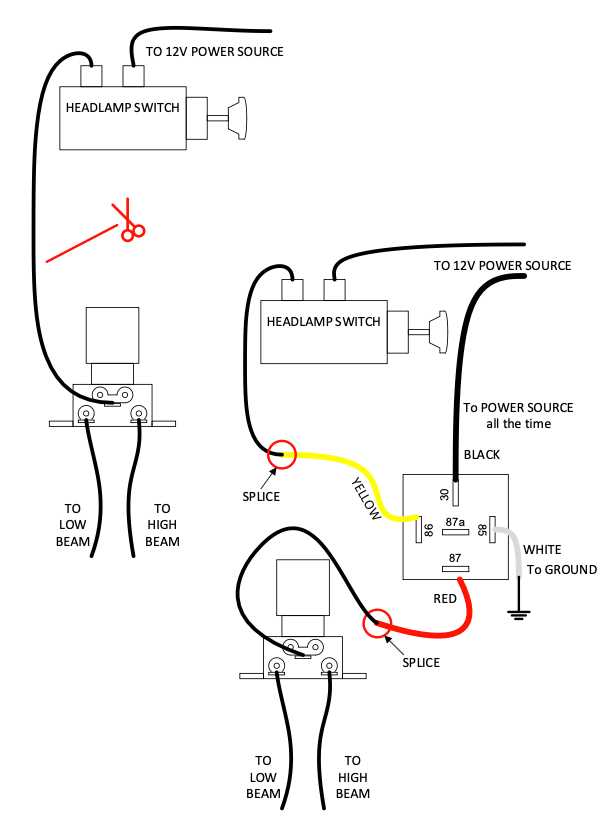

Complete 1956 Chevy Bel Air Headlight Switch Wiring Guide with Diagram
To restore proper function in a mid-century automobile’s illumination system, begin by isolating the control module situated beneath the dashboard, adjacent to the steering column. The original factory harness typically features a six-terminal connector, though corrosion or prior modifications may alter this configuration. Verify each terminal’s integrity with a multimeter set to continuity mode–critical paths include the battery feed (often a red or yellow wire with striped insulation), dimmer relay trigger (a light blue or white wire), and ground return (usually a black or dark green wire).
Disconnect the battery before probing to avoid short circuits. Trace the ignition-switched 12V line–this powers the control element when the key is engaged. A common failure point is the internal resistor, which regulates voltage to the instrument panel lamps; if bulbs flicker or fail to illuminate, test the resistor’s resistance (typically 1.5–3 ohms). Replace it if readings deviate by more than 10%.
For vehicles equipped with a two-speed wiper motor, note that its purple wire may share a fuse blocktap with the lighting circuit–cross-check this connection against factory schematics to rule out parasitic draws. When reassembling, use dielectric grease on terminal connections to prevent oxidation. If the control unit clicks but fails to activate lamps, inspect the mechanical contacts for pitting or misalignment; a light sanding with 400-grit emery cloth can restore function without full replacement.
Alternative sources for reference include Chilton’s manual 56-60 series or vintage GM service bulletins–these often document undocumented splices or factory recalls affecting the circuit. For non-standard installations (e.g., LED retrofits), add a load resistor in parallel to the bulb holder to prevent erratic behavior from the control module’s low-current sensitivity.
Classic Tri-Five Dash Control Electrical Layout Walkthrough
Locate the central harness plug behind the instrument cluster–it’s a black rectangular socket with eight female terminals. Pin 1 (closest to the steering column) supplies constant battery voltage, bypassing the ignition circuit. Pin 2 routes to the dash lamp rheostat; verify continuity here first if ambiance lights fail to dim smoothly.
Trace the thick red wire from Pin 3 directly to the high-beam relay under the driver-side fender; this path carries full current for main illumination filaments. Measurement across Pins 3 and 4 should read between 12.2V and 14.5V while engine runs–any drop below 12V suggests corroded bullet connectors at the firewall bulkhead.
Pin 5 links to the parking lamp circuit, activating tail and marker lamps simultaneously; use a 18-gauge fusible link at this junction to prevent overload. Check for 3 ohms resistance between Pin 5 and chassis ground–higher readings indicate oxidized chassis mount near the taillight housing.
Ground reference (Pin 8) requires a dedicated 10-gauge braided strap bolted to bare metal behind the gauges–avoid sharing this path with heater motor leads. Resistance between Pin 8 and battery negative should never exceed 0.3 ohms; reconnect with star washers and dielectric grease to maintain conductivity.
Toggle the stalk into low-beam position while monitoring current between Pins 6 and 1 with a multimeter; expect a brief 15-amp pulse at engagement followed by sustained 8-12 amps. Sudden surges above 18 amps necessitate inspection of bulb sockets for filament sag causing intermittent shorts.
For auxiliary fog units, tap into Pin 7 splice using crimp-on spade terminals rated for 20 amps minimum–route new wire parallel to the stock harness, securing with nylon ties every 8 inches. Seal splices with adhesive-lined shrink tubing to prevent moisture ingress that causes premature fuse failure.
Final integrity test: depress brake pedal while toggling through all lamp modes. Transient voltage spikes during switching mandate a 25-amp blade fuse immediately downstream of the battery junction box–use tinned copper lugs only for this connection.
Matching the Right Electrical Bundle for Your Classic Tri-Five Model Control Knob
Start by verifying the terminal layout on the back of your original control unit–early Bel Air and 210 series cars typically use a five-prong configuration (labeled A, B, C, D, E), while Nomad and truck variants may include an extra ground post (F). Measure the harness pin spacing: standard terminals sit on a 0.187-inch grid, but aftermarket replacements often deviate by ±0.010 inches, causing intermittent failures. Compare wire gauge: factory runs use 18-awg for main feeds and 20-awg for dimmer triggers–any thinner strands indicate substandard copies.
Inspect connector color coding against GM’s original manual supplement 1055925: red stripe powers the high beams, green stripe activates parking lamps, and black with white tracer grounds the dimmer relay. Remove the dash bezel to trace the loom path–original assemblies route beneath the heater core duct, with a nylon clip securing the harness at the firewall grommet. If bulbs flicker at idle, probe the battery-side plug (terminal A) for 12.6V with the key on–but expect voltage drop to 12.2V under load when both beams illuminate.
Sourcing Authentic Looms Without OEM Markings
Demand documentation proving harness provenance: reputable vendors stamp the loom jacket with “Delco-Remy” or “United Motors” die marks every 18 inches; counterfeits often omit this. Check wire insulation texture–original PVC feels slightly waxy, while modern cross-linked polyethylene (XLPE) sheaths lack this characteristic. Cross-reference part numbers: genuine 1030413 looms list in Chevrolet parts book 3741420; aftermarket equivalents like 4844962 may fit but require terminal crimping with AMP tool 49117.
Step-by-Step Terminal Hookups for Classic 1956 Bel Air Lighting Control
Begin by locating the instrument cluster rheostat behind the dash panel. The primary lead–typically sheathed in braided cloth–must attach to the upper-left spade terminal marked “BAT” on the control housing. Verify voltage with a multimeter: 12-12.6V DC should register when the ignition circuit is active. Omitting this check risks damaging the bimetallic strip inside the assembly.
Identify the dimmer relay connection next. The factory harness includes a single 16-gauge wire with yellow insulation and a black stripe–this snaps onto the “DIM” post on the rear of the unit. Failure to secure this properly will disable the low-beam override function. For accurate routing, feed the wire beneath the steering column support bracket to prevent chafing against the shift lever linkage.
Critical Connection Matrix
| Terminal Label | Wire Color (Factory) | Gauge | Function | Verification Method |
|---|---|---|---|---|
| BAT | Black braided cloth | 12 | Constant power feed | Multimeter: 12.6V key-off |
| ACC | Red with yellow stripe | 14 | Ignition-switched input | Voltage drop ≤0.2V when active |
| DIM | Yellow with black stripe | 16 | Dimmer relay trigger | Continuity test with beams toggled |
| LGT | Light green | 18 | Park/headlamp circuit output | Amperage ≤15A under load |
Route the light green lead from the “LGT” terminal to the fusible link junction block under the left fender. Use a 20-amp inline fuse holder for this path–never splice directly into the main harness. The fusible link serves as a fail-safe; bypassing it invites fire risk during short circuits. Check the connection path for voltage sag during operation; readings below 11.8V suggest corroded terminals or undersized wire.
Attach the red-with-yellow-stripe wire to the “ACC” post, ensuring it mates with the ignition switch’s “RUN” position output. This wire carries switched voltage only–confusing it with the constant power lead will drain the battery. Strip exactly 5/16″ of insulation from the end, then crimp using a yellow butt connector filled with dielectric grease to prevent oxidation.
Ground the unit via the lower-right terminal marked with a “-“. The original chassis used a 10-gauge bare copper wire bolted to the firewall mounting bracket. Modern restorations should replicate this with a dedicated 8-gauge ground strap secured to unpainted metal using a star washer. Confirm zero resistance between this point and the negative battery post–any reading above 0.1Ω indicates a compromised connection.
Standard Color Schemes and Roles in Classic Two-Tone Fleet Lighting Systems
Start wiring repairs by connecting the black wire directly to the chassis ground. This conductor serves as the primary return path for all circuit currents, ensuring stable operation under varying load conditions. Verify continuity with a multimeter before proceeding–resistance exceeding 0.5 ohms indicates corrosion requiring immediate attention.
The dark green strand carries voltage from the dimmer relay to the low beams. Trace this path carefully; any nicks or fading insulation near the firewall grommet often trigger intermittent failures. Use dielectric grease when reassembling connectors to prevent moisture ingress that accelerates oxidation.
Light blue cables feed the high-beam filaments. When testing, activate both filaments–only one should illuminate at a time. If both glow simultaneously, suspect a short between light blue and dark green inside the sealed beam unit. Replace the unit immediately to avoid draining the battery overnight.
A yellow stripe conductor delivers power from the ignition-switched fuse block to the control assembly. This line remains live even when the engine is off, so disconnect the battery before servicing. Failure to do so risks damaging the thermal circuit breaker embedded in the five-pin connector.
Less Common But Critical Conductors
The brown/tracer wire routes current to the dashboard illumination bulbs. Unlike most pathways, it lacks a fuse–shorts here can melt the instrument cluster bezels. Route this strand separately from high-current lines to prevent induced noise in sensitive gauges.
Check the white lead that loops back to the parking brake indicator. Though not part of the main beam network, its shared ground point often causes phantom flickering if corroded. Clean the steering column hinge bolt thoroughly during annual maintenance to maintain signal integrity.
When soldering replacements, use heat-shrink tubing rated for 125°C–standard vinyl sleeves degrade near halogen bulbs. Label each reconnected terminal with the original factory codes printed inside the housing cover for future reference.
