Complete Guide to Three Phase Induction Motor Wiring Schematics
Begin by connecting the stator windings in a star or delta configuration–delta for higher torque at startup, star for reduced line current. Use 6 leads from the windings, labeled U1-U2, V1-V2, and W1-W2. For a delta connection, link U2 to V1, V2 to W1, and W2 to U1, then attach the supply to U1, V1, and W1. Star setups require joining U2, V2, and W2 to form a neutral point, while U1, V1, and W1 connect to the mains.

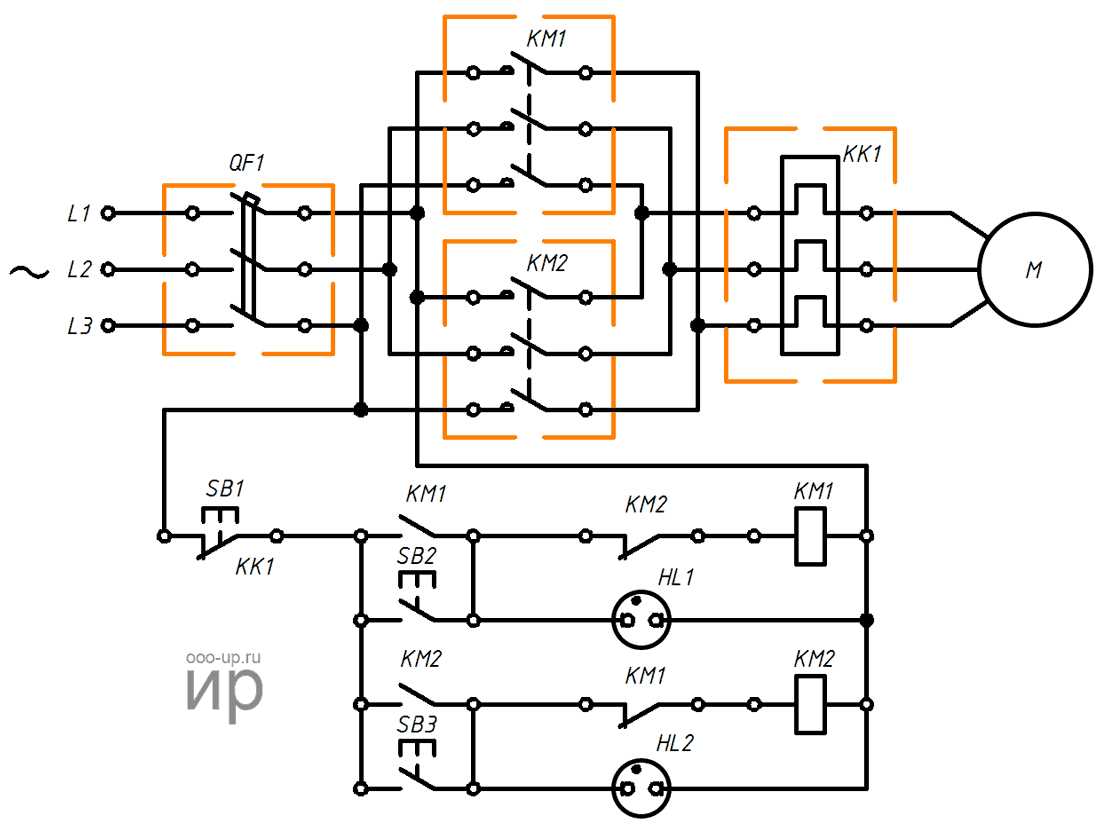

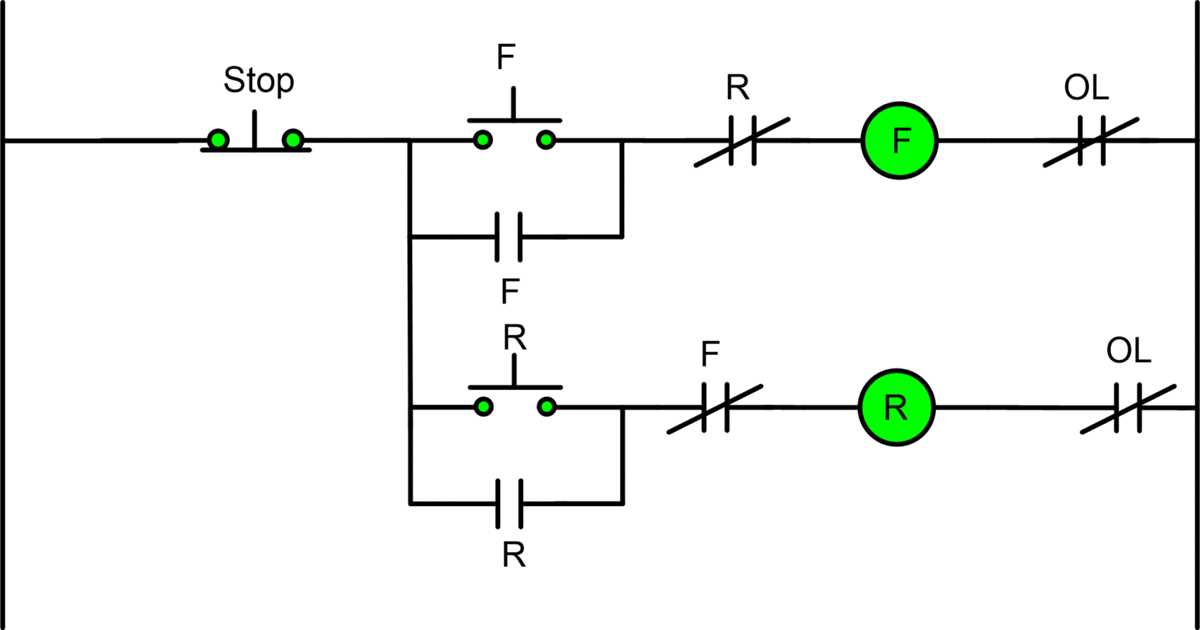

Integrate a rotary switch or contactor array to manage direction changes–swap any two supply lines (e.g., V1 and W1) to reverse rotation. Ensure the thermal overload relay is placed between the contactor and the drive terminals, calibrated to 1.1–1.25 times the rated current. For soft-start or variable speed needs, wire a frequency converter upstream; size it based on the drive’s kW rating, with a 120% overload capacity for transient loads.
Verify insulation resistance before energizing: disconnect all capacitors and measure across each winding with a 500V megohmmeter–values below 1MΩ indicate moisture ingress or damaged insulation. For high-inertia loads, add a braking resistor (0.1–0.5Ω/kW) across the DC bus terminals of the converter to dissipate regenerative energy. Ground the frame using a dedicated earth conductor (minimum 16mm² copper).
Use 3-core XLPE cables for supply lines, sized at 2–2.5A/mm² for copper; for 400V circuits, a 5.5kW drive requires 10mm² cross-section. Label all conductors per IEC 60445: brown/black for line 1, black/gray for line 2, and black/blue for line 3; neutral (if used) is light blue. Seal cable entries with IP55-rated glands to prevent dust or moisture ingress in industrial environments.
Test under no-load conditions first: apply 20% of rated voltage, confirm correct rotation (CW/CCW per application), and check for abnormal noise or vibration. Gradually increase to full voltage while monitoring line currents–imbalance exceeding 5% suggests faulty windings or misconnection. Final checks include verifying protective devices trip at 110–120% of rated current and confirming the converter’s DC bus stabilizes at ~560V for 400V AC input.
Understanding the Electrical Wiring of a Three-Stage Rotary Machine
Begin by identifying the primary components in the circuit layout: the stator windings, rotor core, and external power connections. The stator typically contains three sets of coils, spaced 120 degrees apart, connected either in a star (Y) or delta (Δ) configuration. Verify the arrangement using a multimeter–measure resistance between terminals to confirm balanced impedance across all windings. Uneven readings indicate faulty coils or incorrect wiring, which can lead to overheating or inefficient operation.
For star connections, one end of each winding is joined at a common neutral point, while the other ends link to the supply lines. This reduces voltage across individual coils by a factor of √3 compared to line voltage. Delta configurations connect the end of one winding to the start of the next, forming a closed loop where each junction connects to a power line. Delta setups deliver higher torque at lower speeds but draw more current under light loads. Always match the wiring scheme to the machine’s nameplate specifications to avoid mismatches with the power source.
Critical Steps for Accurate Representation
- Label each winding terminal clearly (e.g., U1-U2, V1-V2, W1-W2) to avoid confusion during assembly.
- Use color-coded wires to distinguish between live, neutral (if applicable), and ground connections.
- Include protective devices like overload relays and circuit breakers in the layout–position them between the power source and the machine to interrupt faults before they reach the windings.
- Add a capacitor bank if the system requires power factor correction, placing it on the incoming side of the starter.
When sketching the layout, represent the stator coils as three equally spaced rectangles or circles. Draw lines to show the star or delta junctions, ensuring no intersections occur unnecessarily–these clutter the diagram and increase error risk. For dynamic visuals, use arrows to denote the rotational magnetic field direction, starting from the first winding (connected to Line 1) and moving clockwise. Include terminal blocks and connectors in the diagram, noting screw sizes or crimp types if the machine requires frequent maintenance access.
Common Pitfalls and Troubleshooting
- Incorrect phase sequence: Swap any two supply lines to reverse rotation; mark corrected polarity on the diagram immediately.
- Open circuits: Check continuity in each winding path–an open link will show infinite resistance. Replace damaged coils or re-solder connections.
- Short circuits: Measure insulation resistance between windings and the frame (minimum 1 MΩ). If lower, dry the stator or replace compromised insulation tapes.
- Voltage unbalance: Use a power analyzer to detect discrepancies exceeding 2%. Isolate the issue to supply irregularities or internal faults.
For machines running on variable frequency drives (VFDs), modify the layout to include filtering components. Place reactors on the DC bus or output side to reduce harmonic distortion, which can erode winding insulation over time. Update the diagram to reflect these components, noting their voltage and current ratings. If the machine operates in hazardous environments, integrate explosion-proof enclosures and zener barriers, ensuring all cable glands meet IP66 or higher ingress protection standards.
Key Components of a 3-Phase Asynchronous Machine Wiring Configuration
Connect the stator windings in a delta (Δ) or wye (Y) arrangement based on voltage requirements–delta for 230V line-to-line systems and wye for 400V. Ensure terminal labels (U1, V1, W1 for start; U2, V2, W2 for end) match the datasheet to avoid reversed polarity, which reduces torque by up to 40% and increases no-load current.
Integrate a dual-voltage selector switch for reversible operations: wire terminals in series for high-voltage (Y) and parallel for low-voltage (Δ). Use 10 AWG copper wire for 5HP units and 6 AWG for 20HP+ models to prevent voltage drop exceeding 3% under full load. Verify insulation resistance between windings and frame with a 500V megohmmeter; minimum 1MΩ indicates proper grounding.
Mount overload relays on the main contactor with trip classes Class 10 (standard duty) or Class 20 (heavy duty). Calibrate relay settings to 115% of full-load current (FLC) for continuous operation and 150% FLC for intermittent loads. Install surge suppressors across coil terminals to eliminate transient spikes from switching operations, prolonging contactor lifespan by 30%.
Route control wiring separately from power cables using shielded twisted pair (STP) for signal integrity. Terminate shields at a single grounding point near the motor frame to block electromagnetic interference (EMI). Use NEMA Type 12 enclosures for dust-prone environments and Type 4X for washdown applications, ensuring gaskets comply with IP66 ingress protection standards.
Label all conductors with heat-shrink sleeves color-coded per IEC 60445: brown (L1), black (L2), gray (L3), blue (neutral), and green/yellow (earth). Verify rotational direction via a temporary jumper test–reversing any two supply leads flips rotation. For variable frequency drives (VFDs), include a sinusoidal filter to mitigate pulse-width modulation (PWM) harmonics, reducing bearing currents and extending bearing life to 15,000+ hours.
Step-by-Step Assembly of Stator and Rotor Connections
Begin by verifying the winding layout on the stationary component using a multimeter. Measure resistance between terminals to confirm balanced coils–typical values range 2–10 ohms for low-voltage machines, 15–100 ohms for high-voltage units. Mark terminals with alphanumeric labels (U1, V1, W1 for input; U2, V2, W2 for output) to prevent cross-connections.

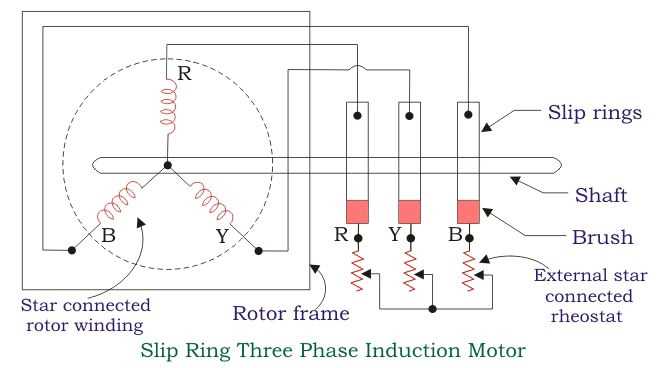

Align the rotating element’s slip rings or squirrel-cage bars with the stator slots before insertion. For wound rotors, connect brush holders to the slip rings with silver-plated copper wires (minimum 4 AWG for 10 kW designs). Secure connections with M5 stainless steel bolts tightened to 5 Nm torque–exceeding this risks ring deformation. Inspect air gap uniformity using feeler gauges; maintain 0.2–0.5 mm clearance for 4-pole designs, scaling proportionally with pole count.
Assemble the stationary windings in a star or delta configuration based on nameplate voltage. Use the table below to select winding scheme:
| Voltage Rating | Recommended Scheme | Line Current (Approx.) | Termination Method |
|---|---|---|---|
| 230V | Delta | 1.73 × coil current | Twist-and-solder, then heat-shrink tubing |
| 400V | Star | Coil current | Crimp lugs + M6 terminal block |
| 690V | Star | Coil current | Compression glands with epoxy seal |
Route leads through the casing’s conduit openings, ensuring bends exceed 6× cable diameter to prevent insulation stress. For outdoor installations, apply Class H varnish to windings before final assembly to resist moisture and corrosion. Secure leads with non-hygroscopic tie wraps spaced ≤150 mm apart.
Test rotational direction by applying temporary single-stage power (≤10% rated voltage) with all lids removed. Verify direction matches arrow on housing–reverse polarity on any two input lines to correct rotation. For dual-voltage units, jumper the neutral point internally if using star-delta starters to avoid circulating currents during transitions.
Finalize assembly by torqueing end bells to 25 Nm using a calibrated wrench. Apply thread locker to bolts exposed to vibration (e.g., marine or traction applications). Ground the frame via an M8 bolt directly to a copper busbar–never rely on painted surfaces. Confirm insulation resistance ≥1 MΩ using a 500V megohmmeter before energizing.
