Complete Ford F250 Trailer Wiring Diagram and Connection Guide 2000 Model

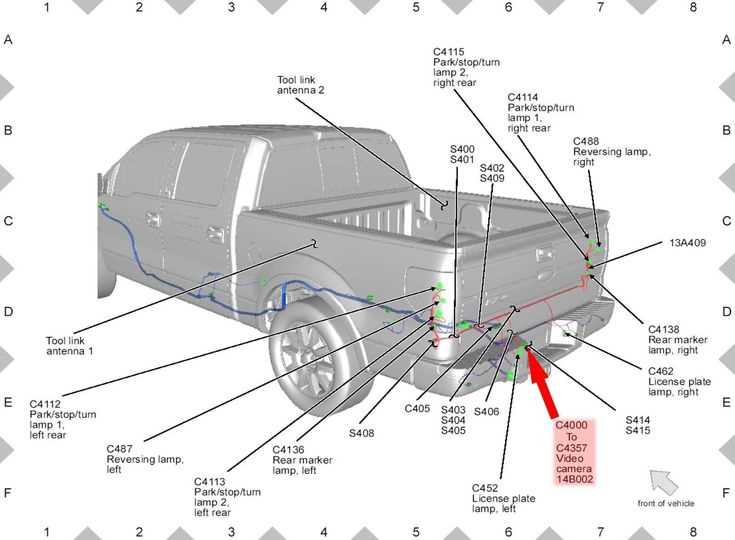

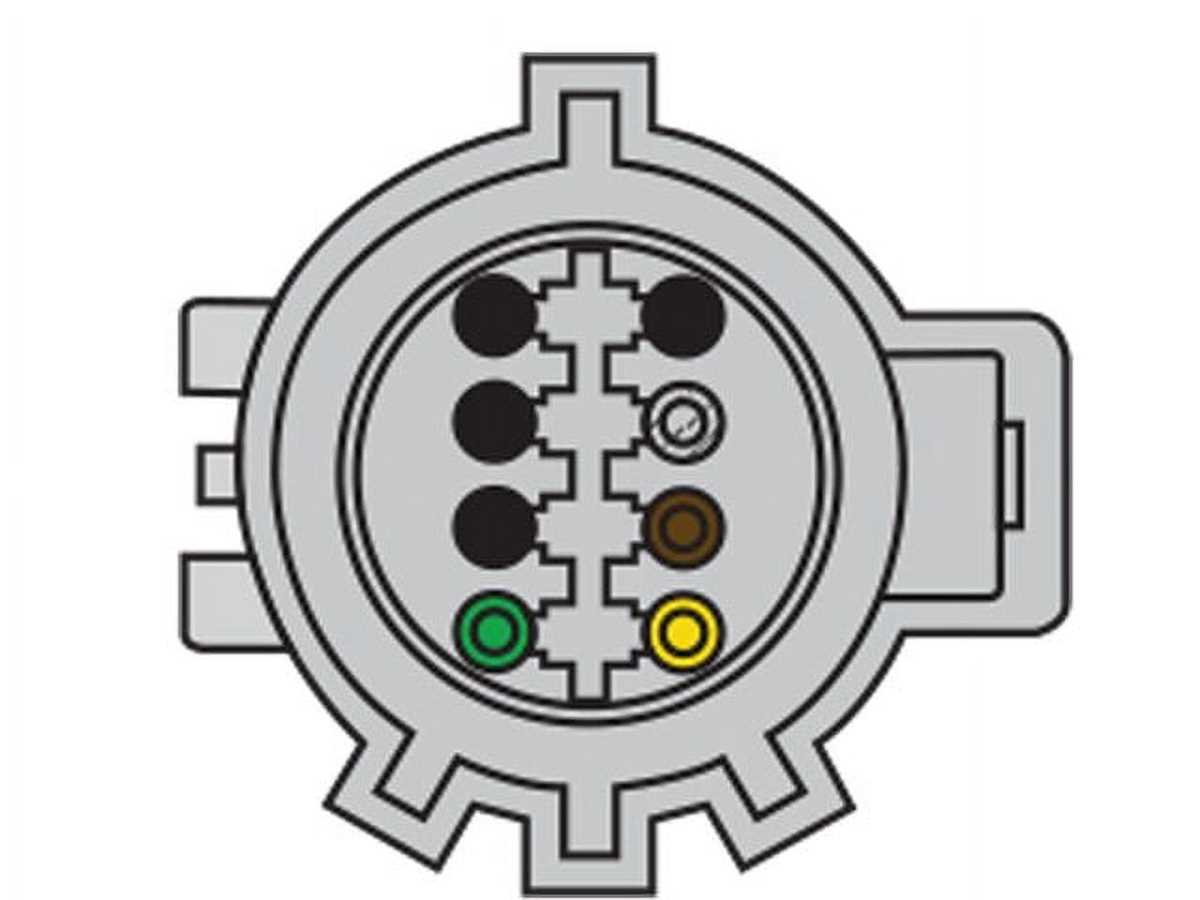

For a 1999–2001 model-year Super Duty rig, the 7-pin connector follows a standardized pinout–pin 1 (yellow) handles left turn/brake, pin 2 (green) controls right turn/brake, pin 3 (brown) powers running lights, pin 4 (white) serves as ground, pin 5 (blue) activates electric brakes, pin 6 (red) supplies auxiliary power (12V hot), and pin 7 (black) feeds reverse lights if equipped. Verify voltages at the trailer side plug with a multimeter before connecting: 12–14V on pins 1–3 during activation, 0 ohms on pin 4 to chassis, and 12V on pin 6 when the ignition is on.

Avoid splicing into factory wiring if corrosion is present–Ford’s original harness uses thin-gauge aluminum strands, prone to oxidation. Replace deteriorated sections with TWP (tinned wire copper) rated for 14 AWG minimum. The brake controller circuit (pin 5) requires a solid-state relay or time-delay module to prevent voltage spikes; install a 40-amp circuit breaker within 3 feet of the battery for auxiliary circuits.

For aftermarket upgrades, use a color-coded universal adapter: purple for backup lights, orange for 12V hot lead, and gray for reverse lockout on integrated brake systems. Heavy-duty towing packages often include a load-resistor network–ensure compatibility with LED trailer lights by adding 50W resistors across brake/turn circuits. Test under load: 20A continuous draw on running lights, 15A pulsed on brake/turn signals.

Critical failure points include the integrated power module (IPM) beneath the dashboard–inspect for melted plastic or inconsistent voltage drops. If the reverse light circuit is inactive, trace the purple wire to the neutral safety switch; corrosion here disables auxiliary functions. For extended trailering, add a separate cooling fan relay to the transmission cooler circuit, triggered by engine temp sensors at 210°F.

Guide to Electrical Hookup for Heavy-Duty Pickup Towing Systems

Locate the factory connector behind the rear bumper on the driver’s side. It’s a 7-pin round plug; disconnect it by pressing the release tab while pulling straight out.

Match wire colors to the following functions: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (brake controller), red (12V auxiliary), black (reverse lights). Use a multimeter set to 12V DC to verify each circuit before splicing.

Strip 3/8 inch of insulation from each wire. Crimp butt connectors using a ratcheting crimper; solder joints for extra durability, then heat-shrink tubing for waterproofing.

Route new harness along the frame rail, securing it every 18 inches with nylon zip ties. Avoid sharp edges or moving parts to prevent chafing.

Ground the white wire to a clean, bare metal surface on the chassis near the tailgate. Scrape paint and rust until shiny metal shows; attach with a star washer and stainless steel screw.

Test each function with a helper: have them activate turn signals, brakes, and lights while you observe the trailer connectors. Fix mismatches before finalizing install.

For brake controllers, use the blue wire from the pickup’s OEM harness, splicing it directly into the trailer-side blue wire. Adjust gain on the controller in 0.5 increments until trailer brakes engage smoothly without wheel lockup.

Seal all connections with dielectric grease before reassembling the connector. Wrap the plug in electrical tape for added moisture protection, especially around the pin sockets.

Finding the Electrical Connector for Towing on Your Heavy-Duty Pickup

Start beneath the rear bumper on the driver’s side–look for a rectangular plug with a protective cover. This connector, typically 7-pin, is mounted to the frame just ahead of the rear tire. If obscured by dirt or road grime, follow the tailpipe; the harness runs parallel to it along the undercarriage. Use a flashlight to spot the bundled wires entering a small bracket near the hitch receiver.

The plug’s location varies slightly depending on cab configuration. For regular and extended cab models, it sits approximately 18 inches forward of the rear axle. Crew cab variants position it closer to the rear wheel well. Trace the primary cable loom from the rear lights–it will lead directly to the connector. Avoid confusing it with the factory ABS module, which uses a similar bracket but contains fewer wires.

If the harness isn’t visible, check behind the rear fascia panel inside the cargo bed. Remove the plastic push clips securing the panel–some installations route the plug through an access hole just below the taillight assembly. Gently pull the panel outward to expose the wiring. Look for a label or zip tie marking the towing harness. Never force connections; the plug locks with a small tab that must be depressed before unplugging.

On trucks equipped with auxiliary equipment, an additional in-line fuse or relay may sit near the connector. This component often shares a housing with the factory trailer brake controller. Locate the fuse box under the hood or behind the kick panel on the driver’s side–consult the printed legend for the “tow/haul” identifier. If the harness appears spliced or aftermarket, verify the color codes match the OEM standard: green (right turn/brake), yellow (left turn/brake), brown (tail lights), white (ground), blue (brake signal), and black/red (battery feed).

Should the plug be missing altogether, follow the main wiring harness from the rear of the truck toward the front. The factory connector branches off near the spare tire mount. If the wires terminate in loose ends, strip half an inch of insulation and test for voltage with a multimeter–key-on should deliver 12 volts on the black/red wire. If no power is present, inspect the junction block behind the driver’s side taillight; corrosion here often disrupts the circuit.

Aftermarket installations sometimes secure the plug in unconventional locations, like inside the bumper valence or behind the driver’s seat kick panel. If the truck has been modified, check for a secondary harness near the trailer brake controller–aftermarket units frequently splice into the OEM loom under the dashboard. Use a wiring diagram specific to the installed controller to avoid misdiagnosing ghost issues.

For trucks with integrated towing packages, a secondary power module may be mounted behind the rear bumper crossmember. This module regulates voltage to the towing lights and auxiliary brakes. Locate it by feeling for a small plastic box–approximately 3×5 inches–bolted to the frame rail. The factory harness connects to it via a weatherproof six-pin plug. If the module is missing, the main harness may terminate in a dangling connector; reattach it to restore functionality.

Always disconnect the battery before servicing any undercarriage wiring. Road debris, moisture, and exhaust heat degrade insulation over time–look for brittle or cracked sections near the connector. Replace the harness if wires expose bare copper or emit a burnt odor. Secure loose sections with zip ties to prevent vibration damage. Test all functions with a helper: signal lights, brake lights, and auxiliary circuits should activate independently without flickering.

Step-by-Step Guide to Testing the 7-Way Plug on Heavy-Duty Vehicles

Disconnect the connector from the vehicle’s harness before testing. Use a multimeter set to 20V DC to avoid damaging sensitive circuits. Probe the ground pin (typically centered at position 6) first–it should register 0 ohms continuity to the chassis.

Check the 12V auxiliary pin (usually at position 2) with the ignition on. A reading below 10.5V indicates a weak battery, bad relay, or corroded fuse link. Trace back to the fuse box; locate fuse #27 for the tow circuit and verify with a fuse tester.

• Right turn/brake light (pin 5): With hazard lights activated, expect 10-12V pulses. No voltage suggests a broken wire or faulty bulb socket in the rear assembly.
• Left turn/brake light (pin 3): Same test procedure as above–swap leads if polarity is unclear.
• Tail/running light (pin 7): Voltage should hold steady at ~12V when park lights are engaged. Dim readings point to high resistance in the brown wire.

Inspect the reverse light pin (position 4) by engaging neutral with the engine running. Some models disable this circuit unless a transmission switch is triggered–consult the electrical manual for jumper procedures if needed.

Verify trailer brake output (pin 1) by connecting a brake controller. The voltage should match the controller’s output setting when manually triggered. Absence of voltage requires checking the blue wire back to the brake module–look for melted insulation near the frame rail.

Advanced Pinpoint Checks

1. Back-feed test: Apply 12V directly to each pin from a known-good source (e.g., spare battery). The corresponding function should activate without blowing fuses or tripping flashers. Failure implicates a short between wires or a dead solenoid.
2. Voltage drop test: With all circuits under load (e.g., lights on), measure voltage across each pin and its chassis ground. A drop exceeding 0.5V indicates corroded terminals–clean with a wire brush and dielectric grease.
3. Harness continuity: Unplug both ends of the 7-way harness and test each wire end-to-end. Infinite resistance means a break–use a tone generator to trace hidden damage under the cab or bed liners.

Reassemble with stainless steel terminals if corrosion is evident. Crimp connectors with a heat-shrink gun to seal against moisture. Avoid twist-on splices–water ingress causes intermittent failures within weeks.
