Complete 2001 Audi A4 Stereo Radio Wiring Diagram Guide
Start with the factory service manual for the B6 generation sedan or wagon–this document includes color-coded connector pinouts and power distribution charts for the head unit, amplifier, and satellite modules. If the manual is unavailable, trace the harness from the back of the unit: the 16-pin ISO connector carries permanent 12V (yellow), accessory 12V (red), ground (black), and speaker outputs (gray/white, gray/black, green/violet, green/red). Label each wire with masking tape before disconnecting anything.
Use a multimeter set to 20V DC: probe between ground and the yellow wire–voltage should read battery level even with ignition off. If it doesn’t, inspect the fuse labeled “Radio” in the driver’s side dash panel. A blown fuse often indicates a short in the harness near the climate control actuator; reroute the bundle away from sharp metal edges.
For aftermarket integration, match the new head unit’s harness to an ISO adapter–avoid cutting factory wires. The adapter’s speaker wires correspond to the CAN bus color scheme: front left (gray/white), front right (gray/black), rear left (green/violet), rear right (green/red). Verify impedance with a tone generator before final connection to prevent amplifier damage.
Online forums host exact schematics for specific trims; search by VIN to filter out variations. European models with navigation include a separate amplifier harness–locate the round 12-pin connector beneath the passenger seat. If the display flickers, check the pink/blue wire for 5V reference voltage; missing power points to a faulty climate control module.
Store schematics on a smartphone and carry a set of hex keys–removing the lower dash panel requires unfastening six 8mm bolts. Label each disconnected plug with masking tape to prevent misinstallation. Keep a spare 10A fuse in the glovebox; common failure points include corroded ground points behind the battery tray.
Electrical Schematic for 2001 A4 Audio System Integration
Locate the orange/white wire at connector C (16-pin ISO) for constant 12V power–this bypasses ignition-dependent circuits. Splice directly to the aftermarket head unit’s red lead using a crimp connector, ensuring a 20-gauge minimum wire gauge to prevent voltage drop. The brown/white ground cable at pin 4 of the same connector must terminate at a bare chassis point, preferably near the dash mounting bolts; sand away paint for optimal conductivity.
Identify the green/red (front left) and green/black (front right) wires at connector A–these carry amplified signals to the factory speakers. Use a T-harness with built-in load resistors (2Ω, 10W) if retaining the OEM amplifier, or bypass entirely by connecting aftermarket RCA cables to the head unit’s outputs with a line-out converter set to 500mV input sensitivity. Avoid tapping into the yellow/blue (telephone mute) or red/yellow (speed signal) unless integrating navigation.
For retained steering wheel controls, wire the purple/green (data bus+) and purple/white (CAN-L) leads to a compatible interface module like the iDatalink Maestro RR or Axxess ASWC-1. Program the module for Bose or non-Bose systems via the included software–select the correct “A4/S4 1998-2001” profile. Test each function before finalizing dash reassembly to prevent pinched wires behind the climate control panel.
Verify all connections with a multimeter before powering up. Probe the orange/white wire for 12.6V±0.3V with the key off; the brown/white should read 0Ω to chassis. If the head unit powers down after 10 minutes, enable the “memory saver” setting in the vehicle’s body control module (address 19 in VCDS). Disconnect the black/yellow airbag warning wire at the yellow 4-pin connector behind the glovebox to avoid false faults during installation.
Finding the Right Electrical Schematic for Your 2001 Audi A4 Multimedia System
Start by identifying the exact trim and regional specifications of your vehicle, as connector layouts differ between European and North American models. The factory documentation for B5 platform sedans includes separate schematics for Symphony I (single-DIN) and Concert (double-DIN) units–verify your head unit model number etched on the metal casing before proceeding.
Consult the official repair manual ELSAwin or its digital successor, Audi Erwin, accessible through authorized service portals. Search for wiring charts under the “Electrical Equipment” section of Group 97, where pin assignments for antenna amplifiers, speaker outputs, and power feeds are detailed with color-coding standards (e.g., T32a/1 for constant 12V, T32a/4 for ignition-switched).
Alternative Sources for Schematic Verification
Aftermarket forums like AudiWorld or Ross-Tech Wiki host user-uploaded electrical references, but cross-check with OEM data to avoid mismatches. Third-party wiring kits from brands like Metra or Scosche often include simplified connection diagrams tailored to popular aftermarket stereos–compare these with factory layouts to spot discrepancies in ground loops or signal wires.

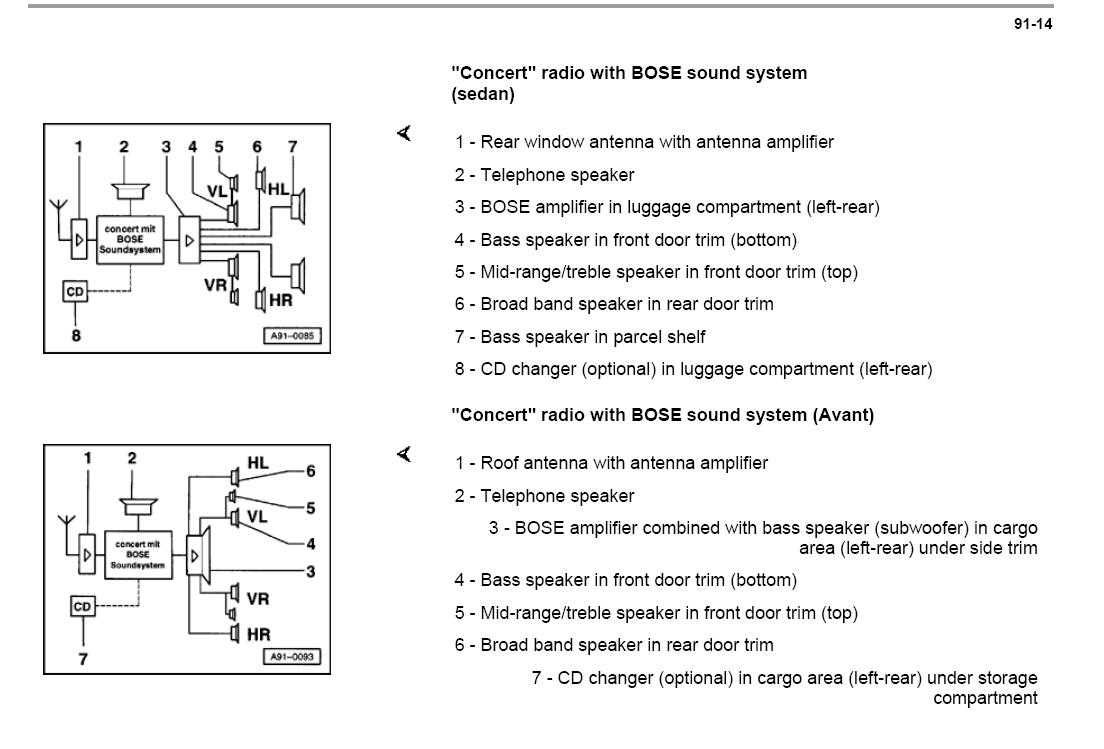

For vehicles with Bose premium sound systems, note the separate amplifier wiring (typically behind the rear seat or in the trunk), which requires an additional four-channel harness. The amplifier’s power line (thick red/green wire) must be spliced directly to the battery positive, while the turn-on lead (thin blue/white) triggers via the head unit’s remote output.
Label all connectors during disassembly, especially the quadlock plug (T32/T80) containing up to forty-eight pins. Misaligned pins can damage the CAN bus controller, leading to erratic instrument cluster behavior. Use a multimeter to confirm voltage at pins 4 (ground), 7 (illumination), and 15 (switched power) before reconnecting.
If installing an aftermarket system, prioritize schematics that include the ISO 10487 standard for power, speaker, and mute wires. Some adapters omit steering wheel control wiring–verify compatibility with resistor-based interfaces like iSimple or Axxess to retain functionality. For heated seats or navigation retrofits, isolate the K-line (pin T32a/19) used for diagnostic communication to prevent data conflicts.
Locating Power and Ground Leads in the B6 Sedan Infotainment Connector
Start by probing the 16-pin ISO plug (gray, labeled “II”) with a 12 V test light while the ignition is off. Pin 4 (constant +12 V) will illuminate the tester brightly–this is the memory feed fused at 10 A (fuse S237). Pin 7 (switched +12 V) activates only when the key is turned to ACC or ON; verify with the same tester while cycling the ignition. If neither lead responds, check the in-line 15 A fuse (T30) behind the glovebox or inspect the red/black harness for open circuits.
A multimeter set to continuity mode confirms ground connections: touch the black probe to chassis metal and the red probe to pin 5 (main ground) or pin 12 (illumination return). Both should read under 0.5 Ω; readings above indicate corrosion at the torsen T-30 bolt (common on early B6 chassis). For aftermarket installs, crimp ring terminals to 16-gauge wire and secure directly to the bolt beneath the center console, avoiding factory splice joints prone to oxidation.
Connector Pinout Reference
| Pin | Function | Wire Color | Fuse/Relay |
|---|---|---|---|
| 4 | Battery (constant +12 V) | Red/black | S237 (10 A) |
| 7 | Ignition (switched +12 V) | Yellow/red | T30 (15 A) |
| 5 | Primary ground | Brown | N/A |
| 12 | Dimmer return | Brown/white | N/A |
For amplifier-trigger wires (pins 14/15), expect ~5 V on the gray/blue lead (pin 14) when the unit powers up–this turns on external EQ modules. If integrating a subwoofer, splice a 4.7 kΩ resistor in-line to prevent “pop” noises during startup. Always twist signal ground (pin 12) with audio grounds to reduce interference; bundle with foil tape if routing near high-current cables.
Step-by-Step Guide to Integrating a New Head Unit with Factory Harness
Begin by locating the vehicle’s original connector behind the stock audio system. Most European models from this era use a 20-pin ISO block–verify the pinout with a multimeter if documentation is unavailable. Identify power (constant, ignition, and accessory), speaker outputs (positive/negative for each channel), and illumination wires. Mismatched colors are common; cross-reference with an adapter harness if needed.
Secure a vehicle-specific adapter that bridges the factory plug to the aftermarket unit’s connector. These adapters eliminate manual splicing but may require minor adjustments for compatibility. Check for built-in amplifiers or external signal processors–some premium trims reroute speaker outputs through a separate control module, complicating direct connections.
- Constant 12V (yellow) – Must connect to a fuse or dedicated battery line to retain settings.
- Ignition/Accessory (red) – Powers the unit only when the key is in the ON position.
- Ground (black) – Attach to a bare metal surface, preferably near the original grounding point.
- Illumination (orange) – Dims the display in sync with dashboard lights.
For speaker connections, match polarity precisely: inverted channels will weaken bass and create phase cancellation. If the factory system includes a built-in amplifier, bypass it by tapping into the raw speaker wires (usually thicker) rather than the thin signal wires leading to the amp. Use crimp connectors or solder joints–avoid twisting wires, as vibration can loosen them over time.
Before finalizing, test the setup with the ignition off to confirm no parasitic drain. Turn the key to ACC and verify all functions: volume control, steering wheel interfaces (if retained), and media playback. If static or distortion occurs, recheck ground integrity and speaker wire routing–keep them separated from power cables to minimize interference.
For models with Bose or similar premium audio, additional steps are required. The factory amplifier often includes equalization presets incompatible with aftermarket decks. Either install an interface module to translate signals or connect directly to the amp’s input wires, bypassing its processing entirely. Some adapters include a line converter for this purpose.
- Disconnect the negative battery terminal before handling any electrical components.
- Route the new unit’s harness through the dash without pinching wires.
- Reconnect the battery and test each feature individually.
- Secure loose cables with zip ties to prevent rattling or short circuits.
