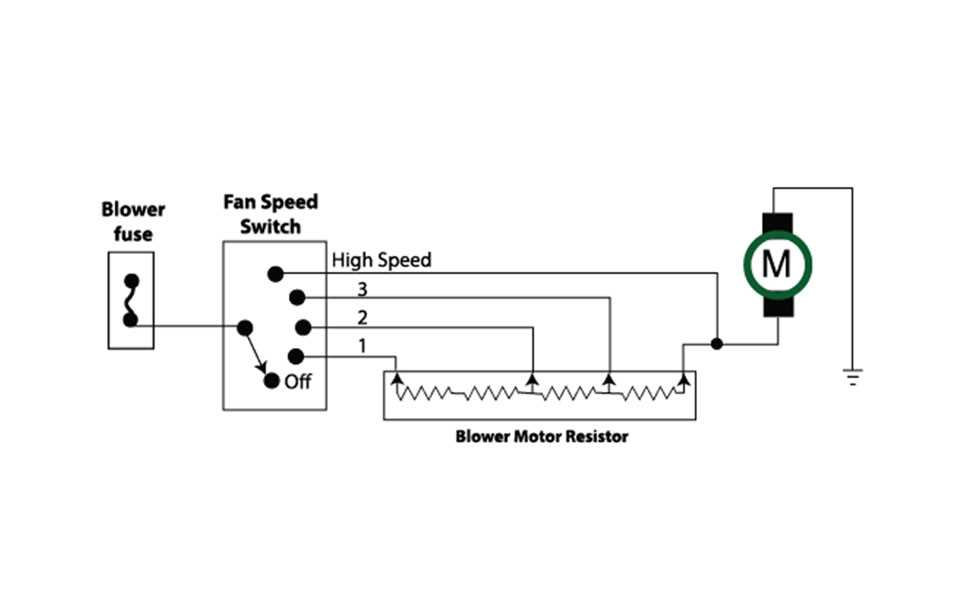

Ford F150 Blower Motor Resistor Wiring Diagram for 2013 Model
If your climate control fan operates only on high speed, the culprit is often a failed fixed-resistor pack. Locate this component behind the glovebox near the A/C evaporator housing–it’s identifiable by a heat sink and a six-pin electrical connector. Before replacing, test the input voltage at the harness: you should read 12V at the red wire (constant) and ground at the black. Absence of power indicates a fusible link failure or open circuit in the dash fuse panel.
Disconnect the battery before probing deeper. Use a multimeter to trace continuity from the resistor’s pins to the control module: pin 3 (yellow/light blue) should show resistance decreasing incrementally as you cycle through fan speeds. If readings are erratic or infinite, the module’s internal traces have corroded–common after prolonged exposure to moisture. Clean contacts with electrical-grade solvent and recheck; persistent faults require replacing the resistor pack or the climate control head.
For accurate wiring reference, cross-reference the color codes with the vehicle’s service manual specific to the trim and engine variant. Trucks equipped with the 3.5L EcoBoost or 6.2L V8 may have slight wiring variations at the resistor’s fourth and fifth pins (orange/white and blue/white stripes). Verify these against the harness diagram before splicing repairs–incorrect connections can trigger diagnostic trouble codes P0520 to P0524, activating a “limited blower operation” mode.
When rewiring, use 18-gauge tinned copper wire with heat-resistant insulation–standard automotive primary wire degrades under the resistor’s thermal load. Solder splices and seal with adhesive-lined shrink tubing to prevent oxidation. Reinstall the glovebox last, ensuring no fasteners press against the resistor’s body, which could cause shorts.
Step-by-Step Guide to Replacing the Climate Control Module in Your Pickup
Locate the faulty component behind the dashboard’s lower panel on the passenger side–disconnect the battery’s negative terminal first to prevent shorts. The harness connecting the fan speed regulator typically locks via a small tab; press it firmly while pulling the connector straight out to avoid damaging pins. Label each wire before removal if colors match the factory service manual (common sequences: yellow/black for high speed, brown/white for low).
Test continuity across each circuit with a multimeter before installation: a healthy path should read near 0 ohms, while burnt traces show infinite resistance. Replace the entire assembly if corrosion is visible on the contacts–aftermarket units often include upgraded heat sinks to extend lifespan under heavy loads. Secure the new module using the original mounting screws and torque them to 3-5 Nm to prevent vibration-induced failures.
Reattach the electrical harness by aligning the keyed connector–misalignment risks bent pins or intermittent failures. Reconnect the battery, then cycle through all speed settings to verify smooth operation before reassembling trim panels. Common failure points include the lowest speed setting due to prolonged current draw; ensure the cabin air filter is clean to reduce strain on the system.
For aftermarket upgrades, consider a solid-state speed controller–these eliminate mechanical wear but require precise voltage calibration. Soldered connections prove more reliable than crimp terminals in high-heat environments; use heat-shrink tubing to insulate splices. If replacing the entire climate fan assembly, match the cubic feet per minute (CFM) rating to avoid overloading the system–stock specs range between 350-450 CFM depending on trim.
How to Find the Climate Control Module in Your Heavy-Duty Pickup
Begin by removing the lower dashboard panel beneath the steering column. This panel is secured with two 7mm screws near the outer edges–use a magnetic ratchet to prevent losing them. Once removed, set the panel aside to access the wiring cluster.
The component sits directly behind the fuse box, identifiable by its distinctive rectangular housing with a black plastic cover and six electrical connectors attached. If obstructed, disconnect the main fuse block harness temporarily by squeezing the release tabs and sliding it outward.
- Trace the large cable harness from the cabin fan assembly–it terminates at this module.
- Check for a metallic grounding strap bolted to the chassis nearby, which serves as a key visual landmark.
- The unit is mounted on a support bracket; gentle upward pressure will release it from its clips.
For late-model variants with dual climate zones, the module may reside slightly to the driver’s side, adjacent to the footwell vent duct. Shine a flashlight to confirm its location–look for the multi-pin connector with color-coded wires (typically orange, yellow, and black).
If the connector appears corroded or the terminals show heat damage, the device likely requires replacement. Note the orientation of the wiring harness before disconnection; mismatching pins during reinstallation can cause erratic fan operation.
Key Precautions During Inspection
- Avoid forcing the release clamps–apply even pressure to prevent breaking the plastic retention tabs.
- Disconnect the battery’s negative terminal before handling electrical components to prevent short circuits.
- Label each wire with masking tape if removing the harness for repairs, ensuring correct reconnection.
On trucks equipped with trailer brake controllers or auxiliary systems, the module’s position may shift slightly due to additional wiring. In such cases, follow the main vent duct from the passenger side toward the center console to relocate it.
Guide to Electrical Connection Color Sequences for Climate Control Module
Identify the harness connector at the rear of the cabin’s air distribution box before proceeding. Pin locations are standardized for most configurations–use a multimeter to confirm voltage absence before handling wires.
Trace the following conductor paths from the climate control switch to the fixed-speed device:
| Circuit Function | Standard Color Code | Typical Voltage Range | Connector Pin Position |
|---|---|---|---|
| High-speed direct feed | Solid green/orange | 11.8–14.2 V | Pin 1 (largest gauge) |
| Lowest speed control | Light blue w/ white stripe | 0.5–2.3 V (PWM) | Pin 4 (thin wire) |
| Intermediate speed 1 | White w/ violet stripe | 4.7–7.1 V | Pin 2 |
| Intermediate speed 2 | Dark blue w/ yellow stripe | 7.2–9.8 V | Pin 3 |
| Ground return | Black or black w/ light stripe | 0 V | Chassis stud or Pin 5 |
Strip insulation only where solder or crimp terminals attach; avoid exposing excess bare conductor. Verify continuity between each speed tap and the fixed-speed device’s corresponding terminal before re-assembling the dash panel.
If retrofitting an aftermarket module, match the harness colors precisely–common deviations include swapped white/violet and dark blue/yellow pairs on third-party units. Always isolate the battery negative terminal before inserting or removing connectors to prevent arcing.
For visual confirmation, back-probe each circuit with the ignition ON and climate control set to the desired speed. Record measured values against the table above–discrepancies above ±0.3 V suggest damaged conductors or faulty relays.
Secure loose conductors with nylon loom or spiral wrap; route away from sharp edges or moving linkages beneath the passenger-side dashboard. Re-test all speeds after reassembly to ensure consistent airflow rates at each setting.
Verifying Current Flow and Path Integrity in the Fan Speed Control Module
Disconnect the vehicle’s battery before probing any component. Use a multimeter set to 20V DC and attach the ground probe to the chassis. Probe each terminal on the climate control module’s connector while the ignition is in the ON position and the fan switch engaged at varying speeds. Expected readings for low, medium, and high settings are 3-5V, 6-8V, and 10-12V respectively. Deviations beyond ±0.5V indicate a faulty control path or corroded connector pins.

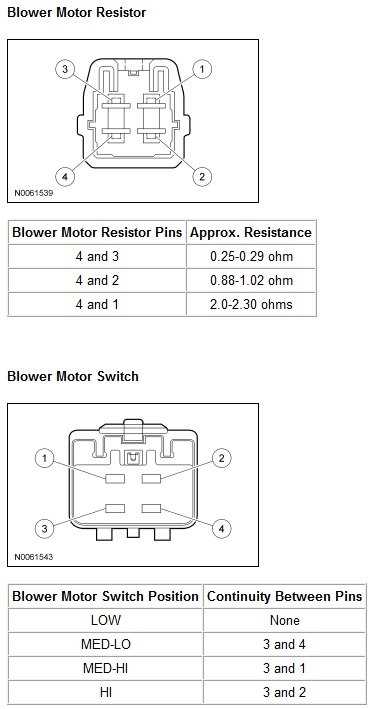

Switch the meter to ohms mode (200Ω range) to check for open or shorted pathways in the speed selector network. Isolate the module by unplugging its harness. Measure resistance between the input terminal and each output contact. Typical values should mirror the factory specs: 0.8Ω for the lowest setting, rising incrementally to 3.2Ω for the highest. Values exceeding 5Ω or showing infinite resistance signal a compromised element requiring replacement.
Trace the current path from the fuse box to the module. Identify the 30A fuse linked to the climate control system–verify its conductivity first. If intact, follow the red power wire (18 AWG) to the module using a continuity tester. An audible tone should confirm an unbroken circuit. Silence or intermittent tones point to chafed insulation or broken strands within the harness, requiring splicing or full wire replacement.
Inspect the module’s ground connection at the cabin firewall. Scrape off any corrosion and tighten the grounding bolt. Set the multimeter to continuity mode and test between the module’s ground terminal and the chassis. A reading below 0.2Ω confirms a solid ground; higher readings necessitate cleaning or relocating the ground point to a corrosion-free spot.
Evaluate the switch assembly for internal faults. Remove the dashboard panel to access the selector knob. With the meter in ohms mode, press each speed button while measuring resistance across the switch terminals. Expected values correlate with the module’s specs: near-zero resistance for direct contact positions, rising with each setting. Erratic readings demand switch replacement.
Examine connector pins for oxidation or bent contacts. Apply dielectric grease after cleaning with electrical contact cleaner. Reconnect the harness and wiggle each wire while monitoring voltage drops on the multimeter. A stable reading rules out intermittent faults; fluctuations mandate reseating connectors or soldering broken joints.
For final validation, reconnect the battery and cycle through all speeds while listening for smooth airflow adjustment. Inconsistent fan operation post-testing confirms residual issues in the speed control network, warranting a replacement module. Document all readings for baseline reference during future diagnostics.
