Complete Wiring Diagram Guide for the 2005 Ford Freestyle Electrical System
Locate the underhood fuse block first–it houses critical power distribution points for the 3.0L Duratec engine. Pin 4 on the 60-pin ECM connector delivers a constant 12V supply; verify this before troubleshooting sensor circuits. The oxygen sensor pre-catalyst (Bank 1 Sensor 1) shares a 0.8mm yellow wire with the PCM, terminating at terminal 71. Any voltage drop here disrupts fuel trims.
For interior components, trace the 10A “ACC Radio” fuse (position 13B) in the instrument panel fuse box. This powers the audio module and accessory delay relay, identifiable by a violet/yellow striped lead. If the rear defogger inoperative, probe connector C245 for a 5V reference at the rear window grid–failure often indicates an open in the tan/light green circuit between the GEM module and defogger timer.
Door locks rely on the body control module’s output at connector C142. Pin 1 delivers ground; pin 14 carries a switched 12V signal. The left rear door actuator uses a 1.0mm red/orange wire–interruption severs lock/unlock functionality. Replace the entire harness if chafing is detected near the rocker panel.
Transmission wiring harness plugs into the TCM via a 16-pin connector (terminals 1-8 for solenoid control). Inspect the tan/white wire at pin 16–corrosion here triggers limp mode. For ABS diagnostics, focus on the 35-pin module connector: pins 1-8 handle wheel speed signals, each paired with a twisted 0.5mm blue/white trace. A single break compromises traction control.
Electrical Blueprint Reference for Mid-2000s Crossover Utility Vehicle
Begin troubleshooting by locating the central junction box beneath the dashboard on the driver’s side–fuse panel JB-1 houses critical connections for powertrain control, lighting circuits, and accessory feeds. Use a multimeter set to 20V DC to verify pin voltages against the manufacturer’s voltage table: pins A1 (constant 12V), B3 (switched ignition), and C7 (ground reference) should read within ±0.5V of specifications.
For climate system diagnostics, trace the A/C pressure transducer wires (light blue/black stripe) to connector C212 near the firewall. Probe resistance across the sensor terminals–normal range is 100-130 ohms at ambient temperature. Any deviation suggests a faulty transducer or corroded splice at S104, which requires silver solder repair to prevent intermittent failure.
Key Harness Sections and Pinouts
- Engine bay harness (main): Connector C303 (48-pin, black) links the PCM to fuel injectors, coil packs, and O2 sensors. Pins 1–8 correspond to injectors 1–4 (bank 1) and 5–8 (bank 2), with waveform analysis at 2ms pulse width during idle.
- Instrument cluster: Connector C401 (24-pin, white) carries signals for the tachometer (pin 5, yellow/white), fuel level (pin 12, orange/black), and check engine light (pin 19, red). Backprobing via a T-pin avoids damaging the terminals during voltage checks.
- Rear liftgate module: Connector C245 (12-pin, gray) controls latch motor (pins 3–4) and wiper motor (pins 7–8). Test latch operation by applying 12V directly–listen for a single click; two clicks indicate a worn gear mechanism.
When repairing damaged wires, use heat-shrink tubing with adhesive lining (3/16″ diameter) instead of electrical tape–this prevents moisture ingress in high-vibration areas like the door jambs. For splices, strip 5/8″ of insulation and twist strands clockwise before crimping with a butt connector, then solder the joint and cover with heat shrink.
For anti-theft system issues, focus on the PATS transceiver ring around the ignition cylinder. Probe the green/white wire (pin 2 at C219) for a 5V signal when the key is present. Absence of voltage suggests a broken coil in the ring–replace the ring as a unit rather than attempting repair.
- Disconnect the battery’s negative terminal before probing any airbag circuit (yellow wires).
- Label all disconnected connectors with masking tape to avoid misrouting during reassembly.
- Use a non-contact voltage tester to confirm power is off before handling live circuits.
- Store the original schematics in a waterproof sleeve taped to the underside of the glovebox for future reference.
Identifying Primary Cable Assembly Junctions in the Crossover SUV Variant
Begin beneath the dashboard on the driver’s side, adjacent to the steering column pedestal. Remove the lower trim panel secured by two 8mm bolts–one near the pedal assembly, the other beneath the fuse box cover. The main harness emerges here, splitting into three key branches: instrument cluster feeder (blue/white stripe), powertrain control module (PCM) link (solid green), and body control module (BCM) interface (yellow/green stripe). Trace the BCM branch first–it threads downward through the firewall grommet toward the engine bay, terminating at a 12-port connector behind the battery tray.
For engine compartment access, disconnect the negative terminal, then tilt the battery forward to reveal the tray’s rear. The PCM connector sits to the right of the air intake resonator, identified by its dual-locking tab and 60-pin interface–split into two rows of 30. Label each row sequentially (A1–A30 top, B1–B30 bottom) using masking tape prior to disassembly. The green harness mentioned earlier attaches at pins B12 (ignition feed), B18 (sensor ground), and A7 (throttle position signal). Cross-reference pin assignments with the following reference values:
| Pin | Function | Expected Voltage (Key ON) |
|---|---|---|
| A7 | Throttle Position Signal | 0.5–4.8V |
| B12 | Ignition Feed | 11.8–13.2V |
| B18 | Sensor Ground | ~0V |
Behind the glove compartment, depress the two plastic tabs on the cabin filter housing to remove the assembly. The BCM harness runs horizontally along the HVAC ductwork, terminating at a 42-pin connector. This junction divides into sub-harnesses–two 14-pin plugs (blue for lighting control, gray for accessory circuits) and one 12-pin orange plug managing climate actuators. Verify continuity between orange plug pin 6 (compressor clutch relay) and ground using a multimeter–open circuits here often cause A/C failure. For rear systems, crawl beneath the rear cargo floor; the tailgate actuator loom plugs into a 16-pin rectangular connector near the spare tire well, identifiable by its purple/black wires.
Use a flexible inspection mirror to inspect the passenger-side firewall grommet where the dash harness transitions into the engine bay. Check for chafing against the brake master cylinder lines–common failure points include corroded fusible links (thick red/blue wires) or intermittent shorts at bulkhead connectors. If testing auxillary circuits (e.g., heated mirrors or audio amplifier), probe the gray 14-pin connector behind the driver’s kick panel–pin 10 supplies 12V fused ignition for add-on accessories, while pin 3 grounds any aftermarket modules.
Decoding Chromatic Markings in the Crossover’s Harness Network
Start with the powertrain control module (PCM) harness–primary ignition, fuel injector, and sensor circuits consistently use orange (OGE) for 12V constant power and violet (VIO) with a white tracer for switched ignition feed. Verify these leads before disassembly; corrosion at splice points S310 and S425 near the firewall can mimic circuit failure. Replace any degraded wiring with cross-linked polyethylene (XLPE) insulation rated to 105°C to prevent heat-induced resistance.
Headlight and fog lamp assemblies rely on distinct color pairs: low-beam circuits employ light blue (LT BLU) paired with black (BLK) for grounding, while high-beam inputs switch to dark green (DK GRN) with a yellow (YEL) stripe. Trace these from the multifunction switch to the under-hood fuse box (connector C2029) using a tone generator set to 1 kHz–intermittent shorts often hide behind the instrument panel cluster, where tight bends fatigue copper strands.
Turn signal and hazard functions use a tri-color scheme: front signals route through tan (TAN) with red (RED) tracer, rear lamps via gray (GRY) with yellow tracer, and hazard flasher feed resides in brown (BRN) with orange stripe. Split the harness at the B-pillar connector (C142) to isolate faults; damaged insulation here triggers false bulb-out warnings in the instrument cluster’s LCM module.
Anti-lock brake sensors (wheel speed) share a standardized scheme: left front uses white (WHT) with dark green stripe, right front–gray with light blue stripe, rear circuits mirror front but substitute red tracer for rear-left (white/red) and black for rear-right (gray/black). Probe sensor connectors with a milliohm meter–readings above 2.5Ω indicate partial opens, often caused by salt intrusion at the knuckle splice (S193).
HVAC blower motor and cabin fan resistor block circuits follow a reversed polarity convention: blower high-speed utilizes black/orange (BLK/OGE) for direct battery feed, while lower speeds tap through white/light blue (WHT/LT BLU) at the resistor pack. Corroded terminals at the firewall bulkhead (C301) degrade current flow–tin-plated crimp connectors resist oxidation better than bare copper when servicing.
Rear wiper, defroster grid, and liftgate release circuits adopt a split-color strategy: solid dark blue (DK BLU) powers the liftgate motor, while red/light green (RED/LT GRN) marks the heated rear window grid. Check for voltage drop across the defroster relay (K17) under the cargo floor–readings below 11.3V suggest internal contact pitting, necessitating relay replacement rather than cleaning.

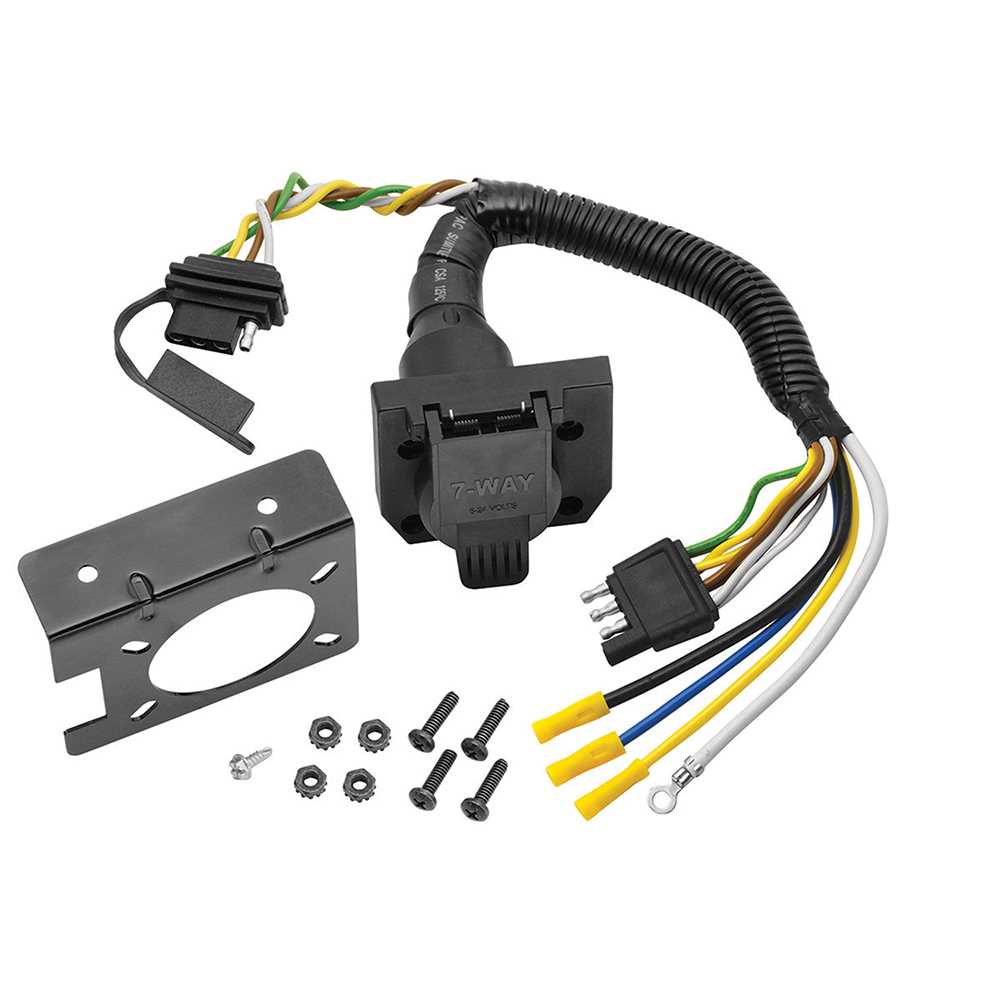

Auxiliary power outlets and trailer tow circuits reserve black (BLK) with pink (PNK) stripe for fused direct battery input and solid yellow for trailer brake controller output. Inspect the seven-way connector behind the rear bumper–water ingress here mimics intermittent shorts; dielectric grease fill after cleaning restores conductivity without signal lag.
