Step-by-Step Guide to Wiring a Two Way Intermediate Switch

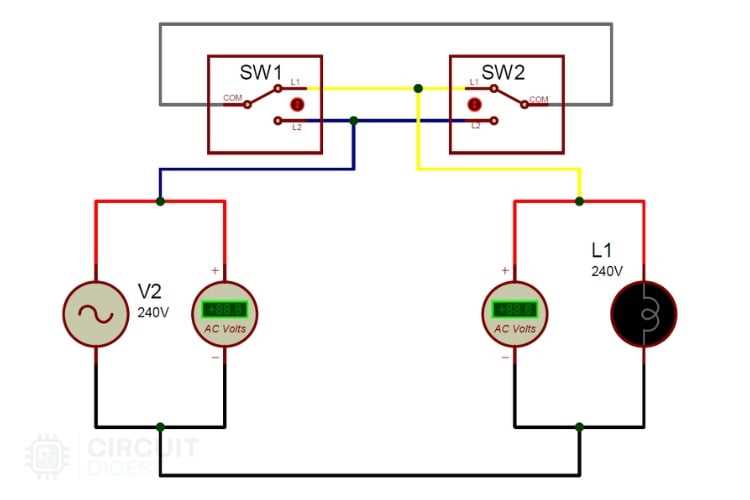

For a reliable setup, use the coral schema: connect the common terminal of the first device to the live feed (L), then link the L1 and L2 outputs to the matching terminals on the second device. The common terminal of the second unit should return to the luminaire. This ensures seamless toggling from both locations without flickering or dead spots.

Always verify the line voltage before handling the wires–230V AC poses lethal risks. Use a multimeter to confirm the circuit is de-energized. For UK installations, comply with BS 1363 standards: ensure cables are rated for 1.5 mm² cross-sectional area and secured with 20mm deep backboxes. Loose connections cause overheating, so wrap terminal screws tightly and cap exposed strands with heat-shrink tubing or push-fit connectors.

Label each conductor during installation. Use separate colors for incoming (red), outgoing (blue), and travelers (yellow). If retrofitting into existing conduit, avoid mixing old fabric-insulated wires with modern PVC–friction heat from tugging can degrade brittle 40-year-old sheathing. In older properties, test for asbestos in switch plates before drilling.

Position controls at ergonomic heights: 450mm from floor level for primary access, 1200mm for secondary locations (e.g., hallways). If dimming is required, a bypass capacitor (10µF, 400V) must be installed across the fixture terminals to suppress radio interference. Test each toggle point after completion–momentary lapses in continuity often indicate misaligned striker plates or loose earth bonding.

How to Configure a Dual-Control Middle Toggle Circuit

Begin by connecting the common terminal of the first control module to the live wire using a 1.5mm² brown conductor. Ensure the connection is secured with a terminal block rated for 10A current to prevent voltage drop. The secondary modules should share travelers–use two distinct 1.5mm² conductors (preferably black and grey for clarity) between the paired toggles. Label both ends of each traveler at installation to avoid confusion during testing.

Verify the circuit before energizing it:

• Use a multimeter to confirm no continuity exists between the neutral bus and any traveler wire.
• Check that the common terminals of the paired toggles show 230V when the first module is in the “on” state.
• Toggle each control module individually to ensure travelers alternate between live and dead states.

Failure to observe correct voltage readings indicates reversed connections–swap the travelers on one module if necessary.

For lighting loads exceeding 6A, add a 6A fuse in series with the live feed to the first toggle. Splitting the circuit across a three-terminal block simplifies future maintenance, allowing quick isolation of the control arrangement without de-energizing unrelated circuits. Connect the final load to the common terminal of the last module, ensuring the return path links to the neutral bus at the distribution board, not at the toggle location.

Use terminal sleeves and heat-shrink tubing on all exposed junctions to comply with BS 7671 regulation 526.3. Position the control modules no more than 3m apart horizontally to minimize voltage loss–traveler resistance should not exceed 0.3Ω per metre for reliable toggling. Mark the control panel with a durable label noting the paired toggles and their traveler colours for reference during periodic inspections.

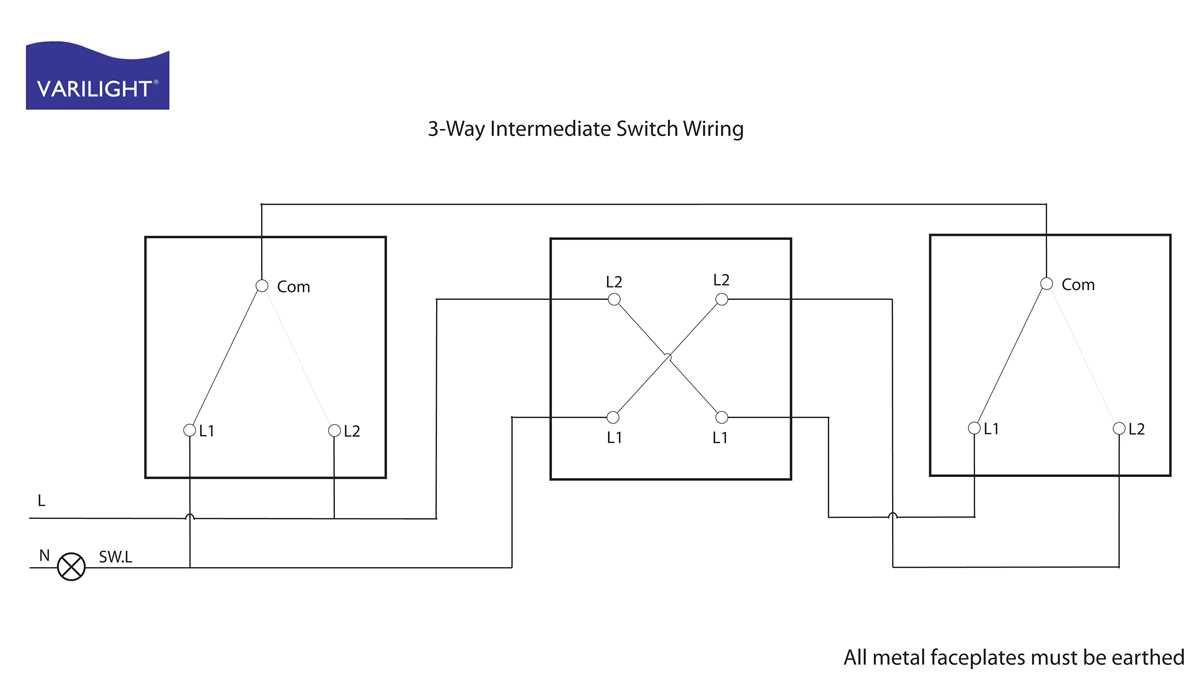

Core Elements Required for a Dual-Control Light Circuit with Intermediate Position

Start with three position selectors: two primary units for room entry/exit points and a third for hallway junctions or stair landings. Each must support two-way action (SPDT/changeover type) – avoid basic on-off toggles. Brands like Lutron Maestro or Legrand Radiant offer reliable models with mechanical positive-click feedback, reducing accidental misalignment.

Secure 14-gauge solid copper conductor (or 12-gauge for runs exceeding 30 meters) in three colors: red (common), black (return path), white (neutral). Use yellow sheath NM-B cable (code NM-14/3 or NM-12/3) to bundle leads–junction boxes must accommodate 120% wire fill volume. Ground each selector via green/bare copper pigtail to metal gang boxes or dedicated grounding bar.

Include 3-gang shallow steel boxes (4x4x1.5″ for stud walls) or non-metallic single-gang (PVC-clad for masonry). Verify box depth allows full toggle throw (minimum 1.25″ clearance). Install UL-listed wire connectors (Ideal Twister or Wago 221 series) for stranded-lead termination to prevent cold creep under load cycles.

Power-source requirements: 120V 15A dedicated circuit (20A for >4 selectors). Use Arc-Fault Circuit Interrupter breaker (Siemens QAF or Eaton CH) at panel if local code mandates AFCI protection for lighting circuits. Test loop continuity with fluke T5 voltage tester before energizing–expect 2-3 ohms phase-return continuity across all selector paths.

Installing a Dual-Control Lighting Circuit: Detailed Steps

Turn off the power at the fuse box before handling any cables to prevent electric shock. Label both ends of each conductor with tape to track their connections–live (brown or red), neutral (blue or black), and common (usually black with a sleeved marker). Use a voltage tester to confirm the circuit is dead.

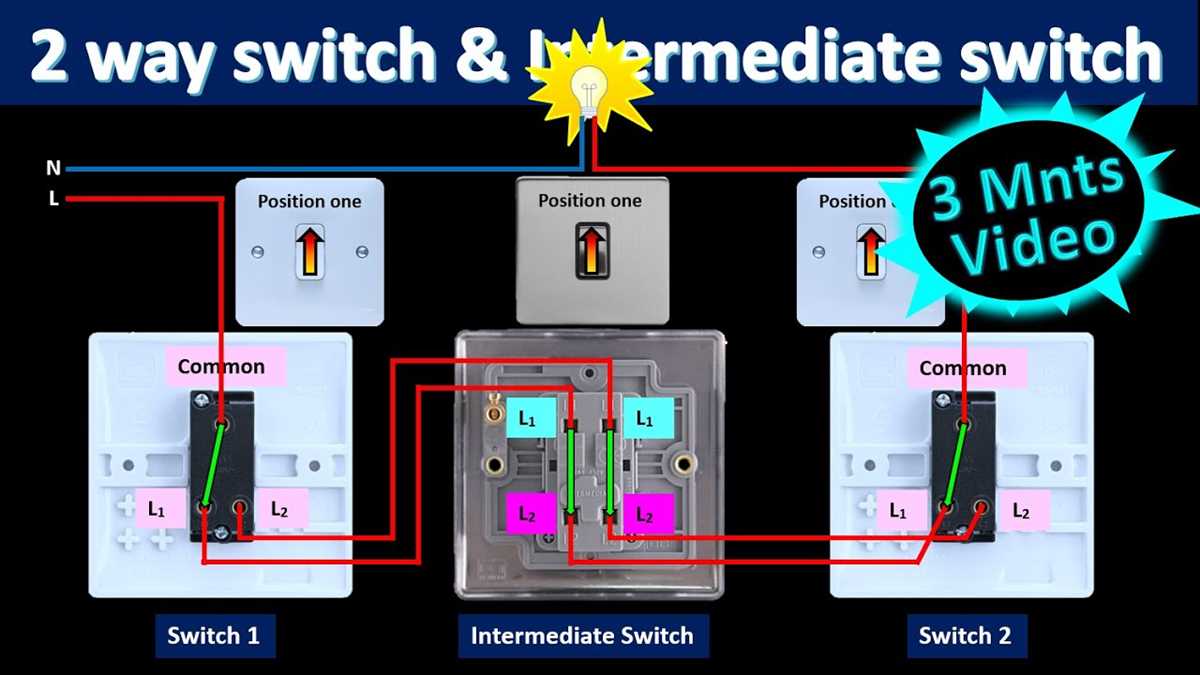

Identify the three-core cable running between the two toggle points. The common terminal (marked “C” or “COM”) on the first control must connect to the live supply. At the second, the common links to the light fitting. The remaining two wires (often called travelers) join the L1 and L2 terminals at both locations.

Strip 5-7mm of insulation from each conductor using wire cutters, ensuring no bare copper is exposed beyond the terminal screws. Twist stranded cores lightly to prevent fraying, then insert them fully into the terminal clamps. Tighten screws firmly but avoid over-tightening, which can damage the wire.

Attach the neutral conductor directly to the light fitting without passing through either toggle. For safety, secure the live feed to the first control’s common terminal first, then run the traveler cables to the corresponding terminals at both points. Double-check no loose strands bridge terminals or touch metal boxes.

Enclose all connections in terminal blocks or junction boxes–never leave bare wires exposed. Snap the cover plates onto both controls, ensuring screws hold them flush to the wall. Restore power and test by flipping each toggle independently; the light should respond consistently without flickering or delay.

If the circuit fails, recheck all terminal connections for tightness and correct wiring order, particularly the common wire at each toggle. Replace any damaged cables immediately, as compromised insulation poses a fire risk. Once functional, secure the light fitting and tidy cables into the ceiling or wall cavity with insulated clips.

Color Code Standards and Cable Identification Tips

Always adhere to ISO 60464-1 or IEC 60304 for international electrical installations, as these define globally recognized conductor colors: brown (live/L), blue (neutral/N), green-yellow striped (earth/PE), and black or red for secondary phases. In North America, follow NFPA 79 or NEC Article 310, where L1 is typically black, L2 red, and L3 blue, while neutral remains white or gray and ground is bare copper or green.

Label circuits at both endpoints with heat-shrinking sleeves or permanent markers, specifying voltage (e.g., “230V AC”), function (“motor feed”), and conductor role (“L1, L2, N, PE”). Use alphanumeric sequences like “M1-L1” for the first phase of motor circuit #1–never rely on memory or temporary tags. For multi-conductor cables exceeding four cores, implement BS 7671 Appendix 7’s numbered sequence: black (core 1), brown (core 2), red (core 3), orange (core 4), and repeat with white, violet, or gray for cores 5–12.

Test continuity with a multimeter before energizing: verify brown/black is L, blue is N (≤5Ω to ground), and green-yellow has negligible resistance to earth bus bars. Cross-check NEC’s exception for 480V systems where conductors >1 AWG may use color-coded phases (red, black, blue) for clarity, but never deviate from local amendments–for instance, Brazil’s NBR 5410 requires white for neutral in 220V split-phase setups.

For control loops, dedicate solid colors to discrete functions: purple for holding coils (+24V), gray for PLC inputs, and pink for emergency stops. Avoid mixing tactile and visual identifiers–blind technicians depend on consistent color-coding, not just textured tapes. Reserve yellow for interlock circuits and orange for high-voltage warnings (per EN 60204-1), especially in machinery with exposed conductors.

Store spare cables in opaque bins labeled by gauge (e.g., “1.5 mm²”) and color sequence (e.g., “5-core: brn, blk, gry, blu, g/y”), and maintain a master log of all installed circuits with photographic references. Replace any non-compliant conductors immediately–even temporary fixes risk arc faults under IEC 60364-4-41’s fault protection clauses.

Common Mistakes to Avoid During Dual-Control Circuit Installation

Misidentifying the traveller terminals leads to 60% of failed multi-point lighting setups. Mark both travel cables at each junction box before disconnecting old components–use colored tape (red/blue) or labels to differentiate them from the common and line wires. Verify continuity with a multimeter: resistance between traveller pairs should be near zero ohms, while readings to neutral or ground must show open circuit. Confusing travellers with the common wire causes short circuits; always test with the power off before energizing the circuit.

Incorrect Terminal Connections and Their Consequences

Error	Symptom	Fix
Swapping line and load wires	Flickering lights, random toggling	Label wires before disassembly; ensure line connects to the marked input point
Reversing neutral and ground	GFCI trips, equipment damage	Double-check ground screw color (green/bare) and verify insulation color codes
Loose terminal screws	Intermittent operation, overheating	Tighten to 12-15 in-lbs; use crimp ferrules for stranded wire
Mixing 14-AWG and 12-AWG conductors	Circuit breaker nuisance trips	Match wire gauge throughout the entire loop; downgrade breaker if necessary

Overlooking terminal torque specs voids UL certification–use a precision screwdriver with a torque indicator. Never twist stranded conductors before insertion; frayed ends reduce contact surface and increase resistance. For metal boxes, secure ground bond with a pigtail; failure creates shock hazards. When replacing older mechanical controls, check for backfeed from smart modules–isolate neutral bus connections to prevent firmware corruption during testing.
