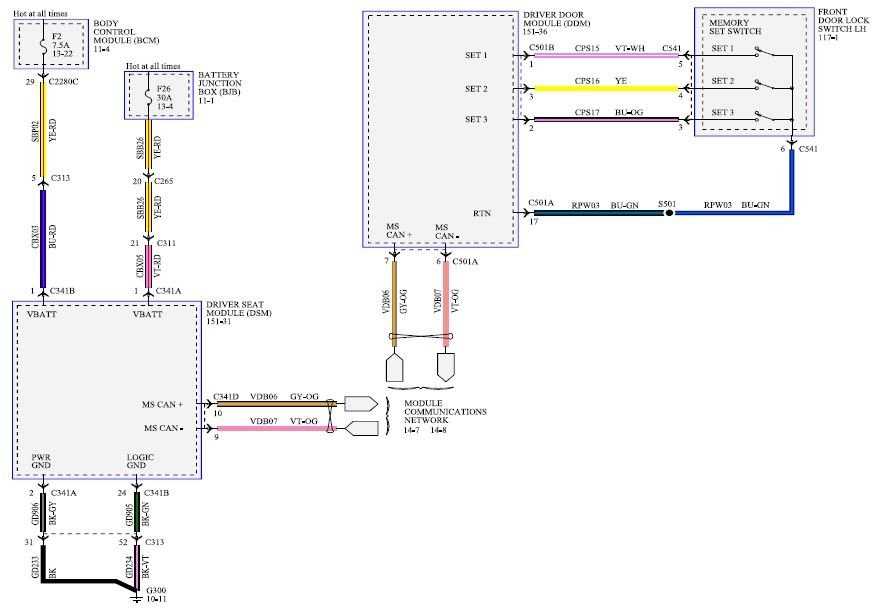

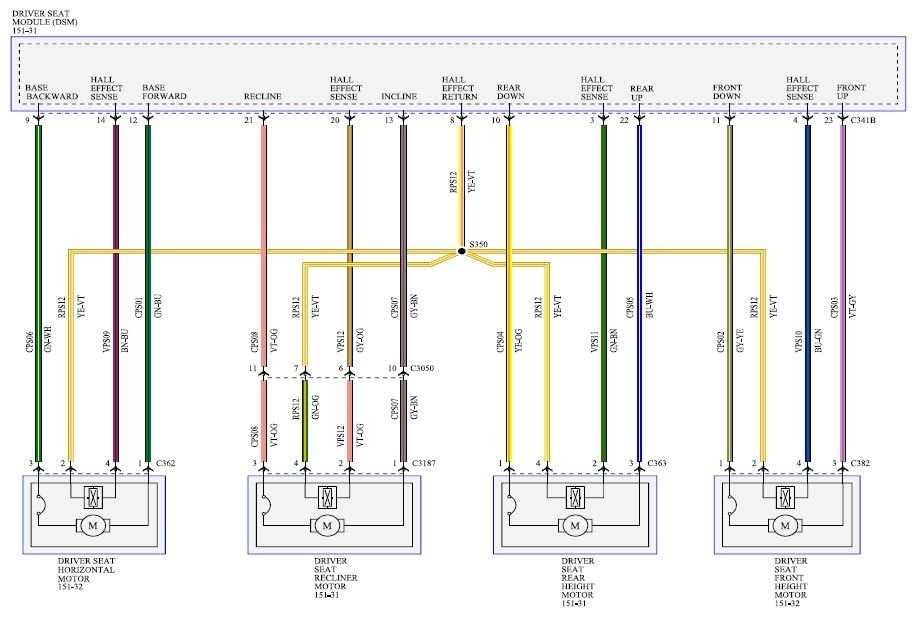

Ford F250 2008 Seat Wiring Diagram Full Guide and Troubleshooting
For accurate troubleshooting, begin by disconnecting the battery ground cable to prevent short circuits during inspection. Locate the wiring harness under the driver or passenger cushion–common failure points include frayed insulation near hinge points and corroded connectors exposed to moisture. Use a multimeter set to continuity mode to verify signal paths between the control module and lumbar support actuators; resistance above 5 ohms indicates partial breaks requiring repair.
Check power windows and heated elements using a test light: probe the red/yellow striped wire (12V constant) and ground to confirm voltage delivery. If the seat adjustment motor falters, examine the yellow/black wire (ground trigger) at the switch–intermittent connection here often disrupts recliner function. Replace damaged terminal pins with gold-plated versions to resist oxidation, especially in humid or salt-exposed environments.
Access the under-seat module by removing the carpeting trim panel–hidden clips secure this section, requiring a trim removal tool to avoid breakage. Cross-reference wire colors with service manual schematics: misalignment here causes false fault codes in the restraint system. For memory seat setups, ensure the blue/white data bus wire maintains uninterrupted connectivity to the instrument cluster; disruptions here prevent position recall.
When rewiring, use TXL-rated wiring (size 18 AWG) for high-current circuits like seat heaters, avoiding brittle PVC-insulated replacements prone to chafing. Secure harnesses with split loom tubing near suspension components, where vibration accelerates wear. For diagnostic trouble codes related to seat sensors, erase stored faults after repairs–persistent codes may require module reset via OBD-II scan tool.
Ford Super Duty Truck Driver’s Seat Electrical Layout: Hands-On Solutions
Begin by locating the harness connector beneath the adjustable base–typically secured by a 10mm bolt and hidden behind a plastic trim panel labeled “AIR SUSPENSION” or “MEMORY MODULE.” Disconnect the battery negative terminal to prevent short circuits; wait three minutes for capacitor discharge before touching terminals. Probe pin positions with a multimeter: pin 1 delivers 12V constant (red/yellow stripe), pin 3 activates lumbar support (solid orange), and pin 5 serves ground (black/white stripe). If heated functions fail, trace the pink/light blue wire from the climate control module to the cushion thermostat; resistance should read 1-3 ohms at room temperature. Replace any splice showing infinite resistance–corrosion often appears as white powder beneath heat shrink tubing.
- Tools needed: T25 Torx driver, spade connectors (14-16 AWG), wire strippers, dielectric grease.
- Common failure points: door jamb switch wiring rubs against seat track; reroute with loomed conduit.
- Reassembly order: connectors → trim → harness → bolt torque (8-10 Nm).
- Verify lumbar operation by pressing buttons while monitoring pin 3 voltage–should toggle between 0V and 12V.
Finding Electrical Connector Points Beneath the Super Duty Cab
Begin by removing the driver or passenger side lower trim panel beneath the chair–this requires a 7mm socket to detach the three bolts securing it. The panel snaps off with minimal force once unbolted, revealing the main junction for power and data feeds to the motion system.
Trace the bundle exiting the adjustment motor–it splits into three distinct plugs: a 6-pin brown connector for lumbar support, a 4-pin white harness for heating circuits, and an 8-pin black receptacle handling the memory module signals. Each plug locks with a small tab on the top edge; press firmly to release.
If troubleshooting involves the passenger side, note that the lumbar connector mirrors the driver side but lacks the memory module plug–instead, you’ll find a 2-pin green auxiliary harness linked to the occupancy sensor beneath the cushion padding.
Connector Pinout Reference
| Connector Color | Pin Count | Primary Function |
|---|---|---|
| Brown | 6 | Lumbar actuator control |
| White | 4 | Heated pad relay |
| Black | 8 | Memory position sensors |
| Green | 2 | Occupant detection circuit |
For rear connections, lift the rear carpet section exposing a 10-pin orange harness hidden beneath a protective cover–this handles the fold-forward motor and recliner functions. Disconnect the battery before probing any exposed terminals to prevent shorting memory presets.
Inspect each terminal for corrosion or bent pins before reconnection; a single faulty contact can disrupt multiple adjustment axes. Replace damaged connectors with identical Ford part numbers (e.g., brown lumbar plug = F81Z-74512A80-A). Label each harness bundle with masking tape during disassembly to streamline reassembly.
Locating Supply Lines, Reference Points, and Control Leads in the Operator Position Electrical Layout
Begin by isolating the adjustable base with a multimeter set to continuity mode. Probe the harness connector pins sequentially; stable readings near zero ohms indicate a solid chassis link–mark these as return paths immediately. Any pin showing infinite resistance at this stage is either a switched source or a command line and requires further differentiation.
Shift to voltage verification with the ignition set to accessory mode. Connect the negative meter probe to a verified ground lug, then touch each remaining wire with the positive lead. Expect 12–14 volts on supply cables feeding memory modules or lumbar pumps; label these clearly with heat-shrink sleeving printed “B+.” Voltages below 10 volts typically denote sensor outputs–log these separately for later scope analysis.
Separating Sensor Feeds from Actuator Commands
Install a fused jumper between a known power lead and suspect actuator traces while observing seat movement. If lumbar inflation occurs, the wire under test is an actuator drive line; tag it with red vinyl tape. Should no movement register but a brief voltage spike appears, the trace is likely a position sensor–use blue tape here. Repeat for each unmarked cable, documenting behaviors in a spreadsheet tied to pin numbers.
For heated chambers, employ a thermal camera or surface probe. Energize the heating element momentarily–any trace reaching 40 °C or above is the heater supply. Pair it with its ground companion by checking continuity once cooled; both should return to ambient while maintaining a direct zero-ohm link to the chassis stud.
Identify the multiplex bus by searching for fluctuations between 3 and 7 volts on a single trace without external stimulus. Connect a scan tool via OBD port, then monitor the suspect wire while sending position commands through the diagnostic interface. If patterns synchronize, the wire is the CAN-H or LIN data line–insulate it with EMI-shielded sleeve to prevent cross-talk.
Final Cross-Check and Documentation
Re-verify each tagged wire against a factory schematic slice printed at 200% scale. Trace every cable from connector face to its destination module; discrepancies often expose spliced repairs or aftermarket splices that skew original color codes. Secure all labels with nylon ties at 1-inch intervals to withstand vibration, ensuring rapid identification during future diagnostics or retrofits.
Step-by-Step Guide to Trace Electrical Paths for Supplemental Heater Control Unit Fixes
Disconnect the vehicle’s battery terminal to prevent accidental shorts before handling any connectors or harnesses. A digital multimeter with a continuity mode will be necessary for verifying circuit integrity–ensure it’s calibrated and set to the lowest resistance range.
Locate the heater module beneath the upholstery panel, typically secured by torque screws or spring clips. Remove the fasteners carefully, noting their positions for reassembly. If corrosion is visible on the plug terminals, clean them with an electrical contact cleaner and a nylon brush, avoiding metal tools that could damage the coatings.
Identify the input and output pins on the control module using the vehicle’s service manual. Label each wire with masking tape and a fine-tip marker:
- Power supply line (usually 12V constant or switched)
- Ground reference
- Thermal sensor feedback (resistance-based)
- Heating element circuit (high-current)
Trace each conductor from the module back to its origin using the multimeter’s continuity function. Probe the backside of connectors where accessible–avoid piercing insulation unless necessary. For wires routed through tight bends or stress points, flex them gently while monitoring resistance to reveal intermittent breaks.
Check for voltage drop across the power feed with the ignition in the “on” position. A reading below 11.5V indicates excessive resistance–inspect fuse holders, relay contacts, and splice joints for oxidation or loose crimps. Replace any burnt or melted connectors with OEM-grade terminals to maintain current capacity.
Verify the thermal sensor’s resistance curve using an infrared thermometer. At room temperature (68°F/20°C), the sensor should measure between 1.2kΩ and 1.8kΩ. A deviation suggests a faulty sensor or compromised circuit–replace the entire harness segment if the wire gauge is insufficient or insulation is brittle.
Reassemble the system in reverse order, ensuring all seals and grommets are properly seated to prevent moisture ingress. Reconnect the battery and cycle the heater controls through all settings while observing for error codes on the dash display. If faults persist, use a scan tool to monitor live data parameters for the heater module’s feedback signals.
Test the heating elements at their maximum setting for 10 minutes, checking for even warmth distribution. Hot spots or cold zones indicate broken internal filaments–replace the entire panel assembly rather than attempting repairs. Document all findings, including wire colors, pin assignments, and observed resistance values, for future reference.
