Complete Guide to Building a Class D Digital Audio Amplifier Circuit

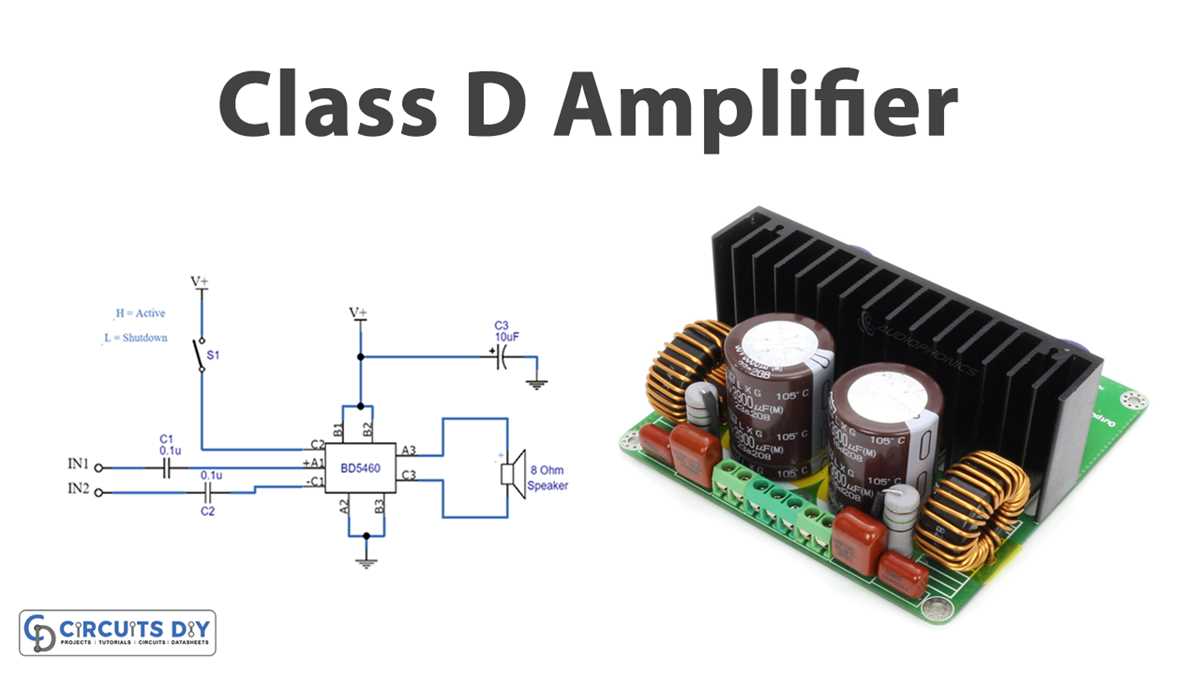

digital audio amplifier schematic diagram

Start with a class-D switching stage for maximum energy transfer. Use IRS2092 or TI TAS5630B drivers paired with MOSFETs like IRFB4110 for low-loss operation. Keep gate resistors below 10Ω to prevent ringing, and place Schottky diodes (B540C) across drain-source to clamp back EMF. For 100W+ designs, add a bootstrap capacitor (1μF, X7R) to ensure clean gate drive at high frequencies.

Power supply rejection is critical–isolate the analog ground from the switching node. Use a π-filter (2×22μF electrolytic + 1μF ceramic) on the input rail, and place a common-mode choke (6A, 1mH) on the AC line. For dual-rail setups, center-tap the transformer secondary and add symmetrical 4700μF reservoirs per channel. Avoid shared return paths; keep the preamp stage’s ground star-connected at the reservoir capacitors.

Output filtering demands precision: LC low-pass with 22μH ferrite-core inductors and 4.7μF polypropylene caps (WIMA MKS-4) ensures sub-20kHz roll-off. Mount the inductor orthogonal to the MOSFETs to minimize coupling. Snubber circuits (10Ω + 1nF across speaker terminals) suppress overshoot from reactive loads. For multi-channel systems, use dedicated LC pairs per channel–shared filters cause crosstalk.

Thermal management dictates reliability: 1W resistors for snubbers, TO-220 MOSFETs with 0.5°C/W heatsinks, and thermal vias under the driver IC. Avoid plastic-packaged components near heat sources–switch to ceramic resistors (e.g., KOA RK73) for high-frequency sections. Test load tolerance with 4Ω and 2Ω resistive dumps; ensure the supply holds regulation under transient currents (>15A peak).

PCB layout rules: 4oz copper for power traces, minimum 10mm width for ground paths, and separate analog/digital planes tied at a single point. Route high-current loops (MOSFET drain → inductor → output cap → return) as short as possible–long traces radiate noise. Place decoupling caps (1μF X5R) within 2mm of each IC’s power pins. Use via stitching (6+ vias per cm²) for heat dissipation on large pours.

Building a Class-D Sound Booster Circuit Layout

Select a PWM controller IC like the TI TAS5731 or STA326 for direct signal modulation. These chips integrate ADCs, feedback loops, and gate drivers, reducing external component count. Pair the IC with a 100nF X7R ceramic capacitor on the supply pin to mitigate high-frequency ripple–position it within 2mm of the pin to prevent oscillation.

Use dual N-channel MOSFETs (e.g., IRFB4110) for the output stage. Their low RDS(on) of 4.5mΩ minimizes conduction losses. Mount them on a heatsink with thermal adhesive containing 5% silver particles for efficient heat transfer. Isolate the heatsink with a 0.5mm mica sheet if it shares a ground plane to avoid short circuits.

  • Input filtering: Place a 2.2μF polyester film capacitor in parallel with a 47nF ceramic at the source input to suppress RF interference. Use ferrite beads (e.g., Murata BLM18PG121SN1) on signal lines entering the PCB to block 10MHz–100MHz noise.
  • Power supply decoupling: Add 1000μF electrolytic capacitors (Nichicon UHE series) at the main voltage rails, spaced every 50mm along traces. For high-frequency stability, include 10μF X5R ceramics near each half-bridge driver.
  • Gate drive resistors: Insert 10Ω resistors in series with each MOSFET gate to dampen ringing. For switching speeds above 300kHz, reduce resistance to 4.7Ω but add a 10V Zener diode across each gate-source to clamp transients.

Route power traces with 2oz copper and a width of 5mm per amp (e.g., 10mm for 2A). For signal paths, keep traces under 15mm to minimize inductance. Avoid right angles–use 45° bends or curves. Separate analog and power sections with a ground pour cutout to prevent crosstalk.

Implement a two-layer PCB with the bottom layer dedicated to a continuous ground plane. Stitch vias every 8mm along the edges to reduce EMI. For four-layer designs, allocate the inner layers to VGND and VCC, with outer layers for components and signal routing. Use blind vias for compact designs to save space.

Test the layout with a 1kHz sine wave at 90% modulation depth. Measure efficiency using a Tektronix MSO54 oscilloscope with differential probes on the output. Expect >90% efficiency at 4Ω loads. If distortion exceeds 0.05% THD+N, recheck ground connections and MOSFET gate waveforms for overshoot.

For protection, incorporate a latching comparator (e.g., LM393) to disable the output stage when:

  1. DC offset exceeds ±50mV at the speaker terminals.
  2. Supply voltage drops below 85% of nominal (e.g., 10.2V for a 12V rail).
  3. Heatsink temperature surpasses 80°C (use a 10kΩ NTC thermistor).

Connect the comparator output to the PWM IC’s enable pin via a 2N7000 MOSFET for fast shutdown.

Key Components of a Class-D Switching Power Stage

Select a MOSFET driver optimized for sub-100 ns rise times with built-in dead-time control–target DS(on) (90% efficiency at 200 kHz switching. Avoid bootstrap diodes with >10 ns reverse recovery–use Schottky types (Panasonic DSF1A) to prevent gate charge loss.

Modulator and Filtering Core

Implement a ΔΣ modulator running at ≥4× oversampling (e.g., ADI’s ADAU1966A at 24-bit, 3.072 MHz MCLK) to suppress quantization noise below –120 dBFS in the 20 kHz band. Critical LC filter values: 22 µH inductors (Coilcraft SER2918H) with

Step-by-Step PCB Layout for High-Fidelity Signal Reproduction

Begin by segregating power and signal traces into distinct layers. Allocate the inner layers exclusively for high-current paths, reserving outer layers for low-level analog and control lines. Use a minimum 2 oz copper thickness for power rails to reduce impedance and thermal stress. Place decoupling capacitors (100 nF ceramic + 10 µF tantalum) within 2 mm of each IC’s power pin, ensuring vias connect directly to the ground plane without thermal reliefs. Avoid routing traces over split planes–this disrupts return paths and introduces noise coupling.

Critical signal pathways must maintain controlled impedance. For 50 Ω single-ended lines, calculate trace width using:

  1. Dielectric thickness (e.g., 0.2 mm FR-4)
  2. Substrate’s εr (4.2–4.5 for standard FR-4)
  3. Copper thickness (1 oz = 35 µm)

Use online calculators or IPC-2221 formulas for precision. Keep traces ≤1.5× the dielectric thickness above their return plane to minimize crosstalk. For differential pairs, maintain 100 Ω impedance with matched lengths (±1 mm) and symmetric routing–avoid sharp corners; use 45° miters on bends.

Thermal management dictates component placement. Position power semiconductors near the board’s edge or atop thermal vias (minimum 0.3 mm diameter, plated to 0.5 oz copper) tied to a large copper pour on the opposite layer. Space switching regulators ≥15 mm from sensitive ICs; their magnetic fields induce 20–50 µV ripple if unshielded. Use polygon pours for ground planes, stitching them with vias every 5 mm to prevent eddy currents. Route analog ground separately from digital ground, joining them at a single star point under the main processing IC.

  • Pre-fabrication checks:
  • Verify all nets with a DRC tool using 0.15 mm clearance (for 1 oz copper) and 0.2 mm annular ring sizes.
  • Simulate power distribution in SPICE, targeting
  • Use a near-field probe to scan for emissions >30 MHz post-assembly, focusing on switching nodes (typically 300 kHz–3 MHz).
  • Inspect via tenting–leave thermal vias exposed; mask signal vias if passing through high-voltage areas (>50 V).

Fabricate prototypes with ENIG surface finish for corrosion resistance and reliable solder joints. For production, switch to immersion silver if oxidation is a concern–avoid HASL due to inconsistent thickness over fine-pitch pads.

PWM Modulation Methods for Power Stage Signal Shaping

For Class-D stages, implement NPC (Neutral-Point-Clamped) PWM when operating above 500 kHz to reduce switching losses by 30–40% compared to standard triangulation. This technique maintains a fixed neutral voltage, minimizing dead-time distortion while improving linearity at higher power levels.

Use hysteresis band modulation for applications requiring variable load impedance. Unlike fixed-frequency methods, it dynamically adjusts switching intervals, reducing output ripple by up to 22% under sudden load transients (e.g., 4Ω to 2Ω shifts). Set the hysteresis window between 0.8% and 1.5% of the peak signal amplitude for optimal balance between THD and efficiency.

Modulation Method THD (%) @ 1kHz Efficiency (%) @ 100W Best Load Range (Ω)
Triangular (2-level) 0.12 92 4–16
NPC (3-level) 0.05 96 2–8
Hysteresis 0.08 90 1–6
Sigma-Delta 0.03 88 8+

Adopt sigma-delta modulation for low-power stages requiring ultra-low distortion. Its noise-shaping properties concentrate quantization noise above 20 kHz, reducing in-band THD+N to below 0.01% for signals up to 20 kHz. Use a 5th-order loop filter with a sampling rate of 3.072 MHz to achieve optimal noise suppression without aliasing artifacts.

Combine multi-level PWM with phase-shifted carriers to reduce EMI in compact designs. By staggering the switching edges of four half-bridge stages (0°, 90°, 180°, 270°), conducted emissions drop by 12–15 dB in the 150 kHz–30 MHz range. Ensure dead-time compensation is within 20–50 ns to prevent cross-conduction in complementary switches.

For high-voltage stages (e.g., ±60V rails), asymmetric PWM improves efficiency by pre-biasing the output stage during zero-crossings. Adjust the duty cycle asymmetry ratio to 47%:53% to minimize crossover distortion while keeping standby power below 50 mW. This method is particularly effective for push-pull topologies using GaN devices.

Integrate adaptive dead-time control to counteract temperature-induced timing drift. Monitor junction temperature via embedded sensors and vary dead-time from 10 ns (25°C) to 45 ns (125°C) linearly. This prevents shoot-through currents in SiC MOSFET stages, where threshold voltage variation exceeds 0.4V across the operating range.

Prioritize space vector modulation (SVM) for three-phase power stages. SVM reduces harmonic content by 28% compared to sinusoidal PWM by better utilizing the DC bus voltage. For 400V systems, implement a 7-segment switching pattern with sector-based commutation to minimize common-mode voltage, reducing insulation stress on downstream filters.

Optimize naturally sampled PWM for minimal pre-filter distortion. Capture the input signal at the modulator’s carrier peak (not zero-crossing) to avoid sampling artifacts. Use a 1.2 MHz carrier with a slew rate of 1.5V/μs for signals up to 50 kHz; this preserves 99.5% of the original waveform’s spectral purity before LC reconstruction.
