Complete Wiring Diagram Guide for 2008 Dodge Ram 1500 Electrical System
Start by locating the main fuse box under the driver’s side dashboard–terminals C1 and C2 handle primary power distribution. Trace the red wire (12-gauge) from the battery positive terminal to fuse F34 (30A), then follow the yellow-striped lead to the ignition switch. Verify continuity between Pin 15 on the switch and Relay R6 (engine control module feed) before proceeding.
For the lighting subsystem, connect Pins 58L and 58R on the multifunction switch to the corresponding front and rear lamp circuits. The left turn signal operates through Wire Code LY (light yellow) running from the flasher unit to Socket J12–test resistance (
Engine sensors rely on 5V reference voltage from ECU Connector T47. Confirm voltage at MAP Sensor Pin B and IAT Sensor Pin 1–deviations exceeding 0.3V indicate corroded contacts. Use dielectric grease on PCM Connectors C3 and C4 to prevent moisture intrusion, particularly at the firewall grommet.
Accessory circuits (winch, trailer brake) require 4-gauge cables directly to the battery post. Isolate the Trailer Brake Module at G300 ground near the rear axle–verify less than 0.1V drop under load. For troubleshooting intermittent faults, probe Connector C101 (behind glove box) with a multimeter set to diode test mode to identify parasitic draws.
Electrical Schematic Reference for Full-Size Pickup Models
Locate the main fuse block under the dashboard on the driver’s side, adjacent to the steering column. Remove the plastic cover by pressing the retaining clips on each side–avoid using tools to prevent cracking. The block contains circuit protection for the instrument cluster, power windows, and trailer tow module. Label each fuse with masking tape before removal to ensure correct reinstallation.

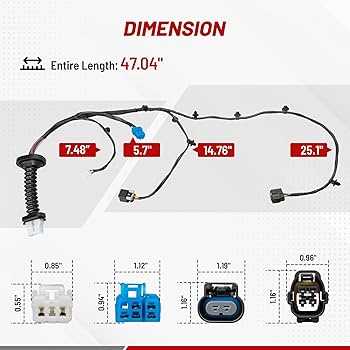

Key Harness Connections
- Engine Compartment: The primary harness splits behind the battery tray. Trace the red/light green wire for the alternator output–it connects to the power distribution center (PDC) via a 10mm nut. Corrosion here mimics charging issues; clean terminals with a wire brush or dielectric grease.
- Cabin Feed: The black/yellow wire at the back of the fuse block powers the rear window defroster. If the defroster fails, probe this wire first–common failure points include the inline connector near the B-pillar or the ground strap at the tailgate hinge.
- Trailer Brake Controller: The violet/white wire at pin 29 of the 32-pin OBD-II connector carries the signal. Verify continuity with a multimeter set to 20V DC; expected voltage is 12V when the brake pedal is depressed.
Replace damaged wires using stranded copper wiring matching the original gauge: 12 AWG for lighting circuits, 10 AWG for high-draw components like the cooling fan. Splice repairs must use crimp connectors with heat shrink tubing–avoid solder-only joints as they fatigue under vibration. For concealed wire runs, feed new wire through existing loom using a fish tape or stiff leader wire.
- Disconnect the negative battery terminal before servicing any circuit.
- Test relays by swapping with a known-good unit–common failure relays include the ignition switch output (IOD) and fuel pump.
- Label ground points using a silver paint marker: major grounds cluster near the driver’s side shock tower and behind the right rear taillight.
- For intermittent shorts, wiggle-test each connector while monitoring voltage; spray electrical contact cleaner into suspect connectors.
Use a factory service manual supplement for sub-model variations: HEMI-equipped trucks add a secondary oxygen sensor bank with unique ECU pinouts, while quad-cab models include a rear seat heater harness absent in regular cab variants. The 5.7L engine’s MDS solenoid uses a dedicated gray/black wire spliced into the ignition coil harness–cross-check this before diagnosing misfire codes P0300–P0308.
Finding the OEM Electrical Schematic for Your Dodge Pickup
Download the official service manual directly from Stellantis’ technical portal at techauthority.com. Search by VIN or model designation; the PDF includes a dedicated section labeled “Electrical Diagnosis” with full pin-outs, fuse box layouts, and harness routing tables.
Visit a local Dodge dealership’s parts department and request the printed “Body Builders Guide.” This compact booklet provides connector part numbers and color-coded splice locations essential for aftermarket accessories. Many dealers will photocopy the relevant pages for under $15.
Key Resources Breakdown
| Source | Format | Access Cost | Notable Sections |
|---|---|---|---|
| TechAuthority | PDF download | $29.99 for 72-hour pass | Section 8W-30, harness diagrams, ECU pin maps |
| Dealer Parts Counter | Paper photocopy | $5–$15 | Connector C labels, splice indices |
| Mitchell1 ProDemand | Online subscription | $39.99/month | Interactive fuse pane, trailer tow schematics |
For offline reference, purchase the Haynes or Chilton repair manual at auto parts stores; both include reduced-scale reproductions of the OEM schematic on a single fold-out page in the rear appendix.
Locating Critical Electrical Links Beneath the Engine Bay
Start at the fuse block near the driver-side strut tower–trace the thick red cable running from the battery’s positive terminal. This main power feed splits into three primary branches: one leads to the alternator’s B+ post, another to the starter solenoid via a fusible link, and the third connects to the underhood relay center. Label each junction with masking tape before disconnecting; corrosion on these terminals often mimics fuse failure.
Ground Points and Sensor Loops
Check the chassis ground near the left fender–look for a 10mm bolt securing a cluster of black wires. Voltage drops here above 0.1V indicate loose connections or paint intrusion. Sensor circuits, particularly the MAP and IAT, share a common five-pin harness plugged into the intake manifold; pinch the release tabs firmly to avoid damaging brittle plastic clips. Swap sensors if readings fluctuate erratically–internal shorting is common after moisture ingress.
Follow the transmission harness from the valve body upward–it merges with the engine harness beneath the air intake box. Unplug the 16-pin connector here; inspect for bent pins or green oxidation, especially on pins 3 (TCM power) and 12 (ground reference). Reapply dielectric grease sparingly to prevent future corrosion without creating conductive paths. Use a multimeter in continuity mode to verify each wire’s path back to the main harness, accounting for splices hidden beneath the firewall grommet.

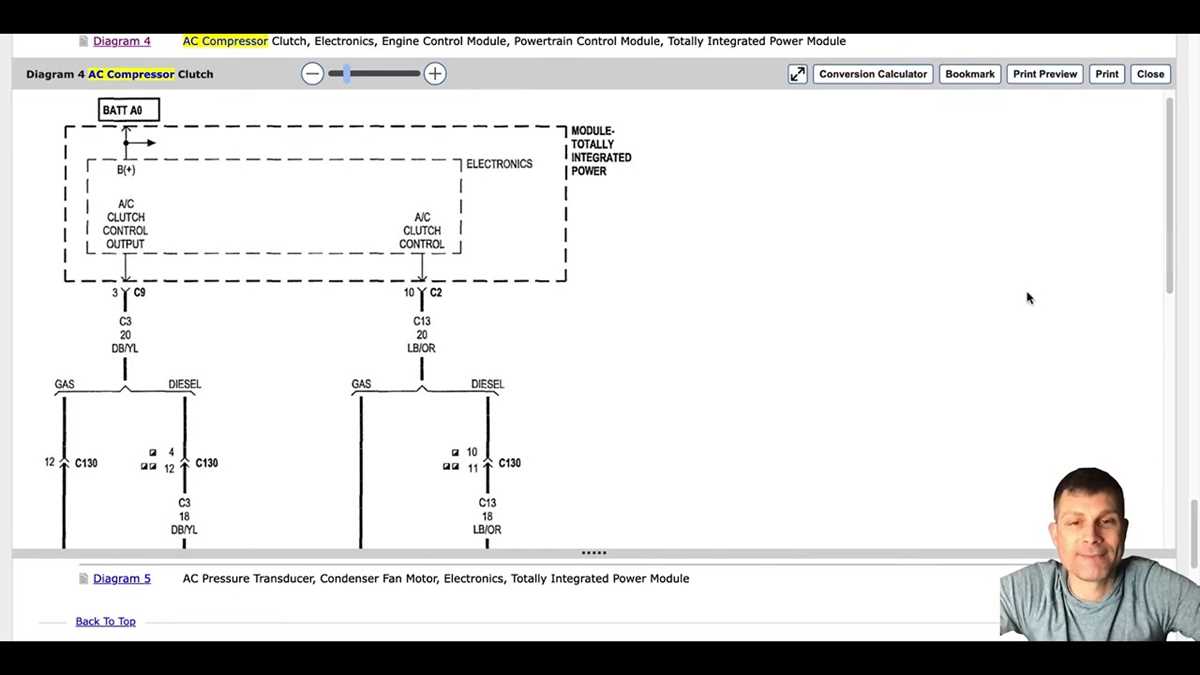

Inspect the auxiliary harness linking the AC compressor, cooling fans, and horn relay–it’s routed along the radiator support. A single damaged wire here can disable multiple systems due to shared 12V feeds. Probe the relay sockets with the ignition on; terminals 85 and 86 should show ~12V when the corresponding switch is activated (climate control or horn button). Replace relays if the click is absent but voltage is present–internal contacts weld shut from repeated high-current surges.
Locating Electrical Pathways for the Gauge Assembly
Begin by identifying the central connector on the back of the instrument panel–it typically features a 32-pin plug labeled “C3” in service documentation. Disconnect the battery’s negative terminal before probing to prevent short circuits or damage to sensitive components. Use a multimeter set to continuity mode to verify connections between pin 12 (battery voltage input) and pin 29 (ground reference) on the C3 harness; these two points form the backbone of the system’s power distribution.
Trace the wiring harness from the gauge assembly toward the fuse block located under the driver’s side dashboard. Focus on the 10A “INST” fuse (position 17 on most layouts) as it supplies constant voltage to the cluster. If voltage is absent here, inspect the wiring for chafing near the steering column or along the firewall grommet–common failure points due to vibration and heat exposure. Replace any compromised sections with 18-gauge automotive-grade wire to maintain signal integrity.
For illumination issues, examine the pink wire with a white stripe (pin 18 on C3) leading to the headlight switch. This circuit activates the backlighting and should show 12V when the headlights are engaged. If readings fluctuate, test the dimmer rheostat by turning it fully clockwise; inconsistent resistance indicates a faulty unit requiring replacement. Avoid bypassing this component, as it regulates voltage to prevent premature bulb failure.
To diagnose erratic gauge behavior, check the green wire with a black stripe (pin 30 on C3) connected to the vehicle speed sensor. Oscilloscope testing should reveal a clean square wave signal between 0.5V and 5V at idle; irregular patterns suggest wiring interference or a failing sensor. Secure the harness away from the exhaust manifold and transmission housing to minimize electromagnetic noise degrading sensor data.
Diagnosing Common Electrical Problems in the Tail Light Assembly
Inspect the fuse box for blown units linked to the rear illumination system before proceeding to complex checks. Locate the corresponding fuse using the vehicle’s manual–typically labeled as “TAIL” or “LT” with a rating between 10-20 amps. Replace any visibly damaged fuse with an identical amperage rating, then test functionality. If the new fuse blows immediately, suspect a short circuit in the electrical path.
Trace the lighting circuit paths using a multimeter set to continuity mode. Begin at the bulb socket and work backward toward the fuse panel. Disconnect the negative battery terminal before probing to avoid false readings. Key test points include:
- Bulb socket terminals (ground and power)
- Connector pins at the harness junction near the rear bumper
- Ground attachment point behind the taillight housing
- Wire harness entry into the chassis
Zero resistance indicates a proper connection; infinite reading denotes an open circuit. Check for corrosion at each connector–clean with electrical contact cleaner if oxidation is present.
Examine the ground strap linking the taillight assembly to the chassis frame. A weak or corroded ground connection creates erratic operation, including intermittent failures or dim illumination. Use a wire brush to remove rust from the mounting surface, then secure the strap with a new bolt and star washer to ensure solid conductivity. Verify the ground path by probing from the socket’s ground terminal to the battery negative terminal–the multimeter should read under 0.5 ohms.
Test the voltage drop across the circuit while the lights are activated. Connect the multimeter’s positive lead to the power input at the bulb socket and the negative lead to the battery negative terminal. A drop exceeding 0.5V suggests excessive resistance in the power feed–typically caused by frayed wires, loose connections, or internal harness damage. Compare readings between left and right sides; discrepancies indicate localized issues.
Inspect wire harnesses for chafing, especially near suspension components or sharp edges. Split loom tubing often deteriorates, exposing wires to moisture and abrasion. Use heat shrink tubing or silicone sealant to repair damaged sections, ensuring no bare copper remains visible. For wires pinched between metal, replace the entire segment–spliced repairs fail under vibration.
Check bulb sockets for melted plastic or discolored contacts. High-resistance connections generate heat, warping the socket and preventing proper contact. Replace sockets showing distortion with OEM-spec parts to avoid recurring issues. Apply dielectric grease to new socket terminals to prevent future corrosion.
Verify the body control module’s output signals if the circuit fails despite intact wiring. Using a scan tool, monitor live data for the “Rear Lamp” PID while toggling the light switch. A consistent 12V output confirms proper module function; fluctuating readings suggest internal faults requiring reprogramming or replacement. For vehicles with trailer wiring, isolate the auxiliary harness to rule out parasitic draws disrupting the primary circuit.
