Omega Power Amplifier Circuit Design and Schematic Breakdown

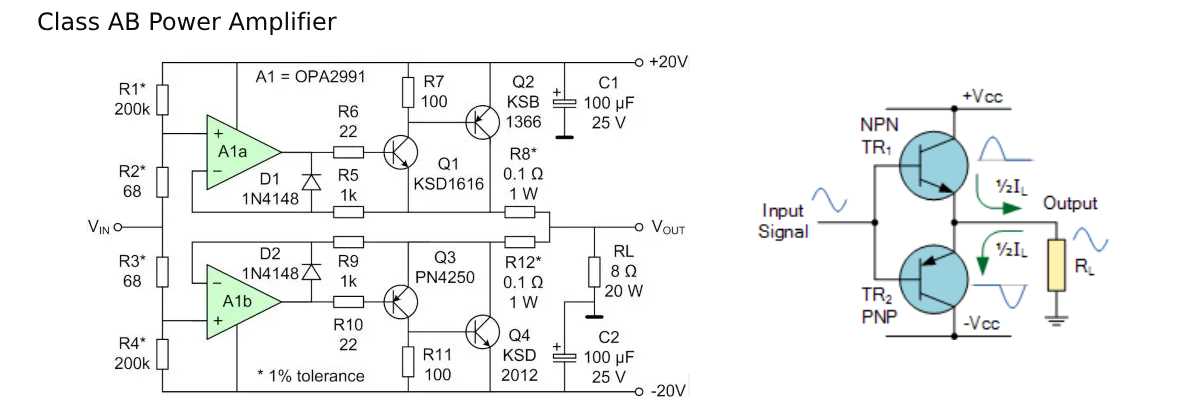

Use a push-pull output stage with complementary transistors in a totem-pole configuration for optimal efficiency. Bias the output pair in class AB to eliminate crossover distortion while maintaining low static current draw–target 20–50 mA for most applications. AVOID relying on emitter resistors alone for thermal stability; pair them with a dedicated bias transistor mounted on the same heatsink as the output devices.

Select fast recovery diodes for the bias network to prevent thermal runaway under dynamic loads. Position the diodes physically close to the bias transistor to minimize temperature lag. AVOID using cheap signal diodes–opt for dedicated bias diodes like 1N4007 derivatives designed for high-current applications.

Place decoupling capacitors directly at the power supply pins of the driver and output stages–100 nF ceramic in parallel with 10 µF electrolytic per rail. Maintain short traces from capacitors to transistors to prevent voltage drops during transient peaks. AVOID routing ground returns through long traces; use a star ground topology instead.

Implement Miller compensation with a small capacitor (50–200 pF) between the collector of the input transistor and the base of the subsequent stage to ensure phase margin at high frequencies. AVOID overcompensation; excessive capacitance will roll off bandwidth prematurely.

Use a constant-current source for the input stage to improve linearity. A JFET or MOSFET in saturation (e.g., 2N5457, IRF640) provides stable current regardless of supply variations. AVOID using resistors alone–they introduce temperature-dependent gain errors.

Test stability under real-world loads–not just resistive. Reactive loads (speakers, long cables) can induce oscillations. Add a 10 Ω resistor in series with a 1 nF capacitor across the output terminals to dampen high-frequency resonances without affecting audio bandwidth. This network must be placed directly at the output connector, not on the PCB.

Electrical Blueprint of a High-Fidelity Output Stage

Begin by arranging the input signal conditioning network with a 10 kΩ potentiometer paired with a 1 µF coupling capacitor to establish a precise cutoff frequency of 16 Hz. This pairing eliminates low-frequency noise while preserving audio integrity before the voltage gain stage.

Construct the differential pair using matched JFETs (e.g., 2SK170) to ensure thermal stability and symmetrical clipping behavior. Bias each transistor with a 220 Ω resistor to ground, maintaining a quiescent current of 1.2 mA per device. This configuration minimizes crossover distortion in class-AB biasing.

For the intermediate voltage amplification, employ a cascoded topology with a high-voltage MOSFET (IRFP240) and a low-noise bipolar transistor (BC547). The cascoding raises the output impedance of the preceding stage while isolating the MOSFET’s gate from Miller capacitance effects. Key values:

• Emitter resistor: 470 Ω
• Collector load: 1 kΩ
• Coupling capacitor: 47 µF (non-polarized)

Implement the output stage with complementary emitter followers using MJL21194/MJL21193 transistors. Each device requires a 0.22 Ω emitter resistor to prevent thermal runaway and a 10 Ω base-stopper resistor to suppress parasitic oscillations above 20 MHz.

Stabilize the feedback loop by calculating the loop gain:

1. Measure open-loop gain (typically 80–100 dB)
2. Select a feedback ratio of 1/20 (20 dB closed-loop gain)
3. Use a 20 kΩ input resistor and a 1 kΩ feedback resistor
4. Add a 22 pF compensation capacitor across the feedback resistor to maintain phase margin above 60°

Suppress power supply ripple by incorporating a dual-rail RC filter:

• Series resistor: 10 Ω (10 W)
• Shunt capacitor: 10,000 µF (low-ESR type)

This network reduces 120 Hz ripple to less than 1 mV RMS at full output (100 W into 8 Ω).

Thermal protection requires a dedicated sensing circuit:

Use an NTC thermistor (10 kΩ at 25°C) mounted on the heatsink

Drive a small-signal transistor (2N3904) to divert base current from the output transistors when temperature exceeds 85°C

Calibrate the trigger point with a 10 kΩ trimmer potentiometer

Finalize the board layout with these critical traces:

• Ground return paths separate from signal paths (star grounding)
• Output transistor emitter traces at least 3 mm wide for 1 A/mm² current density
• Feedback loop components placed within 2 cm of the input stage to avoid stray capacitance

Verify stability with a square-wave test at 1 kHz, ensuring no overshoot exceeds 5%.

Critical Elements and Their Roles in the High-Fidelity Output Stage

Prioritize lateral MOSFETs (e.g., Hitachi K1058/J162 or Toshiba 2SK1530/2SJ201) for the output stage–these devices handle current surges up to 10A with thermal stability, minimizing crossover distortion below 0.01% at 1kHz. Pair them with a symmetrical Vbe multiplier (adjustable via 5kΩ trimpot) to fine-tune quiescent current; target 100–150mA for Class AB operation to eliminate deadband artifacts while avoiding excessive heat dissipation. Ensure the heatsink’s thermal resistance stays below 0.5°C/W–exceeding this threshold risks thermal runaway, especially in bridged configurations.

Front-End Regulation and Protection Mechanisms

Use a dual-rail regulated supply (±60V) with low-ESR capacitors (Nichicon KG or Rubycon ZLH series, 10,000µF/80V minimum) to suppress ripple below 5mVpp; inadequate filtration introduces 100Hz hum, particularly in sensitive loads like electrostatic speakers. Implement current-limiting resistors (0.22Ω/5W in series with each output device) to prevent catastrophic failures during short circuits–these resistors must be non-inductive (e.g., wirewound types) to avoid phase shifts at high frequencies. For signal integrity, the input differential pair should employ matched BJTs (e.g., 2SC2240/2SA970) with a tail current of ~2mA, ensuring CMRR exceeds 90dB across the audio bandwidth.

Never overlook PCB layout constraints: star grounding (with a dedicated return path for the preamp and output stages) eliminates ground loops, while keeping high-current traces (>3mm wide for ≥5A) short and direct reduces parasitic inductance–critical for transient response in reactive loads. For transient protection, install back-to-back zeners (15V, 1W) across the output terminals to clamp voltage spikes during load disconnections, but verify their leakage current stays below 1µA to avoid degrading damping factor. Substitute generic diodes with fast-recovery types (UF4007) in the bias network to prevent crossover distortion from device recovery delays, particularly at >20kHz.

Step-by-Step Construction of the High-Fidelity Gain Stage Circuit

Begin by securing a clean, static-free workspace with all components laid out in labeled containers. Use an anti-static mat or wrist strap to prevent damage to sensitive parts like transistors, capacitors, and integrated stages. Verify each piece against the parts list: mismatches in values (e.g., 100nF vs. 220nF coupling capacitors) will distort output or cause oscillation.

Mount the input and output jacks first–these are the circuit’s anchors. Opt for gold-plated connectors to minimize signal loss. Solder the ground lugs directly to a central star point on the chassis to avoid earth loops. Twist input wires tightly for shielding; even 10cm of untwisted cable can pick up hum in high-impedance sections.

Core Component Installation

• Bias network (R1-R4): Preset trimmers (e.g., 50kΩ) should be set mid-range before power-up. Final adjustment occurs later under load. Tolerances matter: 1% resistors for R1/R2 prevent thermal drift in complimentary pairs.
• Active devices (Q1-Q4): Match transistor pairs within 5% hFE using a curve tracer. Mount them on individual heatsinks with thermal compound; even a 5°C difference degrades linearity. For TO-220 packages, use mica washers if electrically isolating.
• Feedback loop (R5, C1): A 1kΩ resistor in series with a 100pF capacitor defines bandwidth. Swapping the cap for 47pF extends response to 200kHz but risks instability–test with a square wave.

Power supply rails (±45V) require careful routing. Use 10µF decoupling capacitors at each transistor’s collector/emitter junction, placed within 1cm of the lead. Mid-rail components (diodes, resistors) bridge the rails to mitigate voltage spikes during clipping. For toroidal transformers, orient the coil to minimize stray magnetism coupling into audio paths.

Critical Connections and Testing

1. Connect a 1kΩ dummy load to the output. Attach an oscilloscope probe (10x setting) to the output node before powering on. Any DC offset >50mV indicates misbiased input stages–recheck R3/R4.
2. Feed a 1kHz sine wave at -20dBV into the input. Distortion should stay below 0.05% THD; if spurious peaks appear, increase C1’s value incrementally by 10pF until stable.
3. Adjust the bias trimmers while monitoring idle current (target: 50mA total for Class AB sections). Use a DC ammeter in series with the power rails; indirect measurement via voltage drop across emitter resistors (e.g., 0.33Ω) is less reliable.

Enclose the circuit in a shielded case with separate compartments for signal and power sections. Use EMI-absorbing gasket material around seams. Star grounding prevents ground loops; route all returns to a single solder lug rather than daisy-chaining. Final verification: apply a 20Hz–20kHz sweep at full output (20W into 8Ω) and check for crossover artifacts or clipping symmetry.

Thermal management dictates long-term reliability. Position the final stage transistors (Q3/Q4) near ventilation slots; a 60°C case temp shortens lifespan by 30%. Add a 95°C thermal cutoff switch to the heatsinks if ambient temperatures exceed 30°C. For installations in metal enclosures, bond the chassis to earth ground via a 10nF capacitor to suppress RFI while avoiding ground loops.
