Complete 2010 Chevy Traverse Electrical Wiring and Fuse Diagram Guide
Start with the Power Distribution Block (PDB) located under the hood near the battery. Terminals F1 to F6 handle primary high-current feeds, including the engine control module (ECM) and transmission control module (TCM). Use a multimeter set to DC voltage to verify continuity on F1 (pink wire) – it should show 12V when the ignition is in RUN position. If voltage is absent, trace back to the Underhood Fuse Box and inspect fuse #40 (30A).
For interior electronics, focus on the Body Control Module (BCM) wiring harness. The instrument cluster connects via terminals X2-16 (yellow/black stripe) and X2-17 (purple/white stripe), carrying CAN bus signals. Test with a scope: expect a clean 2.5V differential signal with 500kbps baud rate. If corrupted, check the gateway module (RPO code UHW) and validate ground integrity at G101 (left kick panel).
Door lock actuators share a common 5-wire circuit: Black (ground), Orange (lock), Yellow (unlock), Dark Green (door ajar), Gray (mirror control). Measure resistance across the actuator motor terminals – values should range between 3.5–6.5 ohms. Low resistance (Driver’s Door Module (DDM) at connector C103 for corrosion, especially on terminals A1 and A2.
HVAC blower motor control uses a pulse-width modulated (PWM) signal from the Heating, Ventilation & Air Conditioning (HVAC) Module. The blower motor connector (X1) carries four wires: Black (ground), Red (12V constant), Light Blue (PWM signal), Dark Blue (tachometer feedback). At full speed, PWM signal should reach ~95% duty cycle with ~500Hz frequency. If erratic, inspect the blower motor resistor pack located behind the cabin air filter housing.
Exterior lighting circuits rely on shared power buses with separate ground returns. Headlamps use Red/White wires for low beams at 35W, high beams on Yellow wires at 55W. Check fuse #15 (15A) in the Under Dash Fuse Box for low-beam failures. For turn signals, verify the Electronic Flasher Module (EFM) output: terminal 3 should pulse 12V at 1–2Hz when activated. If constant voltage, replace the EFM (RPO code DRL).
Wiring Blueprint Analysis for the 2010 GM Lambda Crossover
Locate the centralized fuse block under the instrument panel near the driver’s side kick panel–this houses critical protection for the vehicle’s low-voltage circuits. Remove the trim panel carefully, as securing tabs break easily; use a plastic pry tool to avoid scratches. The primary power distribution diagram identifies fuses F1-F43, each tagged with amperage ratings that must match replacements exactly. Fuses 7, 8, and 10 (15A, 20A, 25A respectively) safeguard the BCM, ignition, and front fog lamps; verify continuity with a multimeter before diagnosing electrical faults.
Examine the body control module (BCM) connections at terminal X2, pinouts 1-32, for corrosion or bent pins. Clean contacts with electrical cleaner and a fiberglass pen–not sandpaper–to prevent shorting. The underhood relay box contains relays R1-R6; R4 (horn relay) often fails silently. Swap it with R5 (A/C relay) to test functionality without tools. Diagram labels should align with printed documentation; discrepancies often indicate aftermarket modifications that require reverse-engineering.
Key Harness Routing and Troubleshooting
- The main engine harness splits at the firewall grommet–inspect for chafing where it passes through the body. Tape repairs with liquid electrical tape, not standard vinyl tape, which degrades in under 18 months.
- Battery positive cables split into two paths: one to the starter solenoid, the other to the underhood fuse block. Resistance above 0.2 ohms in either path indicates damaged wiring or loose connections at the solenoid (terminal S).
- The ground distribution point near the rear liftgate latch grounds six systems, including the rear defogger grid. Rust at this point causes intermittent failures; clean to bare metal and apply dielectric grease before reattaching.
For infotainment system diagnostics, focus on the rear-seat entertainment harness at connector C401–Pins 1 (red), 2 (yellow), and 3 (black/white) carry video signals. A pink hue on the display confirms a short to 12V, typically caused by pinched wires behind the left rear quarter panel. Use a tone generator to trace the harness path without disassembly; markings on the blueprint correspond to physical labels on the harness, visible with a borescope.
When replacing the alternator, note that the voltage regulator plug (four-pin) connects to the instrument cluster via a dedicated twisted pair–pin B wires to cluster terminal J1-PP2. Reattaching incorrectly swaps charging and tachometer readings, leading to misdiagnosis of battery drain. The overdrive solenoid in the transmission wiring harness hooks to the PCM at connector X3, pin 24; a broken wire here triggers erratic shifting while leaving no diagnostic trouble codes.
Component-Specific Wiring Notes
- Airbag System: Clock spring connector (yellow/black wires) shows wear at 90k miles. Replace the clock spring if the resistance exceeds 3 ohms, not merely for illuminated SRS light. The supplemental restraint diagram labels this as circuit A49.
- HVAC: The blend door actuator (driver-side) uses a 5-wire connector; diagnose erratic temperature control by checking for 5V reference on pin 2 and ground on pin 5. A missing reference voltage usually traces back to a faulty ATC module, not the actuator.
- Lighting: Daytime running lamps require a clean ground at G102 near the left strut tower. Paint overspray here causes dim headlights; grind down to bare metal and repaint with zinc-rich primer.
Factory blueprints lack color coding for aftermarket upgrades. Document all modifications–including wire gauge changes–using one-line diagrams with component labels matching the original documentation. Cross-reference pinouts with a verified service manual; third-party PDFs often invert polarity for sensors like the camshaft position (CMP) reluctor ring, leading to catastrophic engine timing errors.

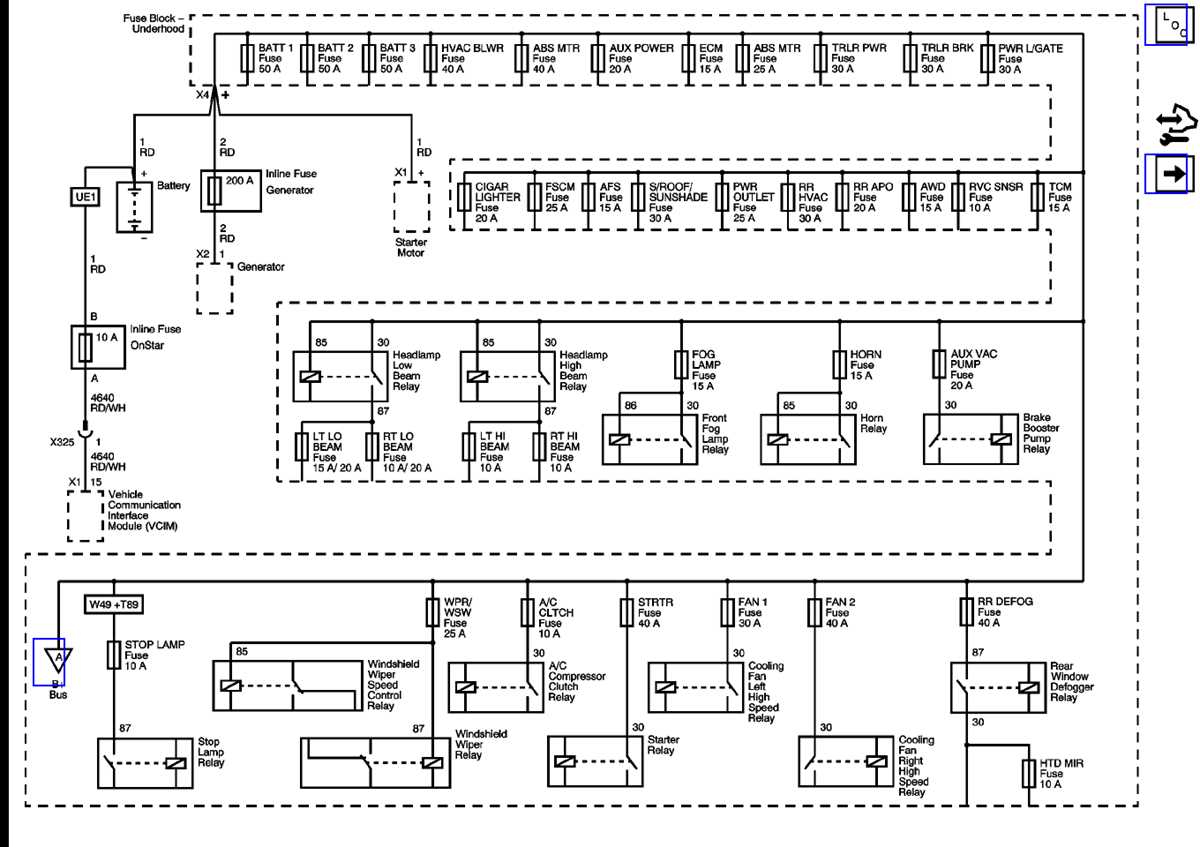

Locating the Fuse Box and Relay Panel Wiring Layout
Start by removing the left-side dashboard lower trim panel beneath the steering column. Two retaining clips secure it–release them by pulling firmly outward. Behind this panel, the primary fuse block sits vertically, labeled with a white plastic cover showing fuse assignments. For relay access, glance above the fuse box near the brake pedal assembly; a secondary relay cluster is housed in a small black box with three Phillips screws. Always disconnect the battery’s negative terminal before servicing to prevent short circuits.
Key Fuse and Relay Locations
| Component | Location | Amperage/Type |
|---|---|---|
| Anti-lock Brake System (ABS) Fuse | Top row, third slot from left | 30A |
| Cooling Fan Relay | Secondary relay box, upper left corner | Bosch 40A |
| Instrument Cluster Fuse | Middle row, fifth slot | 10A |
| Trailer Tow Relay | Main fuse block, lower right slot | Hella 30A |
For under-hood diagnostics, the auxiliary power distribution box is positioned near the battery. Remove the red plastic cover by pressing two lateral clips inward–exposing relays for the fuel pump, HVAC, and starter. Wire harnesses here use color-coded connections: red for constant power, yellow for switched ignition, and blue for ground. Label wires with masking tape before disconnecting to avoid misplacement. Use a multimeter set to 20V DC to verify power at fuse inputs–readings below 12.5V indicate a failing alternator or corroded terminals.
Locating Critical Powertrain Circuit Elements on Vehicle Wiring Plans
Begin by tracing the high-voltage cables from the battery pack to the inverter. The main positive (orange) and negative (black) lines will lead directly to these terminals–verify continuity with a multimeter set to ohms before proceeding. Look for labeling like “B+” and “B-” near the connection points to avoid misidentification with 12V auxiliary circuits.
Examine the inverter’s internal layout: it contains a DC link capacitor, insulated gate bipolar transistors (IGBTs), and current sensors. The capacitor acts as an energy buffer, smoothing voltage fluctuations during acceleration. Check for bulging or leaking capacitors, as these indicate imminent failure. Replace components with identical microfarad ratings and voltage tolerances–no substitutions.
Identify the motor control module adjacent to the inverter. This unit interprets accelerator pedal signals (typically via a CAN bus) and adjusts torque output. Pinpoint the throttle position sensor inputs (TPS1, TPS2) and cross-reference their voltages–both should read identically within 0.1V at idle. Discrepancies suggest sensor drift or wiring faults.
Motor and Sensor Validation
Follow the three-phase cables from the inverter to the traction motor. Each phase (U, V, W) should be color-coded (often blue, red, yellow) and terminated with high-current connectors. Measure resistance across each phase pair–readings should match (±5%) the manufacturer’s specs (typically 0.1–0.5 ohms for most traction motors). Higher values indicate brush wear or internal shorting.
Locate the resolver or encoder near the motor shaft. This component provides rotor position data critical for commutation. Test its output with an oscilloscope: healthy resolvers produce sine/cosine waveforms with 90-degree phase separation. Distorted signals require sensor replacement–no adjustments correct this fault.
Check the coolant pump’s electrical connections if the system uses liquid cooling. The pump’s 12V feed (often fused at 30A) and ground should show 11.5–14.5V when active. Non-operation risks overheating the inverter or motor; verify the pump’s impeller spins freely during bench testing before reinstallation.
Safety and Overcurrent Protection
Verify the presence of the main fuse or contactor between the battery and inverter. This component (typically 200–400A) isolates the high-voltage system during faults. Probe its terminals–voltage should drop to zero when the ignition is off. If residual voltage persists, inspect the contactor’s control coil or pre-charge resistor for sticking contacts.
Inspect the ground fault detection circuit. Modern systems use a differential current sensor to monitor leakage. If triggered, the system logs a DTC (e.g., P0AA6). Reset by clearing codes, then monitor for recurrence–frequent trips suggest insulation breakdown in cables or motor windings. Replace affected components without delay; temporary bypasses compromise safety.
