3 Wire AC Proximity Sensor Wiring Guide and Circuit Connection Instructions

Start by identifying the three terminals: power (typically brown or red), output (black or blue), and ground (usually blue or green). The brown lead connects to the AC supply–ensure the voltage matches the device’s rating (common ranges: 20–240 VAC). Verify the datasheet for exact specifications; deviations risk permanent damage. For industrial setups, insert a 1–2 amp fuse in series with the power line as a precaution against short circuits.

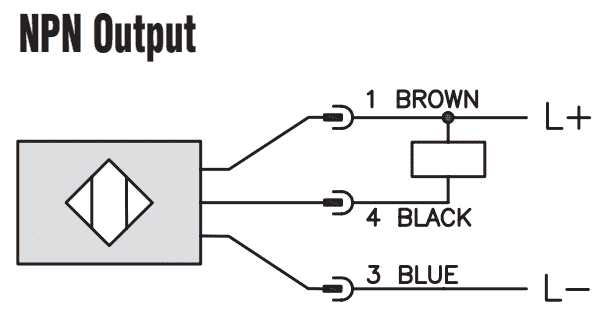

Output terminal behavior varies by model–NPN types sink current to ground when activated, PNP sources current to the load. Confirm the correct type before proceeding. Connect the black or blue output lead to the control circuit input (PLC, relay, or indicator lamp). Use a 1 kΩ pull-up or pull-down resistor if the input lacks built-in bias, preventing false triggers.

Ground the blue or green terminal to the system’s earth reference. In noisy environments, twist all three leads together with shielding connected at one end to the ground point. Keep the detection face at least 2 mm from metallic targets for consistent switching–consult the manual for exact standoff values. Test operation with a multimeter measuring output voltage between the signal lead and ground before integrating into the larger system.

Avoid routing AC and signal lines parallel for more than 10 cm–cross-talk can induce erratic behavior. If running long lengths, use a twisted pair for the signal lines and a separate conduit for AC power. For 230 VAC installations, a snubber circuit (100 nF capacitor + 100 Ω resistor in series) across the terminals suppresses voltage spikes from inductive loads.

Connecting a 3-Terminal AC Inductive Detector: Key Steps

Begin by identifying the brown line as the live input–connect it directly to the AC supply’s phase terminal. The blue conductor serves as the neutral return and must link to the neutral bar without splicing. Verify voltage compatibility (typically 90–260VAC) before energizing to prevent device failure.

Secure the black output lead to the load circuit, ensuring the switching element (relay, contactor, or PLC input) can handle the detector’s 200mA max switching current. Use a freewheeling diode for inductive loads exceeding 10W to suppress voltage spikes. For solid-state controllers, confirm compatibility with NPN/PNP logic if interfacing through a sinking or sourcing input.

Ground the metallic housing of the unit to the equipment chassis via a dedicated M4 screw terminal, even if the system operates without earth-grounded neutral. This prevents latent capacitive coupling from triggering false signals. For non-metallic mounting surfaces, a star washer under the sensor’s base improves electrostatic shielding.

Test functionality by adjusting the sensing gap (standard 8mm for 12mm diameter models) while monitoring the output with a multimeter in continuity mode. If the target is non-ferrous, reduce the gap by 30% or switch to an eddy-current type. Log the hysteresis value–commonly 5–10% of the nominal range–to avoid oscillation in applications with variable target distance.

• For 2-wire AC devices, omit polarity checks–brown/blue serve interchangeably as supply and return.
• In high-vibration setups, use Loctite 243 on threads to prevent sensor drift.
• Replace cracked polyamide bodies immediately; they indicate thermal stress exceeding 85°C.
• If integrating with a 24VDC control signal, use an AC/DC optocoupler (e.g., MOC3041) to isolate circuits.

How to Pinpoint the Right Leads on a Tri-Line AC Inductive Detector

Begin by locating the device’s datasheet–most manufacturers etch a miniature symbol near the terminal block denoting the live, neutral, and output connections. If absent, use a multimeter set to AC voltage mode; the lead that remains energized regardless of target presence is typically the power input (often brown).

Check the remaining pair: the one that registers near-zero volts without a target but jumps to line voltage when triggered identifies the signal output (usually black). The third conductor serves as the return path (commonly blue or black-striped), completing the circuit when the internal switch activates.

Color codes adhere to IEC standards but verify with a continuity tester. Attach one probe to the presumed power pin; the other should briefly buzz against the return lead when metal approaches the sensing face. No response confirms an incorrect pairing.

For PNP configurations–prevalent in industrial setups–the output switches to positive potential. Measure between the signal lead and return; a rise from 0 to ~24VAC indicates proper detection. NPN variants behave oppositely, sinking current, which demands reversed meter polarity.

Field-Proven Shortcuts

Snap a ferrule onto each conductor before connecting–this prevents conductor fraying and clarifies labeling. For quick validation, connect the live and return leads to a 24VAC source; the signal pin should draw negligible current until the target nears, evidenced by a sudden current spike on an ammeter.

Inverter-driven systems require filtering–place a 0.1µF ceramic capacitor across the power leads to suppress noise. Confuse brown/blue? Programmatically exclude one lead by testing load behavior: an LED between signal and return will illuminate only when the correct pair is energized.

Devices rated IP67 or higher may hide markings beneath epoxy–consult the physical mounting face: the broadest terminal is typically the power input, while the narrowest corresponds to the output. Never assume symmetry; mismatched impedance can permanently damage the switching element.

Troubleshooting Mismatches

If oscillation occurs at zero target distance, swap the return and signal leads–many units falsely trigger from capacitive coupling. For cable lengths exceeding 50 meters, insert a transistor amplifier at the load end; standard outputs cannot drive inductively loaded circuits over extended runs.

Step-by-Step Guide to Connecting Brown, Blue, and Black Leads

Begin by identifying the power supply terminal–typically a 24V DC output. Attach the brown lead to the positive (+) side of this source. Verify the voltage matches the component’s specifications; deviations may damage the device or cause erratic behavior. If unsure, use a multimeter to confirm polarity before securing the connection.

The blue lead serves as the return path for the control circuit. Connect it to the negative (-) terminal of the power supply or ground reference, ensuring minimal resistance along this path. Poor grounding can lead to false triggers or intermittent failures, so use a dedicated ground busbar if available. Avoid daisy-chaining grounds from multiple devices to prevent noise interference.

For the black lead, follow these variations based on application:

• Normally Open (NO) Configuration: Link the black lead to the input of a PLC, relay, or load (e.g., solenoid valve). When the target is detected, this path closes, completing the circuit.
• Normally Closed (NC) Configuration: Connect the black lead to the load; the circuit remains closed until the target is sensed, then opens. Ensure compatibility with the control system–NC setups are preferable for fail-safe scenarios.
• PNP/NPN Selection: For PNP devices, the black lead sources current when activated. For NPN, it sinks current. Match this to the controller’s input type (sourcing or sinking) to avoid reverse polarity damage.

After securing all connections, power up the system and test functionality. Hold a metal target (e.g., steel plate) within the detection range–no closer than 20% below the rated distance. Observe the load’s response: a relay should click, an LED indicators should illuminate, or a PLC input should toggle. If no reaction occurs, recheck:

1. Supply voltage (±10% tolerance).
2. Ground continuity (resistance <1Ω).
3. Load impedance–excessive current draw (e.g., >200mA) may require an external relay.

For industrial environments, add surge protection near the black lead’s termination point. Transient voltages from inductive loads (e.g., motors, coils) can degrade sensing performance. A flyback diode (1N4007) reverse-biased across DC loads or a varistor for AC applications prevents voltage spikes. Shielded cable (e.g., Belden 9841) is recommended if the run exceeds 10 meters or passes near high-frequency equipment.

Document the setup immediately. Label terminals with the lead color and function (e.g., “Br: +24V,” “Bl: GND,” “Blk: OUT NO”). If integrating with existing machinery, cross-reference schematics–older systems may use different color coding (e.g., red for positive). For future troubleshooting, note the exact distance tolerance observed during testing; hysteresis values typically range 5-15% of the nominal sensing distance.

Common Mistakes When Connecting AC Detection Devices to Electrical Sources

Reversing the live and neutral conductors during installation disrupts normal operation and creates a hazardous condition. Even when the device appears functional, incorrect polarity often leads to erratic triggering or failure under load. Many industrial power supplies label terminals inconsistently; always verify with a multimeter before securing connections. A mismatched neutral introduces leakage current that degrades signal integrity and can trip residual-current devices unexpectedly.

Voltage Mismatches and Load Limitations

Device Rating (VAC)	Safe Supply Voltage (VAC)	Maximum Load Current (mA)
20–265	18–280	200
90–250	85–265	150
24–240	22–250	100

Exceeding the specified input range shortens component life expectancy and risks immediate burnout. Some technicians mistakenly apply a 380 VAC supply to units rated for 230 VAC maximum, assuming the margin covers it–most units lack internal overvoltage protection beyond a narrow tolerance. Similarly, overloading the output beyond its current rating causes overheating; a typical detection module drawing 120 mA should never be paired with a power source rated below 150 mA continuous.

Neglecting to include a proper ground reference invites false positives and susceptibility to electrical noise. Floating installations without a grounded return path accumulate static charges, causing intermittent activation cycles. Shielded cables must terminate at the controller’s metal chassis; omitting this step turns the cable into an antenna, amplifying interference. Always route signal lines away from high-voltage conductors and motors to prevent capacitive coupling–minimum clearance should be 20 cm for every 100 VAC difference in potential.
