Step-by-Step Guide to 3 Phase Wiring Diagrams for Electrical Systems
Connect motors or machinery requiring three distinct power lines using a star (Y) or delta arrangement–each suited for specific voltage demands. A star setup divides voltage across channels, ideal for 380–415V systems, while delta handles lower voltage ranges like 220–240V without neutral.
Mark terminals L1, L2, L3 on all devices to prevent cross-connection faults, particularly in installations with inverters or variable-speed drives. Use color-coded cables: brown (L1), black (L2), grey (L3) for consistency. Terminal strips labeled >10 mm² should accept ring or spade lugs, crimped with 16-ton tools to ensure 20% over-current safety margins.
Ground the system at the primary distribution panel via a dedicated bus bar, isolated from neutral. For 400V star configurations, verify phase-to-phase readings with a 600V CAT III meter–deviations exceeding ±5V indicate imbalance requiring load redistribution or capacitor bank adjustment.
Route shielded cables for control circuits separate from power feeds, bundled in steel conduit if within 30cm of main lines. Label both ends of every conductor with heat-shrink tubing, noting voltage and identifier (e.g., “L2 – 400V Drive Input”).
After assembly, energize gradually using a 3-pole 100A circuit breaker rated for 1.5× the maximum load. Measure current draw across each line with clamp probes–differences >10% signal wiring errors or motor winding defects.
Connecting Tri-Line Electrical Circuits: Critical Configuration Steps
Label each conductor with standardized color codes–brown (L1), black (L2), gray (L3)–and verify insulation resistance before energizing; use a 500V megohmmeter to confirm ≥1MΩ between lines and neutral. Ground the chassis and star point immediately after installation to prevent transient overvoltages, ensuring star-delta starters receive identical voltage across all legs (≤1% imbalance). For motors exceeding 10HP, insert bidirectional surge protectors at the distribution board’s terminals, selecting models rated for 480V line-to-line with a clamping voltage ≤700V.
Route all conductors through conduits with minimum 25mm² cross-section for runs under 30m, doubling to 50mm² for longer distances to reduce voltage drop below 3%. Secure connections with DIN rail-mounted terminal blocks (e.g., Phoenix Contact UT 4-TG) and torque to manufacturer specifications (typically 0.6Nm for 6mm² cables). Test load balancing with a true RMS clamp meter, adjusting currents so no leg deviates more than 5% from the average–failure risks overheating in VFD-driven equipment.
Critical Elements in a Three-Circuit Schematic

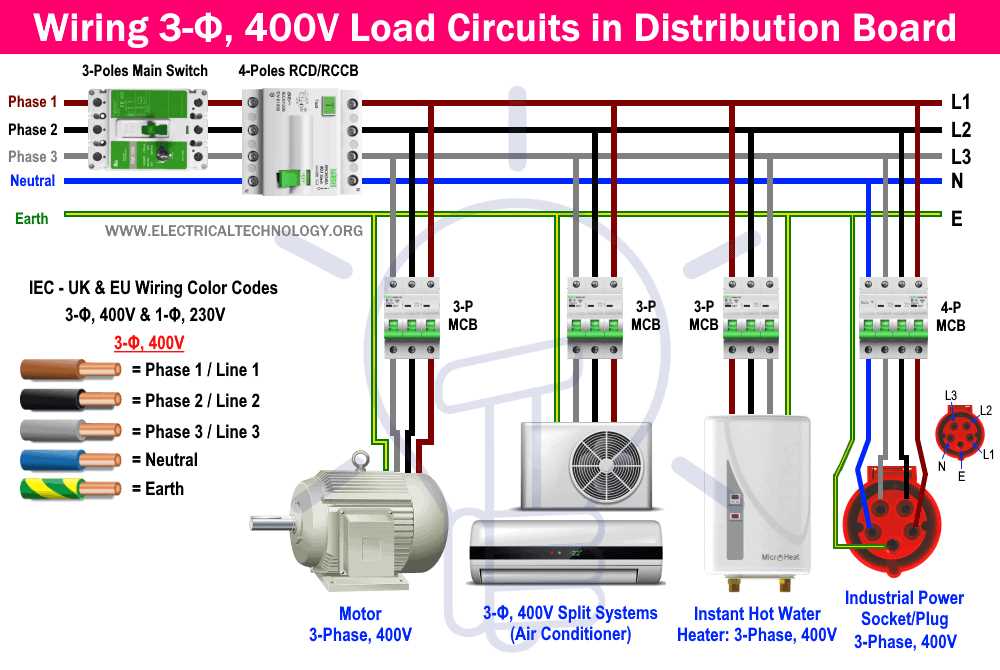

Identify the main conductors first–label them L1, L2, L3 in accordance with international standards like IEC 60446. Verify the voltage rating between each line at 400V (Europe) or 480V (North America) for industrial setups, ensuring compliance with local electrical codes. Mislabeling or incorrect voltage assumptions lead to system failure or equipment damage.
Incorporate an earth conductor (PE) and neutral (N) in the layout, even if the system operates in delta configuration. The neutral stabilizes unbalanced loads, while the earth conductor prevents stray voltages. Use green/yellow for PE and blue for N per IEC 60204-1. Omit these only in isolated systems where strict safety measures compensate for their absence.
Use circuit breakers rated for the specific current–typically 16A to 63A for motors, 100A+ for distributors. Select breakers with thermal and magnetic trip characteristics (e.g., C-curve for standard loads, D-curve for inrush-heavy equipment). Position them immediately downstream of the source to isolate faults at the earliest point. Overlooking trip curves results in nuisance tripping or delayed response to shorts.
Specify cable cross-sections based on load current and installation method. For 35°C ambient, 10A requires 2.5mm² copper in conduit, while 50A demands 16mm². Adjust for longer runs (voltage drop
Include surge protection devices (SPDs) on each conductor if transients exceed 1.5kV. Type 2 SPDs suffice for industrial grids, while Type 1 is mandatory for sites with overhead lines. Mount SPDs at the service entrance and sub-distribution panels, not just at sensitive loads. Ignoring transients shortens motor insulation life by up to 30%.
Mark every splice or termination with heat-shrink sleeves or cold-applied tape, never electrical tape. Terminate aluminum conductors with anti-oxidant paste (e.g., Noalox) to prevent corrosion. Tin copper strands if the environment exceeds 80% humidity. Poor joints introduce resistance–0.1Ω difference raises local temperature by 5°C, accelerating degradation.
Document grounding resistance–target
Constructing a Closed-Loop Three-Line Interconnect
Verify the source voltage rating matches the load demands before initiating assembly. For a 400V system, confirm terminals L1, L2, and L3 output 400V line-to-line using a calibrated meter–deviations exceeding 5% indicate supply irregularities requiring correction prior to connection. Label each conductor distinctly: assign red to terminal A, yellow to B, and blue to C to prevent misalignment during installation.
- Strip conductor ends to expose 15mm of clean copper, removing insulation residue that could impair contact.
- Tighten fasteners to 12 Nm using a torque wrench–loose joints generate resistive heat, degrading performance within hours.
- Route lines along separate conduits where possible; parallel runs closer than 50mm induce inductive coupling, causing 3–7% energy loss.
Connect terminal A to the load’s input lug marked A, ensuring no twist or stress on the conductor. Repeat identically for B and C, maintaining symmetry: misaligned loops create uneven current distribution, reducing motor efficiency by up to 18%. Use heat-shrink tubing rated for 125°C over each joint; adhesive-lined variants prevent moisture ingress in humid environments.
Energize the circuit in stages: first engage the protective device’s test position, then monitor for imbalances with a clamp meter. Acceptable divergence between lines is ≤3A; readings beyond this threshold indicate wiring errors or load asymmetry. Recheck connections if divergence persists–reversing any pair inverts torque direction in rotary equipment, risking catastrophic load coupling failure.
- Attach a ground conductor of equal cross-section to the metallic enclosure, bonding it at two points separated by ≥1m to suppress high-frequency interference.
- Seal unused ports with insulating boots rated for the system voltage; exposed terminals pose arc flash hazards at 400V.
- Document resistance measurements across each pair pre- and post-energization; baseline values should align within 0.2Ω for consistent performance.
Proper Connection of a Star Network for Three-Circuit Systems

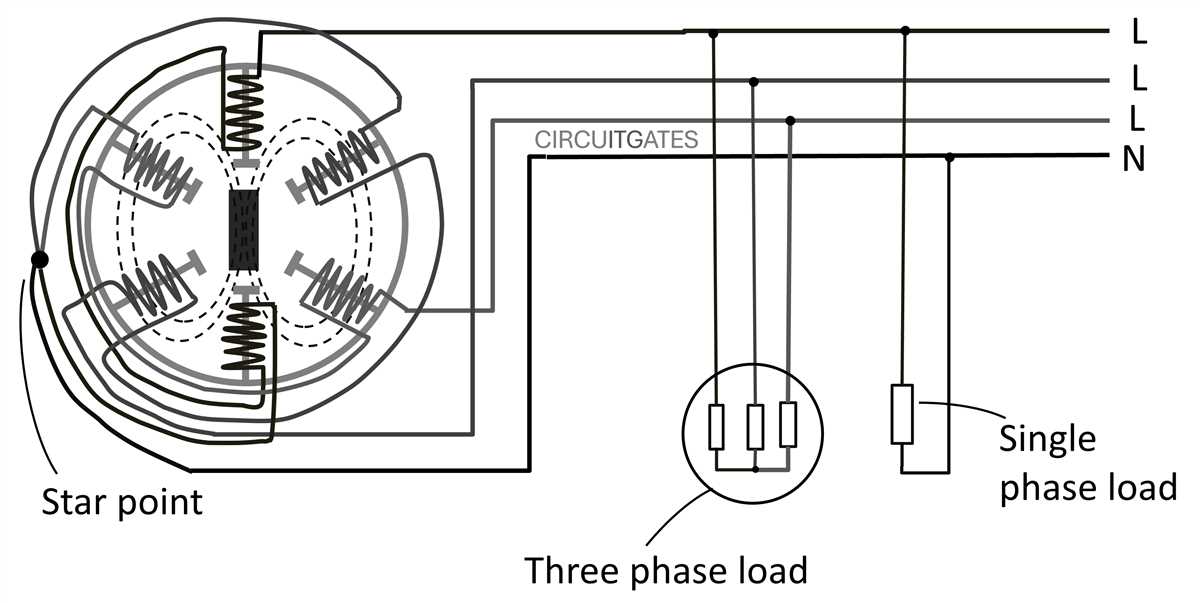

Connect the neutral point first by joining the ends of each coil or winding at a single junction–this creates the star’s central node. Ensure the joint is secured with a crimp connector or soldered splice rated for the expected current; for 208V systems, use at least a 25mm² (4 AWG) conductor if the load exceeds 20A, or 16mm² (6 AWG) for lighter applications under 15A. Verify torque specifications on terminal blocks–typically 1.2Nm for M6 screws on copper busbars–to prevent loose connections that lead to voltage imbalances or overheating.
Route incoming lines to the outer terminals of the star setup, matching each conductor to its corresponding network segment: L1 to the first winding’s start, L2 to the second, L3 to the third. Use color-coded insulation (IEC: brown, black, grey; NEC: black, red, blue) or label each line permanently to avoid misalignment. Test line-to-neutral voltages before energizing–measurements should read 120V for 208Y systems, 230V for 400Y–to confirm symmetry within a 3% tolerance. If asymmetry exceeds this, check for open circuits in individual branches or incorrect conductor sizing. Store spare conductors coiled and capped with waterproof terminals if the setup operates in damp conditions.
| Configuration | Line-to-Line Voltage | Line-to-Neutral Voltage | Neutral Conductor Size (Copper) |
|---|---|---|---|
| 208Y/120V | 208V | 120V | 25mm² (4 AWG) |
| 400Y/230V | 400V | 230V | 16mm² (6 AWG) |
| 480Y/277V | 480V | 277V | 35mm² (2 AWG) |
Ground the neutral node if the system is unbalanced or serving single-circuit loads–use a separate 10mm² (8 AWG) grounding conductor connected to the service panel’s main bonding jumper. Avoid sharing the neutral path with grounding wires downstream of the main disconnect; violations create stray current hazards. For temporary setups, use a clamp-on ammeter to monitor neutral current–readings above 10% of line current indicate harmonic distortion or unequal loading, requiring derating of the neutral conductor or installation of a harmonic filter. When disconnecting, always de-energize the entire network first; residual voltage can persist even after switching due to capacitance in motors or cables.
Common Mistakes When Connecting Tri-Line Electric Motors
Reversing rotation direction by swapping just one pair of conductors instead of two will damage the motor’s internal structure. Always verify rotation using a marked reference lead before finalizing connections. Factory motors often label terminals U, V, and W–ignore these at your peril.
Overlooking voltage compatibility between supply and motor nameplate ratings leads to overheating or catastrophic failure. A 230V motor connected to a 400V line will draw excessive current, exceeding insulation limits within seconds. Use a multimeter to confirm line-to-line readings match nameplate specs before energizing.
Neglecting proper grounding introduces safety hazards and electromagnetic interference. Bond the motor housing to the system’s ground busbar with a conductor no smaller than the main supply cables. Skipping this step increases fault current risks and violates NEC/IECE standards.
Misaligned Star-Delta Configurations

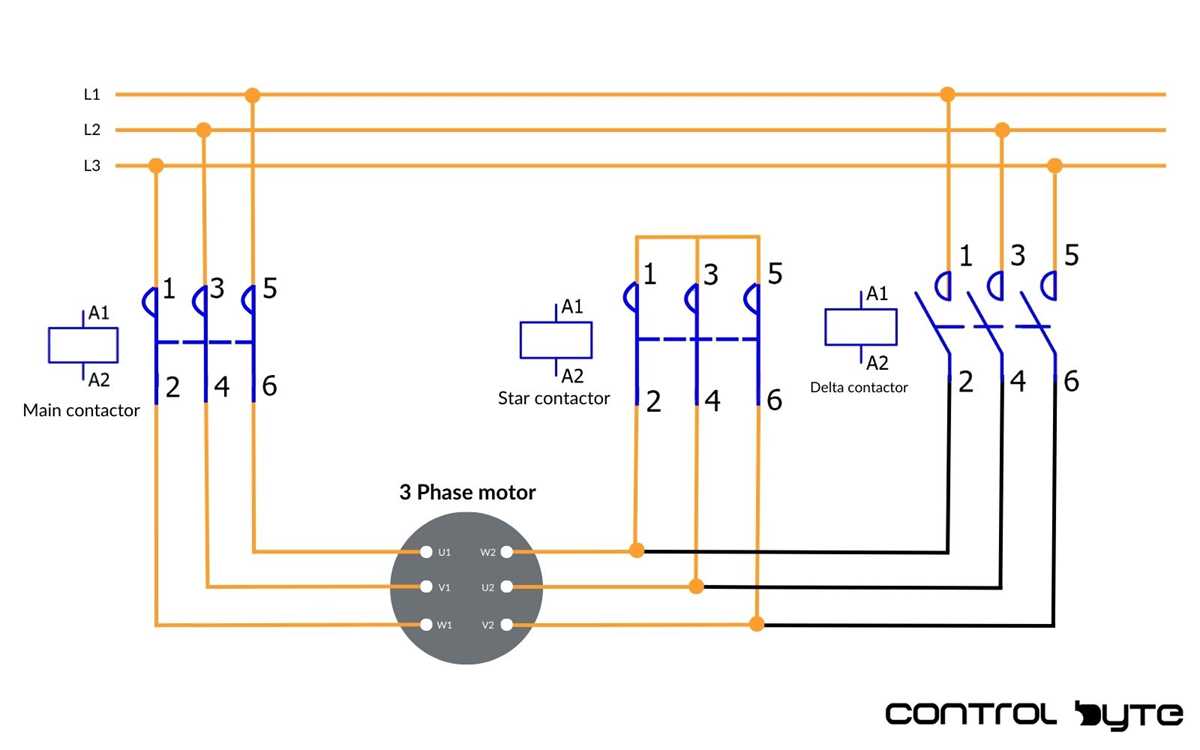

Connecting a delta-rated motor in star without adjusting the starting sequence causes torque deficiencies. Ensure transition timing matches motor inertia–too early switches stress mechanical components, while delays waste energy. Temporary surge currents in incorrectly timed setups can exceed 600% of full load.
Failing to balance load across all three circuits results in uneven heating and reduced efficiency. Measure current draw on each conductor with a clamp meter; deviations above 10% indicate improper conductor sizing or phase imbalance. Unbalanced loads under 75% capacity still degrade insulation life by 30%.
Ignoring thermal protection requirements accelerates motor failure. Most industrial motors require external overload relays calibrated to nameplate values–bypassing these shortens winding lifespan by 40%. Always install PTC thermistors or bimetallic switches for high-inertia loads.
