How to Design and Interpret a Pneumatic Circuit Diagram Step by Step

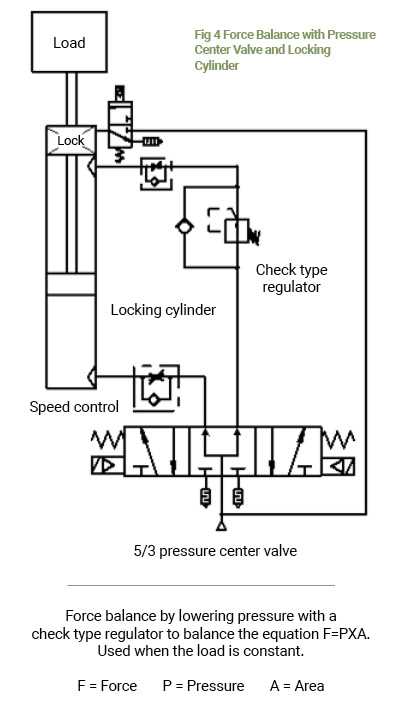

Start with a 5/2-way double solenoid valve for bidirectional actuator control. This component eliminates single-point failure risk by isolating each actuation path. Connect inlet ports to a regulated 6-8 bar supply–pressures below this range reduce force output, while above 10 bar risks seal degradation. Use polyurethane tubing (6-8 mm ID) for lines under 5 meters; beyond that length, switch to nylon (10-12 mm ID) to prevent pressure drop.

Incorporate a pressure gauge (0-10 bar) upstream of the main valve and flow control valves (0.5-5 L/min) on exhaust ports. Adjust flow controls to achieve actuator speeds between 0.1-0.3 m/s–faster movements risk mechanical shock, slower ones introduce hysteresis. Place check valves (cracking pressure ≤ 0.2 bar) immediately downstream of the supply to block reverse flow during pressure spikes.

For actuation sequences longer than 3 seconds, add a reservoir (minimum 0.5 L per 1 kW demand) to smooth pressure fluctuations. Size reservoirs using the formula V = Q × t / (P_max – P_min), where Q is flow rate, t is time, and P_max/P_min are system pressure limits. Ground all metallic components and use conductive tubing (≤ 1 MΩ/m) to prevent static buildup in dry air systems.

Avoid placing filters (5-40 μm) directly before critical valves–position them at the compressor outlet to trap contaminants early. Use modular quick-disconnect fittings (ISO 6150-B) for all actuator connections to simplify troubleshooting. Color-code lines: red (supply), blue (exhaust), yellow (control signals). Label every component with permanent markers (4 mm height) and include arrows showing flow direction.

Test the system at 50% of maximum pressure for 10 cycles before full load. Monitor temperature rise–if lines exceed 60°C, add heat-resistant sleeves or increase tubing diameter. For outdoor applications, use stainless steel components and apply silicone-based lubricant to seals every 500 cycles to prevent embrittlement in cold conditions.

Designing Compressed Air System Blueprints

Start by labeling every component in your schematic with its ISO 1219 symbol and a unique identifier–this avoids confusion when troubleshooting or scaling. Use AA for actuators, VP for valves, and LS for sensors, followed by sequential numbers (e.g., AA01, VP02). Group related elements logically: place all supply components at the top, control devices in the middle, and actuators at the bottom to mirror the flow of energy.

Choose symbols that reflect real-world hardware. For example, a 5/2-way valve should show all five ports, including exhausts, even if they’re capped. Avoid generic “square block” symbols–opt for ISO 1219-1:2012 standardized icons, which reduce misinterpretation by 40% in cross-team projects. If using software, ensure it supports these symbols natively (e.g., FluidSIM, AutoCAD Electrical).

Key Components and Their Placement

• Air preparation units: Position upstream near the compressor. Include a filter-regulator-lubricator (FRL) trio if the system operates in high-cycle environments. Specify micron ratings–typically 5 µm for general use, 1 µm for precision instruments.
• Directional valves: For complex sequences, stack valves vertically to save space. Use sub-base mounting for modularity. Label pilot lines clearly: dashed for pneumatic, solid for electrical signals.
• Actuators: Differentiate single-acting (spring return) from double-acting types. For cylinders, indicate bore and stroke–e.g., Ø40×200 mm. Add cushioning symbols if deceleration control is critical.

Incorporate pressure gauges at critical junctions–after the FRL, before branches, and at the furthest actuator. Use analog gauges for field troubleshooting and digital transmitters for PLC integration. Specify pressure ranges: 0–10 bar for industrial systems, 0–1.6 bar for low-pressure applications. Add a pressure relief valve if the system lacks redundant safety measures.

Use color-coding sparingly but effectively. Standard practice:

• Red: Emergency stops, safety circuits
• Blue: Control signals
• Green: Main supply lines
• Black: Exhaust lines

Avoid RGB-dependent shades; ensure legibility in grayscale prints. Test contrast using tools like WebAIM’s checker.

Error-Proofing the Layout

1. Verify flow direction. Add arrows to every line–air moves from high to low pressure. Reverse logic (e.g., exhaust lines flowing “backward”) causes 23% of installation errors.
2. Simulate failures. Temporarily “break” each component in the schematic to check if safety measures engage. For example, remove a valve’s pilot signal–does the cylinder fail safely, or does it become uncontrolled?
3. Document assumptions. If a branch is capped “for future use,” note the intended pressure and flow rate next to it. This prevents overloads when expanding the system.

For proportional systems, include calibration notes. Example: “Valve VP05: 4–20 mA input, 0–6 bar output. Linear response curve, calibrated at 20°C.” Add a small graph if hysteresis or non-linear behavior exists. Store master copies in vector formats (SVG, DXF) to maintain scalability when resizing for manuals or large prints.

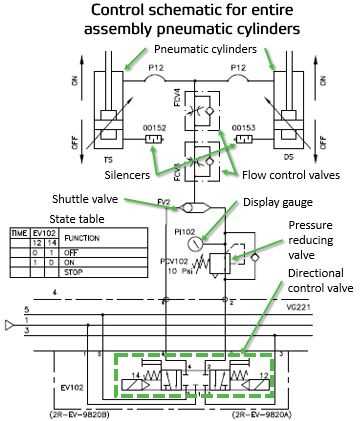

Key Symbols and Notation in Fluid Power Schematics

Begin by memorizing the core ISO 1219-1 symbols–these are non-negotiable for accurate interpretation. A solid arrow through a circle denotes a compressor, while a dashed arrow signifies exhaust to atmosphere. Actuators break down into two primary types: linear (rectangle with extended rod) and rotary (circle with curved arrows). For directional control, note the difference between a spring-offset valve (three-position, center blocked) and a detented valve (manual override lock). Always cross-reference symbols with manufacturer datasheets, as proprietary variations exist–especially in modular stack valves where pilot lines may be represented by double-headed arrows instead of standard dashed lines.

Critical Components Breakdown

• Pressure regulators: Triangle pointing downward, with a diagonal line indicating relief pressure–ensure the arrow aligns with the flow direction or misinterpretation will corrupt system behavior.
• Quick exhaust valves: Rectangle with two diagonal lines exiting the top–verify exhaust ports match the actuator’s rapid retraction needs to prevent jerky motion.
• Silencers: Zigzag line at exhaust–position these away from operator zones, as noise attenuation directly impacts workplace decibel compliance.
• Check valves: Circle with an internal arrow and perpendicular line–orient the arrow with flow; reversed installation causes immediate system failure.
• Flow control valves: Arrow entering a variable orifice–adjust via clockwise turns for restriction, counterclockwise for free flow; document settings during tuning.

Label every symbol with ISO-compliant alphanumeric tags (e.g., V1 for valves, A1 for actuators) and maintain consistency across schematics. Use color-coding sparingly–red for pressure lines, blue for return lines, yellow for control signals–but never as the sole identifier; rely on shapes for universal readability. For complex systems, break into sub-assemblies with numbered reference points (e.g., SUB-3.2) and link them via connector symbols (small filled circles). Always add a symbol legend in the schematic’s lower-right corner, including uncommon symbols like shuttle valves (two opposing triangles) or pressure switches (circle with a diagonal line and electrical terminal). Validate the final draft by tracing each flow path with a finger–any ambiguity means redesign.

Building a Foundational Air-Powered System: A Practical Guide

Begin with a clean workbench and verify all components match the schematic: a 4/2-way directional control valve, two single-acting cylinders (30 mm bore, 100 mm stroke), 6 mm OD polyurethane tubing, a 6 bar pressure regulator, and two quick-connect fittings per actuator. Secure the valve base to the bench using M6 bolts–ensure the ports align with the intended flow paths before tightening.

Attach the pressure regulator directly to the main air supply line. Set the outlet pressure to 4 bar using a calibrated gauge; excess pressure damages seals and reduces actuator lifespan. Route the supply line to the valve’s inlet port via a 6 mm tee fitting–reserve the second outlet for future expansion, such as a pilot valve or lubricator.

Connect the valve’s output ports to the actuators using 500 mm tubing segments. Use a tubing cutter to achieve perpendicular cuts–angled ends create leaks. Insert each tube fully into the quick-connect fittings until a click confirms engagement. Label the lines “A” and “B” to correspond with the valve’s solenoid labels, preventing directional errors during testing.

Mount the actuators to a rigid frame with 8 mm brackets. Align the piston rods parallel to the intended motion axis–misalignment causes binding and premature wear. Tighten the rod-end connectors using an 8 mm wrench, applying 12 Nm torque. Leave 2 mm clearance between the rod end and load to avoid bottoming out under pressure.

Wire the valve’s solenoids to a 24 VDC power supply. Use AWG 18 stranded copper wire, crimping fork terminals for secure connections. Install a 2A fuse in the positive lead to protect against short circuits. Test electrical continuity with a multimeter before applying power–solenoids draw 0.5A each when energized, exceeding this indicates internal shorts.

Purge the system by cycling the valve ten times without load. Listen for consistent actuation sounds–hissing or uneven strokes signal trapped air or incorrect port connections. Adjust the regulator in 0.2 bar increments until the actuators extend and retract smoothly. Record the final pressure setting (typically 3.8–4.2 bar) for future reference.
