How to Wire a Three Pole Toggle Switch Complete Diagram Guide

Use a SP3T (single-throw, triple-contact) configuration for precise circuit control in 12V DC or 120V AC setups. Label the middle terminal as the common input–this is critical for preventing short circuits. Connect the top and bottom contacts to separate load paths (e.g., high/low speed for motors or ON/OFF/ON states for lighting). For AC applications, ensure all wires meet NEC gauge requirements: 14 AWG for 15A circuits, 12 AWG for 20A. Never exceed 80% of the breaker’s rated capacity to avoid overheating.

Ground the housing if the mechanism is metal. Use crimp connectors or solder joints secured with heat shrink tubing for permanent installations; wirenuts work for temporary setups but require torque verification (16-20 inch-pounds). Test continuity with a multimeter *before* powering: expected readings are open/closed/open across positions in a standard sequence. Document the pinout–miswiring can damage components instantly in high-current (10A+) applications.

For momentary contact variants, use diodes across relay coils to protect against voltage spikes. Keep leads under 12 inches to minimize resistance losses–calculate droop at 0.02 ohms per inch for copper. If integrating with PLCs, add a 1kΩ pull-down resistor to prevent floating inputs. Maintain 1/4″ clearance between live wires and grounded surfaces in tight enclosures to prevent arcing at 30V+.

Inspect lever tension during installation–stiff operation indicates bent internals. Replace immediately if clicking feels uneven; compromised mechanisms arc internally. Store spares in climate-controlled spaces (below 80% humidity) to prevent corrosion on terminals. Always verify phase alignment in multi-voltage systems to avoid backfeeding.

Electrical Configuration for Tri-Contact Lever Mechanisms

Start by identifying the common lug–it bridges the central terminal to the side contacts. Use a multimeter in continuity mode to verify which lug remains connected when the actuator moves through positions. Label this clearly to avoid cross-connection errors.

For dual-power source integration, connect the primary input to the common lug, then split the secondary source across the two remaining terminals. Ensure the actuator’s throw aligns with the intended power transition; misalignment risks shorting live circuits. Test with 12V DC before scaling to mains voltage.

In motor control setups, the lever mechanism can reverse polarity by swapping outer lugs. Wire one side to the forward relay, the other to reverse. Add a flyback diode across the motor terminals to suppress voltage spikes when toggling between states.

Color-code cables: red for common, black for ground returns, and distinct colors (yellow/blue) for alternate paths. Strip insulation only enough to fit terminal clamps–excess exposure increases short risk. Secure connections with heat-shrink tubing rather than tape for longevity.

For AC applications, match wire gauge to current draw: 14 AWG handles 15A, 12 AWG for 20A. Fasten the enclosure with non-conductive screws to prevent chassis-ground faults. Verify clearance between live parts and conductor paths–minimum 3mm for 120VAC, 6mm for 240VAC.

In audio routing, the central lever configuration isolates two signal paths from a shared input. Use shielded cable for the common terminal to minimize interference. Ground the shield at a single point to avoid ground loops, and maintain impedance matching (typically 50Ω) across all connected devices.

For fail-safe designs, add a spring-loaded momentary lever with a detent override. Wire the detent lug to a latching relay, ensuring the system reverts to neutral on release. Test durability by cycling 10,000 actuations under load to confirm mechanical integrity.

Document all connections in a labeled schematic using standardized symbols. Note voltage ratings, current limits, and cable types. Include a reference table for quick troubleshooting–e.g., “Terminal A: 12VDC/1A max” or “Lever Position 2: 120VAC/5A.” Archive this with the build for future maintenance.

Understanding Terminal Layout of a Tri-Contact Lever Mechanism

Always identify the common lug first–it’s the central terminal marked with an “ON” label or a distinctive symbol like a dot or arrow. This contact serves as the pivot point, bridging the two outer terminals depending on the lever’s position. Confusing it with the auxiliary lugs risks short circuits or incorrect circuit behavior.

Examine the spacing between terminals; most tri-contact models follow a standardized 0.25-inch (6.35mm) gap, though some high-current variants use 0.375-inch (9.52mm) spacing. Verify these measurements with calipers before soldering to prevent misalignment with PCB holes or wire terminals.

Label each terminal immediately using heat-shrink tubing or colored markers: red for input, black for output, and blue for the auxiliary connection. This color-coding eliminates guesswork during troubleshooting, especially in multi-gang installations where visual clutter complicates diagnostics.

For momentary operation, the common lug connects to the central terminal only briefly when actuated. Check the datasheet–some models invert this behavior, requiring the lever to disengage the common contact instead of engaging it. Misinterpretation here voids safety certifications in industrial control panels.

Heavy-duty variants (20A+) often feature silver-plated lugs to reduce resistance under load. Verify plating thickness; inferior switches use tin plating that corrodes within months in humid environments. Replace suspect units if conductivity drops below 90% of the rated value.

In multi-throw configurations (e.g., DPDT), each side mirrors the other–left and right auxiliary lugs perform identical functions but for separate circuits. Cross-wiring these causes feedback loops, potentially damaging sensitive electronics like microcontrollers or audio preamps.

Mounting orientation affects lever travel–vertical installations require longer travel distances than horizontal ones. Test throw distance empirically; a 30° arc is typical, but some miniature variants reduce this to 20° for space-constrained setups. Over-travel risks mechanical failure in less than 5,000 cycles.

Step-by-Step Connection Guide for Common Circuit Configurations

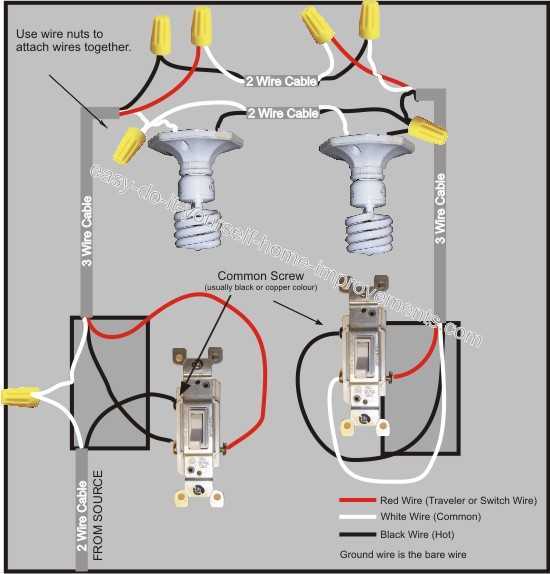

First, identify the three terminals on your control element: the central contact (common), the upper connection (ON), and the lower connection (OFF or alternate). Label each terminal with masking tape if markings are unclear. For a standard on-off setup, link the incoming power source to the common terminal. Connect the load–such as a light fixture or motor–to the ON terminal. Ensure no power flows to the OFF side; verify with a multimeter before energizing the circuit.

Handling Two-Position Selector Modes

To create a selector between two independent sources–like mains and backup power–attach the primary supply to the common terminal. Route the secondary source to the ON terminal and the load to the OFF terminal. This configuration allows toggling between inputs without rewiring. Use a 15-amp fuse or circuit breaker on each input line to prevent overload. Double-check polarity if working with DC applications, reversing leads will damage sensitive equipment.

• For 120V AC systems, splice connections with wire nuts rated for 600V, securing with electrical tape afterward.
• In 240V split-phase setups, connect the neutral wire to the common if required, but confirm local codes; some regions prohibit this.
• For low-voltage DC (e.g., 12V or 24V), use twist connectors or crimp terminals to avoid voltage drop over distance.

When configuring a changeover between two loads–such as dual lighting circuits–wire both terminals to separate fixtures, with the common acting as the switching point. Test both positions individually before energizing the entire assembly. Label wires with their function (e.g., “Light A,” “Light B”) to simplify future troubleshooting. In industrial setups, add a pilot light indicator to confirm active selection.

1. Strip wires to 8-10mm of exposed copper, ensuring no frayed strands remain.
2. Twist strands clockwise before inserting into terminals to prevent loose connections.
3. Tighten terminal screws to 1.2 Nm torque; overtightening strips threads.
4. After securing, tug each wire gently to confirm retention.
5. Enclose the assembly in a junction box with a cover plate to meet electrical safety standards.

Identifying Load Types for Correct Power Distribution

Classify connected devices by their electrical characteristics before establishing circuits. Resistive, inductive, and capacitive loads require distinct handling to prevent inefficiency or damage. Use a multimeter to measure current draw under typical operating conditions–record peak and steady-state values to size conductors and protective devices accurately.

Resistive loads, such as incandescent lamps and heating elements, draw current linearly with voltage. Their power factor remains near 1.0, simplifying sizing calculations. Calculate wire gauge using I²R losses at the expected ambient temperature, ensuring derating factors apply when ambient exceeds 30°C. For a 15A load at 240V, select 14 AWG copper if the run exceeds 50 feet–upgrade to 12 AWG for runs over 100 feet to maintain voltage drop under 3%.

Inductive loads–motors, transformers, and solenoid coils–introduce phase lag, reducing power factor to 0.7–0.9. Account for inrush current, which can exceed 6–10 times the steady-state current for split-phase motors. A 2 HP compressor motor rated at 8A steady-state requires a breaker sized to 125% of the full-load current (10A) and conductors rated for 125% of the nameplate current. Install surge arrestors rated for 30% above the peak inrush voltage to protect adjacent circuits.

Load Type	Peak Current Ratio	Power Factor	Recommended Protective Device
Resistive	1:1	0.95–1.0	Thermal-magnetic breaker
Inductive	6–10:1 (inrush)	0.7–0.9	Hydraulic-magnetic breaker or motor starter
Capacitive	2–4:1	0–0.2 (leading)	Fast-acting fuse or semiconductor fuse

Capacitive loads, including electronic power supplies and LED drivers, exhibit leading power factor (0–0.2) due to stored energy in electrolytic components. Their pulsed current demands oversized neutral conductors in three-phase circuits–size neutrals at 200% of the phase conductor for harmonic-sensitive installations. A 10A LED driver may require a 12 AWG neutral when paired with 14 AWG phase conductors to prevent overheating. Verify manufacturer specifications–some modern drivers integrate power factor correction (PFC) circuits, reducing neutral current requirements to 125% of phase current.

Variable-frequency drives (VFDs) and switched-mode power supplies generate harmonic distortion, necessitating K-rated transformers or harmonic filters when total harmonic distortion (THD) exceeds 5%. Measure THD with a power quality analyzer–common Mode 3 harmonics (150Hz, 250Hz) cause neutral overheating in balanced three-phase systems. For a 5 kVA VFD with THD=12%, install a 15 kVA K-13 transformer to accommodate the additional 30% harmonic current without derating.

Differentiate between continuous and non-continuous loads for conductor sizing. Code mandates 125% sizing for loads operating longer than 3 hours–apply this to HVAC compressors, server racks, and industrial ovens. A 20A server rack breaker must use wire rated for 25A minimum (12 AWG copper at 75°C). Label branch circuits to identify continuous loads–mislabeling leads to nuisance tripping of undersized protective devices.

Test circuit integrity after installation. Use a megohmmeter to verify insulation resistance remains above 1 MΩ for 600V circuits. For sensitive electronics, maintain leakage current below 0.5 mA at the operating voltage–exceeding this threshold indicates degraded insulation or improper grounding. Log all measurements–compare baseline readings annually to detect degradation before failure.

Separate high-inrush loads from noise-sensitive equipment. A motor starter installed alongside precision instrumentation should include a series reactor to limit voltage sags below 10% during startup. For data centers, isolate UPS and IT loads on dedicated transformers–shared circuits with VFDs can induce voltage notching, corrupting sensitive data lines. Implement isolation transformers with electrostatic shielding to attenuate common-mode noise by 40dB at 1kHz.
