How to Correctly Wire Neutrik XLR Connectors Step-by-Step Guide

For balanced audio signal transmission, adhere to the following pin configuration: Pin 1 serves as the ground reference, Pin 2 carries the positive (hot) signal, and Pin 3 handles the negative (cold) signal. This layout ensures optimal noise rejection and signal integrity across cables exceeding 15 meters in length. Deviating from this arrangement risks introducing phase cancellation or RF interference, particularly in low-impedance applications below 600 ohms.

Use oxygen-free copper conductors with a minimum cross-sectional area of 0.12 mm² for each signal path. Shielding should consist of a braided copper mesh with at least 85% coverage density to prevent capacitive coupling from nearby electromagnetic sources. Terminate the cable at both ends with gold-plated contacts rated for a minimum of 1,000 mating cycles to maintain consistent conductivity under repetitive use.

When integrating phantom power, apply a regulated 48V DC supply evenly across both signal conductors through precision resistors rated at 6.8k ohms (±1%). Ensure the connected equipment’s input stage is designed to handle this voltage without degradation to prevent damage to sensitive circuitry. Verify correct polarity by measuring 48V between Pin 1 and each of Pins 2 and 3–the voltages should match within ±0.1V.

Test the completed assembly with an impedance analyzer at 1kHz; balanced line inputs should present a load of 10k ohms (±10%) while outputs must source signals at less than 200 ohms. Any deviation beyond these parameters indicates improper termination or compromised shielding, necessitating rework before deployment in professional environments.

Professional Audio Connector Pinout Guide

Avoid common pitfalls by matching pin 1 to the cable shield at both ends–this prevents ground loops and interference. Use 24 AWG stranded copper wire for optimal signal integrity, especially for long cable runs exceeding 50 meters.

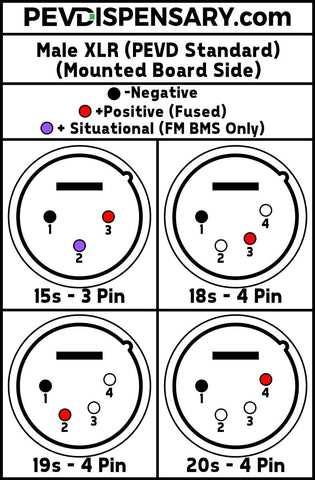

Standard balanced audio interfaces follow a 3-pin configuration: pin 2 carries the hot (+) signal, pin 3 the cold (-), and pin 1 the ground. For stereo setups, use a 4-pin variant where pins 2 and 4 handle left/right channels while 1 and 3 remain ground and shield.

Test continuity with a multimeter before soldering–resistance between corresponding pins should register below 0.5 ohms. Higher readings indicate poor connections or damaged conductors, compromising audio clarity.

For power applications like condenser microphones, verify voltage requirements–phantom power typically runs at 48V DC between pins 2/3 and ground. Ensure the connector’s insulator can handle the load; some cheaper variants fail under sustained high current.

Twist shield strands tightly around pin 1’s post, then solder to minimize stray capacitance. Excessive heat during soldering can melt the connector’s plastic, loosening the strain relief and risking wire pull-out.

Consider color-coding during assembly: red for hot, blue for cold, and green for ground. This simplifies troubleshooting and reduces errors when repairing or modifying connections later.

For stage applications, secure the connector’s locking mechanism with a small zip tie to prevent accidental disconnections. Vibrations from live performances often loosen unsecured interfaces, causing intermittent signal dropouts.

Document each build with a simple schematic showing pin assignments and wire gauge. Store this with spare connectors for quick reference–this saves hours when diagnosing faulty cables in high-pressure environments.

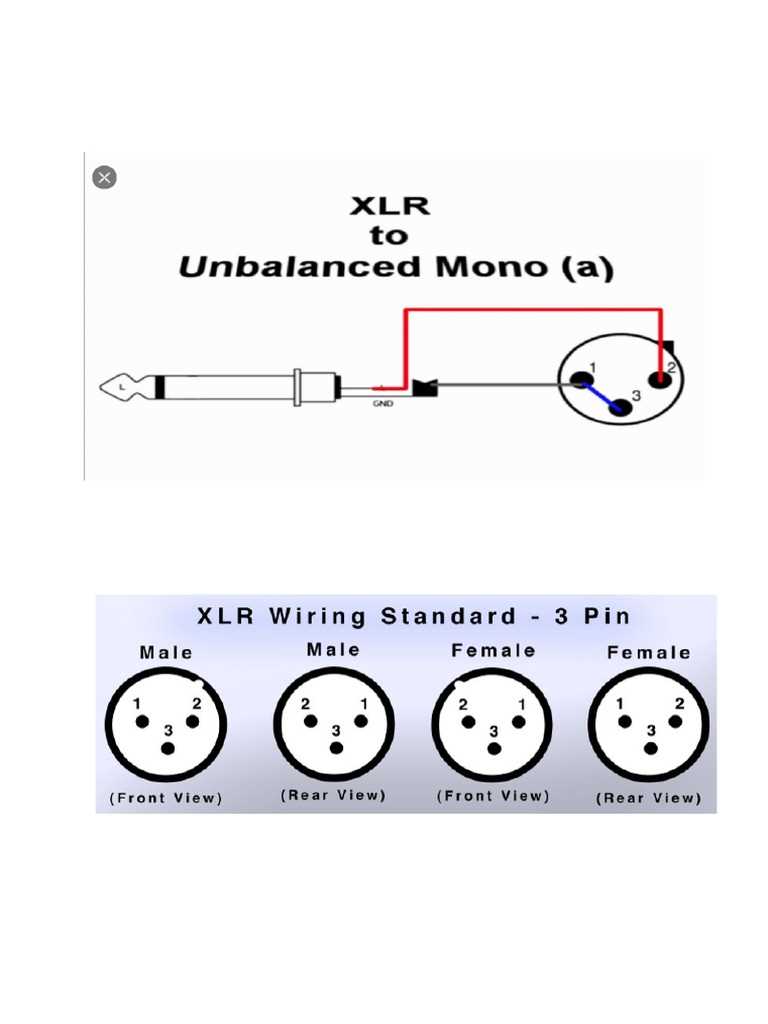

Standard Pin Configuration for Professional Audio Connectors

Always verify the pinout before assembling any balanced audio interface–mistakes here introduce noise, signal loss, or damage. The industry-adopted layout assigns distinct roles:

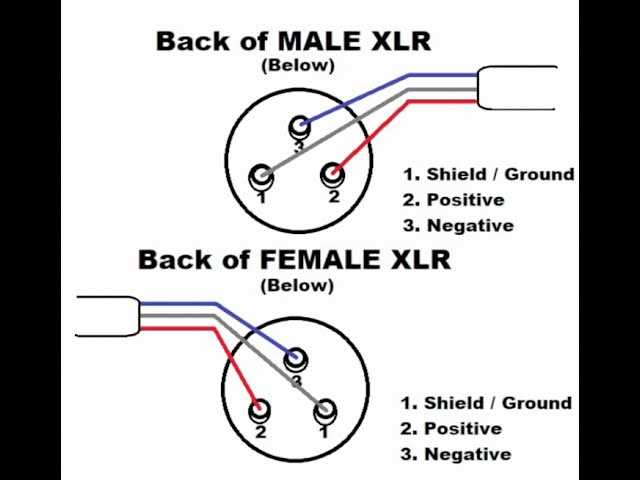

• Pin 1: Shield (ground), directly coupled to chassis to eliminate radio interference and hum.
• Pin 2: Positive (+) hot conductor, carrying the primary audio voltage referenced to ground.
• Pin 3: Negative (–) cold conductor, phase-inverted replica of Pin 2 for common-mode rejection.

Deviations from this sequence–swapping Pin 2 and Pin 3–result in polarity inversion, degrading stereo imaging and low-frequency clarity. When soldering, strip only 6 mm of insulation; excessive exposure risks short circuits under vibration.

Critical Grounding Practices

Never combine signal ground and chassis ground on Pin 1 at the connector body. Dedicate a separate drain wire inside the cable for shield continuity, terminating solely at the source chassis. Failure to isolate grounds induces ground loops manifesting as audible buzz at 50/60 Hz. For temporary setups, disconnect the shield at one end–preferably the receiving end–to break the loop while preserving RF shielding.

Shield termination methods vary by cable type:

1. Braided shield: Fold back braid, tin exposed strands, solder directly to Pin 1.
2. Foil shield: Wrap foil around drain wire, solder both to Pin 1. Avoid soldering to the foil alone.
3. Servo-wound shield: Unwind 1 cm, twist strands tightly around drain, solder composite bundle.

Inspect every joint with a multimeter in continuity mode; infinite resistance denotes a cold solder joint requiring rework.

Balanced Signal Integrity Checks

After assembly, verify balanced operation using an audio analyzer:

• Drive Pin 2 positive relative to Pin 1; measure identical amplitude on Pin 3, 180° phase-shifted.
• Apply a 1 kHz sine at –10 dBV; common-mode rejection should exceed 60 dB across 20 Hz–20 kHz.
• Substitute Pin 2 or Pin 3 to Pin 1–output must drop below –80 dB, confirming balanced topology.

Record these measurements for baseline comparison during periodic maintenance; drift exceeding 3 dB warrants connector replacement.

Termination resistance also affects performance. Standard connectors maintain <0.1 Ω contact resistance; values above 0.5 Ω indicate corrosion or loose fastening. Gold-plated contacts minimize oxidation, critical in environments exceeding 60 % humidity. For installations prone to moisture, apply dielectric grease inside the connector housing to prevent electrolytic migration between pins.

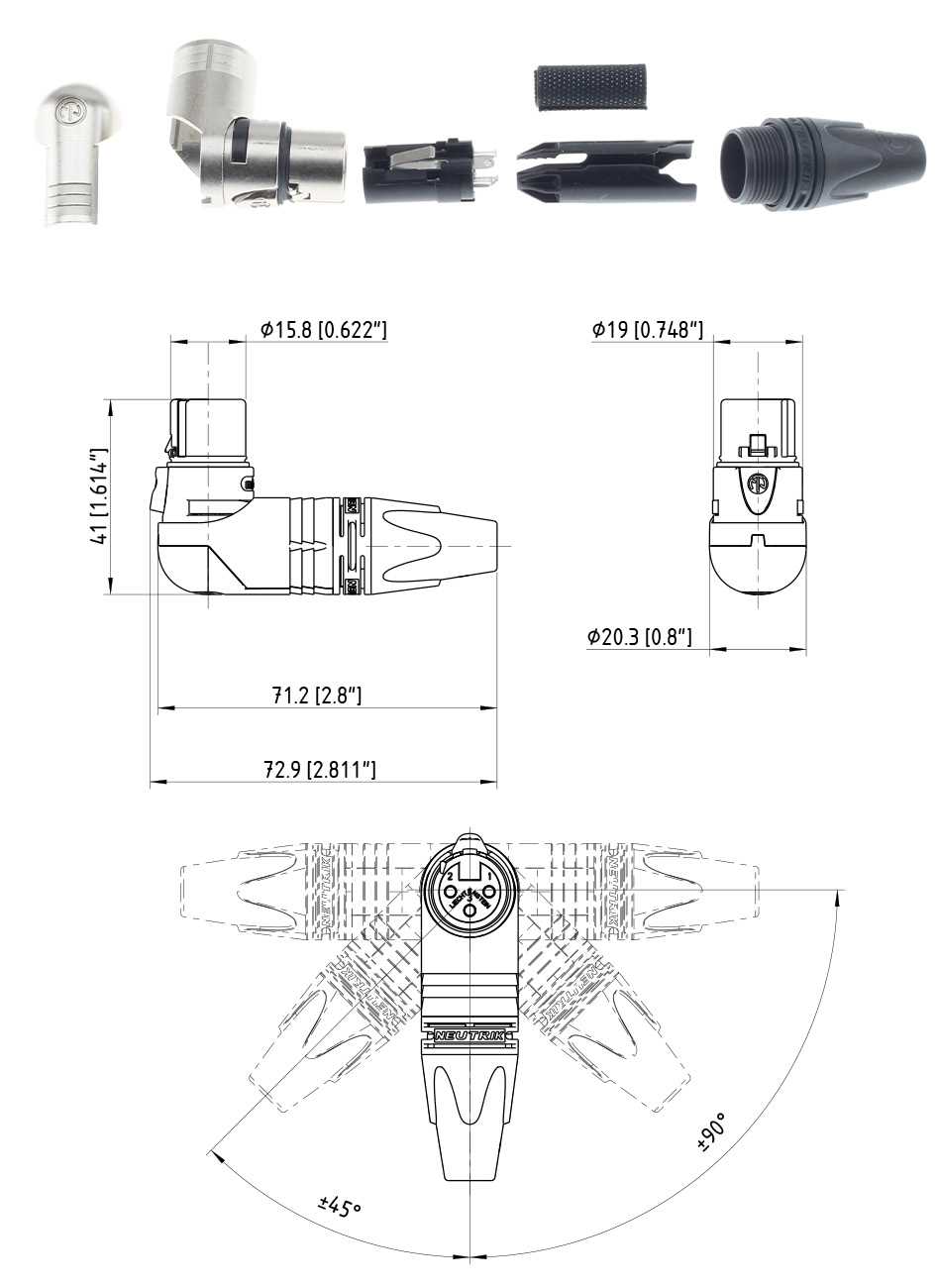

Step-by-Step Guide to Assembling an Audio Connector Plug

Start by sliding the rear shell and insulating collar onto the cable before stripping it. Expose 15–20mm of the inner conductors, leaving the shield braid intact.

Trim the shield so it folds back neatly over the cable jacket. Twist the braid strands into a single bundle to prevent loose strands from contacting the signal pins.

Identify the signal leads: Pin 1 is shield ground, Pin 2 is hot (+), Pin 3 is cold (–). Tin each conductor with minimal solder to prevent oxidation and ensure a clean joint.

Insert the prepared cable into the plug housing. Pin 2 (hot) connects to the center terminal; Pin 3 (cold) to the side. Verify polarity matches the standard AES14 convention before soldering.

Heat each terminal evenly, applying solder until it flows into the contact cup without excess pooling. Avoid overheating, which can weaken insulation or melt adjacent components.

Once cooled, fold the shield braid back over the strain relief sleeve. Ensure no stray strands bridge between terminals, especially near the cold/hot junction.

Secure the insulating collar against the rear of the contacts, aligning the flats with the plug’s indexing notches. Thread the shell tightly to compress the strain relief evenly around the cable.

Test continuity with a multimeter. Pin 1 should show continuity to the shield; Pins 2 and 3 should register infinite resistance to each other and the shield. Verify less than 1Ω between each pin and its solder joint.

Step-by-Step Guide to Assembling an Audio-Grade Female Connector

Strip the cable jacket 20 mm from the end to expose the inner conductors, but leave the foil shield intact until the final step to prevent misalignment. Use a precision cutter to avoid damaging the delicate wires underneath–cross-section damage at this stage leads to signal degradation detectable in high-frequency applications.

Preparing the Conductors for Termination

Separate the three individual wires: hot (typically white or red), cold (black or blue), and ground (bare copper or green). Trim them to staggered lengths–hot to 12 mm, cold to 10 mm, and ground to 8 mm–to minimize short-circuit risks during soldering. Twist the ground strands tightly to prevent fraying when inserted into the connector’s back shell.

Pre-tin each conductor with a temperature-controlled iron set to 350°C. Apply solder for no longer than 3 seconds to avoid heat damage to insulation. The hot and cold wires require just enough solder to fill their respective pins’ hollow cores; excess solder inside the connector housing will interfere with the locking mechanism.

Insert the prepared wires into their designated contact points: hot to pin 2, cold to pin 3, and ground to the chassis sleeve. Secure them with a light crimp using needle-nose pliers–avoid excessive force, as micro-fractures in the contact plating can develop into intermittent failures under vibration. Verify continuity with a multimeter set to 200 ohms before proceeding.

Finalizing the Assembly

Slide the foil shield over the tinned ground wire and fold it backward along the cable jacket, ensuring full coverage without overlap. Press the shield firmly into the connector’s strain-relief clamp–metal-to-metal contact here must be uninterrupted to maintain RF interference rejection. Tighten the clamp’s screws alternately in a star pattern (torque: 0.5 Nm) to distribute pressure evenly.

Test the completed connection with a balanced audio signal at 1 kHz and -10 dBu. Monitor for distortion, phase cancellation, or noise floor elevation–any anomalies indicate poor solder joints or shield discontinuity. Label the connector immediately after validation to prevent polarity confusion in system integration.
