How to Read and Use a 53 Crankshaft Position Sensor Wiring Guide

Begin by locating the signal generator at the engine’s front near the flywheel or harmonic balancer–most V8s use a magnetic reluctance or Hall-effect design. Disconnect the battery before probing connections to avoid shorting the powertrain control module (PCM). Use a multimeter set to DC voltage; at idle, a functioning unit should output 0.5–5V AC for magnetic types or 0–12V DC for Hall-effect variants.

Inspect the harness for brittle insulation, especially where it bends near the exhaust manifold or engine mount. Probe the three wires–signal (typically gray or yellow), ground (black), and reference/voltage (brown or tan)–with a pin test at the PCM connector. If voltage drops below 10V at the reference wire, check the ignition relay or fused PCM power source (often 5A–15A). Corroded terminals at the 16-pin OBD-II port under the dash can mimic sensor failures; clean with electrical contact cleaner and verify continuity.

For intermittent stalls, splice a temporary bypass wire (18-gauge automotive) from the signal wire to the PCM while monitoring scope patterns. A smooth sine wave (magnetic) or square wave (Hall-effect) rules out sensor faults; erratic spikes indicate harness chafing or reluctor wheel damage. Replace any cracked wiring loom sections with heat-resistant braided sleeve, securing with zip ties at 6-inch intervals to prevent vibration wear.

After repairs, clear PCM codes with a scan tool and perform a 10-minute drive cycle to confirm readiness monitors. If the engine runs rough at 2,500 RPM despite correct signals, inspect the reluctor wheel teeth–missing or uneven gaps require machining the crankshaft pulley or flexplate.

Understanding Engine Timing Signal Circuit Layouts

Begin troubleshooting by locating the primary signal wire–typically a shielded or twisted pair–connecting the harmonic balancer reference pickup to the engine control module (ECM). On most GM Vortec platforms, this wire uses a 5V pull-up signal, but Ford and Chrysler variants may rely on a 7–12V square wave. Probe with a voltmeter set to AC mode: crank the engine and verify 0.5–3V fluctuations; values outside this range indicate a faulty pickup or corroded connector. Ground reference integrity is critical–test resistance between the sensor casing and engine block; readings above 0.5 ohms suggest a broken ground strap or paint interference.

Key connections to examine:

• Signal wire: Pink/black (GM), dark green/white (Ford), or violet/black (Chrysler)–trace for nicks from abrasion against exhaust manifolds or A/C lines.
• Return path: Ensure continuity from the ECM ground terminal to the intake manifold or cylinder head; an isolated ground can cause erratic timing signals.
• Power supply: A dedicated 12V feed (usually orange or red) must maintain 11.8V+ during cranking; voltage drop below 9V disrupts pulse generation.
• Shielding: Braided shielding should terminate at the ECM connector, not at the sensor–improper grounding introduces ignition noise mimicking timing errors.

Quick Reference Pinout Variations

1. GM LS-series: Pin A = signal, Pin B = ground, Pin C = 12V–swap Pin A and B if pulses appear inverted.
2. Ford Coyote: Pin 1 = shield, Pin 2 = ground, Pin 3 = signal–verify Pin 1 isn’t shorted to Pin 2 (common on aftermarket harnesses).
3. Chrysler Hemi: Two-wire configuration: Pin 1 = 5V square wave, Pin 2 = ground–oscilloscope should display clean edges; rounded pulses suggest faulty reluctor ring teeth.

For intermittent faults, flex the harness near the valve cover gasket while monitoring live data; glitches during flex confirm insulation breakdown. Replace wiring in 6″ sections–splicing introduces resistance that degrades signal integrity.

Determining the Pins on Your Engine’s Rotational Pulse Connector

Locate the harness plug attached to the magnetic pickup near the flywheel. GM’s LS-series 4.8/6.0L variant uses a three-terminal connector, while the common Vortec iteration employs only two pins. Verify the exact engine code stamped on the block–typically near the bell-housing–to confirm which variant you’re dealing with before proceeding.

Grab a digital multimeter set to 200 Ω continuity mode. Probe each pin against the sensor’s metal body. The signal pin will register ~750-1,200 Ω; the return pin will show the same resistance but zero continuity to ground. The third pin (if present) serves as a shield–expect infinite resistance to both signal and return terminals.

• LS-series (3-pin):
  • Pin A (smallest gauge wire, typically white or tan): signal emitter
  • Pin B (black wire): ground return
  • Pin C (bare or green/yellow shield): interference suppression
• Vortec (2-pin):
  • Pin 1 (thicker gauge, tan/light blue): pulse output
  • Pin 2 (black): common ground

Swap the multimeter to DC millivolts. Crank the engine; the active terminal should toggle between 0.2-4.8V AC (~100-800 mV RMS). If readings are flat, trace the harness toward the PCM–the signal wire is always bundled with the 5V reference circuits (gray or purple wires). Any break or corrosion here kills the sync signal entirely.

Check for terminal corrosion–a telltale greenish crust on the male spade connectors. De-oxide with a nylon brush and contact cleaner, then apply dielectric grease. Avoid abrasives like sandpaper; they strip the thin tin plating, accelerating future oxidation.

1. Disconnect the battery negative terminal.
2. Release the connector lock tab–GM uses a fragile orange plastic clip; pry gently with a flat screwdriver.
3. Inspect the female side for bent pins–common on salvage-yard replacements.
4. Verify wire gauge thickness against a known-good harness–thinner wires (22-24 AWG) are signal, 18-20 AWG are power/ground.

If the PCM throws codes P0335 or P0336, focus on the crank trigger ring gap. Use a magnetic base dial indicator; acceptable runout is 0.003-0.005 inch. Misalignment beyond 0.008 inch causes intermittent dropouts–common after aftermarket flexplate swaps. No wiring fixes will compensate for a mechanically flawed trigger pattern.

Step-by-Step Guide to Locating and Verifying Engine Timing Signal Connections to the Control Module

Begin by securing the vehicle on a stable surface with the ignition off. Disconnect the battery’s negative terminal to prevent short circuits or accidental engine cranking during inspection. Locate the pulse detector–typically mounted on the engine block near the flywheel or harmonic balancer–using the service manual to identify its exact position. Trace the two primary leads: the signal wire (usually a thin, shielded conductor) and the reference ground. The signal lead often terminates at pin A12 or B3 on the PCM connector, while the ground attaches to the engine block or a dedicated PCM pin (commonly B24 or D1).

Inspecting Connections for Integrity

Use a multimeter set to continuity mode to verify the wiring’s path. Probe the pulse detector’s connector pins, ensuring the signal wire shows a direct connection to the PCM without intermediate splices. Check for voltage (0.5–4.5V AC) on the signal lead with the engine cranking–any deviation indicates an open circuit, short to ground, or damaged harness. Examine the harness for chafing, especially near sharp edges or moving components like the exhaust manifold. Replace any wire exhibiting insulation breakdown or corrosion at terminals. For variable reluctance devices, confirm the reluctor wheel’s teeth are undamaged and properly aligned with the detector’s pickup window.

Reconnect the battery and perform a scan tool test for error codes P0335–P0339 or U0100. If codes persist, back-probe the PCM connector with the engine running, measuring voltage between the signal pin and ground–expected values are 0.1V–5V AC at idle, rising under load. If readings are absent or unstable, swap the pulse detector with a known-good unit before condemning the harness or control module. Document findings with photographs of damaged sections and label replacement wire gauges (typically 18–20 AWG) to match OEM specifications.

Vortex 5300 Primary Shaft Signal Connector Pinout Colors

Verify harness integrity by matching the engine controller plug’s pin assignments to the following standardized color scheme–deviations typically indicate corrosion, chafing, or incorrect assembly. The 7-pin Delphi connector (Part #12570319) uses three signal wires; any other color suggests aftermarket interference or non-factory repair.

Pin	Function	OEM Wire Color	Expected Voltage (Key ON)
A	Signal Ground	Black with White stripe	0V ±50mV
B	Reference 5V	Dark Blue	4.8–5.2V
C	Pulse Output	Yellow	~2.5V average AC (0–5V square wave @ idle)

If resistance between B and A exceeds 5Ω, inspect for loose terminals or water intrusion–common failure points at the bell housing harness grommet. Shielded twisted pair should maintain

For 2007–2013 models, GM added a shielding layer (clear adhesive tape) to reduce EMI; check continuity along the tape path from the engine loom to the PCM harness splice near the brake booster. Aftermarket sensors lacking this shielding often trigger P0336 without physical harness damage–revert to OEM component for consistent signal integrity.

How to Verify Circuit Integrity in Engine Timing Component Signal Paths

Disconnect the component connector and set your multimeter to continuity mode (200 ohms or lower). Probe the terminal contacts directly–factory specs typically require resistance under 1 ohm between signal wires and ground. If readings exceed 5 ohms, inspect for oxidation at pins or stretched connection points that may disrupt signal transmission.

Check the harness path from the component to the engine control unit. Bend each section gently while monitoring continuity–intermittent breaks often appear at stress points like intake manifolds or suspension mounts. Use a backprobe technique on the ECU connector to isolate faults without damaging terminals.

For shielded cables, test continuity between the drain wire and ground. Resistance should match the vehicle’s wiring manual; deviations suggest shield compromise that could introduce electrical interference. Replace corroded shielding immediately–ignoring it risks corrupt timing signals during acceleration.

If continuity exists but the circuit remains non-functional, measure voltage drop across the power feed line. Apply battery voltage through a jumper wire to the supply terminal, then compare ECU-side readings. A drop exceeding 0.2V indicates high-resistance faults in splices or fuse holders.

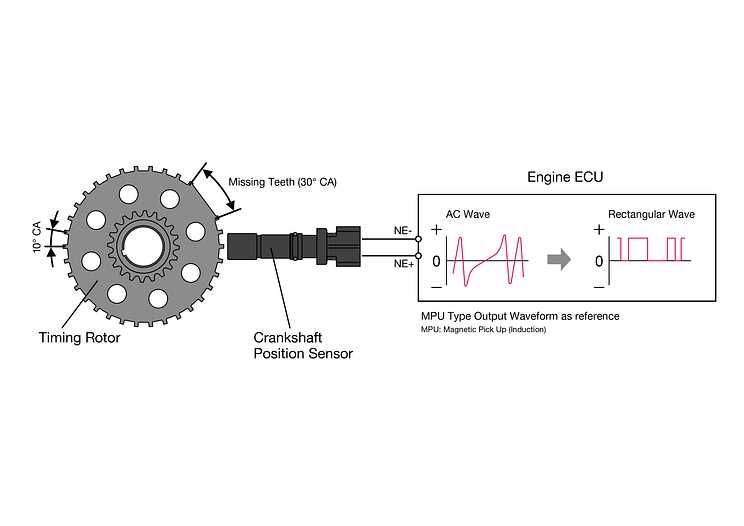

Inspect the reluctor ring for physical damage. Missing teeth or misalignment create false gaps in pulse generation, mimicking circuit failures. Rotate the engine manually while observing signal consistency–variations at specific angles confirm mechanical faults.

For redundant systems, cross-reference continuity with a known-good vehicle’s wiring layout. Manufacturers often use identical color codes across models–verify pin assignments against service documentation before assuming circuit integrity.

Document all findings with photographs. Mark questionable wiring segments with permanent ink for focused repairs. Re-test after each repair step: restored continuity alone doesn’t guarantee signal accuracy if inductive noise persists.
