DIY Seven-Segment LED Clock Circuit Guide with Schematic

Start with a CD4511B BCD-to-7 decoder IC–this simplifies logic translation by converting binary inputs into readable digits on your numeric indicator. Pair it with a 4026 decade counter for driving each digit module independently, ensuring minimal component count while maintaining accuracy. Use a 16 MHz crystal oscillator as the timing source, calibrated with two 22 pF capacitors to stabilize the signal before feeding it into a CD4060 14-stage ripple counter.

For power delivery, a 7805 voltage regulator ensures consistent 5V output, critical for reliable operation. Each digit requires 220Ω current-limiting resistors on its anodes to prevent burnout–calculate values precisely based on your indicator’s forward voltage drop. A common cathode configuration works best for multiplexing; connect the cathodes through NPN transistors (2N3904) for switching control, reducing ghosting.

To sync timekeeping, cascade two CD4518 dual BCD counters for seconds and minutes, then route the output to your decoder chips. Add a push-button debounce circuit using a 10 kΩ resistor and 0.1 µF capacitor for manual time adjustment. For visual clarity, use green 1-inch indicators with a 3.2V forward voltage rating–brightness remains stable even under multiplexing.

Minimize interference by keeping signal traces short and separating high-current segments from logic paths. Test each digit’s response with a logic probe before final assembly; verify that counters advance correctly and decoders output the expected patterns. For extended longevity, add a 100 µF bulk capacitor near the power input to handle transient loads.

Building a Numerical Indicator Timekeeper: A Practical Schematic Guide

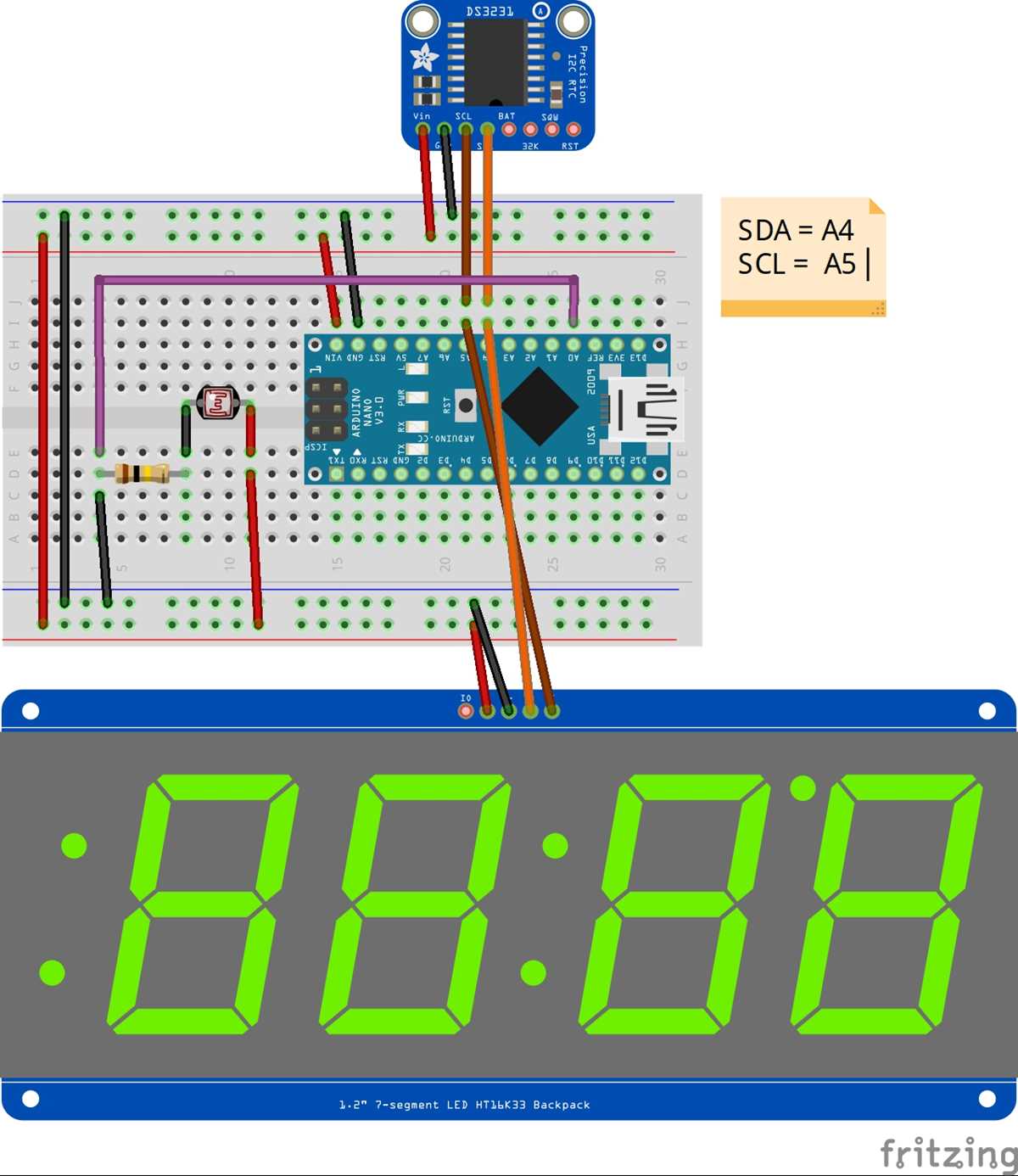

Begin with a microcontroller like the ATmega328P–its 32KB flash suffices for driving four numeric indicators without multiplexing overhead. Pair it with a DS3231 RTC module for temperature-compensated accuracy (±2 ppm), avoiding discrete crystal oscillators that drift ≥20 ppm.

Wire each LED digit using common-cathode arrangement for simpler current limiting. Use 220Ω resistors per segment to balance brightness (5mA per LED) while preventing thermal runaway. For dual-digit models, add HCF4511 BCD decoders to reduce I/O pins from 28 to 4 per numeral.

• Power requirements: 5V regulated input (7805 LDO) with 10μF decoupling capacitors near the microcontroller.
• Timekeeping backup: CR2032 coin cell on the RTC module retains settings for ≥5 years.
• Optional alarm: Connect a 555 timer in astable mode to drive a piezoelectric buzzer at 4kHz.

Layout considerations: Keep trace lengths under 10cm between the RTC and microcontroller to minimize noise-induced timing errors. Route VCC and ground as a contiguous plane on a double-sided PCB, avoiding daisy-chaining power rails.

Programming: Use Timer1 interrupts at 1Hz from the RTC’s SQW output to trigger numeral updates. Avoid floating-point calculations–convert time to packed BCD (hours/tens/minutes) before output. Example snippet:

ISR(TIMER1_COMPA_vect) {
time_raw = RTC_read();
PORTD = dec_to_sevenseg(time_raw % 10);
}

Troubleshooting tips:

1. Flickering numerals? Check for stale I2C bus lines–add 4.7kΩ pullups.
2. Dim digits? Switch to 330Ω resistors or PWM the common cathode via a ULN2003 Darlington.
3. Ghosting? Insert a 10μs delay between switching numerals to prevent residual charge buildup.

For compact builds, substitute SMD 0805 components: resistors, capacitors, and the RTC’s SOIC footprint. Use a stencil for solder paste application–hand soldering leads to inconsistent joints under SMD LEDs.

Expand functionality by adding a rotary encoder (EC11 with debounce capacitors) for manual time adjustment. Daily accuracy logs can be stored in EEPROM (ATmega328P’s 1KB) or streamed via UART to a host device at 9600 baud.

Selecting Optimal Numeric Indicators for Timekeeping Projects

Prioritize common-cathode LED modules for projects requiring low-power operation. These units consume 5-20 mA per element at 2-2.2V forward voltage, making them ideal for battery-driven designs. Common-anode variants demand higher current sourcing but simplify multiplexing schemes, with typical values of 8-25 mA at similar voltage drops. Compare brightness ratings–200-300 mcd for standard types, up to 2000 mcd for high-visibility models–against ambient light conditions in the installation environment.

Match element dimensions to viewing distance using this reference:

Element Height (mm)	Optimal Viewing Range (m)	Typical Current Consumption (per digit)
7.6	0.3-1.2	30-50 mA
14.2	0.8-2.5	50-80 mA
20.3	1.5-4.0	80-120 mA
57.0	3.0-10.0	150-250 mA

Evaluate package options: standard dual-inline (DIP) suits through-hole assemblies, while surface-mount (SMD) variants reduce footprint by 40-60% but require precise reflow soldering. Multiplexed implementations benefit from units with integrated decimal points–verify polarity matches controller outputs. For continuous operation, select models with specified MTBF values exceeding 100,000 hours for industrial applications.

Color selection impacts readability and power demands. Red elements (625-630 nm peak) offer the lowest forward voltage (1.8-2.0V) but may wash out under bright white lighting. Green (525-530 nm) and yellow (585-590 nm) require 2.1-2.2V, while blue (460-470 nm) and white variants demand 3.0-3.4V, increasing power dissipation. Diffused lenses improve viewing angles from ±30° to ±75° but reduce intensity by 10-15%.

Verify datasheet tolerances: element uniformity should deviate less than 10% across a single unit, with brightness matching within 15% across multiple indicators. For outdoor installations, confirm sealing ratings–IP67 for temporary exposure, IP68 for permanent submersion. Driver compatibility tables list sinking/sourcing capabilities; ensure controller outputs exceed indicator requirements by at least 20% to prevent thermal issues during prolonged operation.

Step-by-Step Wiring Guide for a 4-Digit Numerical Indicator Timer

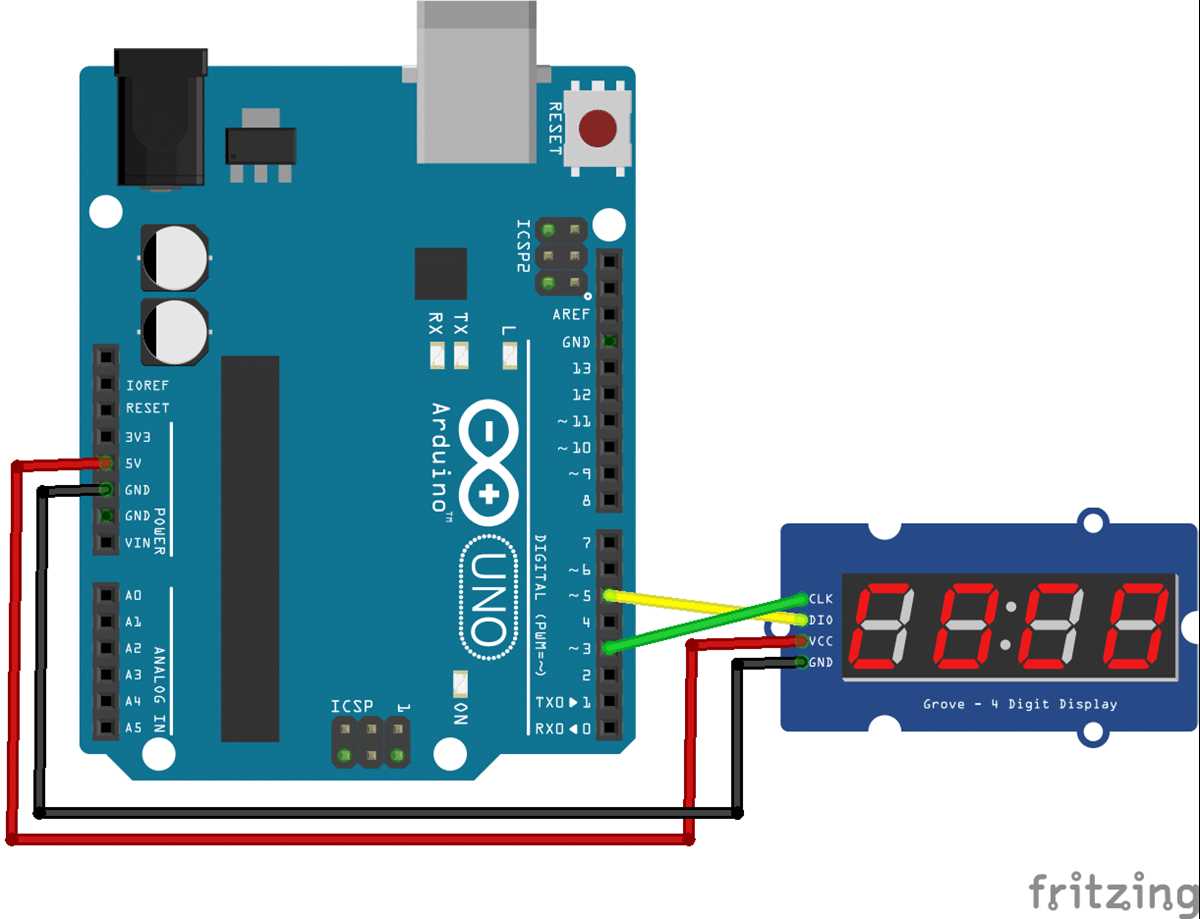

Connect the common cathodes of each numeral block to individual GPIO pins via 220-ohm resistors to limit current. For a TM1637 or MAX7219 controller, pin 1 (VCC) links to 5V, pin 4 (GND) to ground, and pins 2 (CLK) and 3 (DIO) to any two microcontroller outputs–Arduino pins 5 and 4 work reliably. Verify connections with a continuity tester before powering on to prevent short circuits.

Digit-Specific Configuration

Use a 1k-ohm resistor between the microcontroller and each anode line (A-G, DP) for multiplexed setups. Assign Arduino pins 6-13 sequentially to A-G and DP, then pins 2-5 to digits 1-4’s cathodes. For precision, calibrate brightness by adjusting the resistor values–lower for brighter output (minimum 150 ohms), higher for power efficiency. Avoid exceeding 20mA per numeral block to prevent burnout.

Program the controller with a timekeeping library like SevenSegmentTM1637 or LedControl, initializing with the correct pin assignments. Test each numeral block individually before enabling multiplexing to isolate wiring errors. If flickering occurs, confirm all ground connections are secure and reduce the delay between digit refresh cycles below 5ms to maintain smooth visibility.

Microcontroller Selection and Pin Configuration for Timekeeping

Opt for an ATmega328P microcontroller for precision in time-based applications. Its 16 MHz clock speed and 32KB flash memory handle interrupts and real-time updates reliably. Assign digital pins 5-12 for digit multiplexing, reserving Timer1 for accurate 1-second intervals. Use the internal 8-bit Timer0 for debounce handling if switches are included, freeing Timer2 for PWM adjustments if dimming is needed.

The ESP8266 (NodeMCU) offers Wi-Fi synchronization via NTP, eliminating drift concerns but demands careful power management. Dedicate GPIO 4, 5, 12-14 for serial communication and digit control, while GPIO 16 should remain unused due to deep-sleep conflicts. Store time values in RTC memory during power cycles to reduce setup delays. Ensure BOD (Brown-Out Detection) is enabled to prevent corrupt states during voltage drops.

STM32F103C8T6 (Blue Pill) provides 72 MHz performance and dual timers, ideal for high-resolution counters. Allocate PA0-PA7 for numeric output, PB0-PB3 for button inputs, and use Timer3 for periodic interrupts. Configure the microcontroller’s low-power modes if battery operation is required, but avoid STM32F0 series–its lack of hardware division complicates quick arithmetic for time calculations.

PIC16F628A suits low-cost builds with minimal peripherals. Map RB0-RB3 to shift registers for driving digits, and use RB4-RB7 for input triggers. Enable the internal 4 MHz oscillator for stability, disabling the external oscillator pin to save space. Avoid retasking the CCP module unless necessary–its PWM functions conflict with precise timing tasks.

Constructing a Stable Timebase with Oscillators or RTC Components

For precise numerical readouts, integrate a 32.768 kHz crystal oscillator. This frequency ensures exact 1-second pulses when paired with a 14-stage binary counter like the CD4060. The CD4060 divides the signal, generating a 1 Hz output with minimal drift–typically ±20 ppm at room temperature. For improved stability, use a ceramic resonator with built-in load capacitors if cost is critical; expect ±0.5% tolerance, adequate for short-term projects.

Prefer a dedicated real-time counter (RTC) like the DS3231 for applications demanding sub-second accuracy. This component includes an internal temperature-compensated crystal oscillator (TCXO) with ±2 ppm error between 0°C and 40°C. Power consumption is minimal–3.5 µA in timekeeping mode–making it ideal for battery-powered setups. Connect via I²C (SDA/SCL pins) to microcontrollers at clock speeds up to 400 kHz. Avoid wire lengths exceeding 30 cm to prevent signal degradation.

Oscillator Configuration Best Practices

• Match crystal load capacitance to datasheet specs. For 32.768 kHz crystals, typical values are 6–12.5 pF. Incorrect capacitance causes frequency drift.
• Use a buffer gate (e.g., 74HC14 Schmitt trigger) to condition the oscillator output. This prevents false triggering from noise.
• Decouple power rails with 0.1 µF capacitors near the IC pins. This stabilizes voltage for consistent pulse generation.
• Avoid placing oscillators near heat sources or switching regulators, which introduce jitter.

For low-power designs, select an RTC with automatic oscillator compensation. The PCF8563, for example, adjusts for temperature variations and operates down to 1.0 V. Its clock output ranges from 32 Hz to 32.768 kHz, adjustable via control registers. However, its ±3 ppm accuracy is inferior to the DS3231’s TCXO. Always verify startup time: the PCF8563 requires 2 seconds to stabilize after power-on.

Solder crystals directly to the board to reduce parasitic capacitance from vias or traces. For the DS3231, position the backup battery (CR2032) within 2 mm of the VBAT pin to prevent data loss during power cycles. Replace the battery every 5–7 years; its self-discharge rate (≈1% per month) degrades long-term reliability. For hobbyist builds, a supercapacitor (e.g., 0.1 F) can replace the battery, though it requires a charging circuit.

Troubleshooting Timebase Errors

1. If the numerical counter skips seconds, check for noise on the power rail. Add a 10 µF tantalum capacitor in parallel to the 0.1 µF decoupling cap.
2. Erratic updates often stem from incorrect pull-up resistors on I²C lines. Use 4.7 kΩ for 3.3 V systems and 2.2 kΩ for 5 V. Higher values increase susceptibility to noise.
3. Temperature fluctuations above 1°C per minute can desynchronize inexpensive crystals. Shield the board if the environment is unstable.
4. Verify oscillator startup with an oscilloscope. If the waveform is distorted, increase or decrease the load capacitors in 2 pF increments.

For ultra-low-power applications, pair a microcontroller’s internal oscillator (e.g., ATmega328P’s 8 MHz RC oscillator) with software calibration. While factory-calibrated to ±1%, drift accumulates over days. Recalibrate periodically using an external RTC as a reference. Avoid using internal oscillators for long-term timing; their error compounds to ±3% after six months without calibration.
