Step-by-Step Guide to Air Compressor Pressure Switch Electrical Connections

For reliable activation of high-pressure pump systems, connect the pressure-activated relay to a 120V or 240V power line using 14-gauge copper wire for currents under 15A. Confirm the relay’s rated voltage matches the supply–mismatches risk overheating or failure.

Step 1: Identify the relay’s terminals. Most units label them:

L1/L2 (line) for power input,

T1/T2 (load) for pump motor connection,

U (uncswitched) for earth grounding if required.

Strip 0.5″ of insulation from each wire end. Use crimp connectors for stranded wire to prevent fraying. Secure connections with a torque screwdriver–12 in-lbs for #10 terminals–to avoid loosening under vibration.

Safety lockout: Install a double-pole circuit breaker sized to 125% of the motor’s full-load amperage. For a 2HP motor drawing 7.5A, use a 10A breaker. Bypass capacitors (typically 10μF) across relay contacts reduce arcing.

Test the relay manually by bridging the pressure sensor ports with a jumper wire. If the pump fails to start, check continuity across T1-T2 with a multimeter (should read <0.5Ω). For three-phase relays, verify phase sequence with a phase rotation meter.

Ground the relay chassis to a dedicated earth rod via a 10-gauge green wire. Floating grounds can create hazardous potentials, especially in humid environments.

Pneumatic Device Control Circuit Layout

Connect the pressure regulator’s low-voltage terminal (typically 24V) to the motor start relay coil via a thermal overload protector. Ensure the relay’s common contact bridges to the live input (L1) of the main breaker, while the normally open contact routes to the pump’s primary winding. Ground the neutral (N) from the breaker directly to the motor’s frame–bypass any intermediate terminals. For dual-pressure models, wire the differential gauge’s microswitch in series with the relay coil: when pressure drops below the preset threshold (e.g., 90 PSI), the switch closes, energizing the coil and engaging the drive mechanism.

Label every wire junction with heat-shrink tubing marked by function (e.g., “OL” for overload, “MS” for microswitch). Secure all splices with crimp connectors–avoid twist-and-tape methods. Test continuity with a multimeter before applying power: verify zero resistance across closed contacts and infinite resistance across open circuits. If the pump cycles erratically, check the capacitor’s charge cycle (start vs. run capacitors differ–replace if bulging or leaking). For 240V systems, connect both hot legs (L1/L2) to the relay with 12 AWG wire; use 10 AWG if the unit draws over 15 amps.

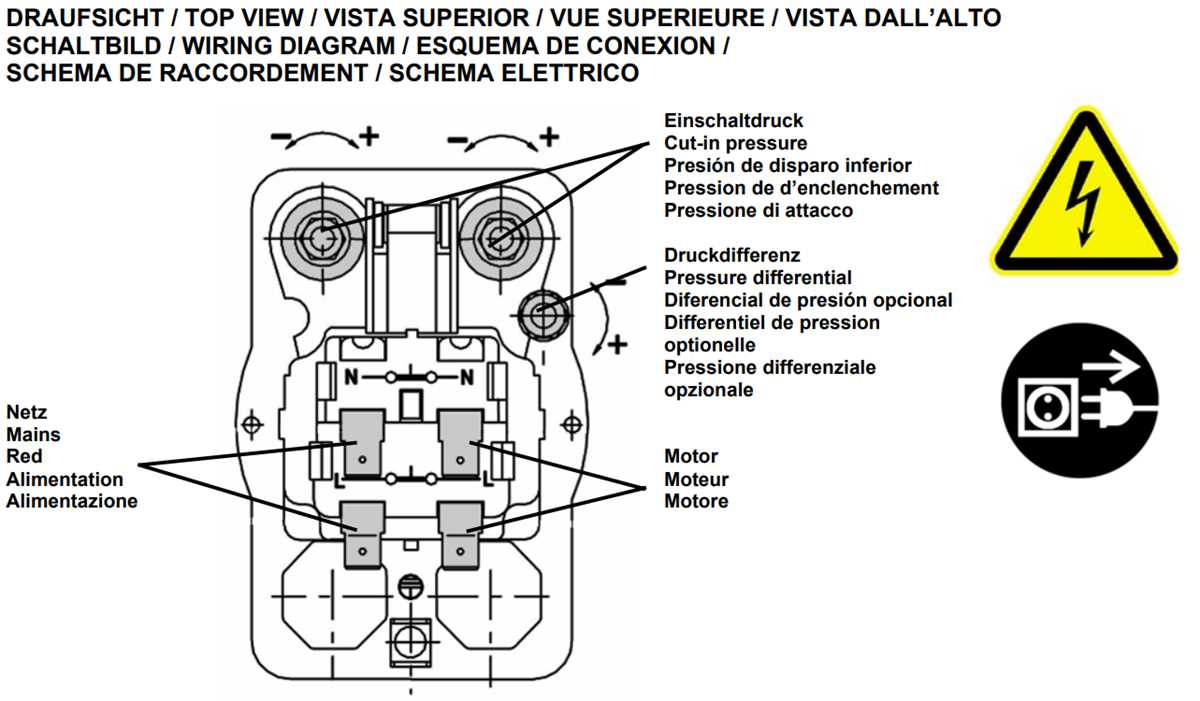

Identifying Terminal Connections on a Pressure Control Unit

Locate the labeled points on the control unit–typically marked as “Line,” “Load,” “Common,” and “Ground” or with numerical codes (e.g., “L1,” “L2,” “T1,” “T2”). The “Line” terminal (input) connects directly to the power source, while “Load” (output) feeds the motor. “Common” serves as the neutral return path for 120V single-phase systems, and “Ground” ensures safety by linking to the chassis. Verify labels with a multimeter: probe “Line” and “Ground” for live voltage, and “Load” should only energize when operating thresholds are met. For dual-voltage models (240V), “L1” and “L2” are hot legs, with “T1” and “T2” corresponding to motor windings.

Match wire gauge to terminal capacity–14AWG for 15A circuits, 12AWG for 20A–to prevent overheating. Strip sheathing precisely: 3/8″ for spade terminals, 1/2″ for screw types. Tighten connections to 12–15 in-lbs with a torque screwdriver; loose terminals arc and fail. Polarized plugs (NEMA 5-15P for 120V, NEMA 6-15P for 240V) dictate correct alignment–swap leads only if the control unit supports reverse polarity. For capacitor-start motors, an auxiliary “Run” terminal (marked “C” or “CAP”) requires a dedicated lead from the start relay. Double-check all splices with crimp connectors rated for 90°C minimum.

Step-by-Step Connection Guide for Single-Phase Pneumatic Equipment

Before handling any electrical components, ensure the power source is completely disconnected. Verify this with a multimeter set to 250V AC–probe the terminals where the motor will connect. A reading above 5V indicates residual current; retry after 10 minutes.

Identify the pressure control device on the unit’s housing. The typical model integrates three terminals: common (C), normally open (NO), and normally closed (NC). Single-phase systems use C and NO for standard operation. Confirm terminal labeling with the manufacturer’s specifications–some variants use numeric markers (e.g., L1, T1).

Locate the motor’s capacitor–a cylindrical or oval component mounted near the windings. Single-phase induction motors require this for phase shifting. Ensure its voltage rating matches or exceeds the supply (e.g., 250V for a 230V system). Replace if bulging, leaking, or showing burn marks on the casing.

• Line connection: Attach the live (hot) wire–usually black or brown–to the pressure control’s common terminal. Use a ring terminal crimped with a 14-12 AWG wire stripper.
• Motor feed: Run a wire from the pressure control’s NO terminal to the motor’s run winding terminal. Most motors label this R or U. Secure with a screwdriver torque of 1.5–2.0 Nm.
• Capacitor bridge: Connect one capacitor lead to the motor’s start winding terminal (labeled S or Z) and the other to the R terminal. Skip this step for dual-capacitor designs, which have a dedicated CS (common-start) terminal.

Ground the system by attaching a green or bare copper wire from the motor’s frame to the pressure control’s grounding screw. If the enclosure lacks a dedicated terminal, drill a hole and secure the wire with a serrated washer. Earth continuity resistance should measure below 1Ω when tested with a digital ohmmeter.

For units exceeding 2 HP, install a thermal overload protector. Wire it in series with the motor’s common winding connection. Set the trip current to 125% of the motor’s full-load amperage (e.g., 8A trip for a 6.5A motor). Check calibration with a clamp meter during a cold start–it should engage within 3–5 seconds under locked-rotor conditions.

Reconnect the power and perform a manual test of the pressure control. Toggle it from auto to off–the motor should start within 1 second and stop completely when the cut-out pressure is reached (typically 120–175 PSI). Listen for irregular humming or single-phasing; if present, recheck the capacitor and winding connections.

Seal all terminals with heat-shrink tubing or electrical tape rated for 600V. Mark wires with polyester labels indicating LINE, MOTOR, and CAP. Store spare 10A fuses and a 30µF capacitor (for 230V systems) on-site for rapid troubleshooting.

Common Mistakes When Connecting Wires to a Pressure-Control Device

Incorrect terminal identification leads to immediate malfunction. Many units label terminals as L1, T1, L2, and T2, but misreading even one letter disrupts operation. L signifies the line side (power input), while T denotes the load side (output). Reversing these causes the device to fail to start or, worse, short-circuit. Always cross-verify terminal markings with the manufacturer’s schematic before securing any connections.

Skipping the pressure gauge check during installation risks improper calibration. A common error involves assuming factory settings match operational needs–most systems require adjustment based on tank volume and usage patterns. Failing to set cut-in and cut-out pressures correctly (typically 90-120 PSI for industrial setups) forces the motor to cycle too frequently, wearing out contacts prematurely. Use a multimeter to confirm voltage at the terminals while adjusting the pressure regulator.

Loose or improperly crimped connectors invite arcing and overheating. Stranded wire exposed beyond the terminal sleeve oxidizes quickly, increasing resistance. Ensure each connection uses the correct gauge (usually 12-14 AWG for standard motors) and a properly sized ferrule or ring terminal. Twisting wires before insertion is insufficient–apply solder or a crimp tool rated for electrical work. Inspect connections under a load test to detect heat buildup.

Overlooked Grounding Requirements

• Using a floating ground or attaching ground wire to a painted surface creates resistance hazards.
• A dedicated ground rod (minimum 8 ft copper-clad) or connection to a verified earth ground is non-negotiable.
• Check ground continuity with an ohmmeter–readings above 0.1 ohms indicate a faulty connection.
• Never rely on metal conduit as a primary ground path.

Ignoring ambient temperature effects on wire insulation degrades performance. PVC-insulated wires lose flexibility below -10°C (14°F) and soften above 60°C (140°F). In high-heat environments (e.g., near exhaust vents), replace with cross-linked polyethylene (XLPE) or silicone-jacketed wires. For cold climates, specify oil-resistant neoprene. Verify derating factors for bundled wires–ampacity drops by 15-30% in groups of three or more.

Disregarding torque specifications when tightening terminals invites loose contacts. Most devices specify 7-9 in-lbs for screw-type terminals; exceeding this strips threads or cracks ceramic bases. Use a calibrated torque screwdriver–finger-tight is insufficient. After securing, tug firmly on the wire; movement suggests a weak connection. Re-torque after initial operation, as thermal cycling loosens terminals over time. Document each step with a witness mark to confirm proper refitting after maintenance.
