Toyota Alternator Electrical Connections and Wiring Guide with Diagram
Start by locating the main power output terminal on the generator–typically marked with a B+ or BAT label. This terminal connects directly to the battery’s positive cable, ensuring stable voltage delivery. For most models manufactured between 1998 and 2012, the wire gauge should be 8-10 AWG for optimal current flow. Verify the connection with a multimeter: ignition off, readings should hover around 12.6V; ignition on, they must climb to 13.8–14.4V. Deviations signal a faulty regulator or poor grounding.

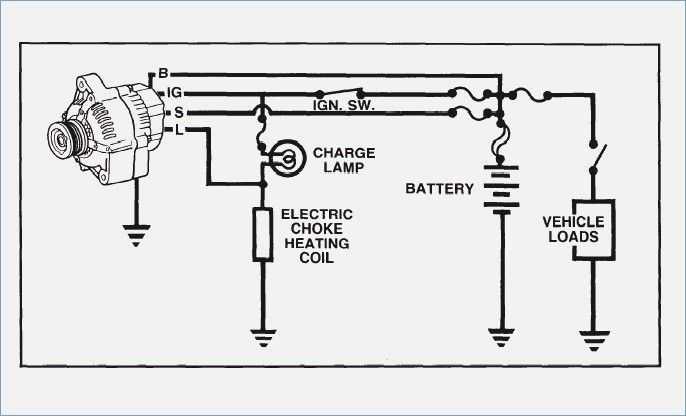

Trace the excitation circuit next. The smaller IG or S terminal (often blue or yellow) links to the ignition switch, while the L terminal (commonly brown) grounds through the charge lamp in the dashboard. If the lamp fails to illuminate during key-on tests, inspect the fuse (typically 10A) and the wire integrity between the terminal and dash cluster. Corrosion at connectors, especially near the engine block, causes intermittent charging–clean with dielectric grease after securing contacts.

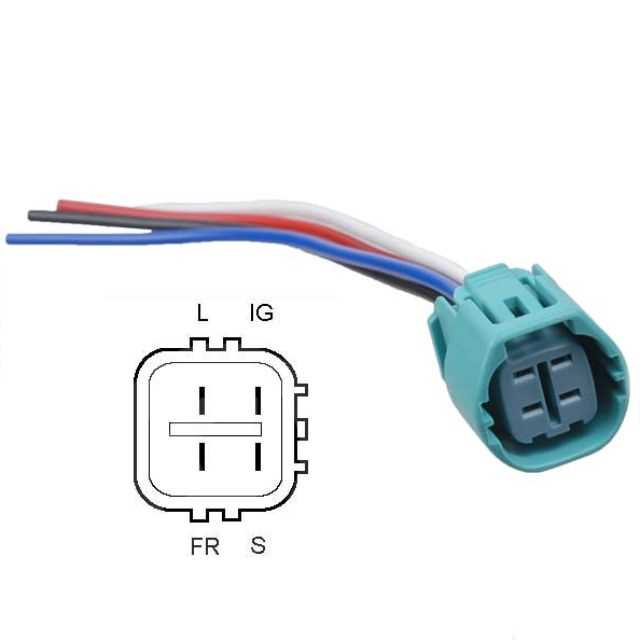

For vehicles with ECU-controlled charging, an additional FR or M terminal (white/red or black/yellow) feeds voltage data back to the engine computer. This wire–usually 18-22 AWG–must remain uninterrupted; splices or breaks trigger false trouble codes (e.g., P0560 or P0620). Test continuity with the engine off: resistance should not exceed 0.5 ohms. Replace the wire if readings spike or fluctuate.
Grounding paths demand equal scrutiny. The generator’s case bolts to the engine block, but auxiliary grounds (often black, 12-14 AWG) reinforce stability. Remove, clean, and reattach grounding points near the strut tower or firewall–oxidized metal creates voltage drops, mimicking battery drain. For hybrid models (e.g., Prius 2010+), isolate the high-voltage circuit before touching any connector: use insulating gloves and disconnect the HV battery service plug first.

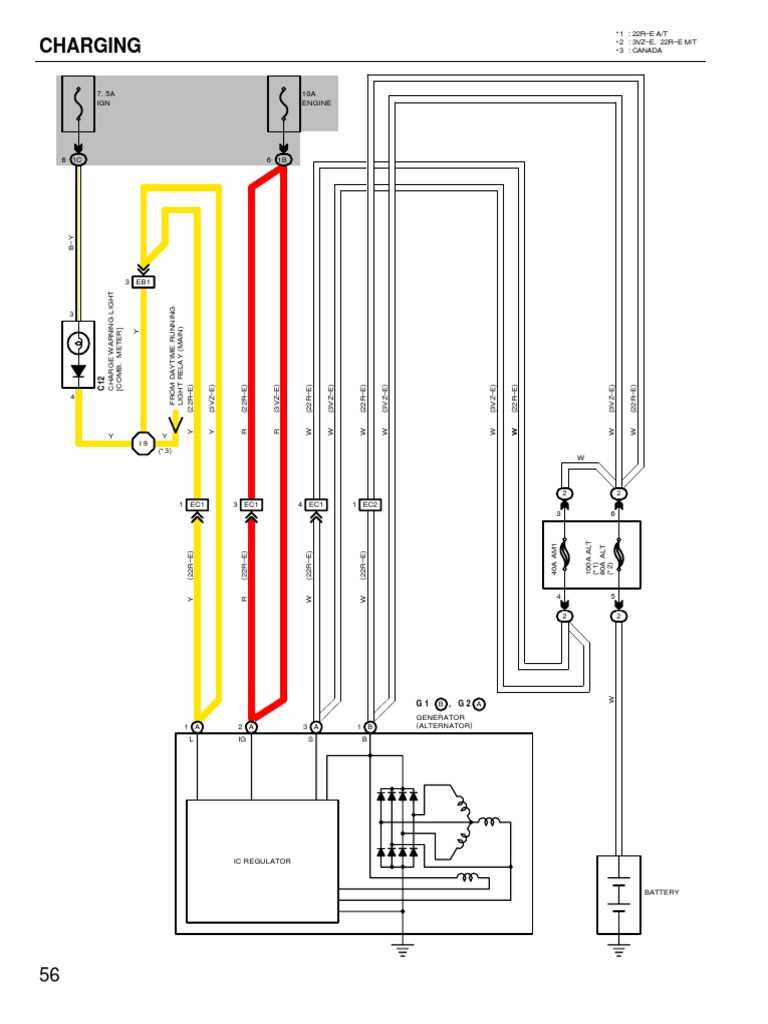

When reassembling, route wires away from moving parts (e.g., belts, pulleys) and heat sources (exhaust manifolds). Secure with loom tubing or zip ties at 6-inch intervals. Label each connection with heat-shrink markers for future diagnostics. For context: factory schematics are in the repair manual’s Section EG (Engine Electrical) or accessible via AlldataDIY and Mitchell1 databases under “Charging System”.
Understanding Your Toyota’s Electrical Generator Connection Layout

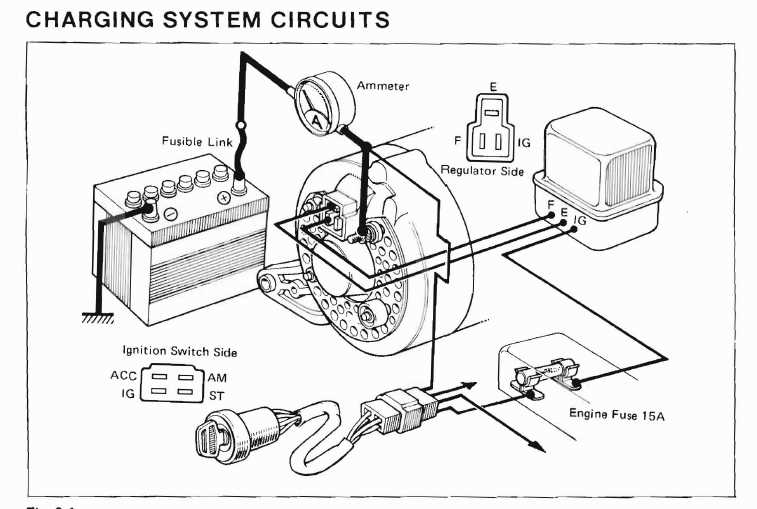

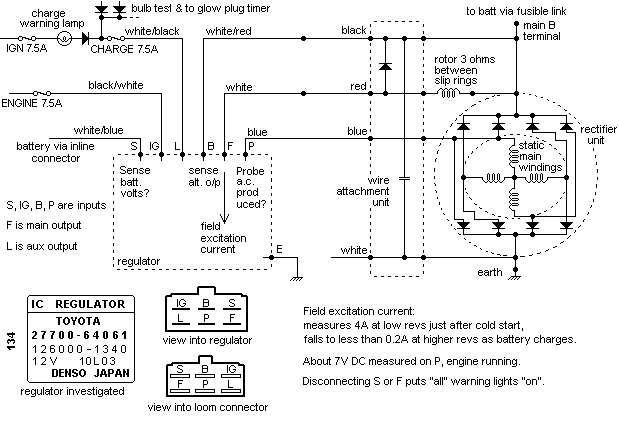

Locate the voltage regulator connector first–it’s typically a two-pin plug labeled “S” and “L” or “IG” and “F.” The “S” terminal links to the battery’s positive side via a 10A fuse, ensuring stable voltage sensing. If absent, voltage fluctuations may trigger false charging issues or battery drain. Verify wire gauge: 14-16 AWG for sensing lines, 10-12 AWG for output.
Trace the output stud–marked “B” on most Japanese market models–to the starter solenoid. This heavy-duty cable (6-8 AWG) carries full current, so corrosion or loose terminals cause voltage drops. Clean connections with a wire brush and apply dielectric grease to prevent oxidation. Replace any frayed or discolored wires immediately; even minor resistance reduces efficiency by 15-20%.
The ignition-controlled terminal (“IG” or “L”) supplies power to the generator’s excitation circuit. On 1995-2004 Corolla and Camry models, this line runs through a 5A fuse before reaching the ignition switch. Check for voltage drops here with a multimeter set to 20V DC range–any reading below 12.4V at idle indicates a faulty switch or ground issue. Bypass interim connectors if voltage restores to confirm the problem.
Ground paths vary by model year. Pre-2000 Hilux pickups use a dedicated engine block stud, while 2001+ models rely on a chassis-mounted brake bracket. Poor grounding mimics failed regulators: dim lights, slow cranking, or erratic gauge behavior. Scrape paint from mounting surfaces and torque bolts to 12-15 Nm. For dual grounding systems (e.g., Land Cruiser 70 Series), ensure both paths conduct uninterrupted–one to the block, one to the frame.
Component Testing Without Full Disassembly
Disconnect the battery negative terminal before probing the charging system. Set a multimeter to ohms mode and measure resistance between the rotor winding (accessed via the pulley-end brush holder) and the output stud. Expected values: 2.5-4.5 ohms for most 3.0L V6 engines, 3.8-6.2 ohms for 4-cylinder units. Readings below 2.0 ohms suggest shorted windings; above 7.0 ohms indicates open circuits.
For field coil testing, connect a 12V test light between the ignition terminal and output stud. With the engine off but ignition on, the light should glow steadily. No light? Check the fusible link–a melted 80A ceramic fuse hidden near the positive battery terminal is a common failure point on older Crown models. Replace with an OEM-style link, not a generic blade fuse, to avoid overheating.
Voltage regulator replacement requires partial disassembly. Remove the rear cover (3-4 Phillips screws) to access the brush holder. Note orientation: exciter brushes face inward on 1GR-FE engines, outward on 1KZ-TE diesels. Reinstall with fresh seals–compressed air leaks cause overheating and premature failure. Reuse the original torque limiter pulley unless visibly damaged; aftermarket units often lack proper heat treatment.
Final verification: monitor charging voltage at 2000 RPM. Target range: 13.8-14.5V for flooded batteries, 14.2-14.7V for AGM types. Deviations outside 0.3V necessitate regulator adjustment or replacement. For ECU-controlled systems (e.g., 1ZZ-FE), scan for DTCs P0560-P0563–code presence confirms electrical mismatches, not just component failure.
Decoding Power Generator Connector Hues in Land Cruiser Models
Trace the thick red cable with a yellow stripe–this is the primary charging line delivering current from the voltage regulator to the battery. On late-90s Hilux variants, this lead merges into a white sheath near the back of the housing; verify continuity before assuming damage if voltage drops below 13.5V. Disconnecting this strand without disabling the main battery terminal risks sparking–always secure the ground clamp first.
Locate the blue wire on the rear multi-pin plug–this feeds the excitation coil, critical during low-RPM operation. A faulty blue connection (often corroded in 4Runner units) mimics a dead unit; test resistance at 3-5 ohms. If readings exceed 10 ohms, scrape the male pin contact with a 16mm wrench edge to restore conductivity. Replace the entire harness only if corrosion penetrates beyond the first 10mm of wire insulation.
Spot the brown or tan strand–this bridges the ignition switch to the internal regulator, activating output when the key turns. On Tacoma 2.7L engines, this line shares a junction with the starter relay, so a short here drains the battery overnight. Isolate it using heat-shrink tubing if brittle casing exposes copper; factory seals degrade after 150K miles.
Examine the black cable, always grounded to the housing or engine block–resistance over 0.2 ohms causes voltage leak. Sand the mounting surface with 120-grit abrasive to remove oxidation; torque bolts to 9 ft-lbs for consistent conductivity. Ignoring this link results in erratic gauge readings and premature brush wear in high-load scenarios.
Guide to Reconnecting the Electrical Generator in Popular Japanese Vehicle Lineups

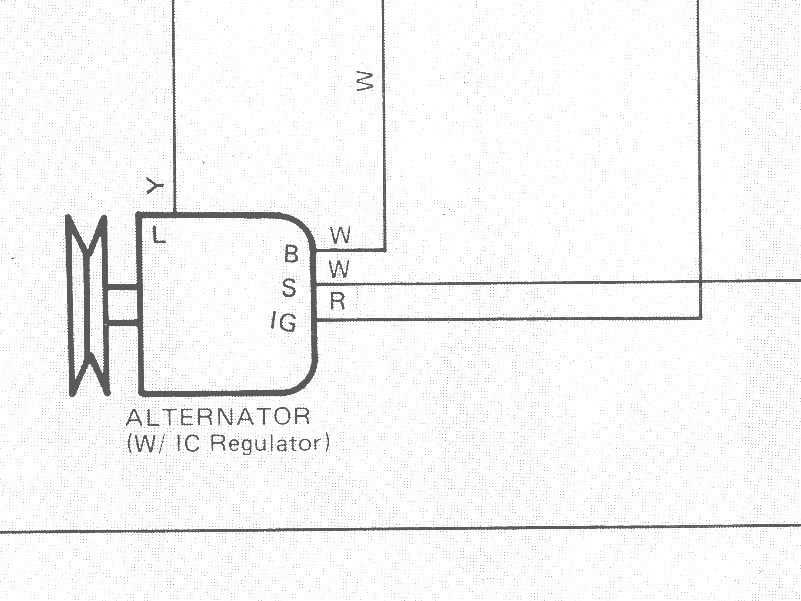

First, identify the correct terminal layout for your specific engine variant–this varies even within trim packages of the same model year. For most Corolla and Camry configurations from 1995 onward, the charging system employs a three-terminal plug: B (battery positive), IG (ignition switch), and S (voltage sensing). Misalignment here causes improper voltage regulation, leading to battery drain or overcharging. Use a multimeter to confirm terminal functions before handling connections–measure 12.6V at B when the engine is off, and 13.8–14.4V during operation.
| Model | Terminal Layout | Wire Gauge (AWG) | Fuse Rating |
|---|---|---|---|
| Camry (2GR-FKS, 2018+) | B, IG, S, L | 6 (B), 10 (IG/S/L) | 120A main fuse |
| RAV4 (2AR-FE, 2013–2018) | B, IG, S | 4 (B), 12 (IG/S) | 100A main fuse |
| Tacoma (2TR-FE, 2016–2022) | B, IG, S, G | 4 (B), 10 (IG/S/G) | 120A main fuse |
Disconnect the negative battery post before working near the voltage regulator–failure to do so risks short circuits to the chassis. On the 4-pin plug found in newer Hilux and Land Cruiser models, pin G (ground) must align with the engine block; corrosion here mimics faulty charging symptoms. For older pickups (e.g., 22R-E engines), inspect the fusible link–a melted segment indicates prior overcurrent events. Replace with identically rated wire (typically 8 AWG for 80A systems).
Reassembly requires securing the voltage regulator plug firmly; a loose connection causes intermittent charging faults detectable only under load. Route all cables away from pulleys and exhaust manifolds–heat degrades insulation over time. After reconnection, start the engine and observe the ammeter or voltage gauge: voltage should rise smoothly to 14.1V (±0.3V) within 10 seconds of idle. Deviations outside this range point to regulator failure or parasitic battery drain, requiring further diagnosis with a scan tool.
For hybrid variants (Prius, 2010–2020), the generator integrates with the inverter–never probe these circuits without disabling the high-voltage system. The DC-DC converter outputs 12V to the auxiliary battery; verify its output at the designated test points (14.0–14.5V). If replacing the entire unit, note the pulley diameter and belt tension specifications–incorrect alignment voids warranty coverage and accelerates bearing wear.
